D Subminiature
Coaxial 90° PCB (Size DD)
Receptacle
Military/High Reliability
75 Ohm Part Numbers* with Metal Bracket and Rivnut #4-40 UNC
Shell Size
DD
DD
DD
DD
Layout
24W7
36W4
43W2
47W1
Part Number
Without Screw Locks
Without Boardlocks
DDMMP24C7SJ
DDMMP36C4SJ
DDMMP43C2SJ
DDMMP47C1SJ
Part Number
Without Screw Locks
With Boardlocks
DDMMC24C7SJ
DDMMC36C4SJ
DDMMC43C2SJ
DDMMC47C1SJ
Part Number
With Screw Locks
Without Boardlocks
DDMMD24C7SJ
DDMMD36C4SJ
DDMMD43C2SJ
DDMMD47C1SJ
Part Number
With Screw Locks
With Boardlocks
DDMMG24C7SJ
DDMMG36C4SJ
DDMMG43C2SJ
DDMMG47C1SJ
Note: *For 50 Ohm Coaxial substitute X for C. Example: DDMMG36X4SJ
Reader’s Resource
For contact cavity arrangements,
see page 223.
For P.C. hole patterns, see page 233.
For panel cutouts, see page 221.
For hardware views (Standard), see page 226.
For alternate bracket configuration (when
connectors are supplied without boardlocks),
see page 226.
For alternate 50 Ohm coaxial configuration,
see page 225.

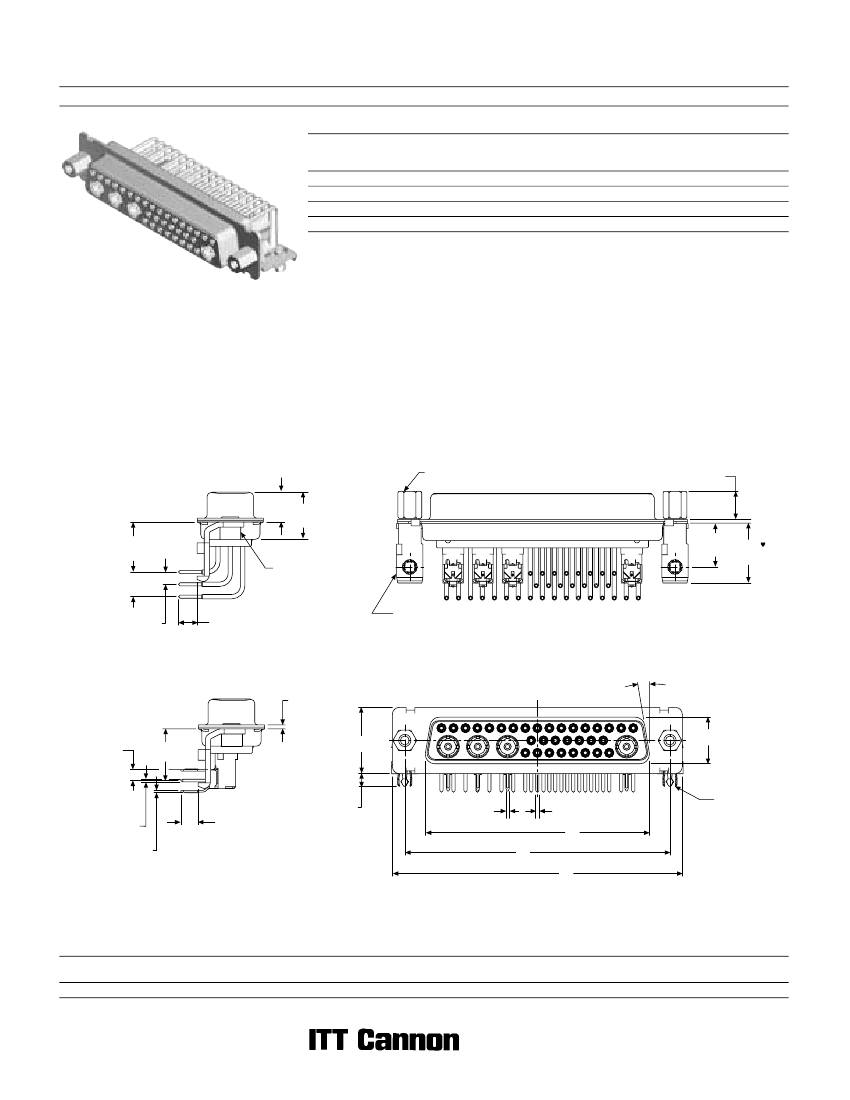

SCREW LOCK
#4-40 UNC
W
11,53
±
0,25
(.454
±
.010)
5,68
(.224)
4,33
±
0,38
(.170
±
.015)
RIVNUT
#4-40 UNC
BRACKET,
METAL
6,50
±
0,25
(.256
±
.010)
F
10,06
(.396) 13,74
(.541)
2,84 (.112)
Screw lock, boardlock, and coaxial contacts
removed for clarity
Engaging Face
10°
L
2,54
(.100)
11,94
±
0,33
(.470
±
.013)
E
D
Ø 0,51
(.020)
0,56
(.023)
3,89 (.153)
MIN
2,92
(.115)
0,82
(.032)
Ø 0,76
(.030)
B
C
A
BOARDLOCK
Screw lock, boardlock, and signal contacts
removed for clarity
Note:
Dimension varies with alternate bracket configuration, see Reader’s Resource page 226.
Dimensions
Shell Size
DD
A
±0,38
(.015)
66,93 (2.635)
B
±0,13
(.005)
52,42 (2.064)
C
±0,13
(.005)
61,11 (2.406)
D
±0,13
(.005)
10,74 (.423)
E
±0,38
(.015)
15,37 (.605)
F
±0,25
(.010)
10,90 (.429)
W
±0,38
(.015)
6,94 (.273)
L
±0,25
(.010)
0,76 (.030)
Dimensions are shown in mm (inch)
Dimensions subject to change
