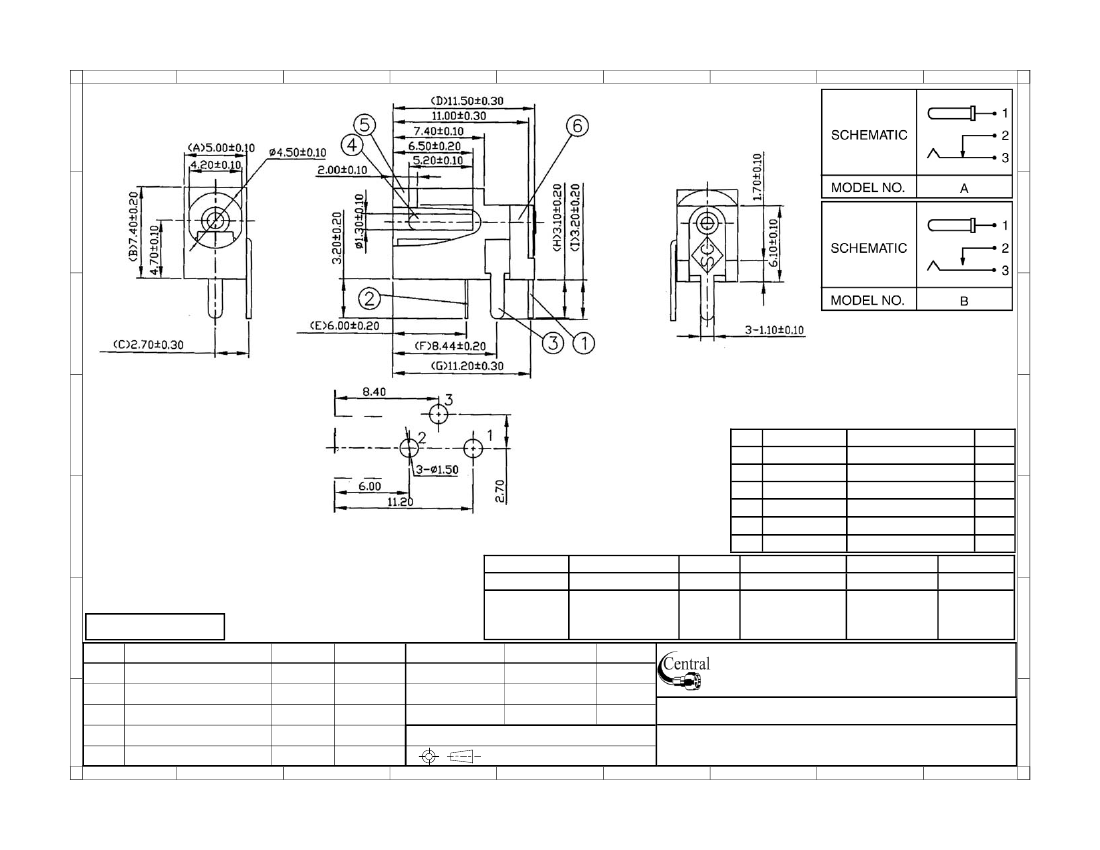

SPECIFICATIONS
Contact resistance:
Insulation resistance:
Withstanding:
30 milliohms max.
100 megohms min.
500VAC for 1 min.
Pin Hole Jack
(Jack Bottom View)
F
RoHS compliant
Rev.
Description
Date
Approved
Name
Pin terminal
Sleeve spring
Break terminal
Pin (ø1.3)
Housing
Cover
Series
Style
Pin Size
Circuit
DCJ
D420
D
X
DC power jack Side entry w/ switch D=1.3mm A=Normally closed
B=Normally open
Date
08/10/99
08/10/99
08/10/99 Part No.:
Item
1
2
3
4
5
6
Material
Finish
0.4T brass
Silver
0.25T phosphor bronze Silver
0.4T brass
Silver
Copper
Nickel
PBT+15% glass fiber
Black
PBT
Black
Terminal Plating
Options
S
X
S=Silver (std)
F=Flat tail
K=Kinked tail
P=Press fit
D
E
F
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
G
DCJ-D420-D-X-S-X
7
8
9
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6
Description: DC power jack
G
1
2
3
4
