LED Power

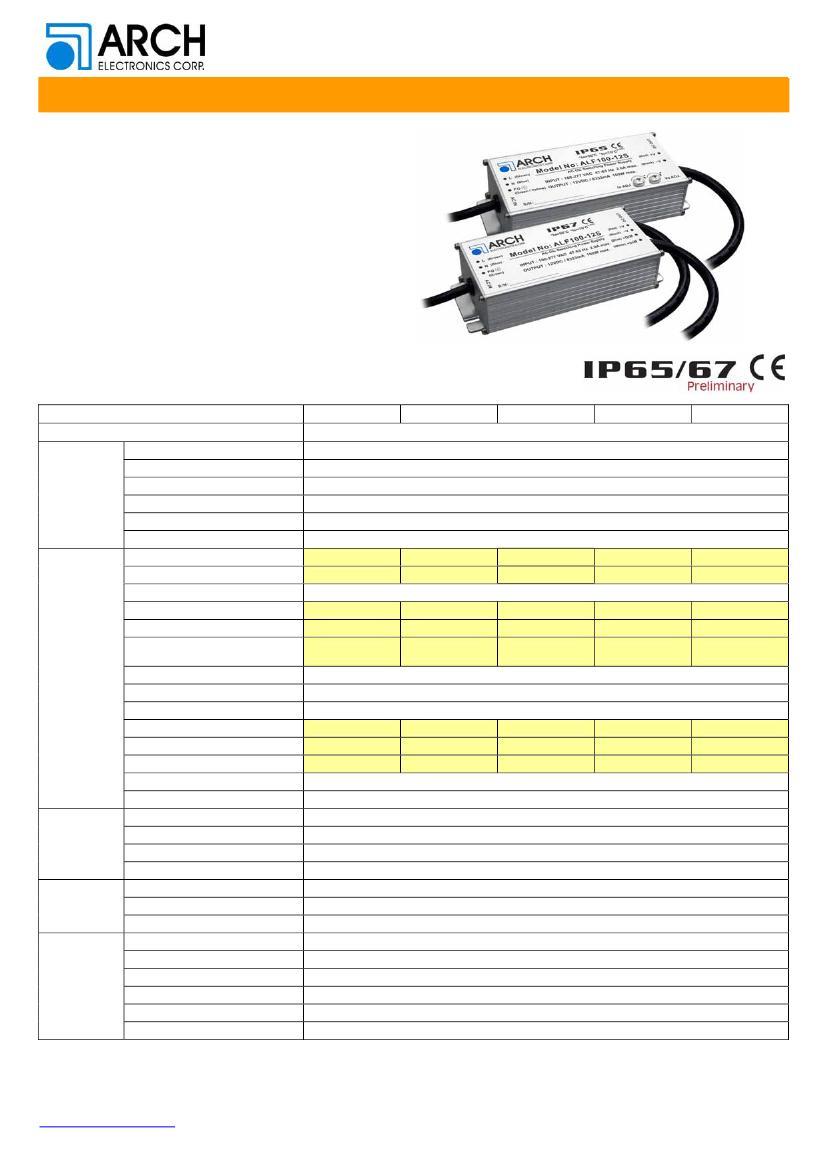

ALF100 SERIES

KEY FEATURES

IP65/67 Design for Indoor or LED Outdoor Installations

Universal Input: 90-305 VAC or 120-430 VDC

Three in one dimming function

(1~10VDC & PWM Signal or resistance)

Bulit-in Active PFC Function

Free Air Convection

High Reliability

With Constant Current & Constant Voltage

Output Voltage and Constant Current Level can Be

Adjusted Through Internal Potential Meter

LED Power Application

3-Years Product Warranty

100 Watts

ELECTRICAL SPECIFICATIONS

Model No.

Max Output Wattage (W)

Voltage

Frequency (Hz)

Input

Current (Full load)

Inrush Current (<2ms)

Leakage Current

Power Factor

Voltage (V.DC.)

Constant Current Range (V.DC.)

Voltage Accuracy

Current (Convection) (mA) max

Current ADJ Range (mA)

Voltage ADJ Range (V.DC.)

(for IP65 Design)

Line Regulation

Load Regulation

Minimum Load

Maximum Capacitive Load

Ripple & Noise (max.)

Efficiency (typ.)

Hold-up Time

Switching Frequency

Over Power Protection

Protection

Over Voltage Protection

Overt Temperature Protection

Short Circuit Protection

Input-Output (V.AC)

Isolation

Input-FG

Output-FG

(V.AC)

.(V.AC)

ALF100-12S

100W

47-63 Hz

1.5 A max. (115 VAC) / 0.7 A max. (230 VAC) / 0.6 A max. (277 VAC)

40 A max. (115 VAC) / 60 A max. (230 VAC)

<0.75 mA max.

PF>0.97 (115 VAC) / PF>0.9 (230 VAC) at Full Load

12V

6 ~ 12V

±2%

8333

4166 ~ 8333

10.8 ~ 13.2V

±1%

100,000 uF

100mVp-p

89%

25 ms min.

100 kHz

Auto recovery

3750V

1880V

500V

-25°C…+70°C (with derating)

-40°C…+85°C

±0.02%/°C ( 0~50°C )

95% RH

>100,000 h @ 25°C (MIL-HDBK-217F)

10~500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes.

1. All specifications valid at normal input voltage, full load and +25°C after warm-up time unless otherwise stated.

2. Ripple & Noise are measured at 20MHz of bandwidth with 0.1uF & 47uF parallel capacitor.

ALF100-24S

ALF100-36S

ALF100-48S

ALF100-54S

90-305 VAC or 120-430 VDC

24V

12 ~ 24V

4166

2083 ~ 4166

21.6 ~ 26.4V

36V

18 ~ 36V

2777

1388 ~2777

32.4 ~ 38.5V

48V

24 ~ 48V

2083

1041 ~ 2083

43.2 ~ 50.4V

54V

27 ~ 54V

1852

926 ~ 1852

48.6 ~ 55.5V

Output

50,000 uF

100mVp-p

91.5%

8,000 uF

100mVp-p

91.5%

4,000 uF

200mVp-p

91.5%

3,000 uF

200mVp-p

91.5%

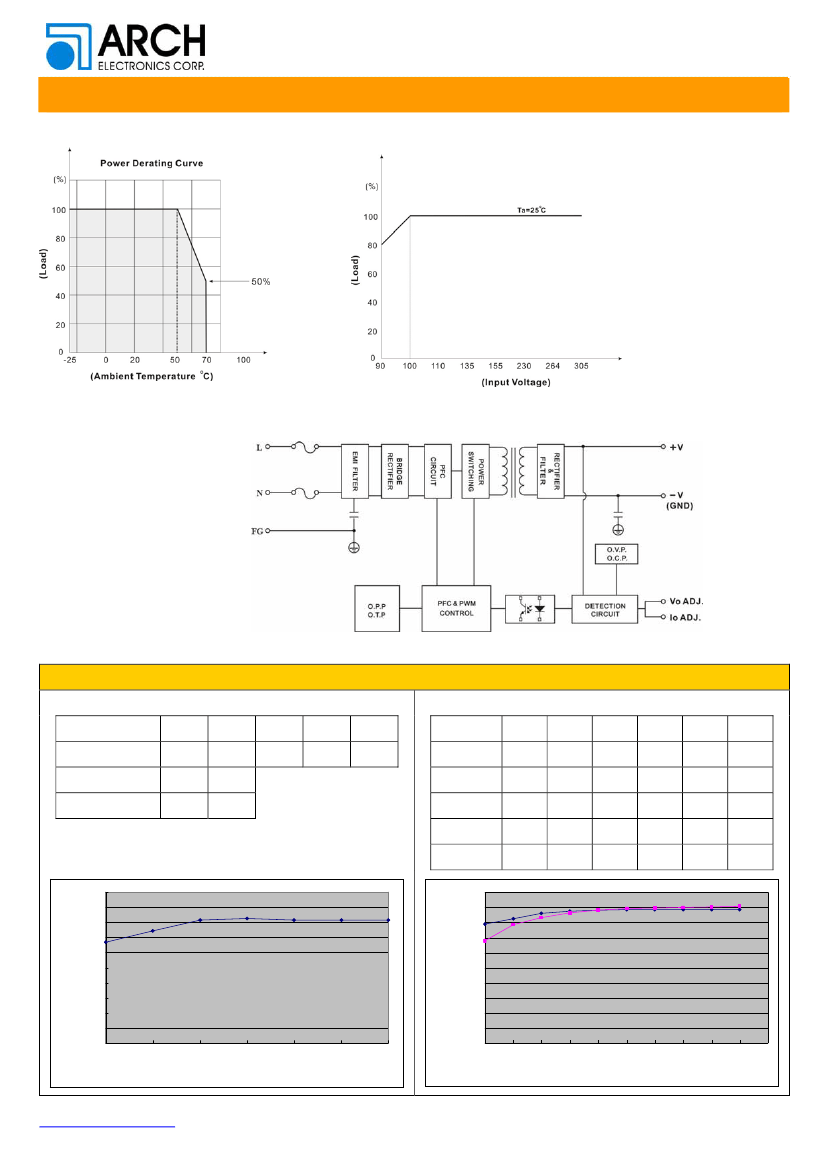

Operating Temperature

Storage Temperature

Environment

Temperature Coefficient

Humidity

MTBF

Vibration

http://www.archcorp.com.tw

TEL: +886-2-26989508 FAX: +886-2-26981319

-1-

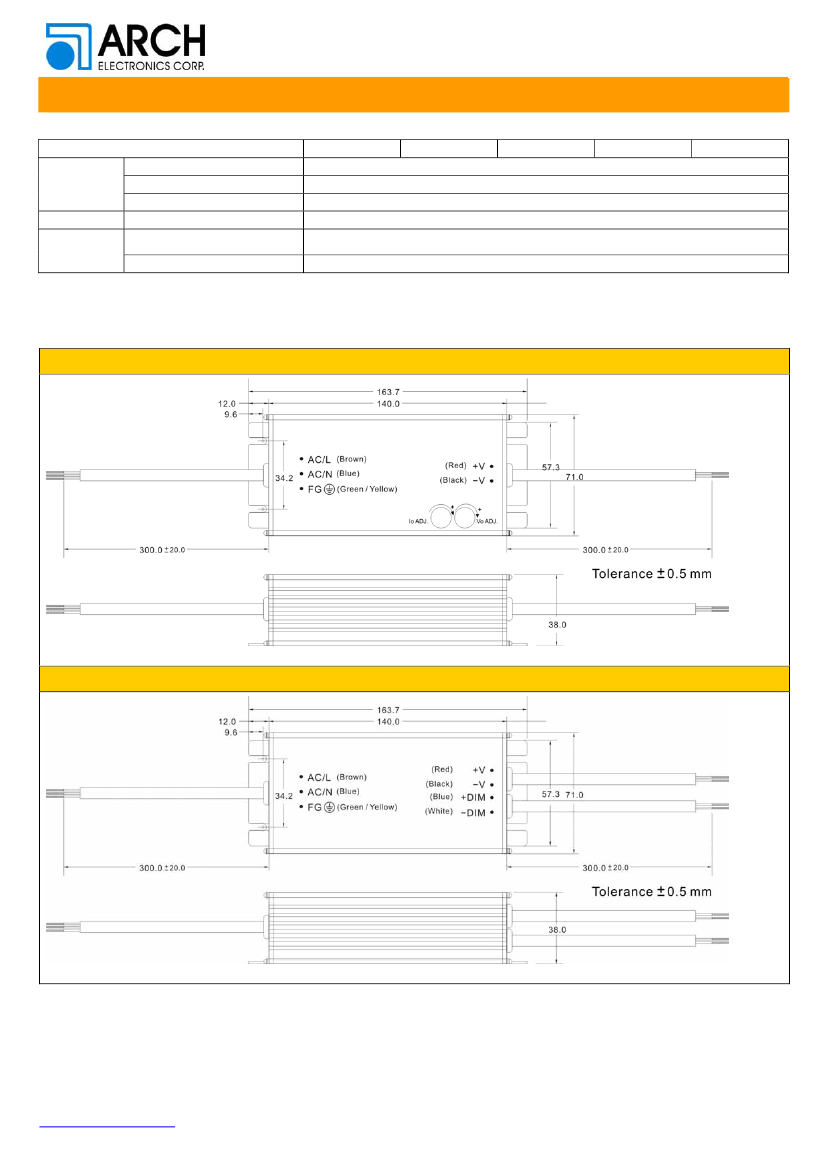

ALF100-12S Related Products

	ALF100-12S	ALF100	ALF100-24S	ALF100-36S	ALF100-48S	ALF100-54S
Description	LED Power	LED Power	LED Power	LED Power	LED Power	LED Power
