VER :
PA_1
update :
2012.03.09
LED Power
AQF80C SERIES

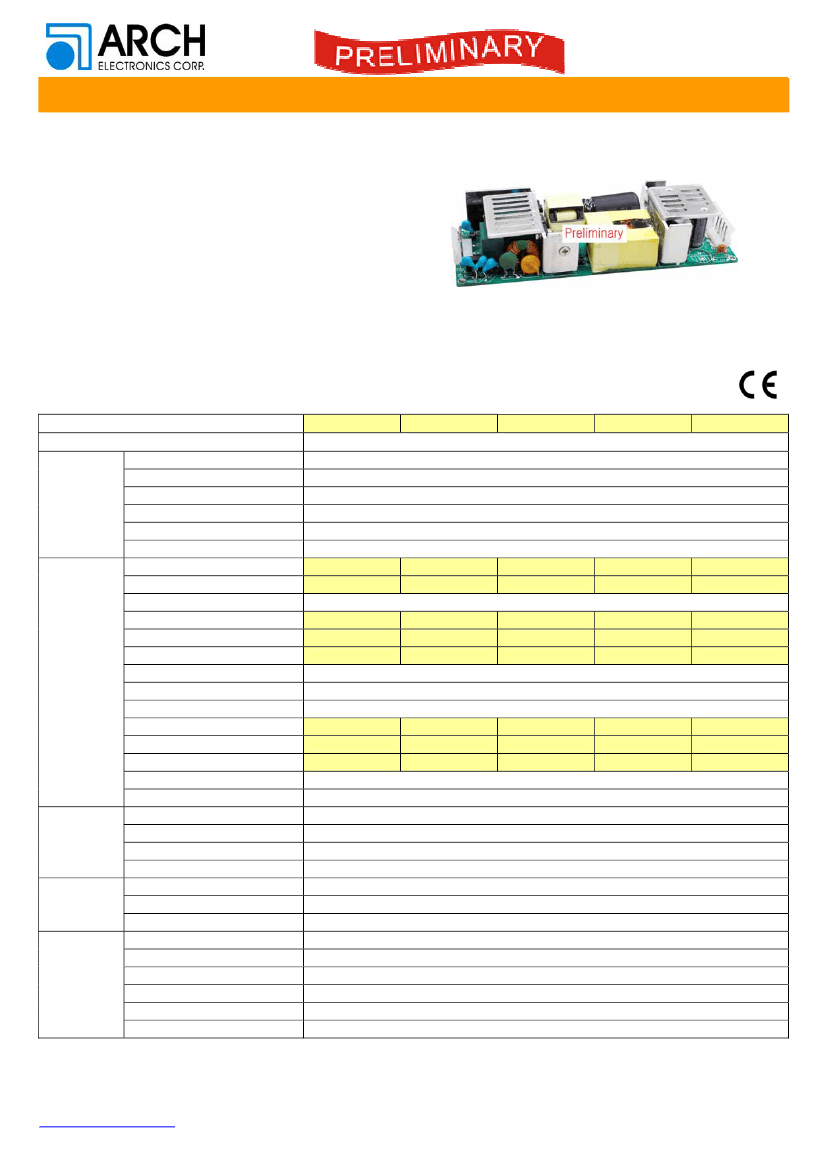

KEY FEATURES
Open Frame LED Power Supply
Universal Input: 90-305 VAC or 120-430 VDC
Three in one dimming function
(1~10VDC & PWM Signal or resistance)
Bulit-in Active PFC Function
Free Air Convection
High Reliability
With Constant Current & Constant Voltage
Output Voltage and Constant Current Level can Be
Adjusted Through Internal Potential Meter
LED Power Application
3-Years Product Warranty
80 Watts
ELECTRICAL SPECIFICATIONS
Model No.
Max Output Wattage (W)
Voltage
Frequency (Hz)
Input
Current (Full load)
Inrush Current (<2ms)
Leakage Current
Power Factor
Voltage (V.DC.)
Constant Current Range (V.DC.)
Voltage Accuracy
Current (Convection) (mA) max
Current ADJ Range (mA)
Voltage ADJ Range (V.DC.)
Output
Line Regulation
Load Regulation
Minimum Load
Maximum Capacitive Load
Ripple & Noise (max.)
Efficiency (typ.)
Hold-up Time
Switching Frequency
Over Power Protection
Protection
Over Voltage Protection
Overt Temperature Protection
Short Circuit Protection
Input-Output (V.AC)
Isolation
Input-FG
Output-FG
(V.AC)
.(V.AC)
Auto recovery
Auto recovery
Auto recovery
Auto recovery
3750V
1880V
500V
-40°C…+70°C (with derating)
-40°C…+85°C
±0.02%/°C ( 0~50°C )
95% RH
>100,000 h @ 25°C (MIL-HDBK-217F)
10~500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes.
1. All specifications valid at normal input voltage, full load and +25°C after warm-up time unless otherwise stated.
2. Ripple & Noise are measured at 20MHz of bandwidth with 0.1uF & 47uF parallel capacitor.
AQF80C-12S
80W
47-63 Hz
AQF80C -15S
AQF80C -24S
AQF80C -48S
AQF80C -54S
90-305 VAC or 120-430 VDC
0.85 A max. (115 VAC) / 0.425 A max. (230 VAC) / 0.4 A max. (277 VAC)
40 A max. (115 VAC) / 70 A max. (230 VAC)
<0.75 mA max.
PF>0.97 (115 VAC) / PF>0.9 (230 VAC) at Full Load
12V
6 ~ 12V
±2%
6666
3333 ~ 6666
10.8 ~ 13.5V
±1%
±1%
5333
2667 ~ 5333
13.5 ~ 17V
3400
1700 ~ 3400
22 ~ 27V
1700
850 ~ 1700
43 ~ 53V
1500
750 ~ 1500
49 ~ 58V
15V
7.5 ~ 15V
24V
12 ~ 24V
48V
24 ~ 48V
54V
27 ~ 54V
150mVp-p
87%
25 ms min.
150mVp-p
88%
150mVp-p
89%
200mVp-p
90%
200mVp-p
90%
Operating Temperature
Storage Temperature
Environment
Temperature Coefficient
Humidity
MTBF
Vibration
http://www.archcorp.com.tw
TEL: +886-2-26989508 FAX: +886-2-26981319
-1-
VER :
PA_1
update :
2012.03.09
LED Power
AQF80C SERIES
Model No.
Dimension (L x W x H)
Physical
Safety
Weight
Cooling Method
Agency Approvals
EMI
(Conducted & Radiated Emission)
80 Watts
AQF80C-12S
AQF80C -15S
AQF80C -24S
AQF80C -48S
5.9 x 1.97 x 1.18 Inches (150.0 x 50.0 x 30.0 mm ) Tolerance
±0.5
mm
g
Free air convection
UL8750、IEC / EN 61347-2-13、 IEC / EN 61347-1
EN 55015、Class B
EN 61547
(Pending)
(Pending)
AQF80C -54S
EMC
EMS (Noise Immunity)
Surge
2KV L-L, 4KV L-E
1. All specifications valid at nominal input voltage, full load and +25°C after warm-up time unless otherwise stated.
2. Ripple & Noise are measured at 20MHz of bandwidth with 0.1uF & 47uF parallel capacitor.

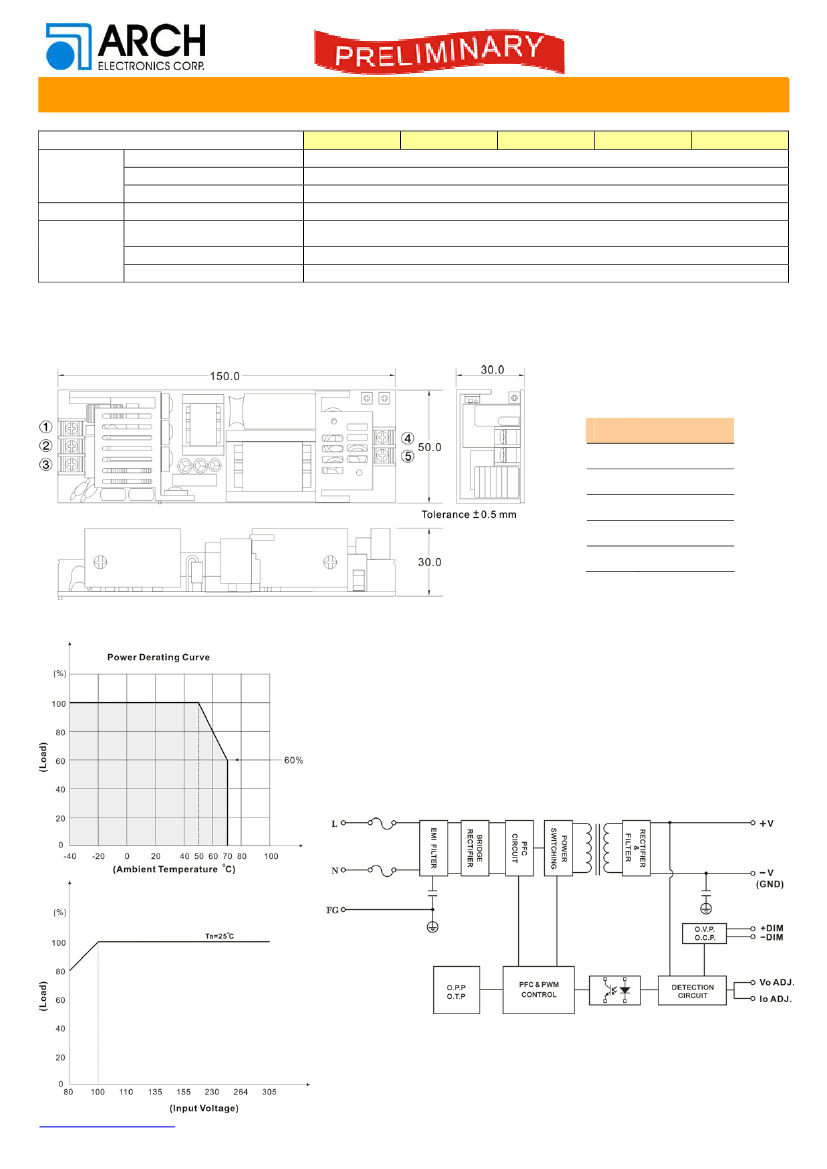

MECHANICAL DIMENSION
( Top View )
PIN#
1
2
3
4
5
SINGLE
AC IN (L)
AC IN (N)
FG
+DC OUT
-DC OUT
DERATING
BLOCK DIAGRAM
http://www.archcorp.com.tw
TEL: +886-2-26989508 FAX: +886-2-26981319
-2-
