VER :
PA_0
update :
2012.03.09
LED Power
PSF60 SERIES
KEY FEATURES
Fully Isolated Plastic Case with IP65/67 Level
Suitable for Dry / Damp / Wet / Locations
Universal Input: 100-277 VAC
Bulit-in Active PFC Function
High Efficiency up to 90%
Free Air Convection
High Reliability
With Constant Current & Constant Voltage
Output Voltage and Constant Current Level can Be
Adjusted Through Internal Potential Meter
LED Power Application
Super Small Size: 4.0 x 1.8 x 1.45 Inches
3-Years Product Warranty
60 Watts
ELECTRICAL SPECIFICATIONS
All specifications valid at normal input voltage, full load and +25°C after warm-up time unless otherwise stated.
Model No.
Max output wattage
(W)
(Note2)
Voltage
Frequency (Hz)
Input
Power factor
Current (Full load)
Inrush current
Leakage Current
Voltage (V.DC.)
Constant Current Operation Voltage (max)
(CC Mode) (Note3)
Voltage Tolerance
Preset Current (mA) (CC Mode)
Current Adjustment Range (mA)
(CC Mode)
Minimum Load (mA)
Line Regulation (100-270VAC) (typ.)
Load Regulation (Min-Max) (typ.)
Ripple & Noise (max)
Efficiency (at 230VAC.)(typ)
Over current protection
Protection
Over voltage protection
Short circuit protection
Input-Output (V.AC)
Isolation
Input-FG
Output-FG
(V.AC)
.(V.AC)
PSF60-13.5S
60W
90-295 VAC
50 / 60 Hz
PF>0.9 at Full load (115 VAC / 230 VAC)
0.8A max. (115 VAC) / 0.4A max. (230 VAC)
50 A max. (Cold Start at 230 VAC)
< 0.7 mA max at 240 VAC
13.5V
11~13.5
VDC
±10%
4200
3570~4200
3570
±4%
±5%
4Vp-p
85%
Auto recovery
Zener diode clamp
Auto recovery
3750V
1880V
500V
-30°C…+70°C (with derating)
-40°C…+85°C
0.02%/°C
95% RH
>583,000 h @ 25°C (MIL-HDBK-217F)
4.0 x 1.8 x 1.45 Inches
g
Free air convection
UL8750、IEC / EN 61347-2-13、 IEC / EN 61347-1
EN 55015
EN 61547
(Pending)
(Pending)
(Pending)
(Pending)
(101.6 x 45.7 x 36.8 mm ) Tolerance
±0.5
mm
4.5Vp-p
88%
5Vp-p
89%
5Vp-p
89%
5Vp-p
90%
2400
1700~2500
1700
2100
1400~2100
1400
1400
1100~1400
1100
1050
700~1100
700
24V
18~ 24
VDC
28V
21~28
VDC
42V
33.5~ 42
VDC
54V
38~54
VDC
PSF60-24S
PSF60-28S
PSF60-42S
PSF60-54S
Output
Operating temperature
Storage temperature
Environment
Temperature coefficient
Humidity
MTBF
Dimension (L x W x H)
Physical
Safety
Weight
Cooling method
Agency Approvals
EMI
(Conducted & Radiated Emission)
EMS (Noise Immunity)
Harmonic Current
Surge
http://www.archcorp.com.tw
TEL: +886-2-26989508 FAX: +886-2-26981319
EMC
EN 61000-3-2(at Full Load)、EN 61000-3-3
2KV L-L, 4KV L-E
-1-
VER :
PA_0
update :
2012.03.09
LED Power
PSF60 SERIES
Note:
1. Ripple & Noise are measured at 20MHz of bandwidth with 0.1uF & 47uF parallel capacitor.
2. Please check the derating curve for more details.
60 Watts
3. Input Voltage=115 or 230 VAC。This is the suitable operation region for LED related application.but please reconfirm special electrical requirements
for some specific ststem design.

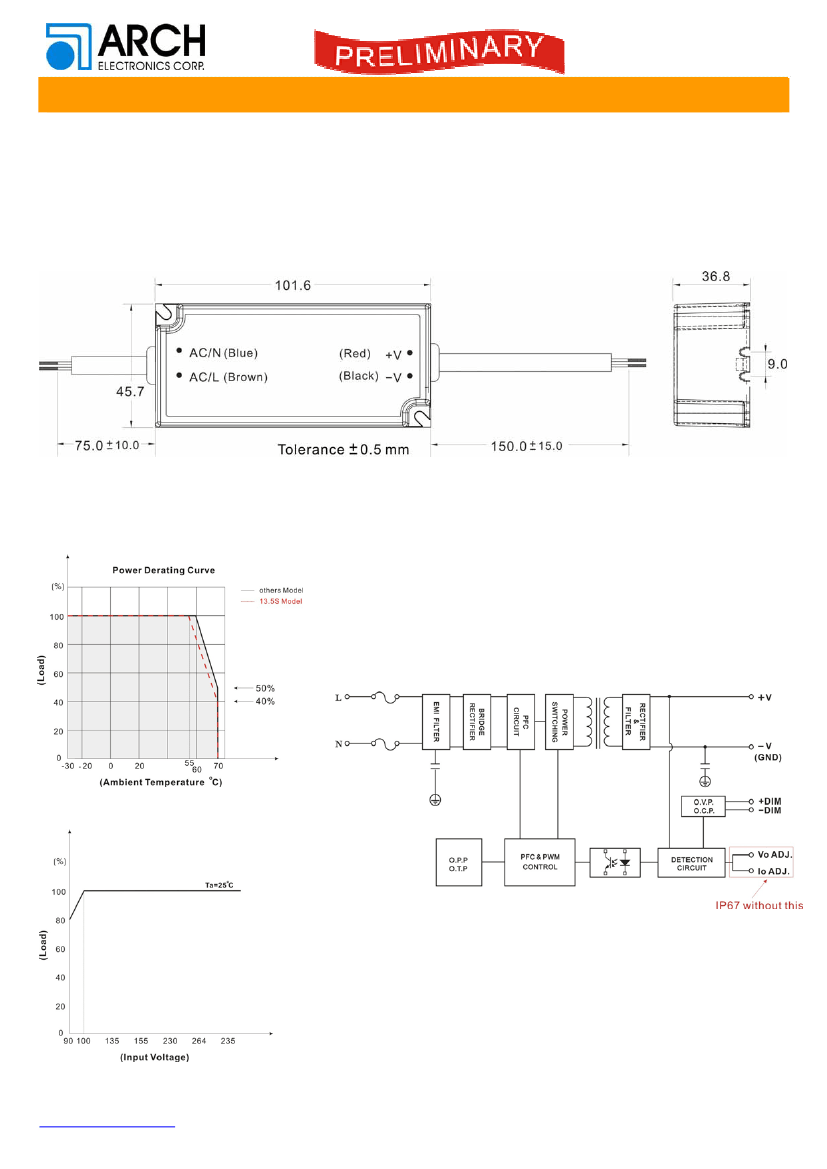

MECHANICAL DIMENSION
( Top View )
DERATING
BLOCK DIAGRAM
http://www.archcorp.com.tw
TEL: +886-2-26989508 FAX: +886-2-26981319
-2-
