89099-918 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 89099-918

89099-918: DescriptionBoard Connector, 10 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size666KB，6 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

89099-918 Overview

Board Connector, 10 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal

89099-918 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	POLARIZED
Connector type	BOARD CONNECTOR
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	89099
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	6 mm
Termination type	PRESS FIT
Total number of contacts	10
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

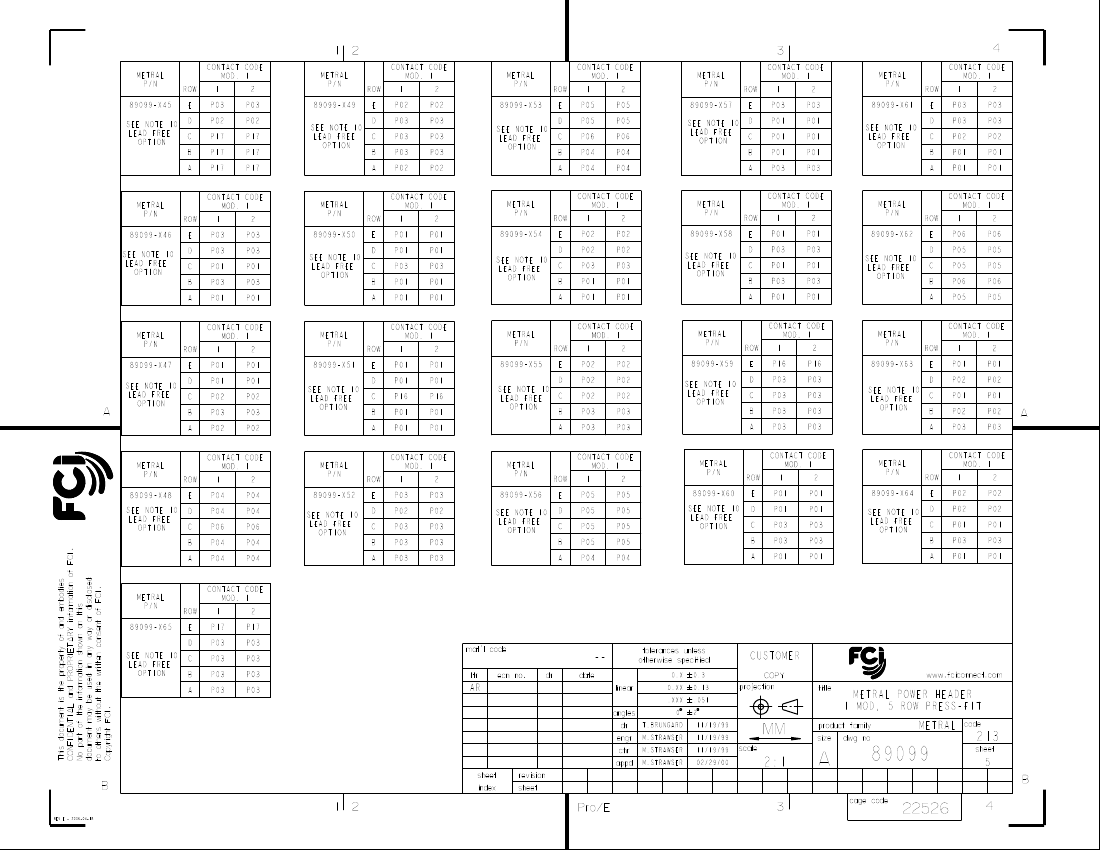

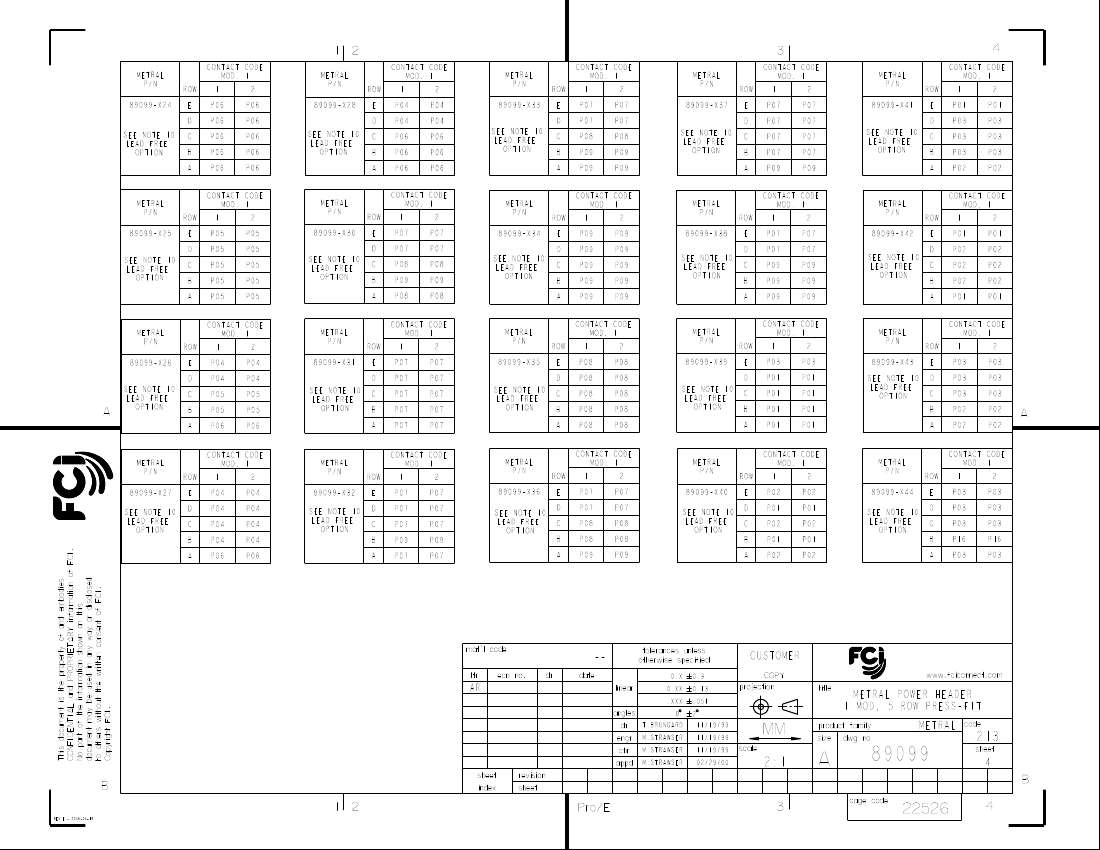

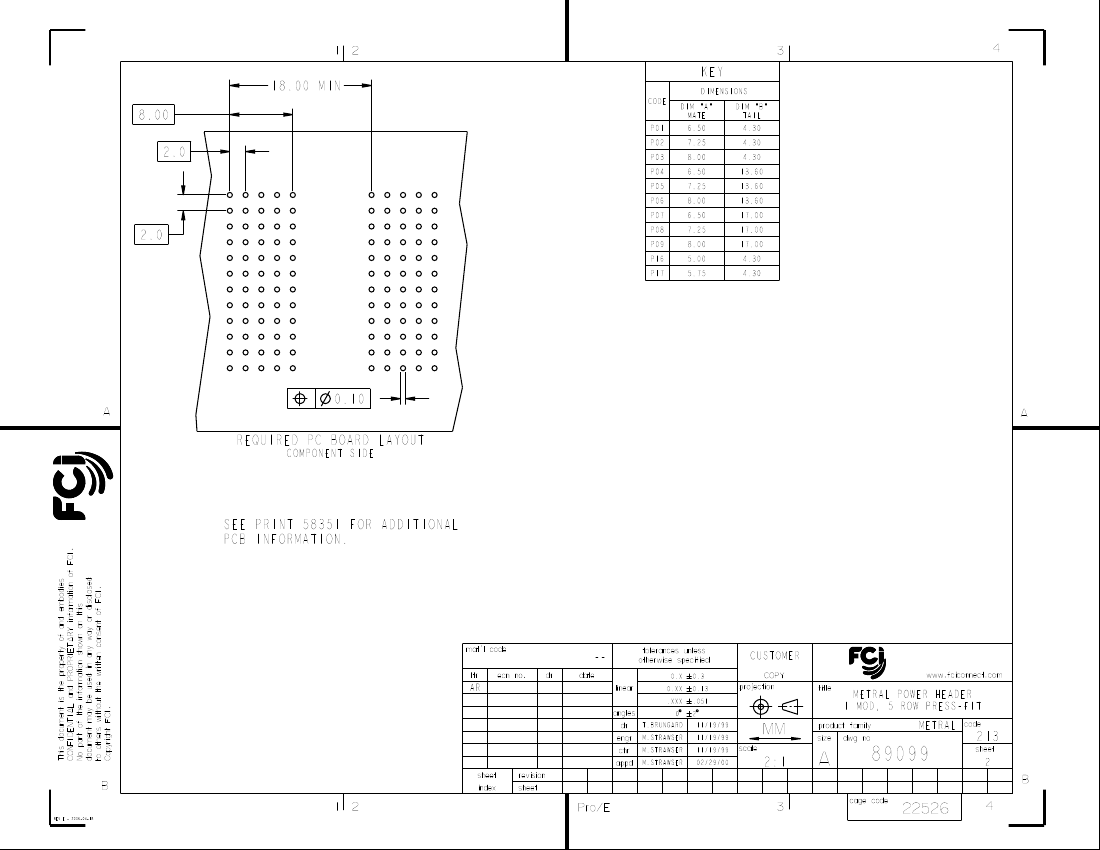

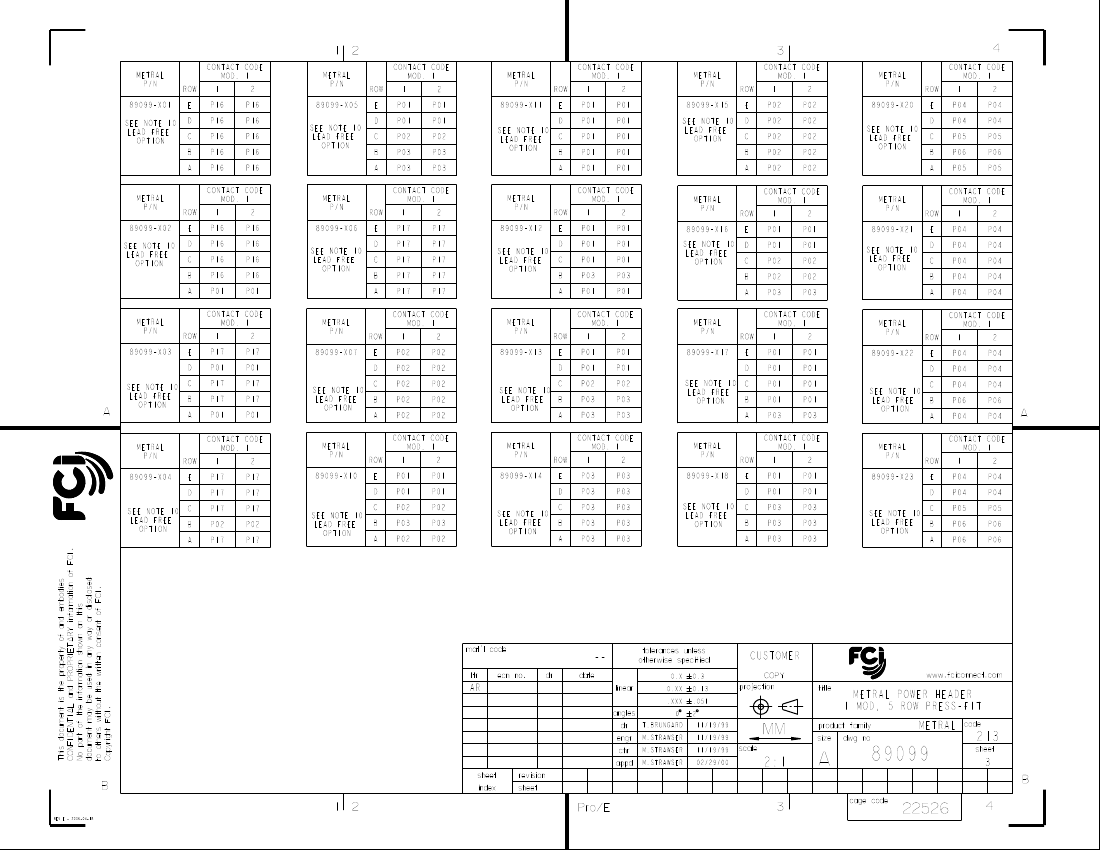

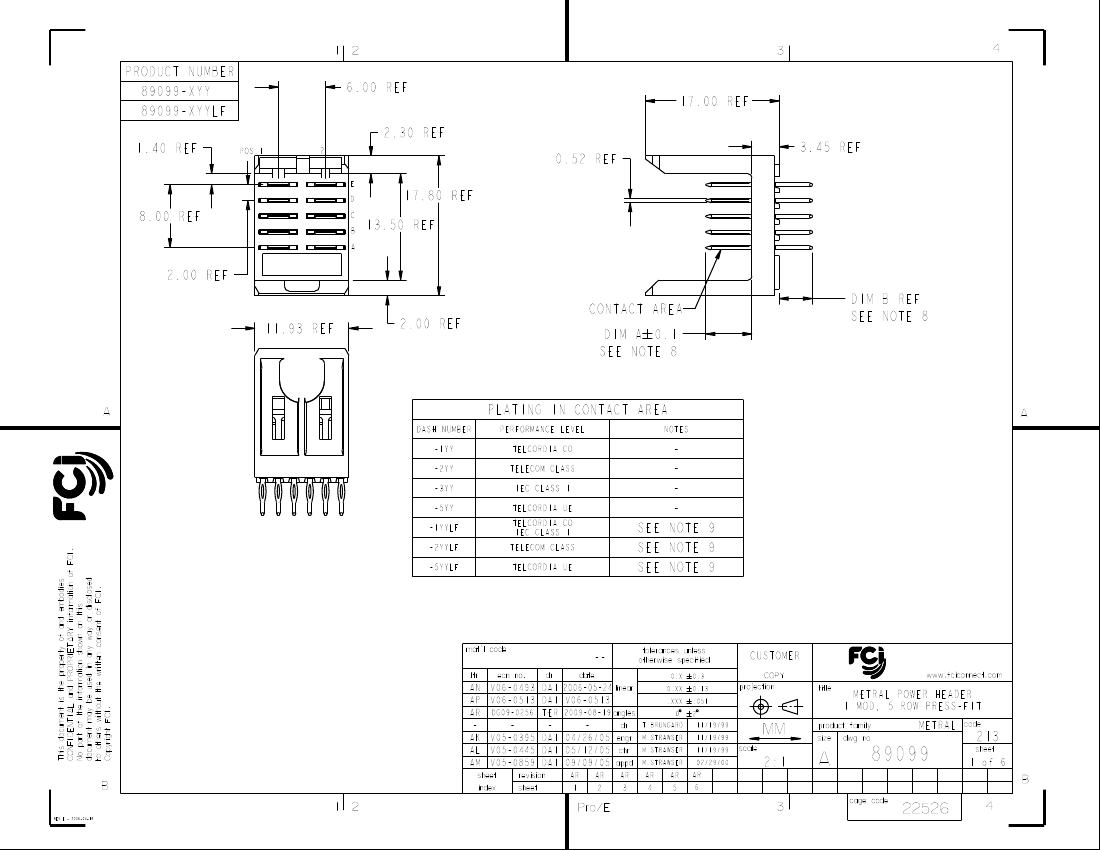

PRODUCT NUMBER

89099-XYY

89099-XYYLF

2.30 REF

1.40 REF

POS.1

6.00 REF

17.00 REF

3.45 REF

0.52 REF

17.80 REF

13.50 REF

8.00 REF

2.00 REF

CONTACT AREA

11.93 REF

2.00 REF

DIM A 0.1

SEE NOTE 8

DIM B REF

SEE NOTE 8

PLATING IN CONTACT AREA

DASH NUMBER

-1YY

-2YY

-3YY

-5YY

-1YYLF

-2YYLF

-5YYLF

PERFORMANCE LEVEL

TELCORDIA CO

TELECOM CLASS

IEC CLASS 1

TELCORDIA UE

TELCORDIA CO

IEC CLASS 1

TELECOM CLASS

TELCORDIA UE

NOTES

SEE NOTE 9

CONFIDENTIAL and PROPRIETARY information of FCI.

This document is the property of and embodies

to others without the written consent of FCI.

document may be used in any way or disclosed

No part of the information shown on this

mat'l code

ecn no.

date

tolerances unless

otherwise specified

CUSTOMER

COPY

projection

title

www.fciconnect.com

ltr

0.X

0.XX

.XXX

0.3

0.13

.051

linear

V06-0493 DAI 2006-05-24

V06-0513 DAI V06-0513

DG09-0256

TER

2009-08-19

angles

V05-0395 DAI 04/26/05

engr

V05-0445 DAI 05/12/05

chr

V05-0859 DAI 09/09/05

appd

revision

sheet

METRAL POWER HEADER

1 MOD, 5 ROW PRESS-FIT

METRAL

code

dwg no

T.BRUNGARD

M.STRAWSER

11/19/99

02/29/00

scale

product family

size

2:1

89099

cage code

213

sheet

1 of 6

sheet

REV E - 2006-04-18

index

Pro/E

22526

PDM: Rev:AR

STATUS:

Released

Printed: Sep 16, 2009
