TECHNICAL DATA SHEET
1.6/5.6
III. Generation
STRAIGHT PLUG
Q-GRIP 2. GENERATION
88S10K-0S3L5

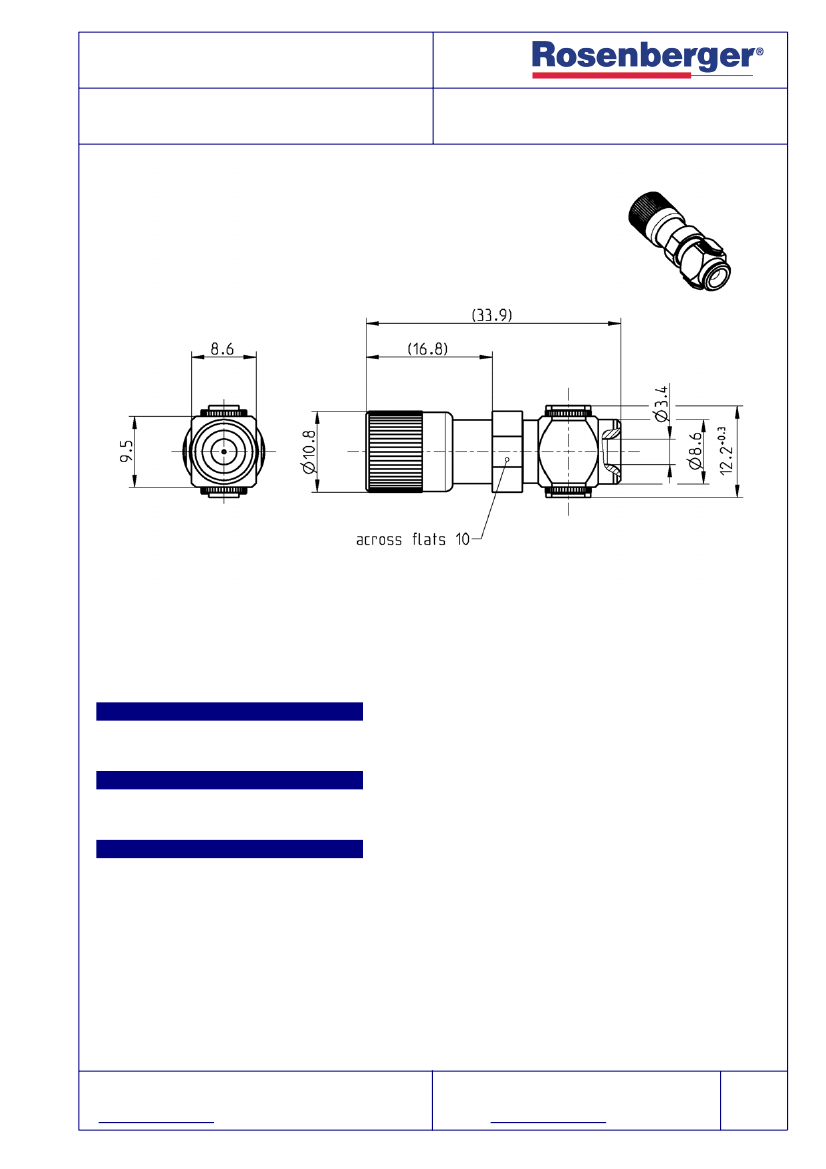

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
CECC 22 240
Documents
Assembly instruction
88 A7
Material and plating
Connector parts
Center contact
Outer contact
Body
Coupling nut
Dielectric
Dielectric
Material
CuBe
CuBe
Brass
Brass
LCP
POM
Plating
AuroDur®, gold plated
AuroDur®, gold plated
Nickel, 2.5-5 µm
Nickel, 2.5-5 µm
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
1.6/5.6
III. Generation
STRAIGHT PLUG
Q-GRIP 2. GENERATION
88S10K-0S3L5
75
Ω
DC to 12 GHz
≥
20 dB, DC to 1 GHz
≤
0.1 dB, DC to 1 GHz
≥
10x10
3
MΩ
≤
4 mΩ
≤
2 mΩ
1000 V rms
330 V rms
≥
90 dB up to 1 GHz (slide-on)
≥
100 dB up to 1 GHz (screw version)
Electrical data
Impedance
Frequency
Return loss
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
RF-leakage
- Limitations are possible due to the used cable type -
Mechanical data
Mating cycles
Engaging and disengaging force
Center contact captivation
Coupling mechanism retention force
≥
500
2.2 N to 12 N (screw-on, slide-on)
18 N to 50 N (quick-lock)
≥
30 N
≥
300 N (screw version, quick-lock)
Environmental data
Temperature range
Climatic class
Vibration
2002/95/EC (RoHS)
-40°C to +85°C
IEC 60068-2-1 40/85/21
IEC 60068-2-2
IEC 60068-2-3
IEC 60068-2-6
10 Hz to 2000 Hz, 100m/s²
compliant
Tooling
Mounting tool
Tyco 1-1393524-1
Suitable cables
R1-T 2.0 LIXI 75K
Packing
Standard
Weight
1 pce in bag
12.0 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/12.04/3.0
Draft
Rong Fang
Date
21/04/05
Approved
A. König
Date
17/10/07
Rev.
d00
Engineering change number
07-0154
Name
S. Huber-Siegl
Date
17/10/07
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
2/2
