L-2914YD: DescriptionSINGLE COLOR LED, YELLOW, 3mm, 3 X 2 MM, ROHS COMPLIANT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size305KB，6 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric View All

L-2914YD Overview

SINGLE COLOR LED, YELLOW, 3mm, 3 X 2 MM, ROHS COMPLIANT PACKAGE-2

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Kingbright
package instruction	3 X 2 MM, ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	Kingbright L-2914YD Yellow LED, 588 nm, Rectangular, Rectangle Lens Through Hole Package
Other features	HIGH RELIABILITY
color	YELLOW
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	DIFFUSED
Nominal luminous intensity	13.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	4 mm

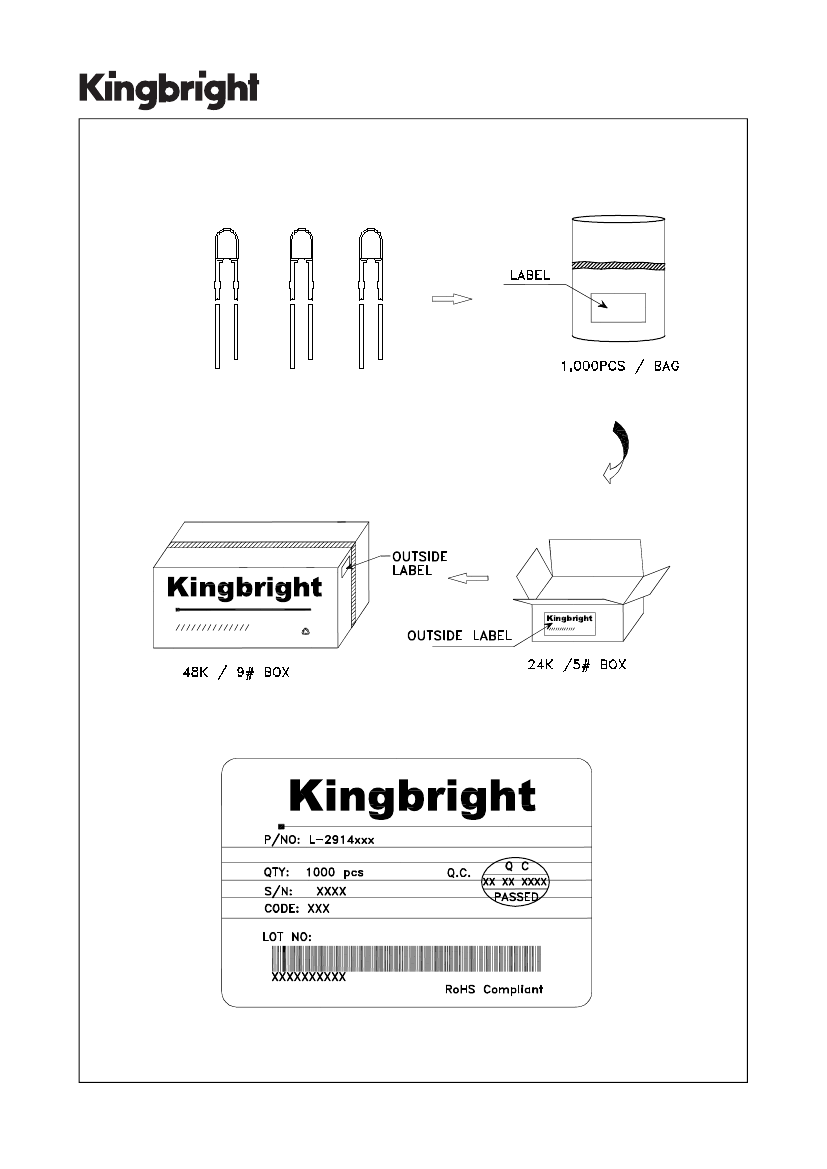

method of packing	BOX/BAG
peak wavelength	590 nm
shape	RECTANGULAR
size	3 mm
surface mount	NO
Terminal pitch	2.54 mm
perspective	50 deg

2x3mm RECTANGULAR SOLID LAMP

Part Number: L-2914YD

Yellow

Features

Low power consumption.

Reliable and rugged.

Excellent uniformity of light output.

Suitable for level indicator.

Long life-solid state reliability.

RoHS compliant.

Description

The Yellow source color devices are made with Gallium

Arsenide Phosphide on Gallium Phosphide Yellow Light

Emitting Diode.

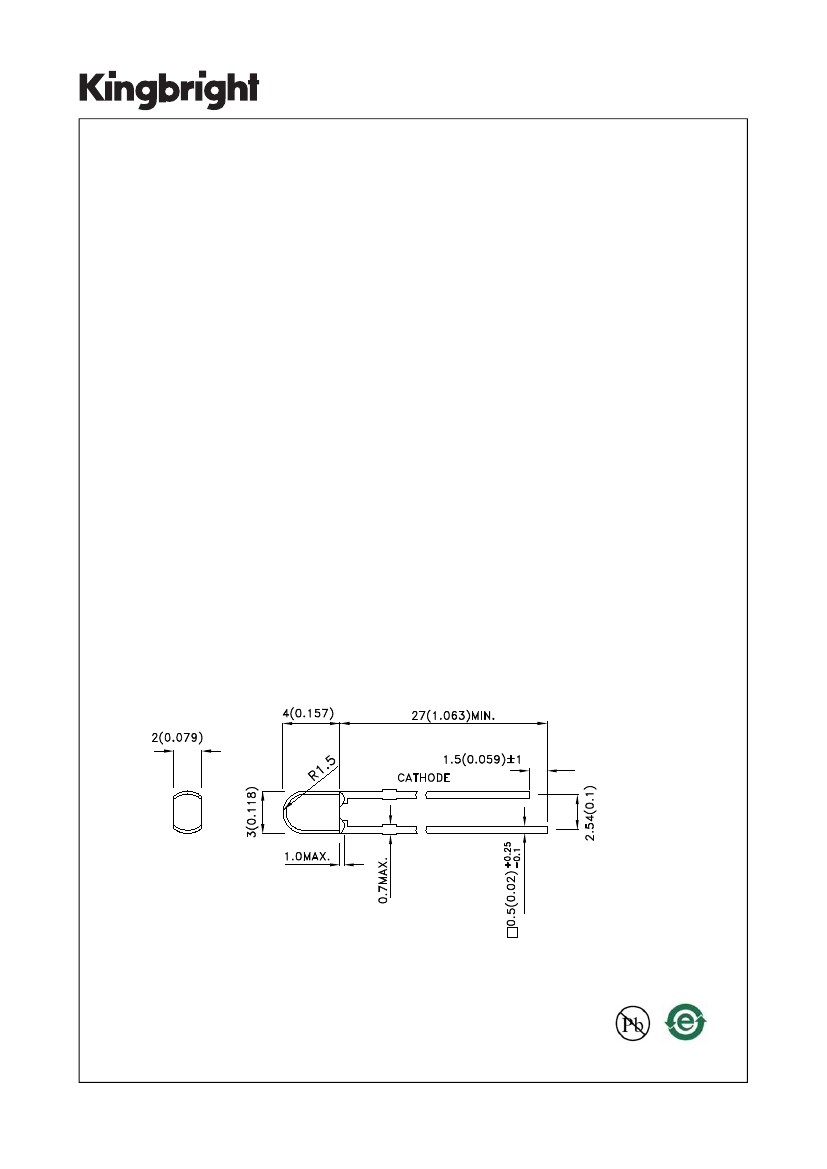

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ±0.25(0.01") unless otherwise noted.

3. Lead spacing is measured where the leads emerge from the package.

4. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.

SPEC NO: DSAA8218

APPROVED: WYNEC

REV NO: V.7B

CHECKED: Allen Liu

DATE: APR/01/2013

DRAWN: Y.Liu

PAGE: 1 OF 6

ERP: 1101003239
