MK4503N10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> MK4503N10

MK4503N10: Description2KX9 OTHER FIFO, 100ns, PDIP28, PLASTIC, DIP-28; Categorystorage storage; File Size402KB，16 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

MK4503N10 Overview

2KX9 OTHER FIFO, 100ns, PDIP28, PLASTIC, DIP-28

MK4503N10 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	DIP
package instruction	PLASTIC, DIP-28
Contacts	28
Reach Compliance Code	not_compliant
ECCN code	EAR99
Maximum access time	100 ns
Other features	RETRANSMIT
Maximum clock frequency (fCLK)	8.33 MHz
period time	120 ns
JESD-30 code	R-PDIP-T28
JESD-609 code	e0
length	37.085 mm
memory density	18432 bit
Memory IC Type	OTHER FIFO
memory width	9
Number of functions	1
Number of terminals	28
word count	2048 words
character code	2000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2KX9
Output characteristics	3-STATE
Exportable	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum standby current	0.012 A
Maximum slew rate	0.12 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm

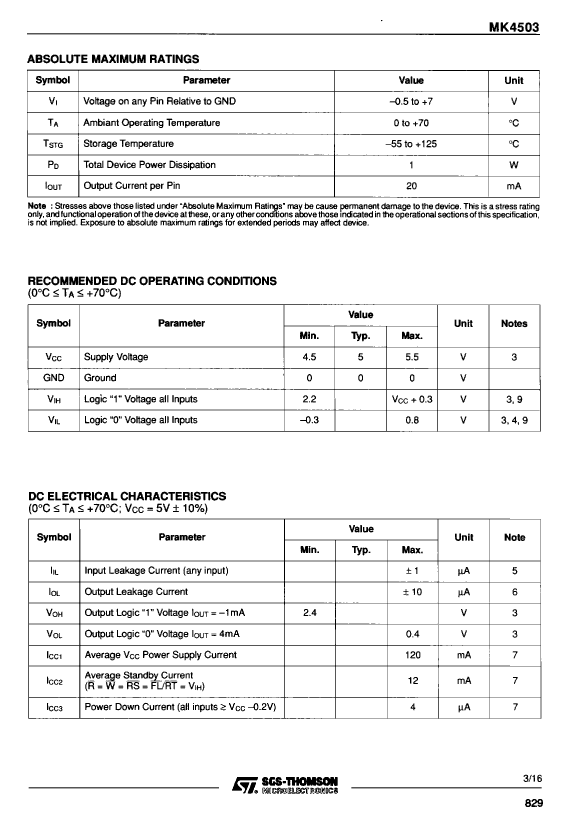

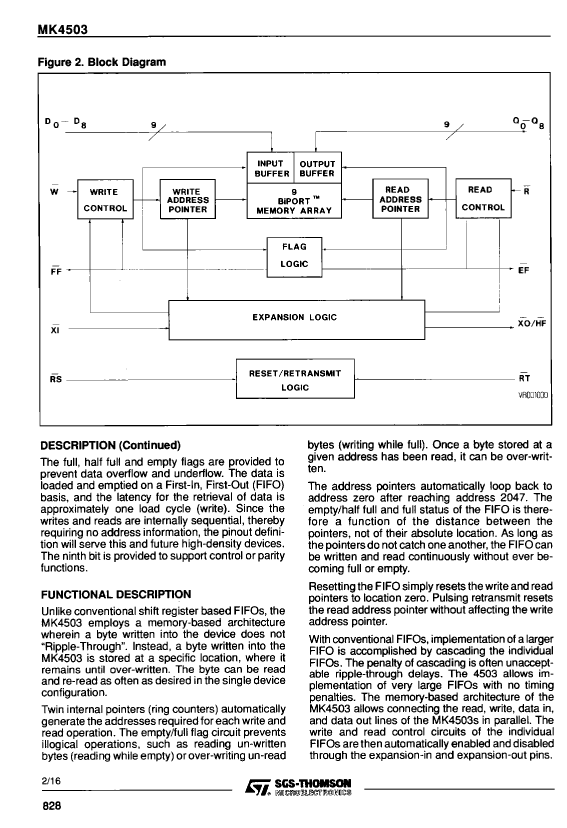

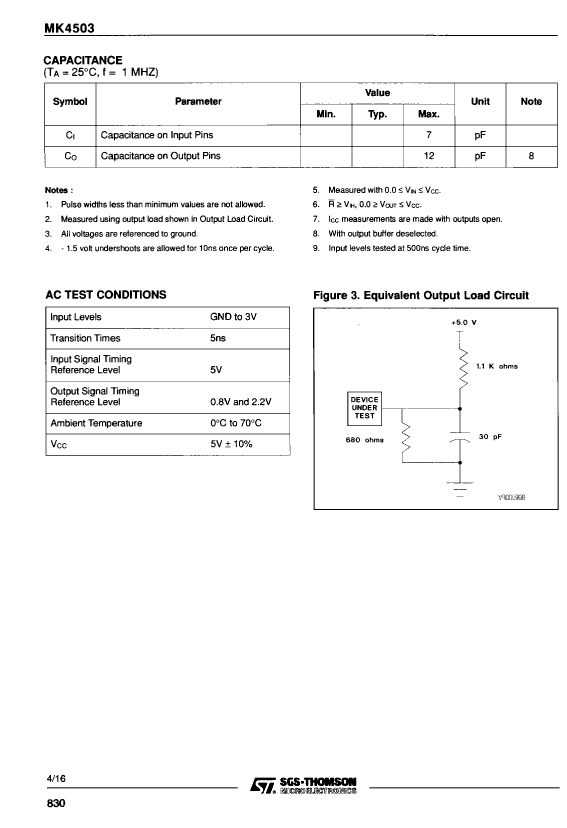

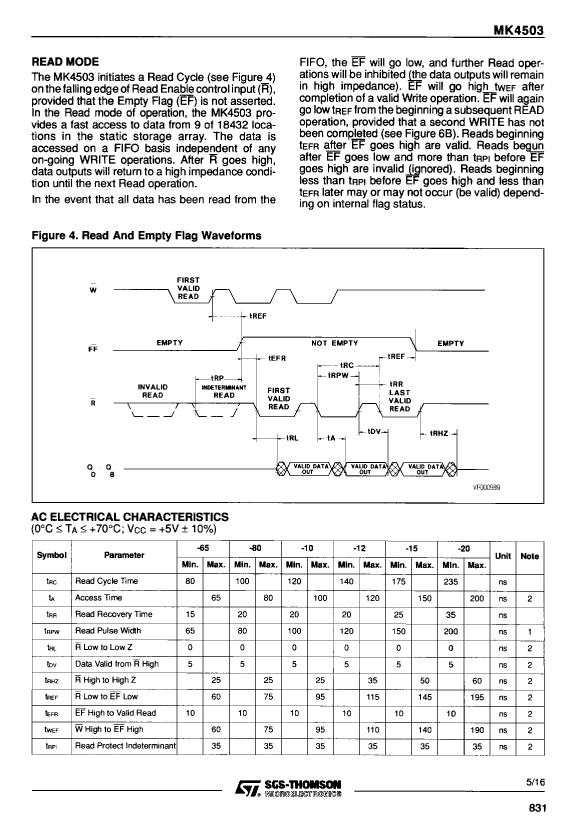

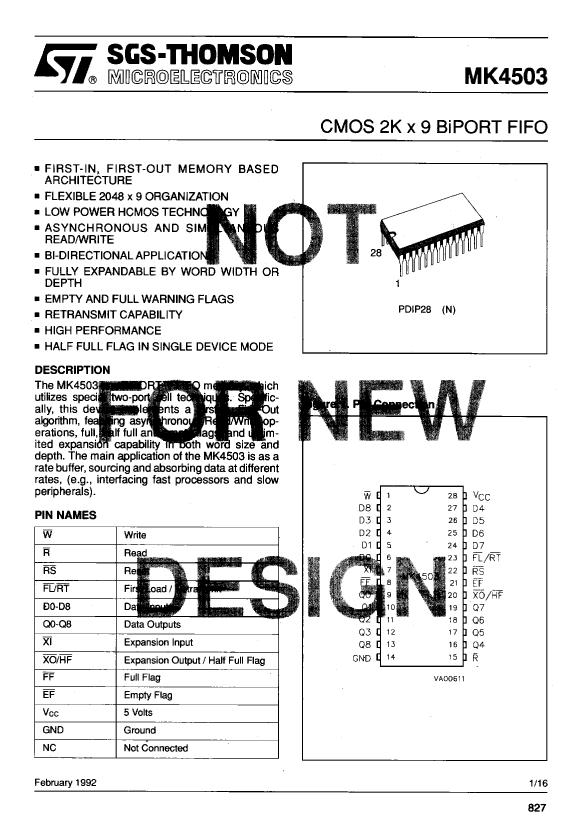

Preview

Download Datasheet

View All

MK4503N10 Related Products

	MK4503N10	MK4503N15	MK4503N12	MK4503N80	MK4503N20
Description	2KX9 OTHER FIFO, 100ns, PDIP28, PLASTIC, DIP-28	2KX9 OTHER FIFO, 150ns, PDIP28, PLASTIC, DIP-28	2KX9 OTHER FIFO, 120ns, PDIP28, PLASTIC, DIP-28	2KX9 OTHER FIFO, 80ns, PDIP28, PLASTIC, DIP-28	2KX9 OTHER FIFO, 200ns, PDIP28, PLASTIC, DIP-28
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
Parts packaging code	DIP	DIP	DIP	DIP	DIP
package instruction	PLASTIC, DIP-28	PLASTIC, DIP-28	PLASTIC, DIP-28	PLASTIC, DIP-28	PLASTIC, DIP-28
Contacts	28	28	28	28	28
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	100 ns	150 ns	120 ns	80 ns	200 ns
Other features	RETRANSMIT	RETRANSMIT	RETRANSMIT	RETRANSMIT	RETRANSMIT
Maximum clock frequency (fCLK)	8.33 MHz	5.7 MHz	7.14 MHz	10 MHz	4.25 MHz
period time	120 ns	175 ns	140 ns	100 ns	235 ns
JESD-30 code	R-PDIP-T28	R-PDIP-T28	R-PDIP-T28	R-PDIP-T28	R-PDIP-T28
JESD-609 code	e0	e0	e0	e0	e0
length	37.085 mm	37.085 mm	37.085 mm	37.085 mm	37.085 mm
memory density	18432 bit	18432 bit	18432 bit	18432 bit	18432 bit
Memory IC Type	OTHER FIFO	OTHER FIFO	OTHER FIFO	OTHER FIFO	OTHER FIFO
memory width	9	9	9	9	9
Number of functions	1	1	1	1	1
Number of terminals	28	28	28	28	28
word count	2048 words	2048 words	2048 words	2048 words	2048 words
character code	2000	2000	2000	2000	2000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
organize	2KX9	2KX9	2KX9	2KX9	2KX9
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP28,.6	DIP28,.6	DIP28,.6	DIP28,.6	DIP28,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Maximum standby current	0.012 A	0.012 A	0.012 A	0.012 A	0.012 A
Maximum slew rate	0.12 mA	0.12 mA	0.12 mA	0.12 mA	0.12 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm
