MIL-DTL-83513/22 Thru /27 Micro-D BS
Straight PCB Terminated Connector
High Performance
These connectors feature goldplated TwistPin contacts for
best performance. PC tails are .020 inch diameter. Specify
nickel-plated shells or cadmium plated shells for best
availability.
Solder-Dipped
Terminals are coated with Sn60/Pb40 tin-lead solder for
best solderability.
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Q
INDEX
No Jackpost
© 2013 Glenair, Inc.
Jackpost
N
Thru Hole
Hardware Options
Slash Number-
Shell Sizes
How To Order MIL-DTL-83513 Straight PCB Micro-D Connectors
Sample Part Number
Base Part Number
m83513/
M83513
Plug (Pin Contacts)
Receptacle (Socket Contacts)
22–A
– 9 Contacts
25–A
– 9 Contacts
22–B
– 15 Contacts
25–B
– 15 Contacts
22–C
– 21 Contacts
25–C
– 21 Contacts
22–D
– 25 Contacts
25–D
– 25 Contacts
22–E
– 31 Contacts
25–E
– 31 Contacts
22–F
– 37 Contacts
25–F
– 37 Contacts
23–G
– 51 Contacts
26–G
– 51 Contacts
24–H
– 100 Contacts
27–H
– 100 Contacts
(See Table I)
01
- .109 Inch (2.77 mm)
PC Tail Length
02
- .140 Inch (3.56 mm)
± .015 (0.38)
03
- .172 Inch (4.37 mm)
C
- Cadmium
A
- Electrodeposited Aluminum
N
- Electroless Nickel
K
-Zinc Nickel
P
- Passivated SST
T
- Nickel Fluorocarbon Polymer
N
- No Jackpost
P
- Jackposts Installed
Sizes 9-51
T
- Threaded Insert in Board Mount Hole (No Jackposts)
W
- Threaded Insert in Board Mount Hole and jackposts Installed
Shell Size 100 (H)
U
- #4-40 Threaded Insert
Y
- #4-40 Threaded Insert & Jackpost
(See Table I)
/26-g
03
c
w
PC Tail Length
Shell Finish

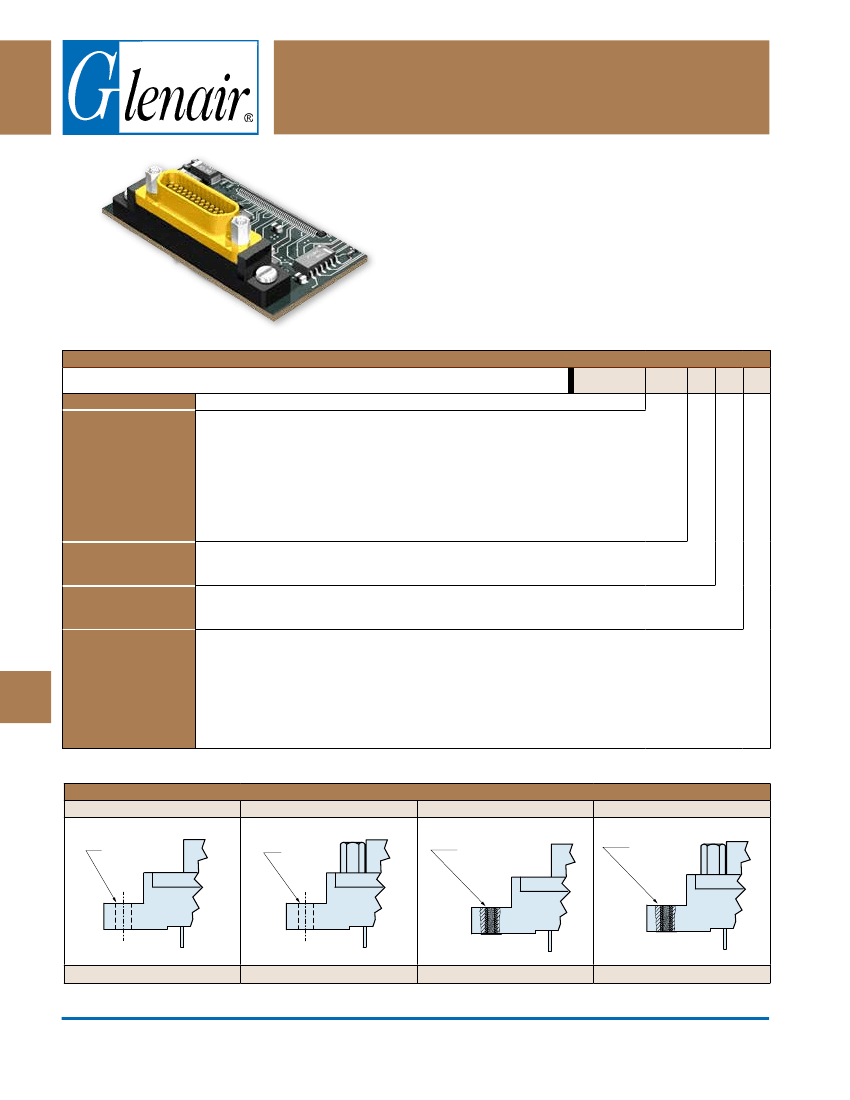

Table I: Hardware options
P
T or U
Threaded
Insert
W or Y
Threaded
Insert
Thru Hole
Threaded Insert
Jackpost, Threaded Insert
Printed in U.S.A.
High Performance Micro-D Connectors and Cables
U.S. CAGE Code 06324
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
L-18
E-Mail: sales@glenair.com
MIL-DTL-83513/22 Thru /27 Micro-D BS
Straight PCB Terminated Connector

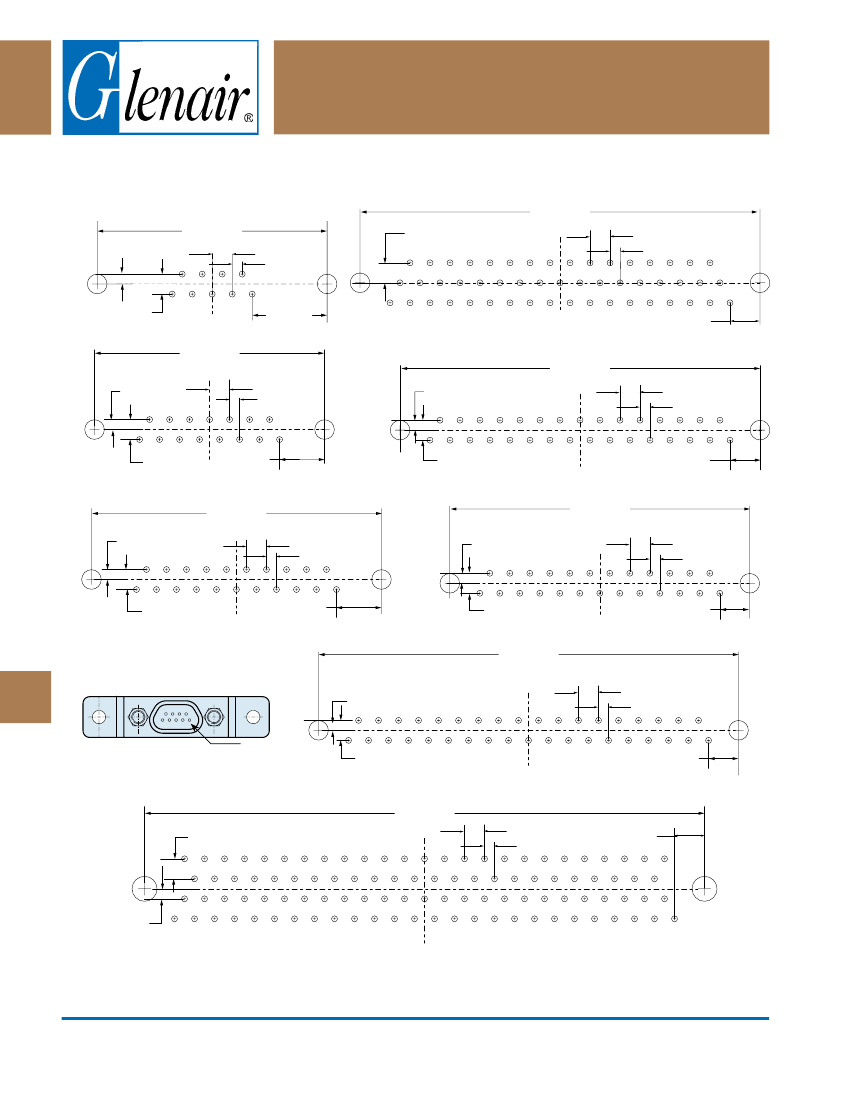

Table II: Dimensions
J
H
B
ED
2 X PCB MTNG HOLES
9-51 CONTACTS .096 ± .005 (2.43 ± 0.13)
100 CONTACTS .125 ± .005 (23.18 ± 0.13)
A
C
F
K
G
THREAD SIZES
9-51 CONTACTS #2-56 UNC
100 CONTACTS #4-40 UNC
.020 ± .002 (0.51± 0.05)
TAIL LENGH
± .005 (0.13)
A Max.
Layout
9P
9S
15P
15S
21P
21S
In.
mm.
B
In.
mm.
±.003 ± 0.08
C Max.
In.
mm.
D Max.
In.
mm.
4.67
6.35
4.67
6.35
4.67
6.35
4.67
6.35
4.67
6.35
4.67
6.35
5.79
7.52
6.86
8.46
E Max.
In.
.310
.310
.310
.310
.310
.310
.310
.310
.310
.310
.310
.310
.351
.351
mm.
7.87
7.87
7.87
7.87
7.87
7.87
7.87
7.87
7.87
7.87
7.87
7.87
8.92
8.92
F
G
H
J Max.
In.
mm.
K
In.
mm.
±.010 ±0.25
3.94
3.94
3.94
3.94
3.94
3.94
3.94
3.94
3.94
3.94
3.94
3.94
3.94
3.94
7.44
7.44
In.
mm.
In.
mm.
In.
mm.
±.004 ±0.10 ±.010 ±0.25 ±.007 ±0.18
.183
.195
.183
.195
.183
.195
.183
.195
.183
.195
.183
.195
.183
.195
4.65
4.95
4.65
4.95
4.65
4.95
4.65
4.95
4.65
4.95
4.65
4.95
4.65
4.95
4.65
4.95
.333
.333
.333
.333
.333
.333
.333
.333
.333
.333
.333
.333
.333
.333
.790 20.07 .565 14.35 .333 8.46 .184
.790 20.07 .565 14.35 .400 10.16 .250
.940 23.88 .715 18.16 .483 12.27 .184
.940 23.88 .715 18.16 .551 14.00 .250
1.180 29.97 .865 21.97 .633 16.08 .184
1.180 29.97 .865 21.97 .701 17.81 .250
1.275 32.39 .965 24.51 .733 18.62 .184
1.275 32.39 .965 24.51 .801 20.35 .250
1.575 40.01 1.115 28.32 .883 22.43 .184
1.575 40.01 1.115 28.32 .951 24.16 .250
1.875 47.63 1.265 32.13 1.033 26.24 .184
1.875 47.63 1.265 32.13 1.101 27.96 .250
1.775 45.09 1.215 30.86 .983 24.97 .228
1.775 45.09 1.215 30.86 1.051 26.70 .296
2.585 65.66 1.800 45.72 1.383 35.13 .270
2.585 65.66 1.800 45.72 1.451 36.86 .333
8.46 1.150 29.21 1.390 35.31 .155
8.46 1.150 29.21 1.390 35.31 .155
8.46 1.150 29.21 1.390 35.31 .155
8.46 1.150 29.21 1.390 35.31 .155
8.46 1.450 36.83 1.690 42.93 .155
8.46 1.450 36.83 1.690 42.93 .155
8.46 1.500 38.10 1.740 44.20 .155
8.46 1.500 38.10 1.740 44.20 .155
8.46 1.800 45.72 2.040 51.82 .155
8.46 1.800 45.72 2.040 51.82 .155
8.46 2.100 53.34 2.340 59.44 .155
8.46 2.100 53.34 2.340 59.44 .155
8.46 2.000 50.80 2.270 57.64 .155
8.46 2.000 50.80 2.270 57.64 .155
25P
25S
31P
31S
37P
37S
51P
51S
100P
100S
M
N
P
Q
INDEX
.394 10.01 .183
.394 10.01 .195
.525 13.34 2.800 71.12 3.250 82.55 .293
.525 13.34 2.800 71.12 3.250 82.55 .293
© 2013 Glenair, Inc.
High Performance Micro-D Connectors and Cables
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
L-19
E-Mail: sales@glenair.com
Micro-D
MIL-DTL-83513
A
B
C
D
E
F
G
H
J
K
L
Micro-D
MIL-DTL-83513
MIL-DTL-83513/22 Thru /27 Micro-D BS
Straight PCB Terminated Connector

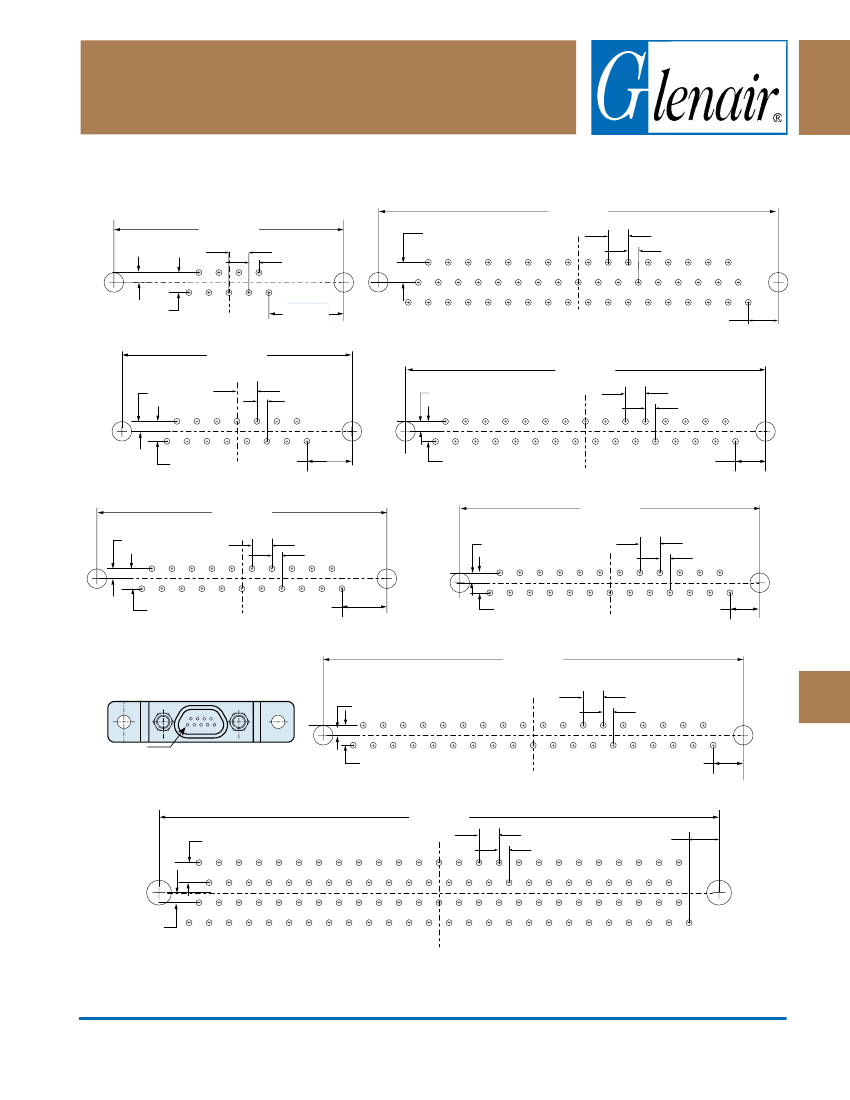

M83513/22 Thru /24 PCB Layouts – Pin Connectors
