FB321611T-320Y-S-LF datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> FB321611T-320Y-S-LF

FB321611T-320Y-S-LF: DescriptionFerrite Chip, 1 Function(s), 0.5A, SURFACE MOUNT PACKAGE-2; CategoryAnalog mixed-signal IC filter; File Size337KB，9 Pages; ManufacturerCal-Chip Electronics; Environmental Compliance

Download Datasheet Parametric View All

FB321611T-320Y-S-LF Overview

Ferrite Chip, 1 Function(s), 0.5A, SURFACE MOUNT PACKAGE-2

FB321611T-320Y-S-LF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Cal-Chip Electronics
package instruction	1206
Reach Compliance Code	compliant
ECCN code	EAR99
shell code	1206
structure	Chip Bead
Maximum DC resistance	0.15 Ω
filter type	FERRITE CHIP
maximum frequency	100 MHz
minimum frequency	100 MHz
high	1.1 mm
length	3.2 mm
Manufacturer's serial number	FB
Material	Ferrite
Installation type	SURFACE MOUNT
Number of functions	1
Output impedance	32 OHM Ω
method of packing	TAPE AND REEL
physical size	L3.2XB1.6XH1.1 (mm)/L0.126XB0.063XH0.043 (inch)
Rated current	0.5 A
series	FB 321611
width	1.6 mm

Preview

Download Datasheet

View All

Cal-Chip

UTLINE

Electronics, Incorporated

FB S

ERIES

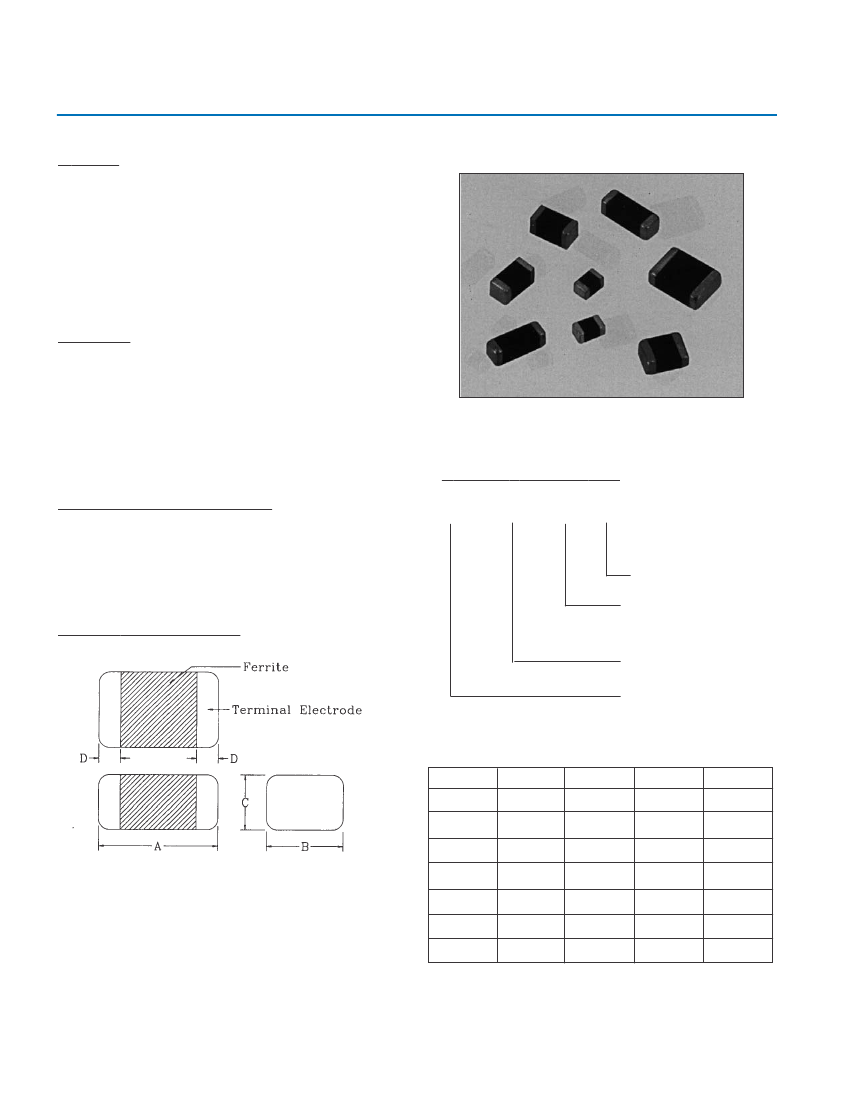

Multilayer Ferrite Chip Beads

• Cal-Chip ferrite chip EMI suppressors provide a powerful

means of EMI/RFI attenuation for electronic equipment.

These products are highly produced with the use of mag-

netic material and, multilayered technology.

• These components contain tremendous electrode strength,

solder heat resistance and outstanding solderability. These

products are specially designed for flow, reflow and wave sol-

dering required for surface mounting application.

EATURES

• Unlike conventional beads, these beads do not require

wiring: simply mount them onto the PCB to eliminate the

EMI/RFI.

• Specially designed for surface mounting equipment, avail-

able in various size which allows them to be applied in a

wide range of applications and usage.

• Best designed and tested to offer high impedance for volume.

RODUCT

DENTIFICATION

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

ECOMMENDED

PPLICATIONS

• Prevention of high frequency EMI from computers, printers,

VCRs, TVs, wireless telephone and other related equipment.

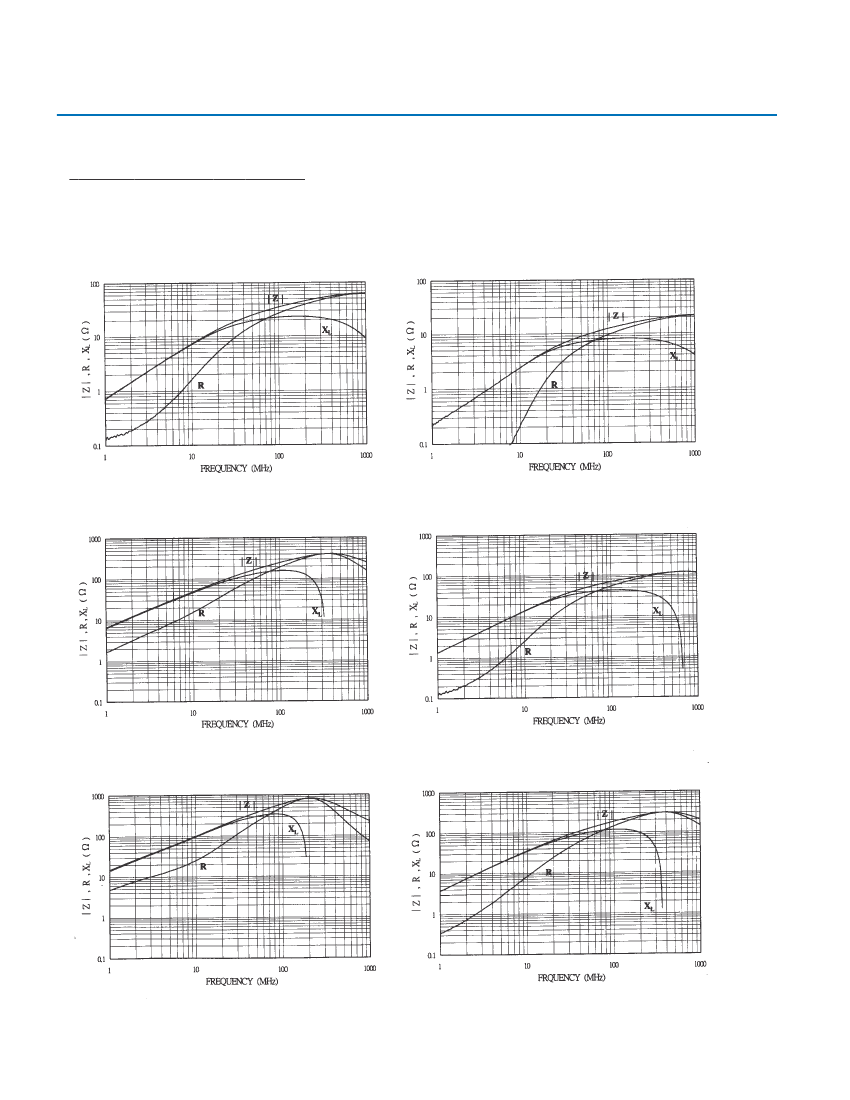

Impedance and Tolerance

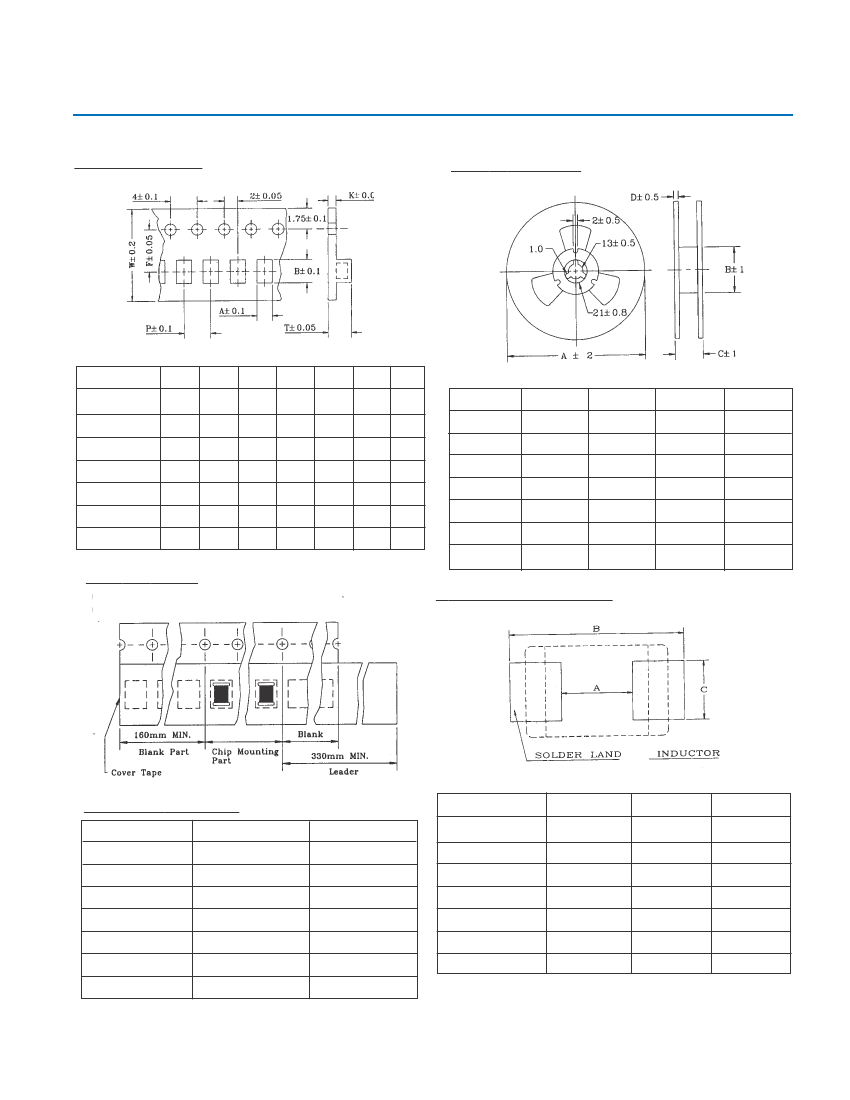

Packaging Style

T - Tape and Reel

Dimensions (A, B, C)

HAPES

AND

IMENSIONS

Product Symbol

TYPE

*FB100505

1.0±0.10

0.50±0.10

0.5±0.10

.25±0.10

FB160808

FB201209

FB321611

FB321616

FB322513

FB451616

* Cal-Chip now offers 0402 Ferrite Beads. Please refer to

the bottom of this document for the complete specs.

1.6±0.20

2.0±0.20

3.2±0.20

4.5±0.25

0.80±0.15

1.25±0.20

1.60±0.20

2.50±0.20

1.60±0.20

3.20±0.20

0.8±0.15

0.9±0.20

1.1±0.20

1.6±0.20

1.3±0.20

1.6±0.20

1.5±0.20

0.4±0.2

0.5±0.3

FB453215

DIMENSIONS IN MM
