TM21P Overview

Telecom and Datacom Connector, Male, Crimp Terminal, Plug

TM21P Parametric

Parameter NameAttribute value
MakerHirose
Reach Compliance Codeunknown
Other featuresEMI SHIELDED TYPE, LATCHED, MAX CONTACTS (SERIES)=8
Body/casing typePLUG
Connector typeTELECOM AND DATACOM CONNECTOR
Contact point genderMALE
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
insulator materialPOLYCARBONATE
MIL complianceNO
Manufacturer's serial numberTM21P
Mixed contactsNO
Installation typeCABLE
OptionsGENERAL PURPOSE
Shell materialCOPPER ALLOY
Termination typeCRIMP
UL Flammability Code94V-2
NEW

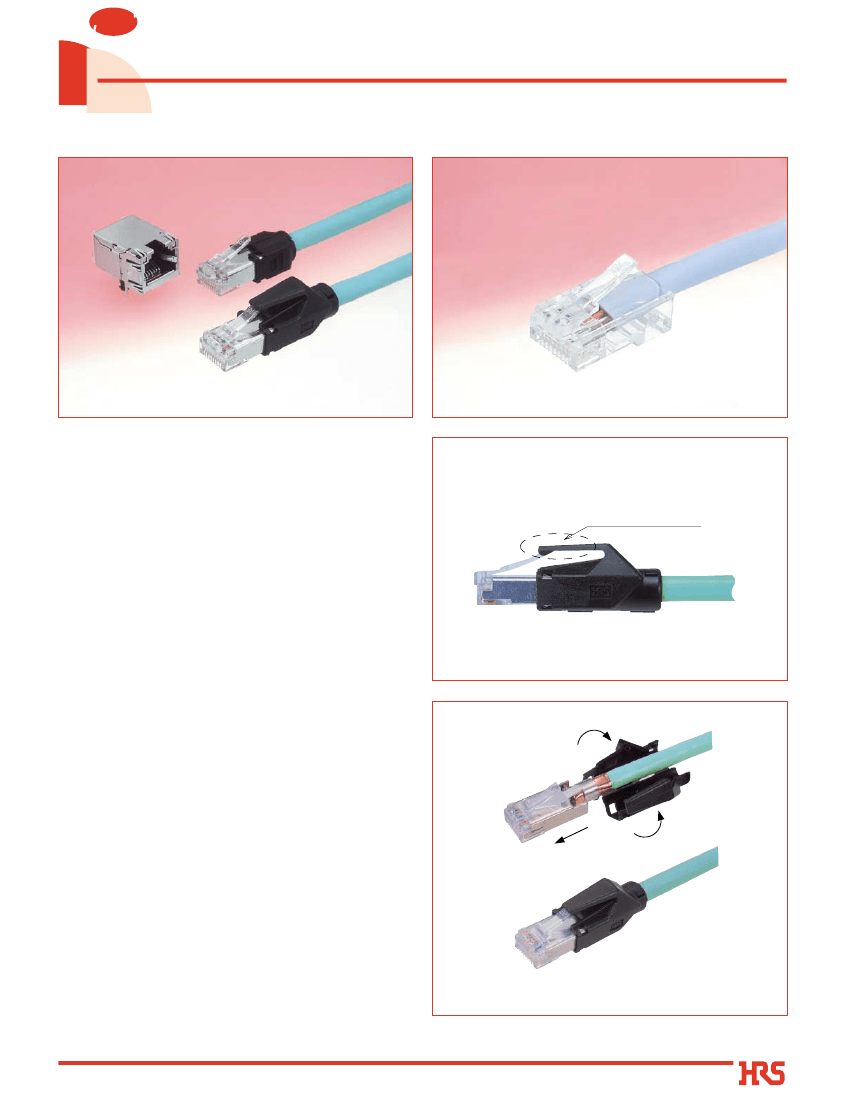

Modular Plug Connectors Compliant to Enhanced Category 5 Standards

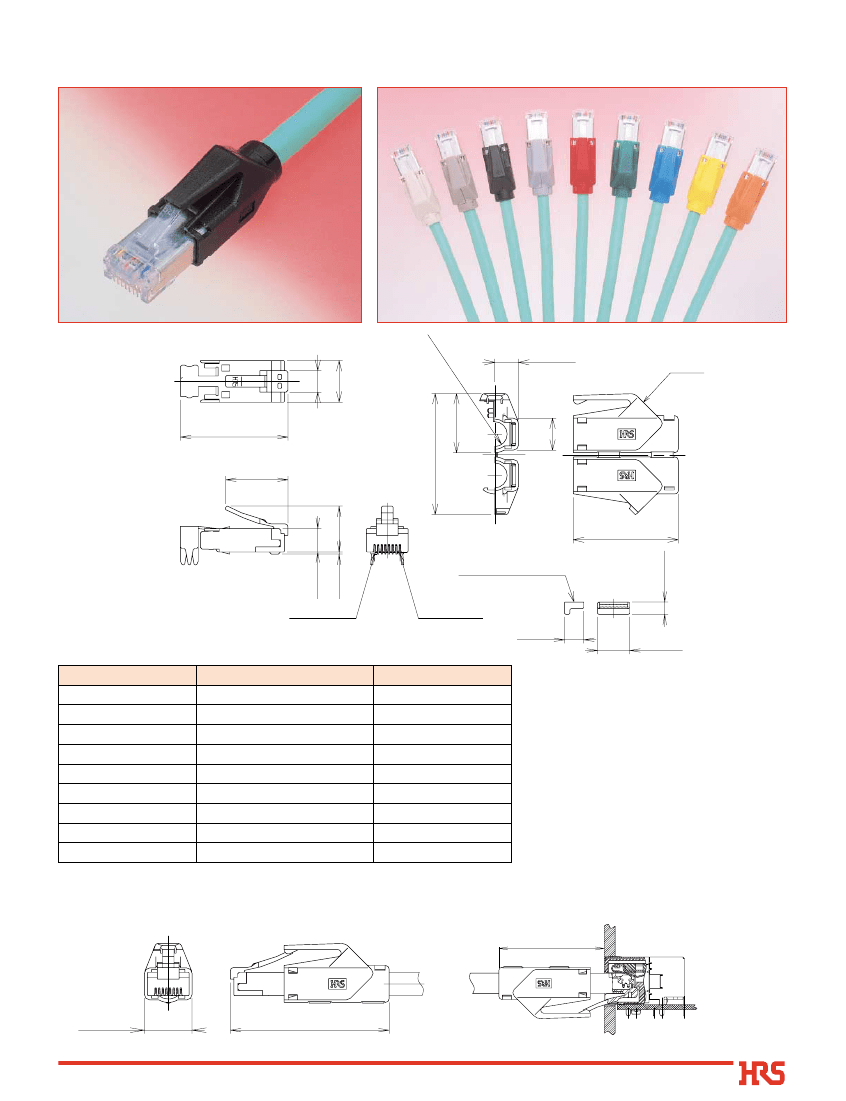

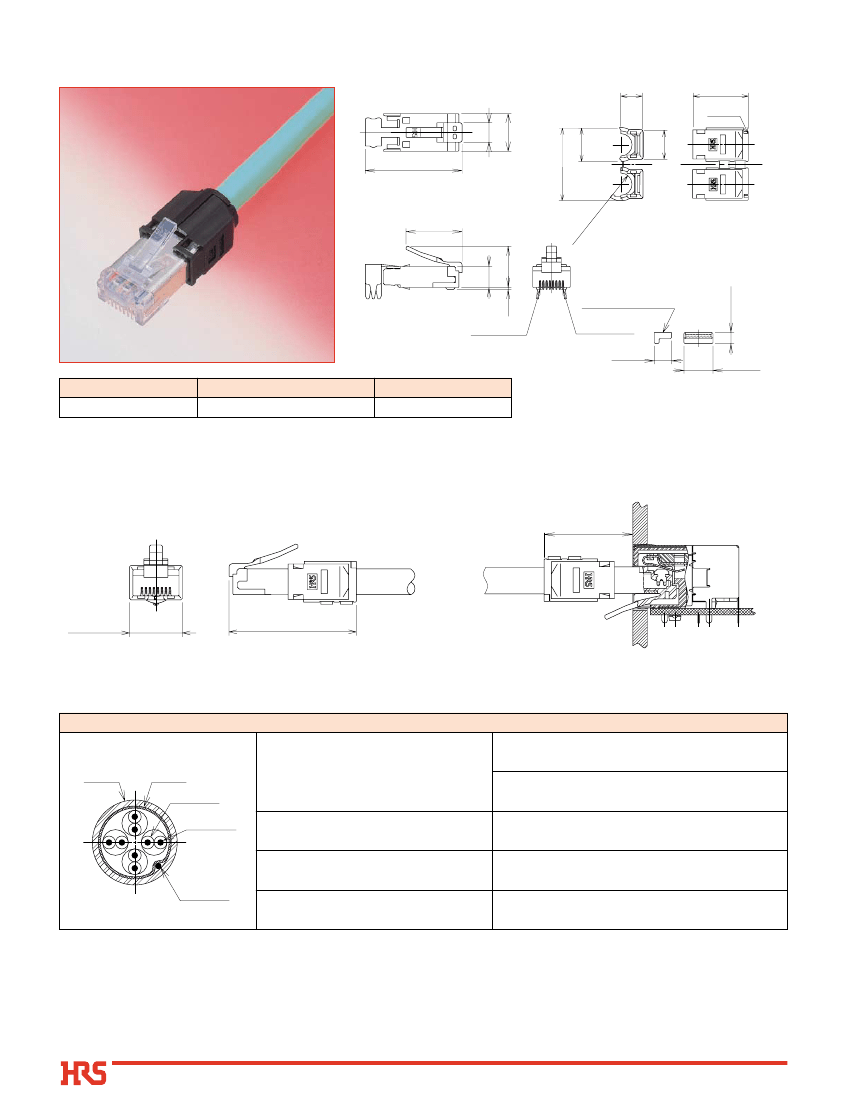

TM21P Series (Shielded Type)

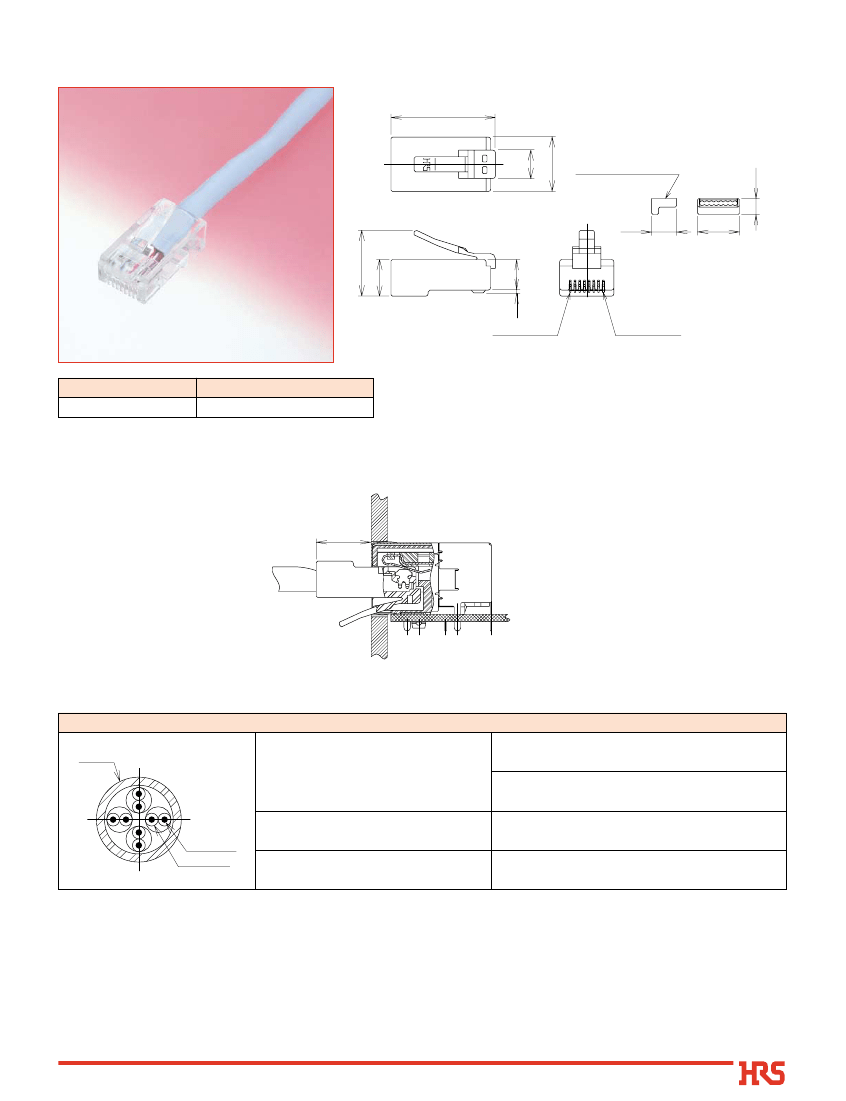

TM22P-88P (Non-shielded Type)
s
Features
1. Supports High-Speed LAN Transmission
Conforms to requirements of TIA/EIA-568B data
wiring standard, meeting transmission performance
of Enhanced Category 5.
Supports Gigabit Ethernet (1000BASE-T) and Fast
Ethernet (100BASE-TX) high-speed LAN
transmission.
Protected latch tab
2. EMI protection (TM21*P-88P)
360
°
coverage of the engagement area with a metal
shield assures protection against electromagnetic
interference. When mated with corresponding
connector the shield surfaces are securely
connected to provide continuous circuit.
3. Protected latch tab (TM21P-88P)
Flexible case extends over the release tab
preventing the possibility of breaking-off during
handling of the complete cable assembly.
4. Termination of conductors
Self located 24 AWG conductors (solid or stranded)
are terminated against pre-inserted contacts using
simple tooling.
5. Simplified termination (TM21*P-88P)
Removeable one piece cover allows easy access to
the termination areas.
6. Conforms to the ISO 8877 Standard
(ISDN Interface Connector)
s
Applications
Telecom Hubs, Routers, Bridges and ATM
Transmission Equipment, Ethernet Switches and
Networking Equipment, Test and Measurement
Equipment and other equipment requiring this type of
simple and reliable connection.
Cover Installation Procedure
2002.11
1
