C2012X7R2A152KT datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> C2012X7R2A152KT

Preview

C2012X7R2A152KT: DescriptionCeramic Capacitor, Multilayer, Ceramic, 100V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0015uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size180KB，3 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric View All

C2012X7R2A152KT Overview

Ceramic Capacitor, Multilayer, Ceramic, 100V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0015uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT

C2012X7R2A152KT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TDK Corporation
package instruction	, 0805
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.0015 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.85 mm
JESD-609 code	e3
length	2 mm
Manufacturer's serial number	C
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PAPER/PLASTIC, 7/13 INCH
positive tolerance	10%
Rated (DC) voltage (URdc)	100 V
series	C2012(100V,CLASS 2)
size code	0805
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	1.25 mm

Preview

Download Datasheet

View All

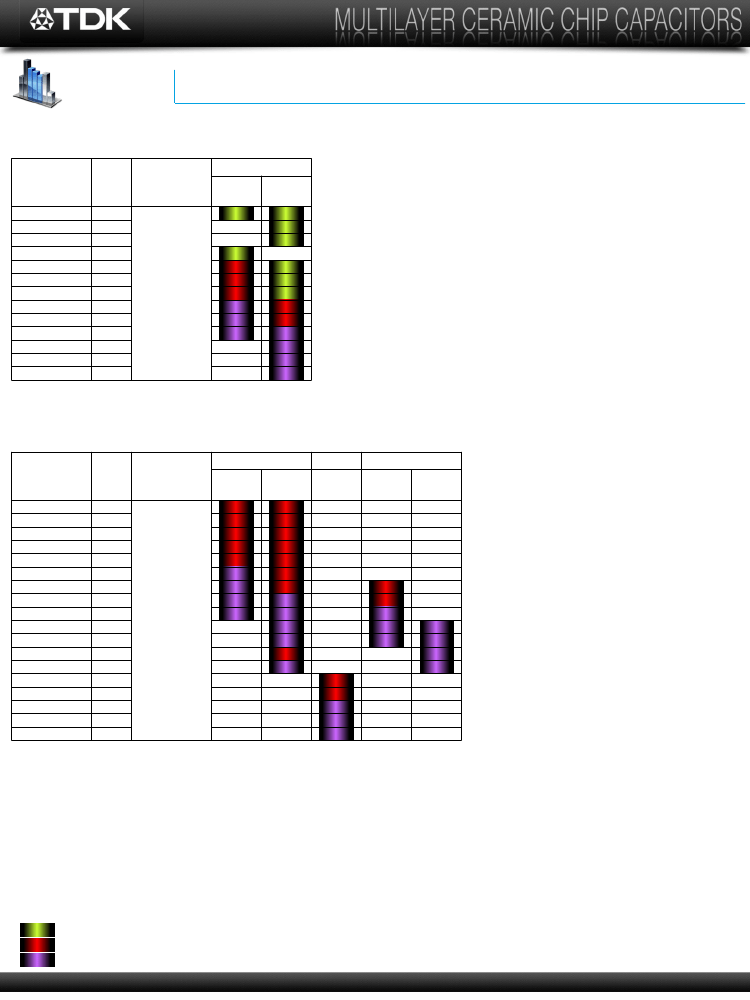

Capacitance

Range Chart

Capacitance Range Chart

Temperature Characteristics: C0G (0 ± 30ppm/ºC)

Rated Voltage: 250V (2E), 100V (2A)

Capacitance

(pF)

100

220

470

820

1,000

1,200

1,500

1,800

2,200

2,700

3,300

3,900

4,700

Cap

Code

101

221

471

821

102

122

152

182

222

272

332

392

472

C0G

Tolerance

J: ± 5%

2E

(250V)

2A

(100V)

C2012 [EIA CC0805]

Capacitance Range Chart

Temperature Characteristics: X7R (±15%), X7S (±22%), X7T (+22/-33%)

Rated Voltage: 450V (2W), 250V (2E), 100V (2A)

Capacitance

(pF)

1,000

1,500

2,200

3,300

4,700

6,800

10,000

15,000

22,000

33,000

47,000

68,000

100,000

150,000

220,000

330,000

470,000

1,000,000

Cap

Code

102

152

222

332

472

682

103

153

223

333

473

683

104

154

224

334

474

105

X7R

Tolerance

K: ± 10%

M: ± 20%

2E

(250V)

2A

(100V)

X7S

2A

(100V)

X7T

2W

(450V)

2E

(250V)

Standard Thickness

0.60 mm

0.85 mm

1.25 mm

TDK MLCC US Catalog

Page 83

Version B11
