Accuribbon* Fanout

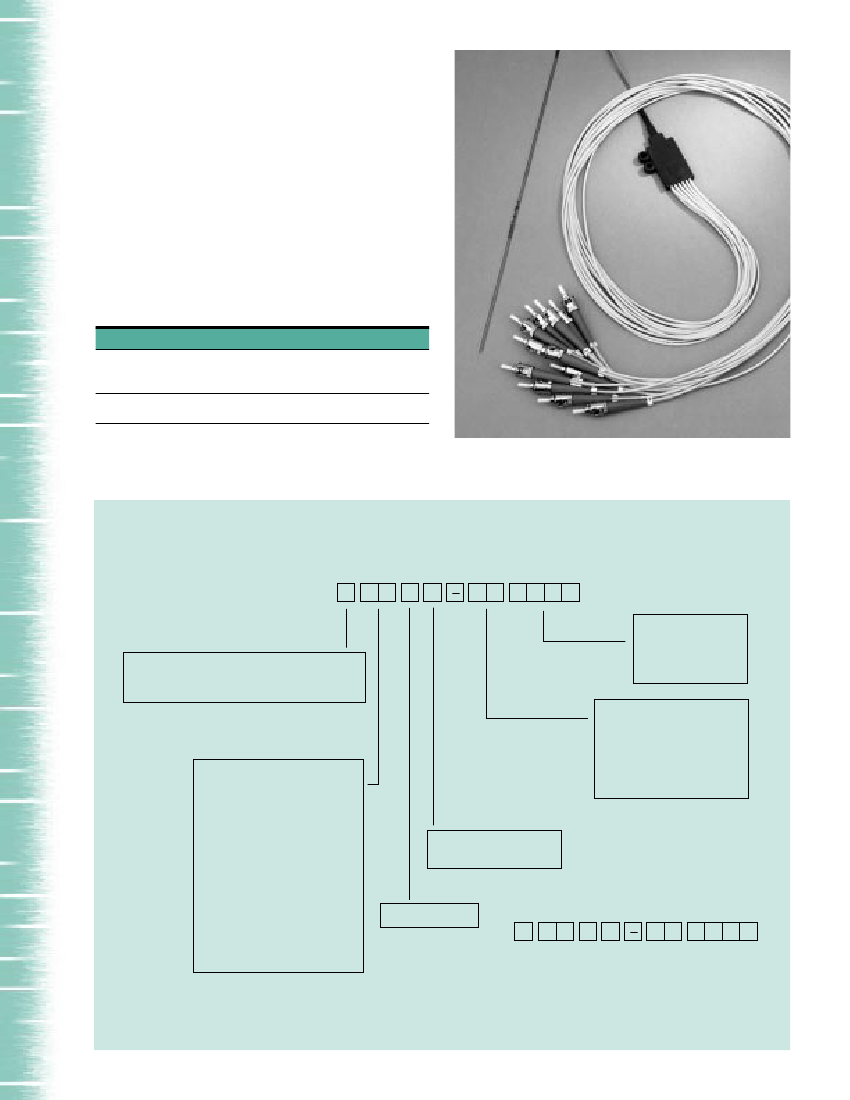

The Accuribbon* Fanout is a pre-connectorized assembly
which can be mechanically or fusion spliced to 12 fiber
ribbon for termination in the fiber distribution frame. The
12 fiber AT&T Accuribbon* is separated into individual
fibers which are protected with 1.7 mm PVC tubing and
terminated with connectors.
The Accuribbon* fiber is transitioned through a small
plastic module. The terminated ends of the fibers are spaced
24 or 48 inches from the fanout module. The length of
Accuribbon* extending from the module is specified by the
customer.
The 3M
™
Fibrlok
™
2612 Multi-Fiber Optical Splice is
available for fast mechanical splicing of ribbon or
ribbonized fiber. This splicing system is ideal for
Accuribbon* Fanout installations with a minimum
investment in time and tooling.
Specifications
Attenuation
Average loss per end
Maximum
Reflection (ceramic ferrules)
Average return loss per end
Operating temperature
0.25 dB
0.50 dB
-55 dB
-40° to 80°C
7
Accuribbon* Fanout Ordering Chart
The product number for the Accuribbon* Fanout is determined using
a system similar to the system used for other 3M Cable Assemblies.
Cable Assembly Information
A Single-mode 3M supplied connector and cable
B Multimode 3M supplied connector and cable
Ribbon Length
from module
0001
1 meter
02.5
2.5 meters
Cable Code for
12-Fiber Accuribbon
BR 8/125
µm
Single-mode
BS 62.5/125
µm
Multimode
Connector Type
AM
DA
EP
EN
EU
EX
AN
DB
EM
Note:
Single-Mode
ST* (Bayonet)
SC
SC Angle
FC/PC
FC 8º Angle (2.15 mm key)
FC 8º Angle (2.0 mm key)
Multimode (125)
ST* (Bayonet)
SC
FC/PC
All ST*, SC and FC
connectors have PC finish
A 24" Pigtails (0.6 m)
B 48" Pigtails (1.2 m)
F
Fanout
Example: Single-mode FC/PC3 Fanout with 24" (0.6 m)
pigtails and 2 meters (6.5 feet) of ribbon
A
E N
F
A
B R
0 0 0
2
(AENFA-BR0002)
NOTE: Accuribbon* Fanouts must be ordered in multiples of two for the same cable code.
