L1904C/8/CS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> L1904C/8/CS

L1904C/8/CS: DescriptionCircular DIN Connector, 8 Contact(s), Female, Panel Mount, Solder Lug Terminal, Socket; CategoryThe connector The connector; File Size31KB，1 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com; Environmental Compliance

Download Datasheet Parametric Compare View All

L1904C/8/CS Overview

Circular DIN Connector, 8 Contact(s), Female, Panel Mount, Solder Lug Terminal, Socket

L1904C/8/CS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	DIALIGHT
Reach Compliance Code	unknown
Other features	STANDARDS: DIN 41524; DIN 45322; 45329; IEC 130-9; IEC/44
Body/casing type	SOCKET
Connector type	CIRCULAR DIN CONNECTOR
Contact to complete cooperation	SILVER
Contact completed and terminated	SILVER
Contact point gender	FEMALE
Contact material	BRASS
DIN compliance	YES
DIN standard	45326
Electromagnetic interference shielding	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	L1904C/CS
Installation method	STRAIGHT
Installation type	PANEL
Termination type	SOLDER LUG
Total number of contacts	8

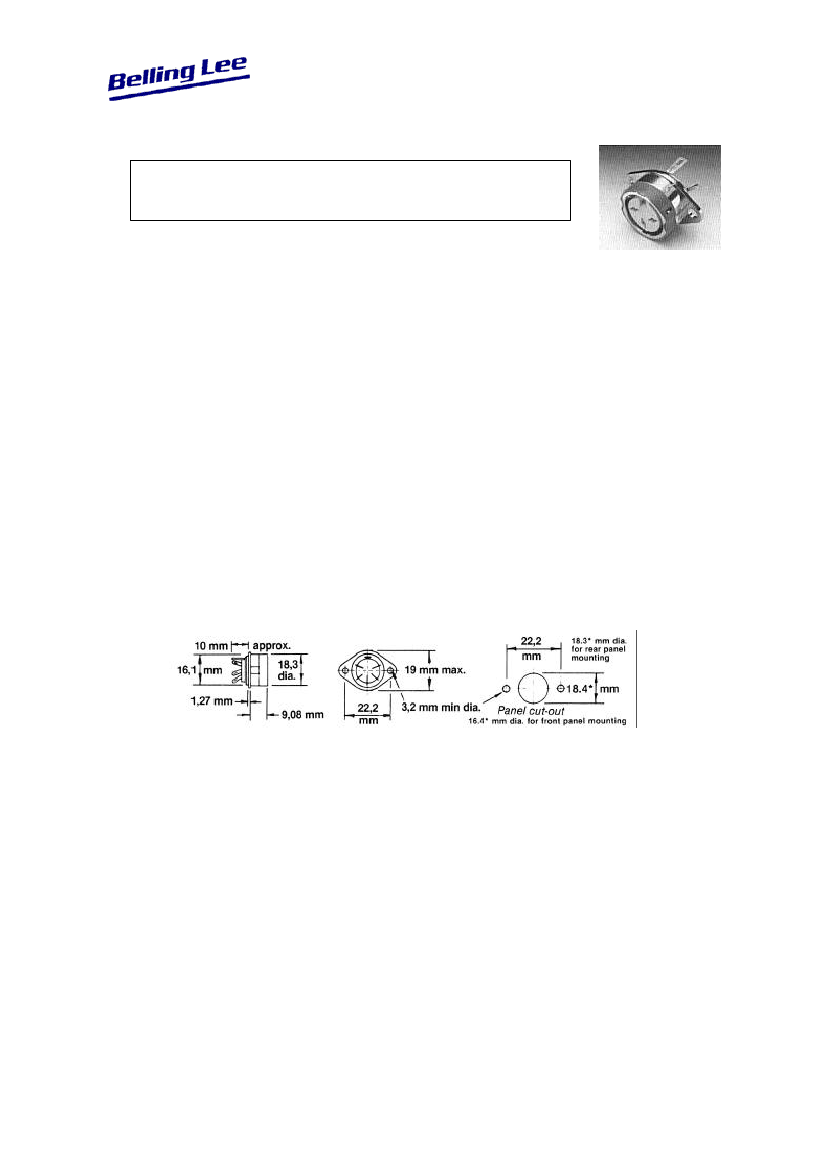

Preview

Download Datasheet

View All

LAST UPDATED: September 13, 2007

L1904C/CS DIN STYLE CONNECTOR

PANEL MOUNTING SOCKET

MATERIALS

BODY:

CLAMPING NUT:

RECEPTACLE INSULATOR:

CONTACTS:

CONTACT TERMINATION:

Zinc alloy, nickel-plated

Noryl

Glass filled nylon

Brass, silver plated

Solder lugs, maximum conductor diameter –

0.9mm or 16/0.2mm

ORDERING REFERENCE:

DIRECT PCB MOUNTING L1904C/*/CS

*number of poles

Note: Only available in 5, 6, 7 and 8 way configuration

Dialight BLP reserve the right to change without prior notice the information contained within this leaflet

Dialight BLP Ltd., Exning Road, Newmarket, Suffolk, CB8 0AX, England

Tel: +44 (0)1638 665161 Fax: +44 (0)1638 660718 email: sales@blpcomp.com www.blpcomp.com

L1904C/8/CS Related Products

	L1904C/8/CS	L1904C/7/CS
Description	Circular DIN Connector, 8 Contact(s), Female, Panel Mount, Solder Lug Terminal, Socket	7 CONTACT(S), PANEL MOUNT, DIN CONNECTOR, SOCKET
Is it Rohs certified?	conform to	conform to
Maker	DIALIGHT	DIALIGHT
Reach Compliance Code	unknown	unknown
Other features	STANDARDS: DIN 41524; DIN 45322; 45329; IEC 130-9; IEC/44	STANDARDS: DIN 41524; DIN 45322; 45329; IEC 130-9; IEC/44
Body/casing type	SOCKET	SOCKET
Connector type	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR
Contact to complete cooperation	SILVER	SILVER
Contact completed and terminated	SILVER	SILVER
Contact point gender	FEMALE	FEMALE
Contact material	BRASS	BRASS
DIN compliance	YES	YES
DIN standard	45326	45326
Electromagnetic interference shielding	NO	NO
IEC compliance	NO	NO
JESD-609 code	e4	e4
MIL compliance	NO	NO
Manufacturer's serial number	L1904C/CS	L1904C/CS
Installation method	STRAIGHT	STRAIGHT
Installation type	PANEL	PANEL
Termination type	SOLDER LUG	SOLDER LUG
Total number of contacts	8	7
