TTMC54HC242JS datasheet, PDF - EEWORLD Datasheet

TTMC54HC242JS: DescriptionBus Driver/Transceiver, 1-Func, 4-Bit, Inverted Output, CMOS, CDIP14; Categorylogic logic; File Size237KB，5 Pages; ManufacturerTwilight Technology Inc.

Download Datasheet Parametric View All

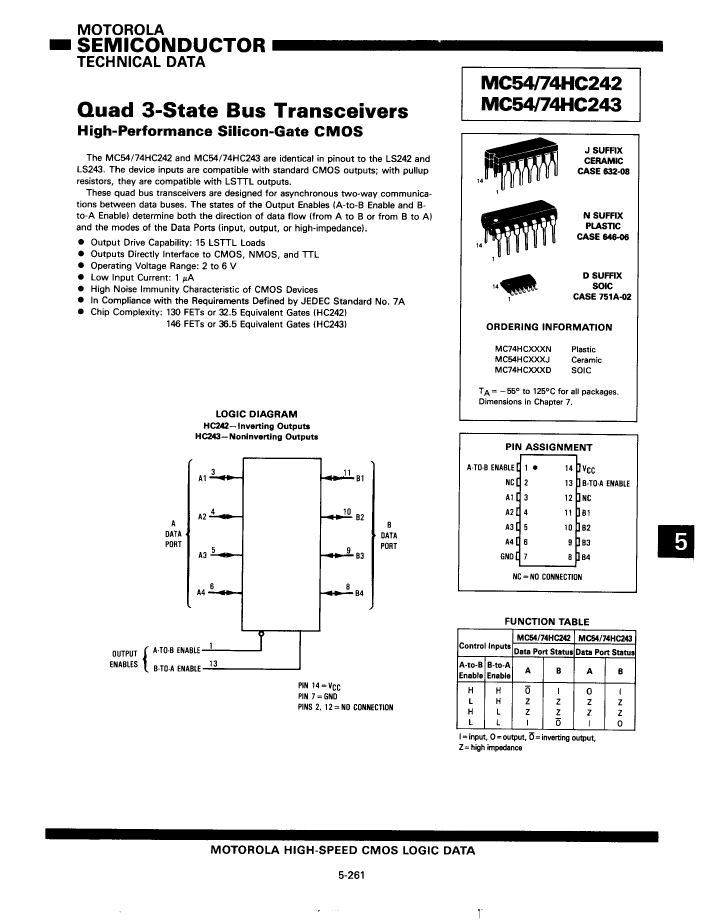

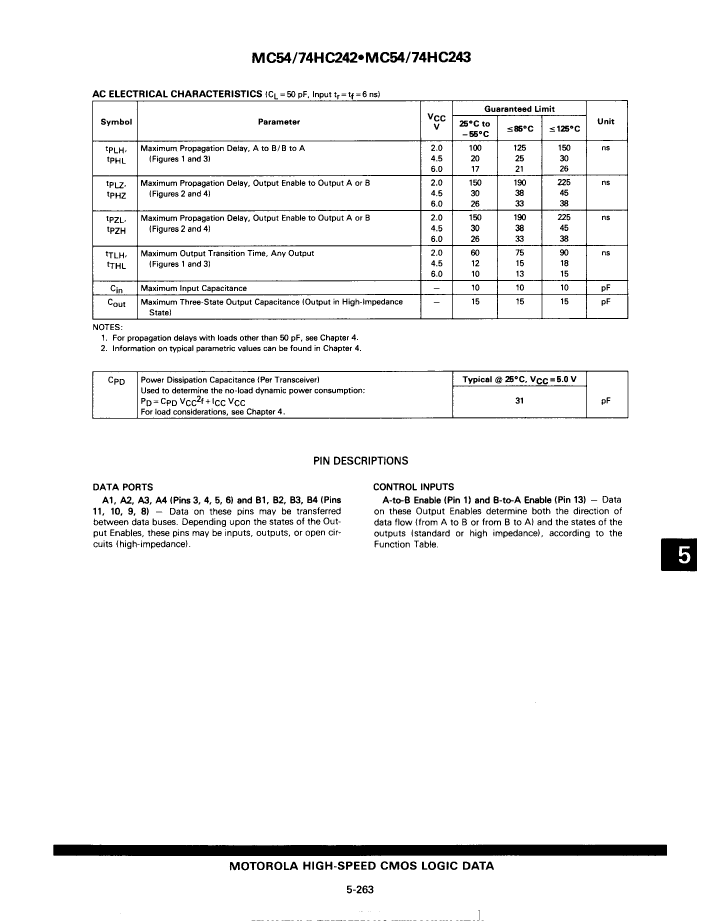

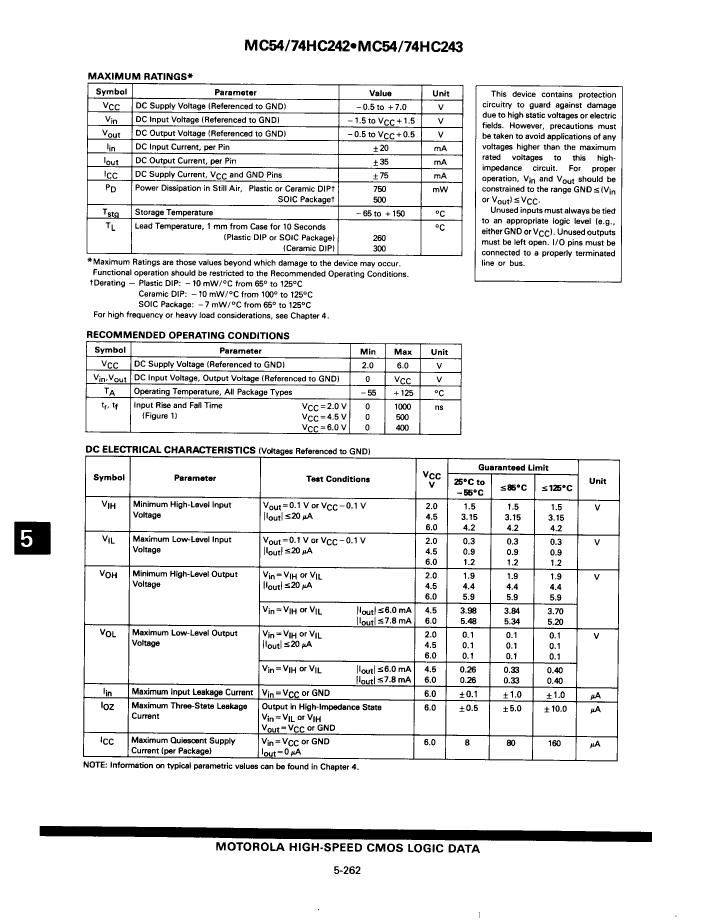

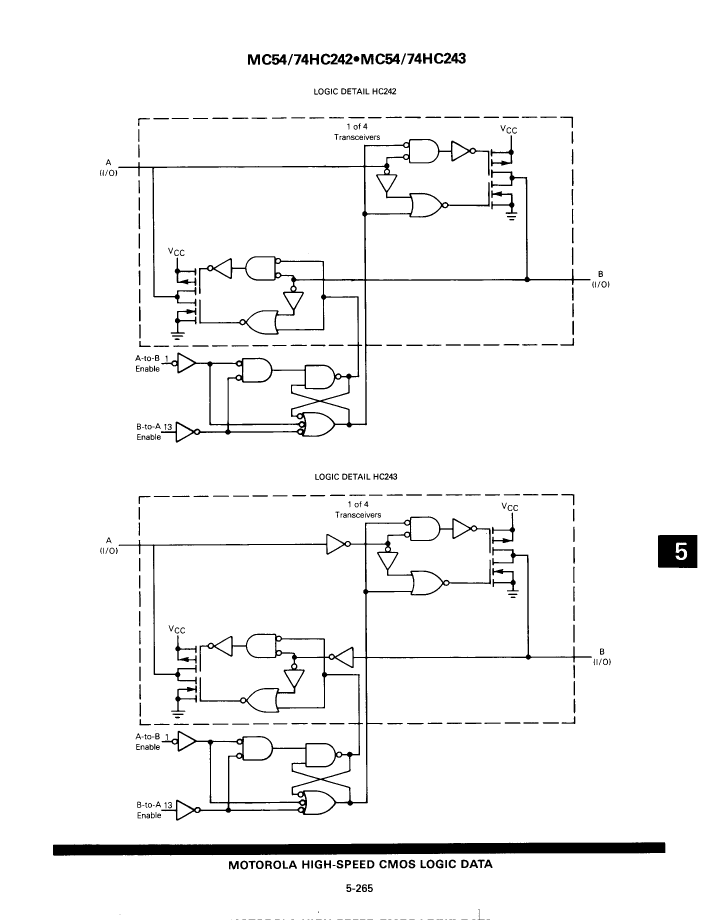

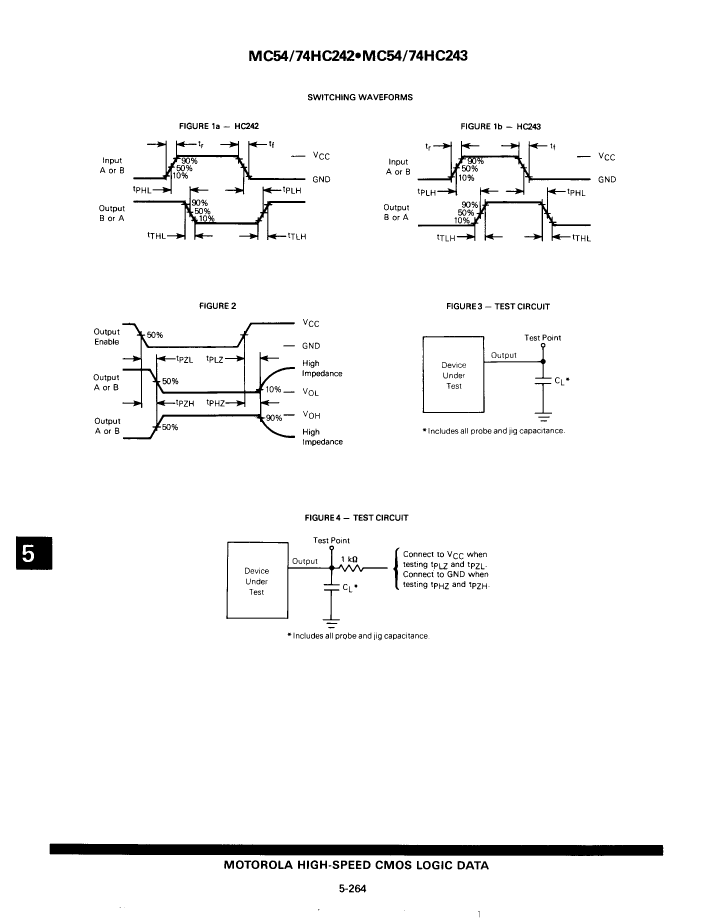

TTMC54HC242JS Overview

Bus Driver/Transceiver, 1-Func, 4-Bit, Inverted Output, CMOS, CDIP14

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Twilight Technology Inc.
Reach Compliance Code	unknown
Control type	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL
JESD-30 code	R-XDIP-T14
Number of digits	4
Number of functions	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	2/6 V
Certification status	Not Qualified
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
