Surge arrester
2-electrode arrester
B88069X1370T352
A81-C90XSMD
Features
Standard size
Fast response time
Very high current rating
Stable performance over life
Very low capacitance
High insulation resistance
Excellent SMD handling
RoHS-compatible
Applications
Consumer electronic
Alarm systems
Electrical specifications
DC spark-over voltage
1) 2)
Tolerance
Min.
Max.
Impulse spark-over voltage
at 100 V/µs - for 99% of measured values
- typical values of distribution
at 1 kV/µs
- for 99% of measured values
- typical values of distribution
Service life
10 operations
1 operation
10 operations
[5× (+) & 5× (−)]
1 operation
1 operation
300 operations
Insulation resistance at 50 V
DC
Capacitance at 1 MHz
Arc voltage at 1 A
Glow to arc transition current
Glow voltage
Weight
Operation and storage temperature
Climatic category (IEC 60068-1)
Marking, blue negative
90
YY
O
90
±
20
72
108
< 500
< 450
< 600
< 550
20
100
20
25
5
100
> 10
< 1.5
~ 10
~ 0.5
~ 60
~ 1.5
−40
... +125
40/125/21
90 YY O
- Nominal voltage
- Year of production
- Non radioactive
V
%
V
V
V
V
V
V
A
A
kA
kA
kA
A
GΩ
pF
V
A
V
g
°C
50 Hz, 1 s
50 Hz; 0.18 s (9 cycles)
8/20 µs
8/20 µs
10/350 µs
10/1000 µs
Certification
1)
2)
UL 497B (E163070)
At delivery AQL 0.65 level II, DIN ISO 2859
In ionized mode
Terms in accordance with ITU-T Rec. K.12, IEC 61663-2 and IEC 61643-311
PPD AB PD / PPD AB PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 5
2015-11-27
Surge arrester
2-electrode arrester
B88069X1370T352
A81-C90XSMD
Soldering parameter
Reflow soldering
Reflow profile
features
Preheat and soak
- Temperature min
- Temperature max
- Time
Average ramp-up
rate
Liquidous
temperature
Time at liquidous
Peak package body
temperature *,
Classification
temperature **
Time (t
p
) ** within
5 °C of the specified
classification
temperature (T
C
)
Average ramp-down
rate
Time 25 °C to peak
temperature
*=
Sn- Pb eutectic
assembly
T
smin
T
smax
t
smin
to t
smax
T
smax
to T
p
T
L
t
L
T
p
, T
C
100 °C
150 °C
60 ... 120 s
max. 3 °C/ s
183 °C
60 ... 150 s
220 ... 235 °C **
Pb-free
assembly
150 °C
200 °C
60 ... 180 s
max. 3 °C/ s
217 °C
60 ... 150 s
245 ... 260 °C **
20 s ***
30 s ***
T
p
to T
smax
max. 6 °C/ s
max. 6 min
max. 6 °C/ s
max. 8 min
Tolerance for peak profile temperature (T
p
) is defined as a supplier minimum
and a user maximum.
** = For details please refer to JEDEC J-STD-020D.
*** = Tolerance for time at peak profile temperature (t
p
) is defined as a supplier
minimum and a user maximum.
Cautions and warnings
Do not operate surge arresters in power supply networks, whose maximum operating voltage
exceeds the minimum spark-over voltage of the surge arresters.
Surge arresters may become hot in the event of longer periods of current stress (burn risk). In the
event of overload the connectors may fail or the component may be destroyed.
Surge arresters must be handled with care and must not be dropped.
Do not continue to use damaged surge arresters.

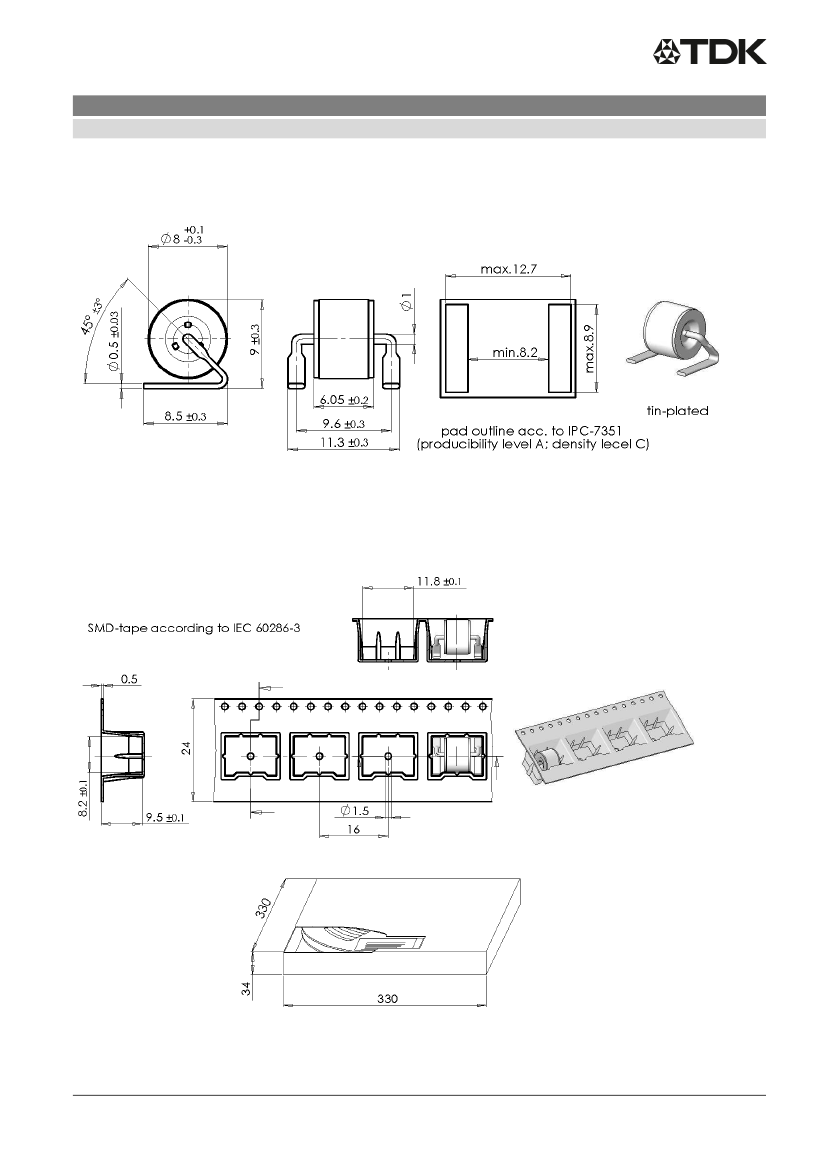

The shown SMD pad dimensions represent a safe way to mount the arrester and are a
recommendation of the manufacturer. During the reflow process it must be assured that no solder
material reduces the insulation distance between the pads below the arrester.
SMD surge arresters should be soldered within 24 month after shipment.
Display of ordering codes for EPCOS products
The ordering code for one and the same EPCOS product can be represented differently in data
sheets, data books, other publications, on the EPCOS website, or in order-related documents such as
shipping notes, order confirmations and product labels.
The varying representations of the
ordering codes are due to different processes employed and do not affect the specifications of
the respective products.
Detailed information can be found on the Internet under
www.epcos.com/orderingcodes
PPD AB PD / PPD AB PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 5
