Surge arrester
2-electrode arrester
B88069X2890C102
A83-A600X
Features
Standard size
Fast response time
High current rating
Stable performance over life
Very low capacitance
High insulation resistance
RoHS-compatible
Applications
Branch exchange (MDF)
Line protection
Subscriber protection
Electrical specifications
DC spark-over voltage
1) 2)
Tolerance
Min.
Max.
Impulse spark-over voltage
at 100 V/µs - for 99% of measured values
- typical values of distribution
at 1 kV/µs
- for 99% of measured values
- typical values of distribution
Service life
10 operations
1 operations
10 operations
1 operation
1 operation
300 operations
Capacitance at 1 MHz
Arc voltage at 1 A
Glow to arc transition current
Glow voltage
Weight
Operation and storage temperature
Climatic category (IEC 60068-1)
Marking, black positive
600
YY
O
600
±20
480
720
< 1100
< 950
< 1400
< 1100
20
100
20
25
2.5
100
> 10
< 1.5
~ 15
< 0.5
~ 60
~ 2.5
40
... +90
40/ 90/ 21
600 YY O
- Nominal voltage
- Year of production
- Non radioactive
V
%
V
V
V
V
V
V
A
A
kA
kA
kA
A
G
pF
V
A
V
g
°C
50 Hz, 1 s
50 Hz, 0.18 s (9 cycles)
8/20 µs
8/20 µs
10/350 µs
10/1000 µs
Insulation resistance at 100 V
DC
Certification
1)
2)
UL 497B (E163070)
At delivery AQL 0.65 level II, DIN ISO 2859
In ionized mode
Terms in accordance with ITU-T Rec. K.12; IEC 61663-2 and IEC 61643-311.
PPD AB PD / PPD AB PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 4
2015-04-20
Surge arrester
2-electrode arrester
B88069X2890C102
A83-A600X

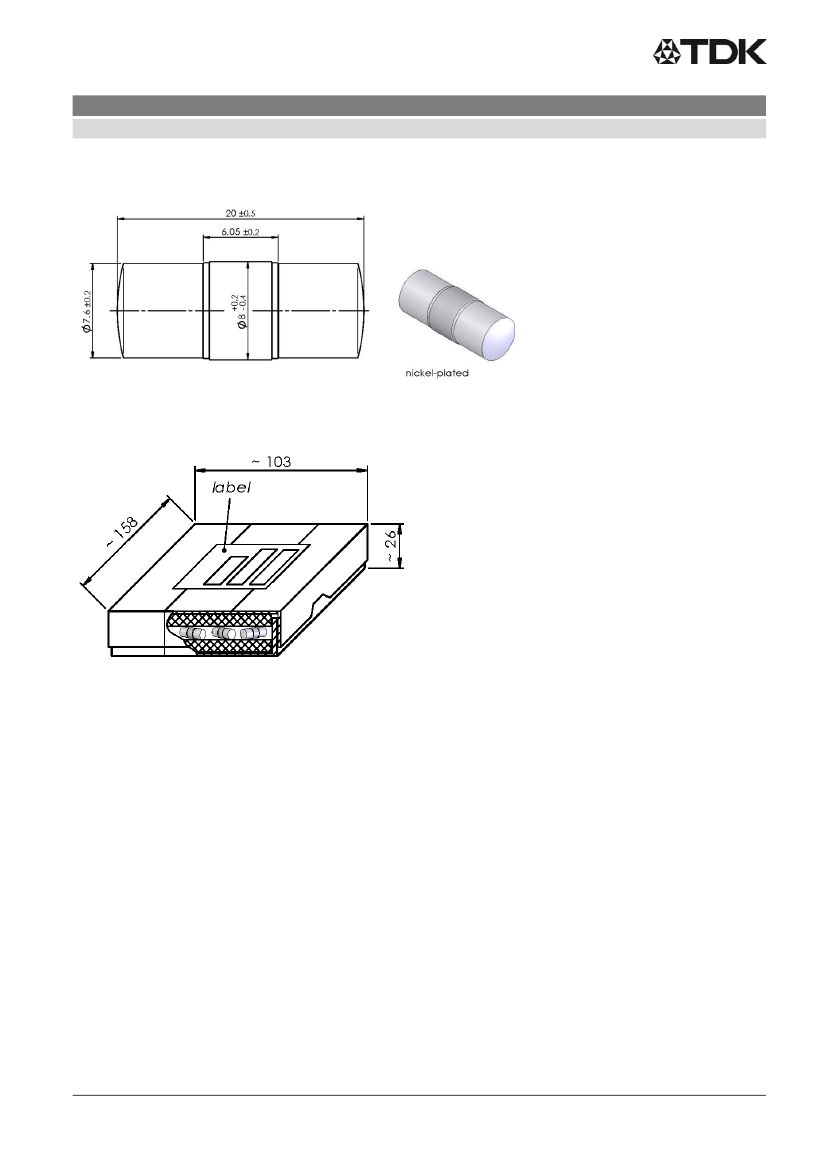

Dimensional drawing in mm
Ordering code and packing advice
B88069X2890C102 = 100 pcs. in container
Cautions and warnings
Do not operate surge arresters in power supply networks, whose maximum operating voltage
exceeds the minimum spark-over voltage of the surge arresters.
Surge arresters may become hot in the event of longer periods of current stress (burn risk). In the
event of overload the connectors may fail or the component may be destroyed.
If the contacts of the surge arresters are defective, current load can cause sparks and loud
noises.
Surge arresters must be handled with care and must not be dropped.
Do not continue to use damaged surge arresters.
Display of ordering codes for EPCOS products
The ordering code for one and the same EPCOS product can be represented differently in data
sheets, data books, other publications, on the EPCOS website, or in order-related documents such as
shipping notes, order confirmations and product labels.
The varying representations of the
ordering codes are due to different processes employed and do not affect the specifications of
the respective products.
Detailed information can be found on the Internet under
www.epcos.com/orderingcodes
PPD AB PD / PPD AB PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 4
2015-04-20
