DATA SHEET
PHOTOCOUPLER
PS2562-1,PS2562L-1,PS2562L1-1,PS2562L2-1
HIGH ISOLATION VOLTAGE
DARLINGTON TRANSISTOR TYPE
MULTI PHOTOCOUPLER SERIES
DESCRIPTION
The PS2562-1 is optically coupled isolators containing a GaAs light emitting diode and an NPN silicon darlington
connected phototransistor.
The PS2562-1 is in a plastic DIP (Dual In-line Package) and the PS2562L-1 is lead bending type (Gull-wing) for
surface mount.
The PS2562L1-1 is lead bending type for long creepage distance.
The PS2562L2-1 is lead bending type for long creepage distance (Gull-wing) for surface mount.
−NEPOC
Series−
FEATURES
• High isolation voltage (BV = 5 000 Vr.m.s.)
• High current transfer ratio (CTR = 2 000% TYP.)
• High-speed switching (t
r
, t
f
= 100
μ
s TYP.)
<R>
<R>
• Ordering number of tape product: PS2562L-1-F3 : 2 000 pcs/reel
: PS2562L2-1-E3: 1 000 pcs/reel
• Safety standards
• UL approved: No. E72422
• CSA approved: No. CA 101391 (CA5A, CAN/CSA-C22.2 60065, 60950)
• BSI approved: No. 7112/7420
• SEMKO approved: No. 903238
• NEMKO approved: No. P09210868
• DEMKO approved: No. 314999
• FIMKO approved: No. FI 25119
• DIN EN60747-5-2 (VDE0884 Part2) approved: No. 40008862 (option)
PIN CONNECTION
(Top View)
4
3
1. Anode
2. Cathode
3. Emitter
4. Collector
1
2
APPLICATIONS
• Power supply
• Telephone/FAX.
• FA/OA equipment
• Programmable logic controller
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all products and/or types are available in every country. Please check with an NEC Electronics
sales representative for availability and additional information.
Document No. PN10235EJ04V0DS (4th edition)
Date Published November 2009 NS
Printed in Japan
The mark <R> shows major revised points.
1992, 2009
The revised points can be easily searched by copying an "<R>" in the PDF file and specifying it in the "Find what:" field.
PS2562-1,PS2562L-1,PS2562L1-1,PS2562L2-1
<R>

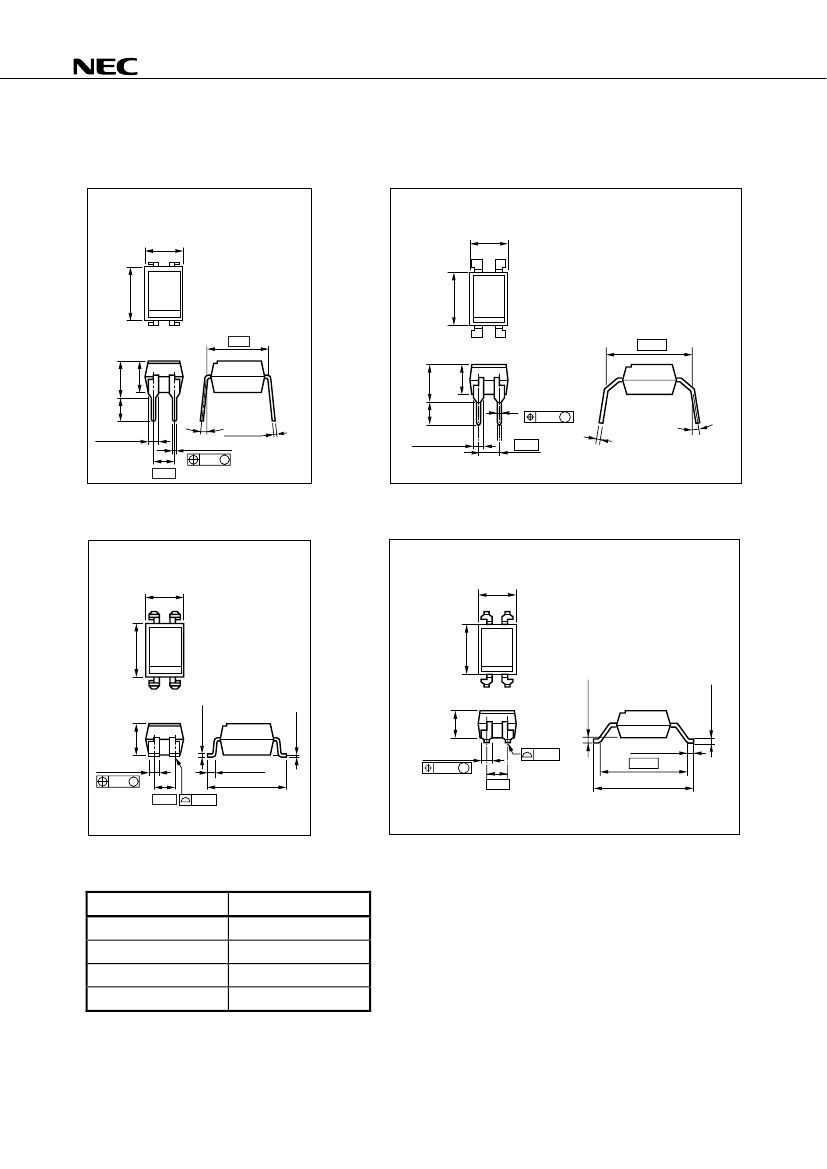

PACKAGE DIMENSIONS (UNIT : mm)
DIP Type
Long Creepage Distance
PS2562L1-1
4.6±0.35
4.6±0.35
PS2562-1
4 3
6.5±0.5
6.5±0.5
4
3
1 2
7.62
1
3.15
3.85
±0.35 ±0.4
3.5±0.3
2
10.16
3.2±0.4 4.15±0.4
3.5±0.3
1.25±0.15
0 to 15°
+0.1
0.25
–0.05
0.50±0.10
0.25
M
2.54
0.50±0.1
0.25 M
2.54
1.25±0.15
0.25
–0.05
+0.1
0 to 15°
Lead Bending Type (Gull-Wing)
PS2562L-1
4.6±0.35
Long Creepage Distance (Gull-Wing)
PS2562L2-1
4.6±0.35
4
6.5±0.5
3
6.5±0.5
4
3
0.25±0.2
1
3.5±0.3
2
0.25
+0.1
–0.05
0.1
+0.1
–0.05
1
3.5±0.3
2
1.25±0.15
0.25
M
2.54
0.15
0.9±0.25
9.60±0.4
1.25±0.15
0.25 M
2.54
0.25
0.9±0.25
10.16
11.8
–0.5
+0.2
<R>
PHOTOCOUPLER CONSTRUCTION
Parameter
Air Distance
Outer Creepage Distance
Inner Creepage Distance
Isolation Thickness
Unit (MIN.)
7 mm
7 mm
4 mm
0.4 mm
2
Data Sheet PN10235EJ04V0DS
0.25
–0.05
+0.1
PS2562-1,PS2562L-1,PS2562L1-1,PS2562L2-1
<R>
ORDERING INFORMATION
Part Number
Order Number
Solder Plating
Specification
PS2562-1
PS2562L-1
PS2562L1-1
PS2562L2-1
PS2562L-1-F3
PS2562L2-1-E3
PS2562-1-V
PS2562L-1-V
PS2562L1-1-V
PS2562L2-1-V
PS2562L-1-V-F3
PS2562L2-1-V-E3
PS2562-1-A
PS2562L-1-A
PS2562L1-1-A
PS2562L2-1-A
PS2562L-1-F3-A
PS2562L2-1-E3-A
PS2562-1-V-A
PS2562L-1-V-A
PS2562L1-1-V-A
PS2562L2-1-V-A
PS2562L-1-V-F3-A
PS2562L2-1-V-E3-A
Embossed Tape 2 000 pcs/reel
Embossed Tape 1 000 pcs/reel
Embossed Tape 2 000 pcs/reel
Embossed Tape 1 000 pcs/reel
Magazine case 100 pcs
DIN EN60747-5-2
(VDE0884 Part2)
approved products
(option)
Pb-Free
Magazine case 100 pcs
Packing Style
Safety Standard
Approval
Standard products
(UL, CSA, BSI,
SEMKO, NEMKO,
DEMKO, FIMKO
approved)
Application Part
Number
PS2562-1
*1
*1
For the application of the Safety Standard, following part number should be used.
4
Data Sheet PN10235EJ04V0DS
PS2562-1,PS2562L-1,PS2562L1-1,PS2562L2-1
ABSOLUTE MAXIMUM RATINGS (T
A
= 25°C, unless otherwise specified)
Parameter
Diode
Reverse Voltage
Forward Current (DC)
Power Dissipation Derating
Power Dissipation
Peak Forward Current
Transistor
*1
Symbol
V
R
I
F
Ratings
6
80
1.5
150
1
40
6
200
2.0
200
5 000
–55 to +100
–55 to +150
Unit
V
mA
mW/°C
mW
A
V
V
mA
mW/°C
mW
Vr.m.s.
°C
°C
Δ
P
D
/°C
P
D
I
FP
V
CEO
V
ECO
I
C
Collector to Emitter Voltage
Emitter to Collector Voltage
Collector Current
Power Dissipation Derating
Power Dissipation
Δ
P
C
/°C
P
C
BV
T
A
T
stg
Isolation Voltage
*2
Operating Ambient Temperature
Storage Temperature
*1
PW = 100
μ
s, Duty Cycle = 1%
*2
AC voltage for 1 minute at T
A
= 25°C, RH = 60% between input and output.
Pins 1-2 shorted together, 3-4 shorted together.
Data Sheet PN10235EJ04V0DS
5
