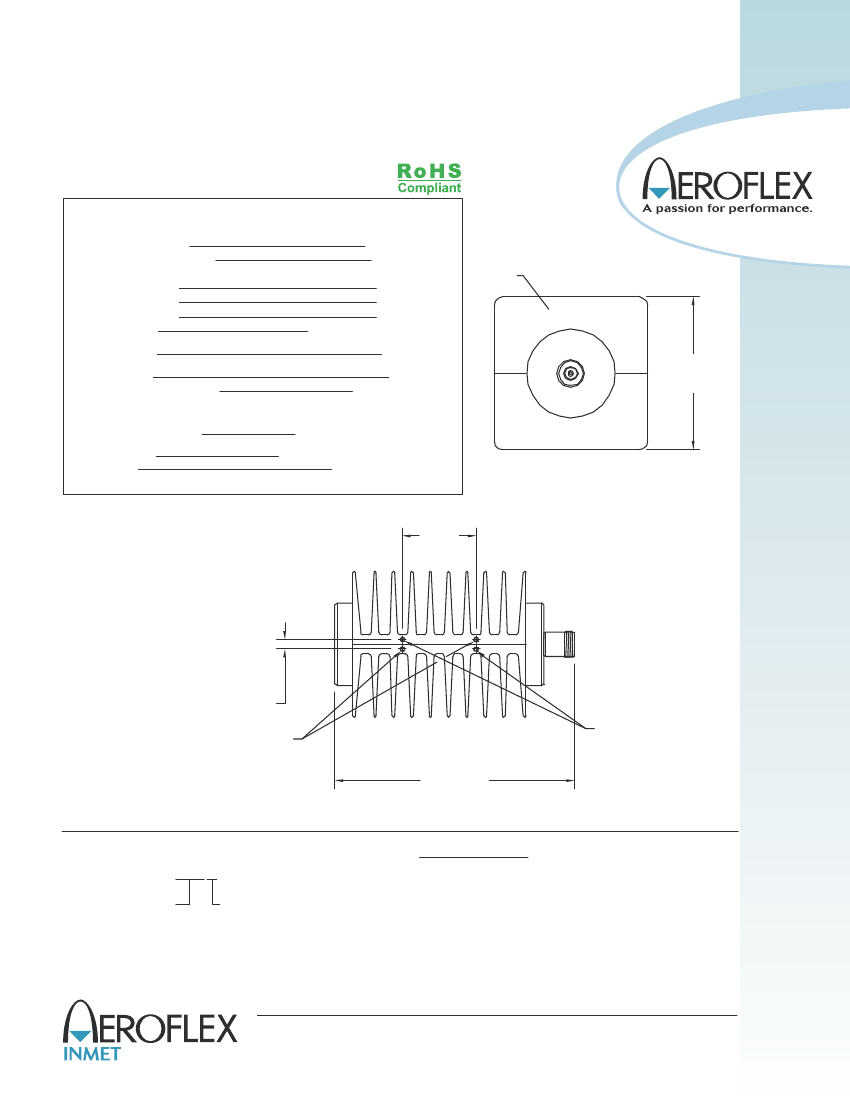

TERMINATIONS
Type N, DC - 4.0 GHz, 150 Watts
SPECIFICATIONS:
Models: TNXXXM - 150W & TNXXXF - 150W
Electrical:
Frequency Range
Standard Freq. Values
VSWR
DC - 1.5 GHz
1.5 - 2.5 GHz
2.5 - 4.0 GHz
Input Power
Peak Power
Impedance
Operating Temp Range
DC - 4.0 GHz
2.5 & 4 GHz
1. 5:1 Max.
1
1.25:1 Max.
1.35:1 Max.
150 Watts Avg. @ +25°C
Derated Linearly to 30 Watts @ +1
o
C
25
Custom Mtg. hole Config.
may be Added to this
Surface.
2 kW Max.
(5uSec Pulse, .05% Duty Cycle)
50 Ohms
-55°C to +1
25°C
3.46±.02
[87.80±0.51]
Mechanical:
Type N Connectors
Conductors
Housing
Mates with MIL
-STD-348
Passivated Stainless Steel
Gold Plated Beryllium Copper
Anodized Aluminum
END VIEW
TYPICAL
Model Number:
TNXXXF-150W
Type N Female Connector
Length: 5.7 ±.05 [1
1
45.0 ±1.3]
Pictured
Model Number:
TNXXXM-150W
Type N Male Connector
Length: 5.62 ±.05 [1
42.7 ±1.3]
1.75
[44.5]
.23 [5.8]
M4x0.7 TAP
x .50 [12.7] DP
.
5.71 ±.05
[145.0 ±1.3]
8-32UNC-2B TAP
x .50 [12.7] DP
.
Units must be Mounted in such a way as to
Allow for Free Air Flow Around fins to Assure
Performance
HOW TO ORDER:
Model Number:
TNXXXY-150W
Freq. Range
020 = DC - 2.5 GHz
040 = DC - 4 GHz
Connector Configuration
F = Female
M = Male
Ordering Examples:
Model Number:
TN040M-150W
DC - 4 GHz, Type N Male CONN.
Model Number:
TN020F-150W
DC - 2.5 GHz, Type N Female CONN.
Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.
Design, specifications are subject to change without notice. Contact factory for technical
specifications before purchasing and/or use.
TNXXX-150W: REV H
Aeroflex / Inmet, Inc.
• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.
888-244-6638 or 734-426-5553 • FAX: 734-426-5557
www.aeroflex.com/inmet • inmetsales@aeroflex.com
