BASE STATION

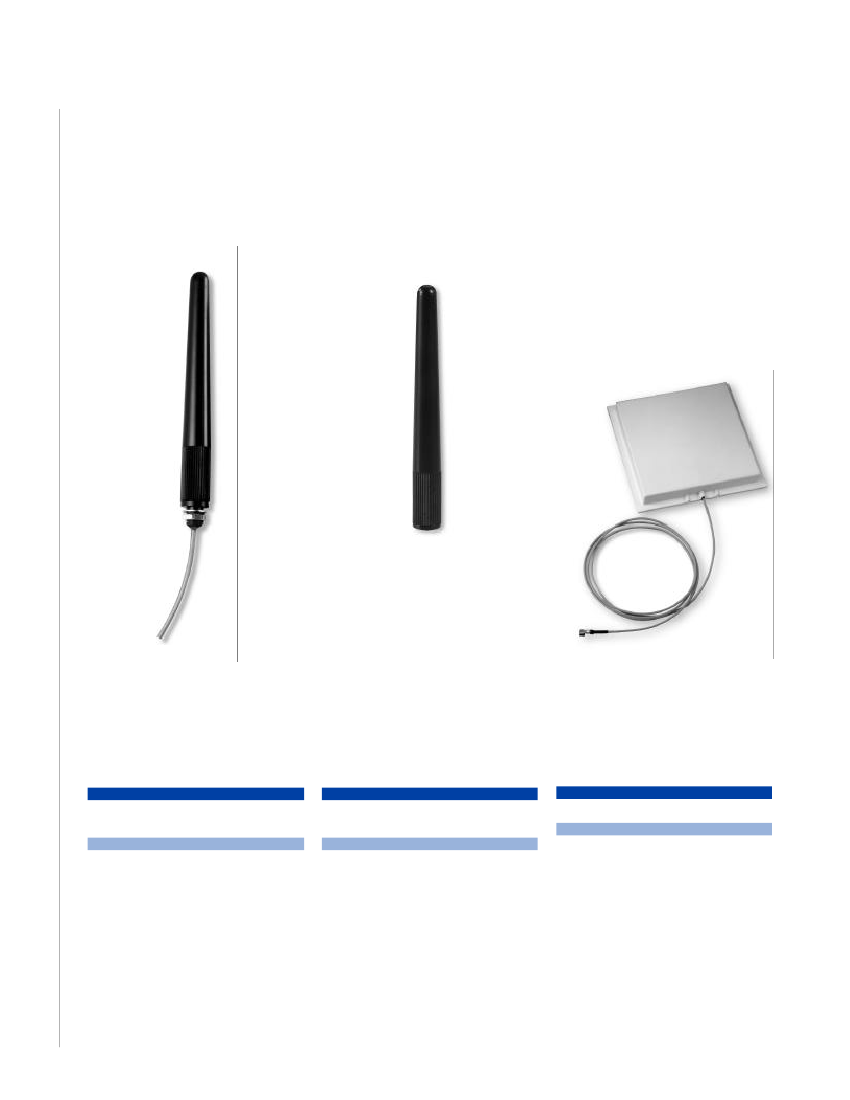

Cordless Base: Bulkhead feed-
through straight dipole for
DECT/PWT amd WLAN
applications.
MODEL
FREQUENCY
Cordless Base: SMA straight
dipole for DECT/PWT amd
WLAN applications.
3.5 GHz 17.5/13 dBi outdoor
planar array antenna for WLL and
broad band access applications.
Includes mounting hardware.
MODEL
FREQUENCY
MODEL
FREQUENCY
R380.400.108
R380.500.113
SPECIFICATIONS
1.88-1.93 GHz
2.4-2.5 GHz
2 dBi
1.5:1
50 ohms
Vertical (antenna axis)
Omni directional (H)
120°
-40° C to +70° C
Black
Specify length/RG 178
Specify
9.74" (247.3 mm)
R380.400.106
R380.500.109
SPECIFICATIONS
1.88-1.93 GHz
2.4-2.5 GHz
2 dBi
1.5:1
50 ohms
Vertical (antenna axis)
Omni directional (H)
120°
-40° C to +70° C
Black
N/A
SMA plug (male)
3.465" (88 mm)
R380.500.202
SPECIFICATIONS
GAIN
VSWR
IMPEDANCE
POLARIZATION
RADIATION PATTERN
CROSS POLARIZATION
FRONT TO BACK RATIO
MAX INPUT POWER
OPERATING TEMP
INGRESS PROTECTION
COLOR
RADOME ENCLOSURE
COAX CABLE
CONNECTOR
DIMENSIONS
MOUNT
3.4-3.6 GHz
17.5 dBi min. @ 3.5 GHz
13 dBi ± 1 dBi @ 3.5 GHz
with 3m cable length
<1.5:1
50 ohms
Linear Vertical
Vertical Plane: 20° typical
Horizontal Plane: 20°typical
-17 dB Max
-23 dB Max
20 Watts
-40° C to +90° C
IP55
White
UV resistant polypropylene
RG58
SMA jack
12.1"W x 12.1"H x1.38"D
Cylindrical mast bracket
(up to 1 5/8")
Vertical orientation ± 30°
GAIN
VSWR
IMPEDANCE
POLARIZATION
RADIATION PATTERN
VERTICAL 3 dB BANDWIDTH
OPERATING TEMP
COLOR
COAX CABLE
CONNECTOR
MAX LENGTH
GAIN
VSWR
IMPEDANCE
POLARIZATION
RADIATION PATTERN
VERTICAL 3 dB BANDWIDTH
OPERATING TEMP
COLOR
COAX CABLE
CONNECTOR
MAX LENGTH
12
