Catalog 1308242
Issued 3-03
OEG
PCD/PCDF
series
15 Amp Low Profile
Power PC Board Relay
Appliances, HVAC, Office Machines
UL File No. E82292
CSA File No. LR48471
TUV File No. R9751117
Users should thoroughly review the technical data before selecting a product part
number. It is recommended that user also seek out the pertinent approvals files of
the agencies/laboratories and review them to ensure the product meets the
requirements for a given application.
Features
• Low profile (10mm), 15 Amp switching capacity.
• 1 Form A contact arrangement.
• Sensitive 200mW coil (250mW on 48VDC coil).
• Immersion cleanable, sealed version available.
• Quick connect terminals available (PCDF).
Coil Data @ 20°C
PCD &PCDF
Rated Coil
Voltage
(VDC)
5
6
9
12
24
48
Nominal
Current
(mA)
40.0
33.3
22.5
17.0
8.6
5.2
Coil
Resistance
(ohms)
±
10%
125
180
400
720
2,880
9,200
Must Operate
Voltage
(VDC)
3.75
4.50
6.75
9.00
18.00
36.00
Must Release
Voltage
(VDC)
0.50
0.60
0.90
1.20
2.40
4.80
Contact Data @ 20°C
Arrangements:
1 Form A (SPST-NO).
Material:
AgSnO.
Max. Switching Rate:
300 ops./min. (no load).
30 ops./min. (rated load).
Expected Mechanical Life:
10 million operations (no load).
Expected Electrical Life:
100,000 operations (rated load).
Minimum Load:
100mA @ 5VDC.
Initial Contact Resistance:
100 milliohms @ 1A, 6VDC.
Operate Data
Contact Ratings
Ratings:
15A @ 125VAC resistive (PCDF only, load must be carried
through QC terminals to achieve this rating),
10A @ 250VAC resistive,
10A @ 24VDC resistive.
5A @ 125VAC inductive (cosø= 0.4, L/R=7msec),
5A @ 24VDC inductive (cosø= 0.4, L/R=7msec).
Max. Switched Voltage: AC:
250V.
DC:
24V.
Max. Switched Current:
15A.
Max. Switched Power:
1,800VA, 240W.
Must Operate Voltage:
75% of nominal voltage or less.
Must Release Voltage:
10% of nominal voltage or more.
Operate Time:15
ms max.
Release Time:
8 ms max.
Environmental Data
Temperature Range:
Operating:
-30°C to +70°C
Vibration, Mechanical:
10 to 55 Hz., 1.5mm double amplitude
Operational:
10 to 55 Hz., 1.5mm double amplitude.
Shock, Mechanical:
1,000m/s
2
(100G approximately).
Operational:
100m/s
2
(10G approximately).
Operating Humidity:
20 to 85% RH. (Non-condensing).
Initial Dielectric Strength
Between Open Contacts:
750VAC 50/60 Hz. (1 minute).
Between Coil and Contacts:
2,500VAC 50/60 Hz. (1 minute).
Surge Voltage Between Coil and Contacts:
5,000V (1.2 / 50µs).
Initial Insulation Resistance
Between Mutually Insulated Elements:
1,000M ohms min. @ 500VDCM.
Mechanical Data
Coil Data
Voltage:
5 to 48VDC.
Nominal Power:
200 mW except 48VDC coil (250mW).
Coil Temperature Rise:
20°C max., at rated coil voltage.
Max. Coil Power:
130% of nominal.
Duty Cycle:
Continuous.
Termination: PCD:
Printed circuit terminals.
PCDF:
Printed circuit terminals and quick connect terminals.
Enclosure (94V-0 Flammability Ratings):
Sealed plastic case.
Weight: PCD:
0.31 oz (9g) approximately.
PCDF:
0.35 oz (10g) approximately.
Dimensions are shown for
424
reference purposes only.
Dimensions are in inches over
(millimeters) unless otherwise
specified.
Specifications and availability
subject to change.
www.tycoelectronics.com
Technical support:
Refer to inside back cover.
Catalog 1308242
Issued 3-03
OEG

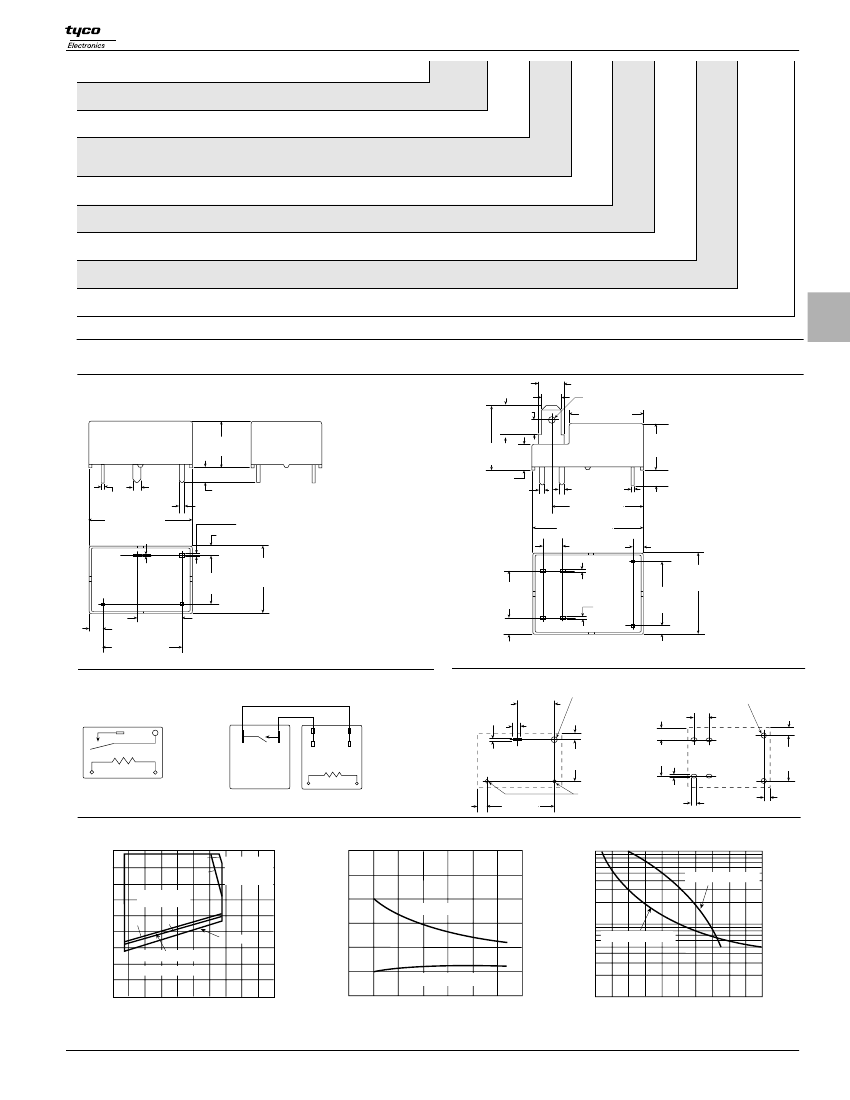

Ordering Information
Typical Part Number
1. Basic Series:
PCD = PC Board Terminals. PCDF = Quick Connect Terminals.
2. Termination:
1 = 1 pole
3. Coil Voltage:
05 = 5VDC
06 = 6VDC
4. Coil Input:
D = Standard
5. Contact Material:
1 = AgSnO
6. Contact Arrangement:
M = 1 Form A, SPST-NO
7. Enclosure:
Blank = Vented (Flux-tight)* plastic cover
8. Suffix:
,000 = PCD standard model
* Not suitable for immersion cleaning processes.
B
PCD
-1
24
D
1
M
H
,000
09 = 9VDC
12 = 12VDC
24 = 24VDC
48 = 48VDC
H = Sealed plastic case
Other Suffix = Custom model
,S000 = PCDF standard model
Our authorized distributors are more likely to maintain the following items in stock for immediate delivery.
None at present.
Outline Dimensions
PCD
PCDF
.187
(4.75)
.126
.25 (3.2)
(6.35)
.248
(6.3)
.051 DIA
(1.3)
.634
±
.008
(16.1
±
.2)
.402
±
.008
(10.2
±
.2)
.138
±
.012
(3.5
±
.3)
.402
±
.02
(10.2
±
.5)
.533± .012
(13.55
±
.3)
.197
±
.008
(5.0
±
.2) .047
(1.2)
.018
.047
(.45)
(1.2)
.807
±
.012
(20.5
±
.3)
.98
±
.008
(25.0
±
.2)
.197
±
.008
(5.0
±
.2)
.018
(.45)
.071
(1.8)
.905
±
.02
(23.0
±
.5)
.012
(.3)
.138
±
.012
(3.5
±
.3)
.047
(1.2)
.024
±
.004
(.6
±
.1)
.059
(1.5)
.634
±
.02
(16.1
±
.5)
.075
(1.9)
.905
±
.008
(23.0
±
.2)
.500
±
.008
(12.7
±
.2)
.40
±
.008
(10.16
±
.2)
.56
±
.008
(14.25
±
.2)
.02
(.5)
.02
(.5)
.700
±
.008
(17.78
±
.2)
.118
±
.008
(3.0
±
.2)
.700
±
.008
(17.78
±
.2)
.153
(3.89)
.012
(.3)
Wiring Diagrams
PCD
PCDF
PC Board Layouts (Bottom View)
PCD
.236
(.6)
.400
(10.16)
.079
(2.0)
.063 DIA
(1.6)
.059
(1.5)
PCDF
.153
(3.89)
2 — .039 DIA
(1.0)
.197
(5.0)
.118
(3.0)
.500
(12.7)
2 — .039 DIA
(1.0)
.56
(14.25)
.700
(17.78)
.075
(1.9)
(Bottom View)
(Top View)
(Bottom View)
.118
(3.0)
.700
(17.78)
.039
(1.0)
.061
(1.55)
Reference Data
Coil Temperature Rise
180
% of Supplying Voltage to Coil
160
140
120
100
80
60
Hot Coil Applied
Operate Time
12
Maximum
Allowable
Coil Voltage
Time (msec)
10
8
Operate Time
6
4
2
Release Time
Life Expectancy
100
125VAC Resistive
Operation (x 10 )
4
10A
15A
Operating
Votage Range
15A
10A
10
24VDC Resistive
Cool Coil
40
20
0
Pick-Up Voltage
-40 -20
0
20 40 60 80 100 120 140
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1
0
2
4
6
8
10 12 14
16 18
20
Ambient Temp. (°C)
Note:
This data is based on the max. allowable
temperature for E type insulation coil (115°C).
Coil Power (W)
Contact Current (A)
Dimensions are shown for
reference purposes only.
Dimensions are in inches over
(millimeters) unless otherwise
specified.
Specifications and availability
subject to change.
www.tycoelectronics.com
Technical support:
425
Refer to inside back cover.
