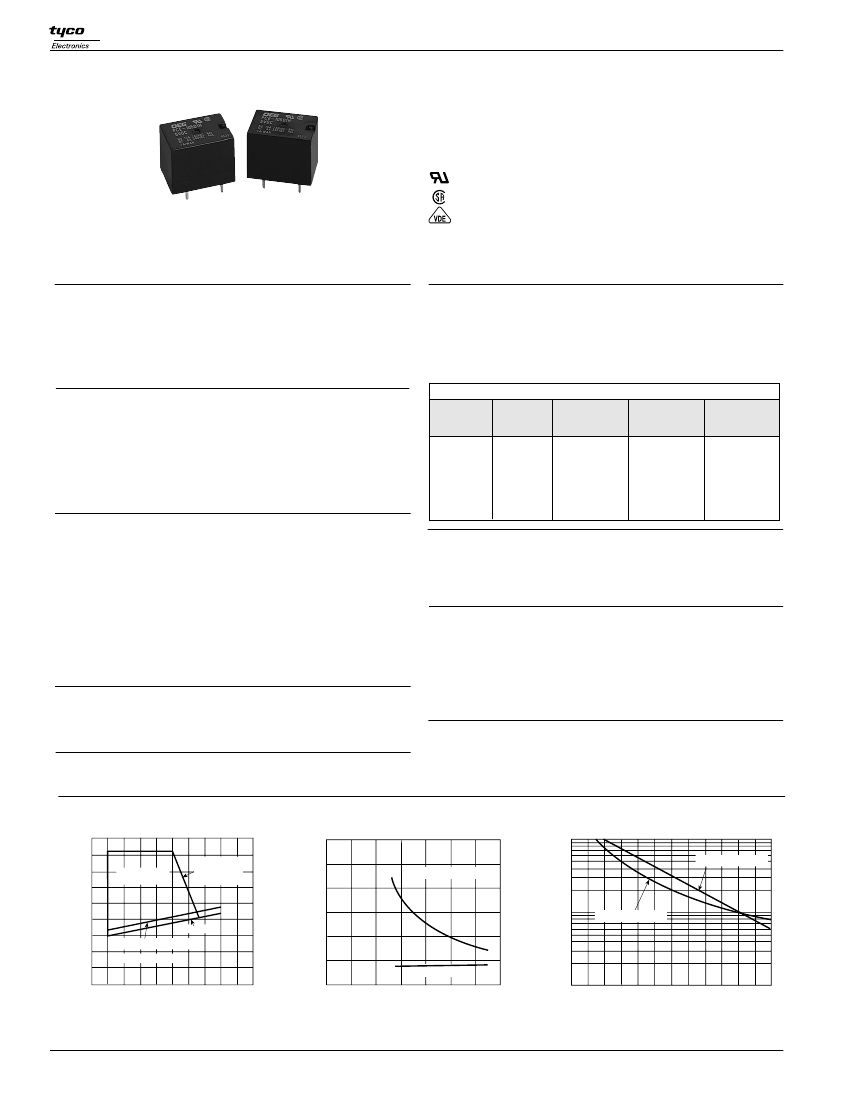

Catalog 1308242
Issued 3-03 (PDF Rev. 3-04)
OEG
PCE
series
10 Amp Miniature
Power PC Board Relay
Appliances, HVAC, Office Machines
UL File No. E82292
CSA File No. LR48471
VDE File No. 6175
Users should thoroughly review the technical data before selecting a product part
number. It is recommended that user also seek out the pertinent approvals files of
the agencies/laboratories and review them to ensure the product meets the
requirements for a given application.
Features
• Small, low profile package, 10 Amp switching capacity.
• 1 Form A and 1 Form C contact arrangements.
• UL Class F (155°C) insulation system standard
• Immersion cleanable, sealed version available.
• Applications include appliance, HVAC, security system, garage opener
control, emergency lighting.
Coil Data
Voltage:
6 to 48VDC.
Nominal Power:
360 mW
Coil Temperature Rise:
35°C max., at rated coil voltage.
Max. Coil Power:
130% of nominal.
Duty Cycle:
Continuous.
Coil Data @ 20°C
PCE
Rated Coil
Voltage
(VDC)
6
9
12
24
48
Nominal
Current
(mA)
60
40
30
15
7
Coil
Resistance
(ohms)
±
10%
100
225
400
1,600
6,400
Must Operate
Voltage
(VDC)
4.50
6.75
9.00
18.00
36.00
Must Release
Voltage
(VDC)
0.30
0.45
0.60
1.20
2.40
Contact Data @ 20°C
Arrangements:
1 Form A (SPST-NO) and 1 Form C (SPDT).
Material:
Ag Alloy, AgSnO.
Max. Switching Rate:
300 ops./min. (no load).
30 ops./min. (rated load).
Expected Mechanical Life:
10 million operations (no load).
Expected Electrical Life:
100,000 operations (rated load).
Minimum Load:
100mA @ 5VDC.
Initial Contact Resistance:
100 milliohms @ 1A, 6VDC.
Contact Ratings
Ratings:
10A @ 250VAC resistive,
10A @ 120VAC resistive,
10A @ 28VDC resistive.
3A @ 250VAC inductive (cosø= 0.4),
3A @ 120VAC inductive (cosø= 0.4),
3A @ 28VDC inductive (L/R=7msec).
Max. Switched Voltage: AC:
250V.
DC:
28V.
Max. Switched Current:
10A.
Max. Switched Power:
2,500VA, 280W.
Operate Data
Must Operate Voltage:
75% of nominal voltage or less.
Must Release Voltage:
5% of nominal voltage or more.
Operate Time:
10 ms max.
Release Time:
5 ms max.
Environmental Data
Temperature Range:
Operating:
-30°C to +70°C
Vibration, Mechanical:
10 to 55 Hz., 1.5mm double amplitude
Operational:
10 to 55 Hz., 1.5mm double amplitude.
Shock, Mechanical:
1,000m/s
2
(100G approximately).
Operational:
100m/s
2
(10G approximately).
Operating Humidity:
20 to 85% RH. (Non-condensing).
Initial Dielectric Strength
Between Open Contacts:
750VAC 50/60 Hz. (1 minute).
Between Coil and Contacts:
2,000VAC 50/60 Hz. (1 minute).
Surge Voltage Between Coil and Contacts:
4,000V (1.2 / 50µs).
Mechanical Data
Termination:
Printed circuit terminals.
Enclosure (94V-0 Flammability Ratings):
PCE:
Sealed plastic case with knock-off nib for ventilation
Weight:
0.32 oz (11g) approximately.
Initial Insulation Resistance
Between Mutually Insulated Elements:
1,000M ohms min. @ 500VDCM.
Reference Data
Coil Temperature Rise
180
% of Supplying Voltage to Coil
Operate Time
12
Maximum
Allowable
Coil Voltage
10
Time (msec)
Life Expectancy
100
28VDC Resistive
Operate Time
Operation (x 10 )
4
160
140
120
100
80
60
40
20
0
-30 -10 10 30 50 70 90 110 130 150
Ambient Temp. (°C)
0.1
0.2
0.3
0.4
0.5
0.6
0.7
Coil Power (W)
Pick-Up Voltage
Cool Coil
Hot Coil 10A Applied
Operating
Votage Range
Time (msec)
8
6
4
2
Release Time
10
240VAC Resistive
1
0
2
4
6
8
10
12
Contact Current (A)
Note:
This data is based on the max. allowable
temperature for E type insulation coil (115°C).
Dimensions are shown for
436
reference purposes only.
Dimensions are in inches over
(millimeters) unless otherwise
specified.
Specifications and availability
subject to change.
www.tycoelectronics.com
Technical support:
Refer to inside back cover.
Catalog 1308242
Issued 3-03 (PDF Rev. 3-04)
OEG
Ordering Information
Typical Part Number
1. Basic Series:
PCE = Miniature Power PC board relay.
2. Termination:
1 = 1 pole
3. Coil Voltage:
06 = 6VDC
09 = 9VDC
4. Coil Input:
D = Standard
5. Contact Material:
1 = AgCdO
2 = AgSnO
6. Contact Arrangement:
Blank = 1 Form C, SPDT
7. Enclosure:
Blank = Flux-tight plastic case.
8. Suffix:
,000 = Standard model
M = 1 Form A, SPST-NO
H = Sealed plastic case with knock-off nib for ventilation
12 = 12VDC
24 = 24VDC
48 = 48VDC
B
PCE
-1
24
D
1
M
,000
Other Suffix = Custom model
Our authorized distributors are more likely to maintain the following items in stock for immediate delivery.
PCE-112D1MH,000
PCE-124D1MH,000
PCE-112D1H,000
PCE-124D1H,000
Outline Dimensions
Wiring Diagram (Bottom View)
.646
±
.02
(16.4
±
.5)
.016
(.4)
.138
±
.012
(3.5
±
.3)
.012
(.3)
.039
(1.0)
.866
±
.02
(22.0
±
.5)
.039
(1.0)
.016
(.4)
.039
(1.0)
.016
(.4)
PC Board Layout (Bottom View)
.47
±
.008
(12.0
±
.2)
.63
±
.02
(16.0
±
.5)
.472
±
.004
(12.0
±
.1)
.079
±
.008
(2.0
±
.2)
.48
±
.008
(12.2
±
.2)
.216
±
.008
(5.5
±
.2)
.079
±
.008
(2.0
±
.2)
.48
±
.004
(12.2
±
.1)
5 – .05 DIA
(1.3)
Socket
27E1064
socket is rated 10A @ 300VAC. UL Recognized for US and
Canada. Designed to fit same suggested board layout as relay.
.916 MAX.
(23.35)
.270 MAX.
(6.85)
.167 MAX.
(4.25)
.660 MAX.
(16.75)
.016 TYP.
(.40)
Dimensions are shown for
reference purposes only.
Dimensions are in inches over
(millimeters) unless otherwise
specified.
Specifications and availability
subject to change.
www.tycoelectronics.com
Technical support:
437
Refer to inside back cover.
