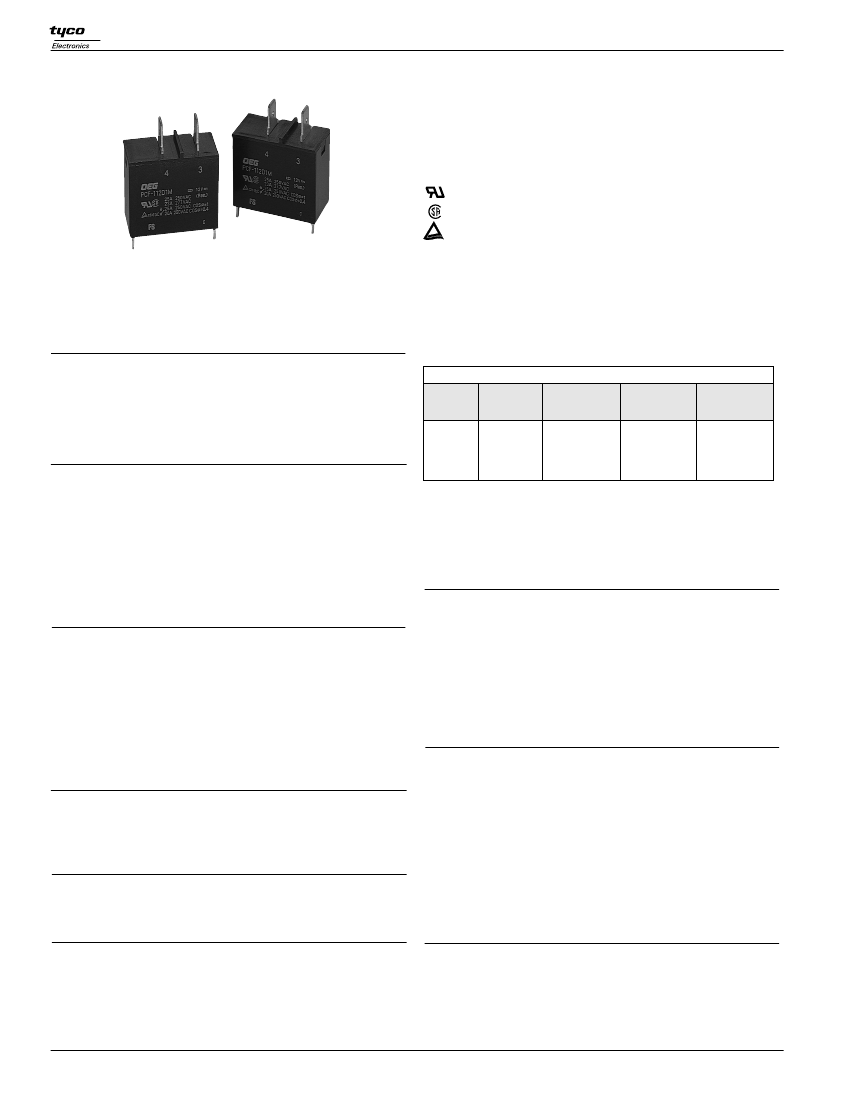

Catalog 1308242
Issued 3-03
OEG
PCF
series
25A Miniature
Power PC Board Relay
Appliances, HVAC, Office Machines.
UL File No. E58304
CSA File No. LR48471
TUV File No. R9551880
Users should thoroughly review the technical data before selecting a product part
number. It is recommended that user also seek out the pertinent approvals files of
the agencies/laboratories and review them to ensure the product meets the
requirements for a given application.
Features
• Meet UL 508, CSA, TUV requirements.
• 1 Form A contact arrangements.
• Quick connect terminal type and PC board type.
• Meet 5,000V dielectric voltage between coil and contacts.
• Meet 10,000V surge voltage between coil and contacts (1.2 / 50µs).
Coil Data @ 20°C
PCF / PCFN
Rated Coil
Voltage
(VDC)
06
09
12
24
Nominal
Current
(mA)
150.0
100.0
75.0
37.5
Coil
Resistance
(ohms)
±
10%
40
90
160
640
Must Operate
Voltage
(VDC)
4.50
6.75
9.00
18.00
Must Release
Voltage
(VDC)
0.30
0.45
0.60
1.20
Contact Data @ 20°C
Arrangements:
1 Form A.
Material:
AgSnO
Max. Switching Rate:
300 ops./min. (no load).
30 ops./min. (rated load).
Expected Mechanical Life:
10 million operations (no load).
Expected Electrical Life:
100,000 operations (rated load).
Minimum Load:
100mA @ 5VDC.
Initial Contact Resistance:
100 milliohms @ 1A, 6VDC.
Operate Data
Contact Ratings
Ratings:
25A @ 250VAC resistive.
23A @ 277VAC resistive.
20A @ 250VAC inductive (cosø= 0.4).
Max. Switched Voltage: AC:
250V.
Max. Switched Current:
25A.
Max. Switched Power:
6,370VA.
Must Operate Voltage:
75% of nominal voltage or less.
Must Release Voltage:
5% of nominal voltage or more.
Operate Time:
20 ms max.
Release Time:
10 ms max.
Environmental Data
Initial Dielectric Strength
Between Open Contacts:
1,000VAC 50/60 Hz. (1 minute).
Between Coil and Contacts:
5,000VAC 50/60 Hz. (1 minute).
Surge Voltage Between Coil and Contacts:
8,000V (1.2 / 50µs).
Temperature Range:
Operating:
-30°C to +55°C
Vibration, Mechanical:
10 to 55 Hz., 1.5mm double amplitude
Operational:
10 to 55 Hz., 1.5mm double amplitude.
Shock, Mechanical:
1,000m/s
2
(100G approximately).
Operational:
100m/s
2
(10G approximately).
Operating Humidity:
20 to 85% RH. (Non-condensing).
Initial Insulation Resistance
Between Mutually Insulated Elements:
1,000M ohms min. @ 500VDC.
Coil Data
Voltage:
6 to 24VDC.
Nominal Power:
900 mW.
Coil Temperature Rise:
55°C max., at rated coil voltage.
Max. Coil Power:
130% of nominal.
Duty Cycle:
Continuous.
Mechanical Data
Termination PCF :
Printed circuit terminals with quick connect terminals.
PCFN :
Printed circuit terminals.
Enclosure (94V-0 Flammability Ratings):
PCF / PCFN:
Vented (Flux-tight) plastic cover.
Weight:
0.99 oz (28g) approximately.
Dimensions are shown for
502
reference purposes only.
Dimensions are in inches over
(millimeters) unless otherwise
specified.
Specifications and availability
subject to change.
www.tycoelectronics.com
Technical support:
Refer to inside back cover.
Catalog 1308242
Issued 3-03
OEG
Ordering Information
Typical Part Number
1. Basic Series:
PCFN = 25A PC Board Terminals
2. Enclosure:
1 = 1 pole
3. Coil Voltage:
06 = 6VDC
4. Coil Input:
D = Standard
5. Contact Material:
2 = AgSnO
6. Contact Arrangement:
M = 1 Form A, SPST-NO
7. Suffix:
,000 = Standard model
* Not suitable for immersion cleaning processes.
B
PCFN
-1
24
D
2
M
,000
PCF = Quick Connect Terminals
09 = 9VDC
12 = 12VDC
18 = 18VDC
24 = 24VDC
Other Suffix = Custom model
Our authorized distributors are more likely to maintain the following items in stock for immediate delivery.
None at present.
Outline Dimensions
.630
±
.02
(16.0
±
.5)
Wiring Diagram
PCF
(Top View)
1.20
±
.02
(30.4
±
.5)
.472
±
.008
(12.0
±
.2)
.464
±
.008
(11.8
±
.2)
.031
(.8)
.394
±
.008
(10.0
±
.2)
.079
(2.0)
1.04
±
.02
(26.5
±
.5)
.331
(8.40)
PCFN
.25
(6.35)
.069 DIA
(1.75)
(Bottom View)
PCF
PC Board Layout (Bottom View)
.059
(1.50)
.031
(.8)
.157
±
.012
(4.0
±
.3)
.063
(1.60)
.012
(.3)
2 – .071 DIA
(1.8)
1.09
±
.008
(27.6
±
.2)
.244
(6.2) .472
±
.008
.228 (12.0
±
.2)
(5.8)
PCFN
1.04
±
.02
(26.5
±
.5)
2 – .063 DIA
(1.6)
.472
(12.0)
.394
(10.0)
.059
.031
(1.50)
(.8)
1.09
±
.008
(27.6
±
.2)
.012
.063
(.3)
(1.60)
.157
±
.012
(4.0
±
.3)
.472
±
.008
(12.0
±
.2)
.866
±
.008
(22.0
±
.2)
Reference Data
Coil Temperature Rise
60
50
Temp. Rise (°C)
Time (msec)
Operate Time
24
20
16
Operate Time
12
8
4
Operation (x 10
4
)
Life Expectancy
100
250VAC Resistive
40
30
20
0A
10
25A
20A
10
Release Time
1
0.2
0.4
0.6 0.8
1.0
Coil Power (W)
1.2
1.4
2
4
6
8
10 12 14 16 18 20
Contact Current (A)
22 24 26
0.2
0.4
0.6 0.8
1.0
Coil Power (W)
1.2
1.4
Dimensions are shown for
reference purposes only.
Dimensions are in inches over
(millimeters) unless otherwise
specified.
Specifications and availability
subject to change.
www.tycoelectronics.com
Technical support:
503
Refer to inside back cover.
