BB2110DI7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> BB2110DI7

BB2110DI7: DescriptionArray/Network Resistor, Isolated, Metal Glaze/thick Film, 1% +/-Tol, 200ppm/Cel, Surface Mount, BGA; CategoryPassive components The resistor; File Size98KB，3 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/

Download Datasheet Parametric Compare View All

BB2110DI7 Overview

Array/Network Resistor, Isolated, Metal Glaze/thick Film, 1% +/-Tol, 200ppm/Cel, Surface Mount, BGA

BB2110DI7 Parametric

Parameter Name	Attribute value
Maker	TT Electronics plc
package instruction	BGA
Reach Compliance Code	compliant
The first element resistor	25 Ω
Installation features	SURFACE MOUNT
Network Type	ISOLATED
Number of components	1
Number of functions	18
Number of terminals	36
Maximum operating temperature	70 °C
Minimum operating temperature
Package shape	RECTANGULAR PACKAGE
method of packing	TR, 7 INCH
Resistor type	ARRAY/NETWORK RESISTOR
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/°C
Terminal shape	BALL
Tolerance	1%

Preview

Download Datasheet

View All

4200 Bonita Place, Fullerton, CA 92635

BB1110B

AND

BB2110DI -DDR SRAM T

ERMINATOR NETWORKS

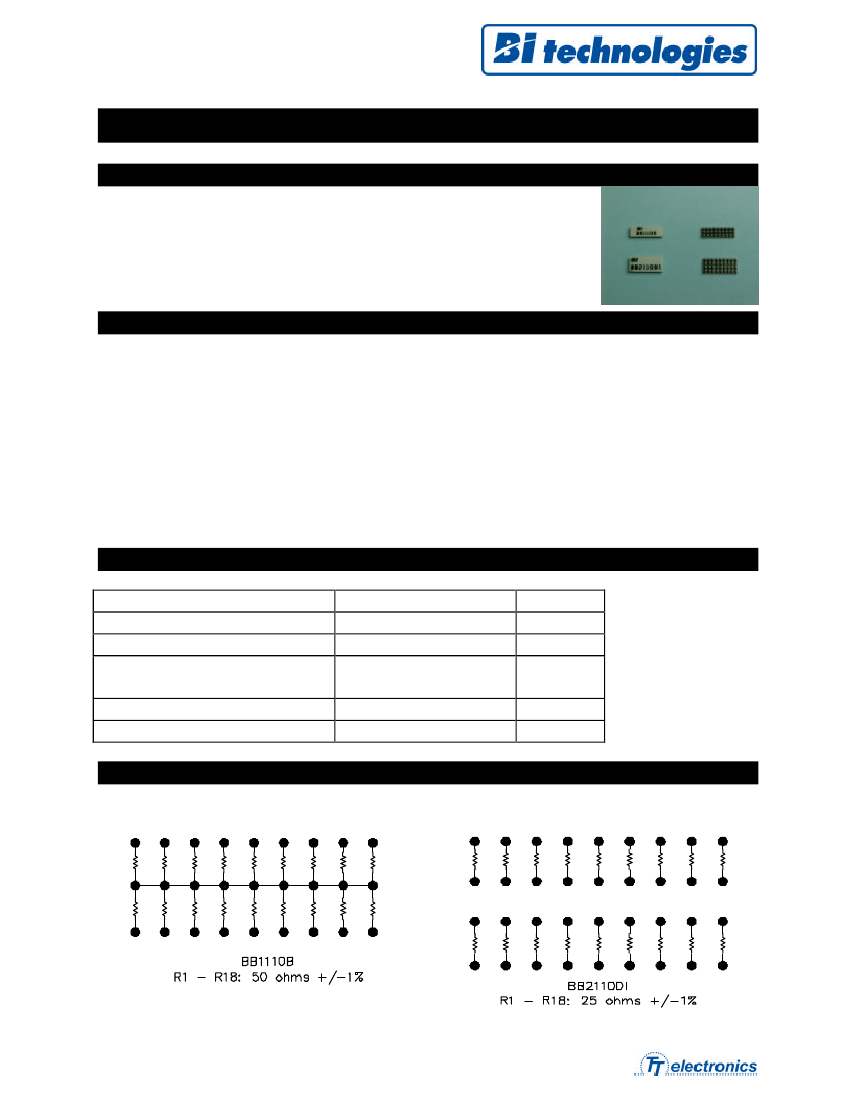

DESCRIPTION

The BB110B and BB2110DI are BGA Resistor Networks designed to

terminate SSTL_2 Class I and Class II systems. These Networks use thick

film resistors with high temperature solder balls. The resistors are integrated

onto a ceramic substrate between the solder balls, minimizing signal paths and

eliminating via connections on the device. Stray capacitance and inductance

are virtually eliminated.

FEATURES

•

18 Bit SSTL_2 Termination Sets.

Compliant to JEDEC Std. 8-9A.

Superior High Frequency Performance.

Minimal stray capacitance and inductance are achieved by placing resistors and BGA termination

on the same side of ceramic substrate.

The device can be easily surface mounted using automatic Pick and

Place equipment.

ELECTRICAL

PARAMETER (Maximum)

Resistance, Nominal

Absolute Tolerance

Temperature Coefficient of

Resistance

Interlead Capacitance, Maximum

Operation Temperature

LIMIT

Various

200

0.1

0 to +70

UNITS

Ω

ppm/°C

°C

SCHEMATIC

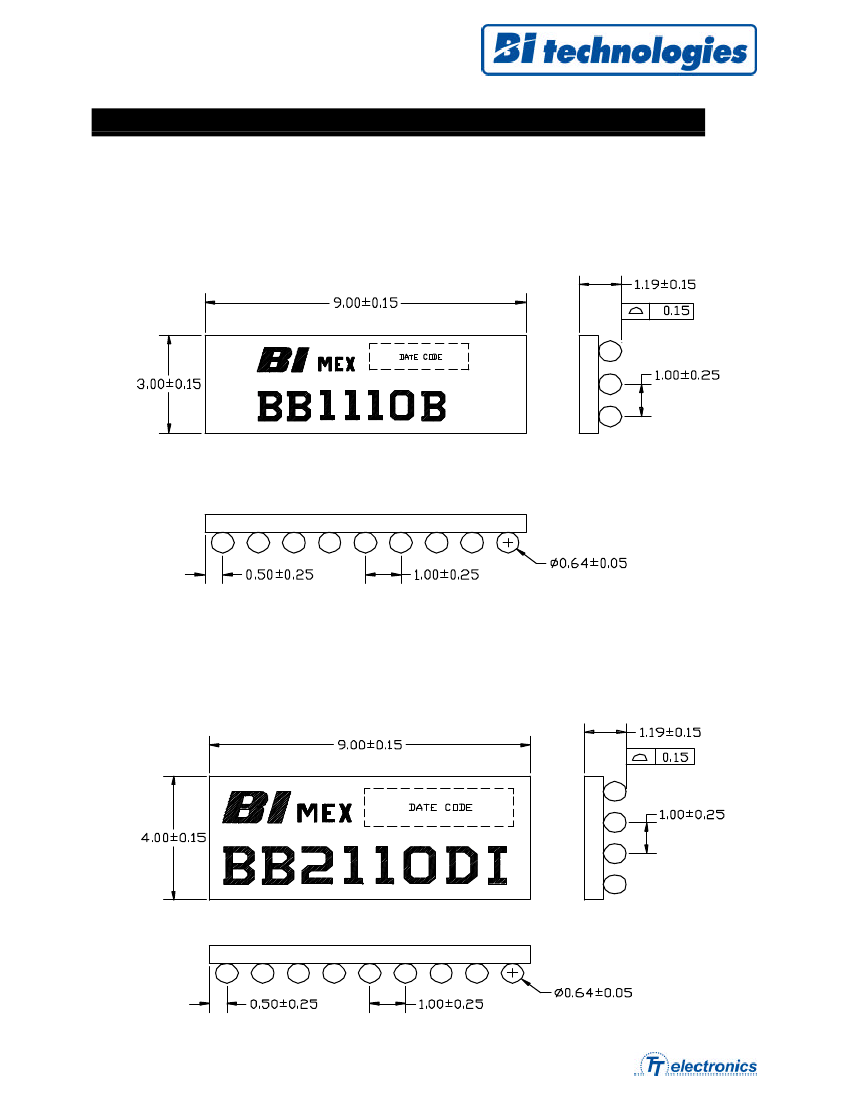

BB2110DI7 Related Products

	BB2110DI7	BB1110B13	BB1110B7	BB2110DI13
Description	Array/Network Resistor, Isolated, Metal Glaze/thick Film, 1% +/-Tol, 200ppm/Cel, Surface Mount, BGA	RESISTOR, NETWORK, FILM, BUSSED, SURFACE MOUNT, BGA	Array/Network Resistor, Bussed, Metal Glaze/thick Film, 1% +/-Tol, 200ppm/Cel, Surface Mount, BGA	Array/Network Resistor, Isolated, Metal Glaze/thick Film, 1% +/-Tol, 200ppm/Cel, Surface Mount, BGA
package instruction	BGA	,	BGA	BGA
Reach Compliance Code	compliant	compliant	compliant	compliant
The first element resistor	25 Ω	50 Ω	50 Ω	25 Ω
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Network Type	ISOLATED	BUSSED	BUSSED	ISOLATED
Number of components	1	18	18	1
Number of functions	18	1	1	18
Number of terminals	36	27	27	36
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	TR, 7 INCH	TR, 13 INCH	TR, 7 INCH	TR, 13 INCH
Resistor type	ARRAY/NETWORK RESISTOR	ARRAY/NETWORK RESISTOR	ARRAY/NETWORK RESISTOR	ARRAY/NETWORK RESISTOR
surface mount	YES	YES	YES	YES
technology	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/°C	200 ppm/°C	200 ppm/°C	200 ppm/°C
Terminal shape	BALL	BALL	BALL	BALL
Tolerance	1%	1%	1%	1%
Maker	TT Electronics plc	-	TT Electronics plc	TT Electronics plc
