PECL (Positive ECL) levels are used, only +3.3V and
ground are required. The small outline 8-lead SOIC
package and the low skew, dual gate design of the
ELT22L makes it ideal for applications which require the
tranlation of a clock and a data signal.
The ELT22L is available in both ECL standards: the
10ELT is compatible with positive ECL 10H logic levels,
while the 100ELT is compatible with positive ECL 100K
logic levels.
■
PNP TTL inputs for minimal loading
■
Flow-through pinouts
■
Available in 8-pin SOIC package
PIN NAMES
Pin
Q
n
D
n
V
CC
GND
Function
Differential PECL Outputs
TTL Inputs
+3.3V Supply
Ground
M9999-052108
hbwhelp@micrel.com or (408) 955-1690
Rev.: J
Amendment: /0
1
Issue Date: May 2008
Micrel, Inc.
SY10ELT22L
SY100ELT22L
PACKAGE/ORDERING INFORMATION
Ordering Information
(1)
Q0 1
/Q0 2
PECL
TTL
8 VCC
7 D0
6 D1
5 GND
8-Pin SOIC (Z8-1)
Part Number
SY10ELT22LZC
SY10ELT22LZCTR
(2)
SY100ELT22LZC
SY100ELT22LZCTR
(2)
SY100ELT22LZI
SY100ELT22LZITR
(2)
SY10ELT22LZG
(3)
SY10ELT22LZGTR
(2, 3)
SY100ELT22LZG
(3)
SY100ELT22LZGTR
(2, 3)
Package
Type
Z8-1
Z8-1
Z8-1
Z8-1
Z8-1
Z8-1
Z8-1
Z8-1
Z8-1
Z8-1
Operating
Range
Commercial
Commercial
Commercial
Commercial
Industrial
Industrial
Industrial
Industrial
Industrial
Industrial
Package
Marking
HEL22L
HEL22L
XEL22L
XEL22L
XEL22L
XEL22L
HEL22L with
Pb-Free bar-line indicator
HEL22L with
Pb-Free bar-line indicator
XEL22L with
Pb-Free bar-line indicator
XEL22L with
Pb-Free bar-line indicator
Lead
Finish
Sn-Pb
Sn-Pb
Sn-Pb
Sn-Pb
Sn-Pb
Sn-Pb
Pb-Free
NiPdAu
Pb-Free
NiPdAu
Pb-Free
NiPdAu
Pb-Free
NiPdAu
Q1 3
/Q1 4
Notes:
1. Contact factory for die availability. Dice are guaranteed at T
A
= 25°C, DC Electricals only.
2. Tape and Reel.
3. Pb-Free package is recommended for new designs.
M9999-052108
hbwhelp@micrel.com or (408) 955-1690
2
Micrel, Inc.
SY10ELT22L
SY100ELT22L
ABSOLUTE MAXIMUM RATINGS
(1)
Symbol
V
CC
V
I
I
I
I
OUT
Paramter
Power Supply Voltage
TTL Input Voltage
TTL Input Current
PECL Output Current
— Continuous
— Surge
Lead Temperature
(soldering, 20sec.)
Storage Temperature
Operating Temperature
Value
–0.5 to +7.0
–0.5 to V
CC
–30 to +5.0
50
100
+260
–65 to +150
–40 to +85
°C
°C
°C
Unit
V
V
mA
mA
TRUTH TABLE
D
H
L
Open
Q
H
L
H
Q
L
H
L
T
LEAD
T
store
T
A
NOTE:
1. Permanent device damage may occur if absolute maximum ratings are
exceeded. This is a stress rating only and functional operation is not
implied at conditions other than those detailed in the operational sections
of this data sheet. Exposure to absolute maximum ratlng conditions for
extended periods may affect device reliability.
DC ELECTRICAL CHARACTERISTICS
(1)
V
CC
= +3.0V to +3.8V
T
A
= -40
°
C
Symbol
I
CC
Parameter
Power Supply Current
—
25
T
A
= 0
°
C
—
25
T
A
= +25
°
C
—
25
T
A
= +85
°
C
Condition
—
—
25
mA
Min. Max. Min. Max. Min. Max. Min. Max. Unit
NOTE:
1. Parametric values specified at:
3 volt Power Supply Range
10/100ELT22L Series: +3.0V to +3.8V.
TTL DC ELECTRICAL CHARACTERISTICS
(1)
V
CC
= +3.0V to +3.8V
T
A
= -40
°
C
Symbol
V
IH
V
IL
I
IH
I
IL
V
IK
Parameter
Input HIGH Voltage
Input LOW Voltage
Input HIGH Current
Input LOW Current
Input Clamp Voltage
Min.
2.0
—
—
—
—
—
Max.
—
0.8
20
100
–0.2
–1.2
T
A
= 0
°
C
Min.
2.0
—
—
—
—
—
Max.
—
0.8
20
100
–0.2
–1.2
T
A
= +25
°
C
Min.
2.0
—
—
—
—
—
Max.
—
0.8
20
100
–0.2
–1.2
T
A
= +85
°
C
Min.
2.0
—
—
—
—
—
Max.
—
0.8
20
100
–0.2
–1.2
Unit
V
V
µA
mA
V
Condition
—
—
V
IN
= 2.7V
V
IN
= V
CC
V
IN
= 0.5V
I
IN
= –18mA
NOTE:
1. Parametric values specified at:
3 volt Power Supply Range
10/100ELT22L Series: +3.0V to +3.8V.
M9999-052108
hbwhelp@micrel.com or (408) 955-1690
3
Micrel, Inc.
SY10ELT22L
SY100ELT22L
PECL DC ELECTRICAL CHARACTERISTICS
(1)
V
CC
= V
CC
(Min.) to V
CC
(Max.)
T
A
= -40
°
C
Symbol
V
OH
Parameter
Output HIGH Voltage
(2)
10ELT
100ELT
Output LOW Voltage
(2)
10ELT
100ELT
Min.
2220
2220
1350
1470
Typ.
—
—
—
—
Max.
2410
2420
1650
1750
Min.
2280
2275
1350
1490
T
A
= 0
°
C
Typ.
—
—
—
—
Max.
T
A
= +25
°
C
Min.
Typ.
—
—
—
—
Max.
2490
2420
1670
1680
T
A
= +85
°
C
Min.
2390
2275
1350
1490
Typ.
—
—
—
—
Max.
2580
2420
mV
1670 1350
1680 1490
1705
1680
Unit
mV
2460 2320
2420 2275
V
OL
NOTES:
1. Parametric values specified at:
3 volt Power Supply Range 10/100ELT22L Series: +3.0V to +3.8V.
2. These values are for V
CC
= 3.3V. Level Specifications will vary 1:1 with V
CC
.
AC ELECTRICAL CHARACTERISTICS
(1)
V
CC
= +3.0V to +3.8V
T
A
= -40
°
C
Symbol
t
PD
t
r
t
f
t
skpp
t
skew
Parameter
Propagation Delay to Output D,
ENECL/ENTTL
Output Rise/Fall Time
20% to 80%
Part-to-Part Skew
(2)
Within-Device Skew
(2,3)
Min.
100
200
—
—
600
500
500
100
T
A
= 0
°
C
100
200
—
—
600
500
500
100
T
A
= +25
°
C T
A
= +85
°
C
Max. Min. Max. Unit
600
500
500
100
100
200
—
—
600
500
500
100
ps
ps
ps
ps
Condition
50Ω to V
CC
– 2.0V
50Ω to V
CC
– 2.0V
50Ω to V
CC
– 2.0V
50Ω to V
CC
– 2.0V
100
200
—
—
Max. Min. Max. Min.
NOTES:
1. Parametric values specified at:
3 volt Power Supply Range
2. Guaranteed, but not tested.
3. Same transition @common V
CC
levels.
10/100ELT22L Series: +3.0V to +3.8V.
M9999-052108
hbwhelp@micrel.com or (408) 955-1690
4
Micrel, Inc.
SY10ELT22L
SY100ELT22L

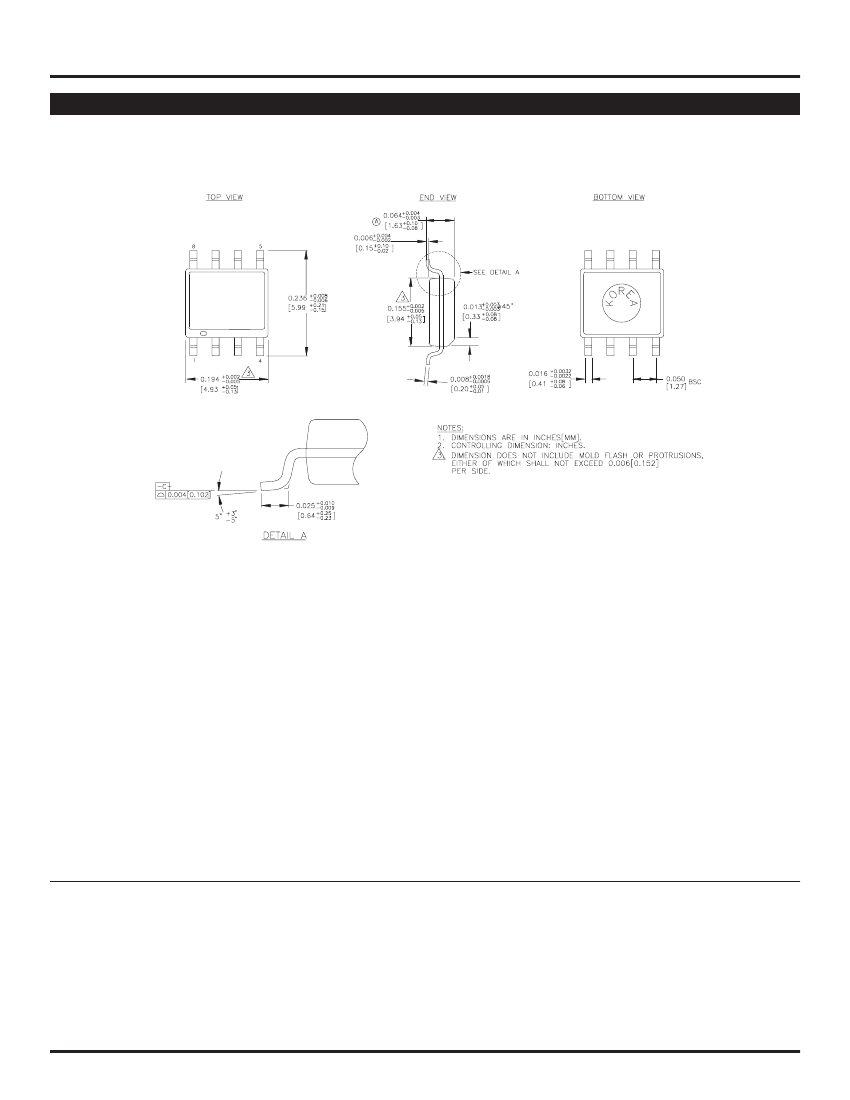

8-PIN SOIC .150" WIDE (Z8-1)
Rev. 03
