5499925-2

Description
14 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, ROHS COMPLIANT
CategoryThe connector    The connector
File Size67KB，2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

5499925-2 Overview

14 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, ROHS COMPLIANT

5499925-2 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerTE Connectivity
package instructionROHS COMPLIANT
Reach Compliance Codeunknown
Other featuresLOW PROFILE, POLARIZED
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial number5499925
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts14
UL Flammability Code94V-0

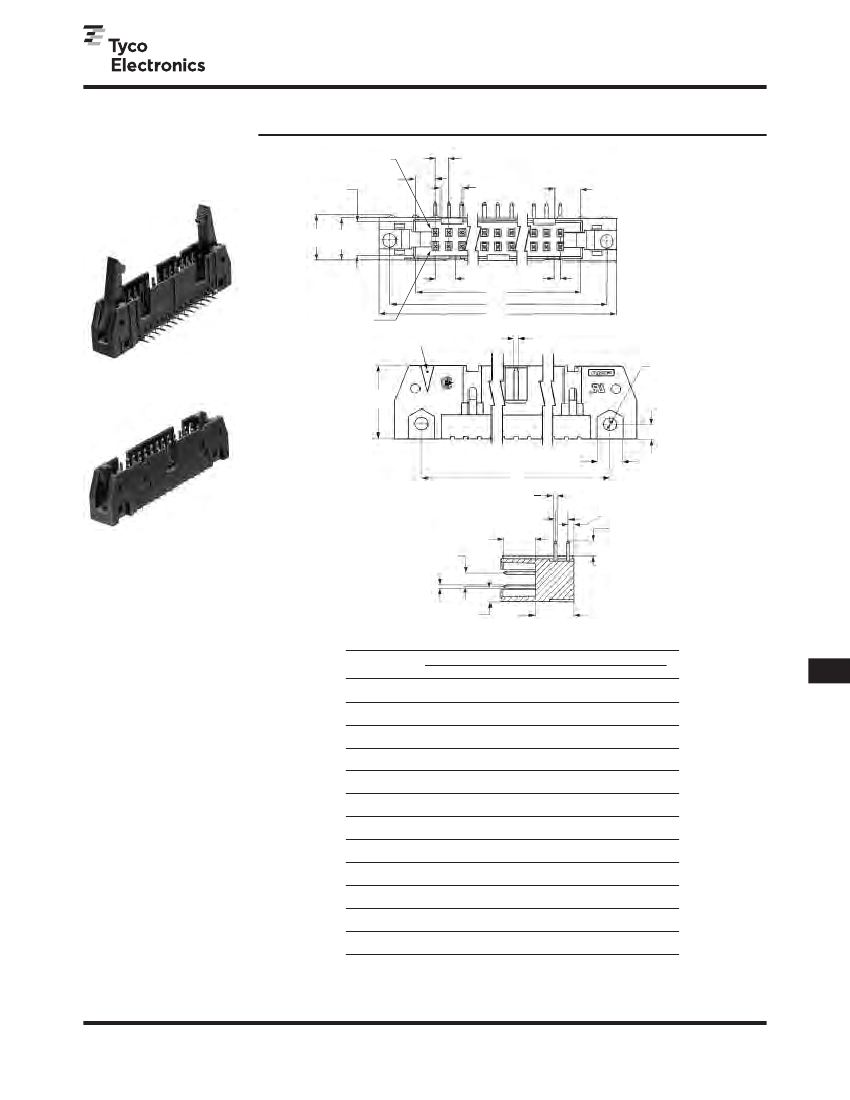

Preview

Download Datasheet
Ribbon Cable Interconnect Solutions
Universal Ejection Style Pin Headers, Military, Center
and Dual Polarized, .100 x .100 [2.54 x 2.54] Centerlines
Right-Angle PCB Mount
.025 [0.64] Sq. Posts
(Mating End)
Pin 2
.253
[6.43]
.150
[3.81]
.100
[2.54]
.165
[4.19]
.190
[4.83]
.336 .315
[8.53] [8.00]
.150
[3.81]
A
B
C
Pos. No. 1 Indicator
.025
[0.64]
.050
[1.27]
Pin 1
Pin Header
with Latches
.549
[13.94]
.096
[2.44]
.108
[2.74]
.195
[4.95]
D
.025
[0.64] Dia.
.100
[2.54]
.038
[0.97]
.110
.155
[2.79] or [3.94]
Typ.
Typ.
Solder Tail
Pin Header
without Latches
.100
[2.54]
.240
[6.10]
Material and Finish
Housing & Latches
— Black PBT or
nylon, UL 94V-0 rated
Contacts
— Brass; duplex plated
(See chart, page 90)
.025 .107
[0.64] [2.72]
.289
[7.34]
Related Product Data
Mateable Receptacles
—
pages 48-55
Accessories
—
Snap-In Polarizer
— page 63
No. of
Positions
10
14
16
Technical Documents
Product Specifications
108-40018 Pin Headers
20
24
26
30
34
40
50
60
64
A
.700
17.78
.900
22.86
1.000
25.40
1.200
30.48
1.400
35.56
1.500
38.10
1.700
43.18
1.900
48.26
2.200
55.88
2.700
68.58
3.200
81.28
3.400
86.36
B
1.100
27.94
1.300
33.02
1.400
35.56
1.600
40.64
1.800
45.72
1.900
48.26
2.100
53.34
2.300
58.42
2.600
66.04
3.100
78.74
3.600
91.44
3.800
96.52
Dimensions
C
D
1.260
.860
32.00
21.84
1.460
1.060
37.08
26.92
1.560
1.180
39.62
29.46
1.760
1.380
44.70
34.54
1.960
1.560
49.78
39.62
2.060
1.660
52.32
42.16
2.260
1.860
57.40
47.24
2.460
2.060
62.48
52.32
2.760
2.360
70.10
59.94
3.260
2.860
82.80
72.64
3.760
3.360
95.50
85.34
3.960
3.560
100.58
90.42
E
.860
21.84
1.060
26.92
1.180
29.46
1.380
34.54
1.560
39.62
1.660
42.16
1.860
47.24
2.060
52.32
2.360
59.94
2.860
72.64
3.360
85.34
3.560
90.42
F
.400
10.16
.600
15.24
.700
17.78
.900
22.86
1.100
27.94
1.200
30.48
1.400
35.56
1.600
40.64
1.900
48.26
2.400
60.98
2.900
73.66
3.100
78.74
Military, Center and Dual Polarized, Right-Angle
Universal Ejection Style Pin Headers
Notes:
1. Pin headers in 10- and 14-position sizes have only one slot for
snap-in polarizer (military polarization), located as shown.
Notes:
2. Pin headers in 10-position size have only slot for dual polariza-
tion, located as shown.
89
Catalog 82012
Revised 10-09
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208

5499925-2 Related Products

5499925-2 5499925-5
Description 14 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, ROHS COMPLIANT 24 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, ROHS COMPLIANT
Is it Rohs certified? conform to conform to
Maker TE Connectivity TE Connectivity
package instruction ROHS COMPLIANT ROHS COMPLIANT
Reach Compliance Code unknown unknown
Other features LOW PROFILE, POLARIZED LOW PROFILE, POLARIZED
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED
Contact point gender MALE MALE
Contact material NOT SPECIFIED NOT SPECIFIED
DIN compliance NO NO
Filter function NO NO
IEC compliance NO NO
MIL compliance NO NO
Manufacturer's serial number 5499925 5499925
Plug information MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE
Mixed contacts NO NO
Installation method RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD
Number of rows loaded 2 2
Options GENERAL PURPOSE GENERAL PURPOSE
Terminal pitch 2.54 mm 2.54 mm
Termination type SOLDER SOLDER
Total number of contacts 14 24
UL Flammability Code 94V-0 94V-0
