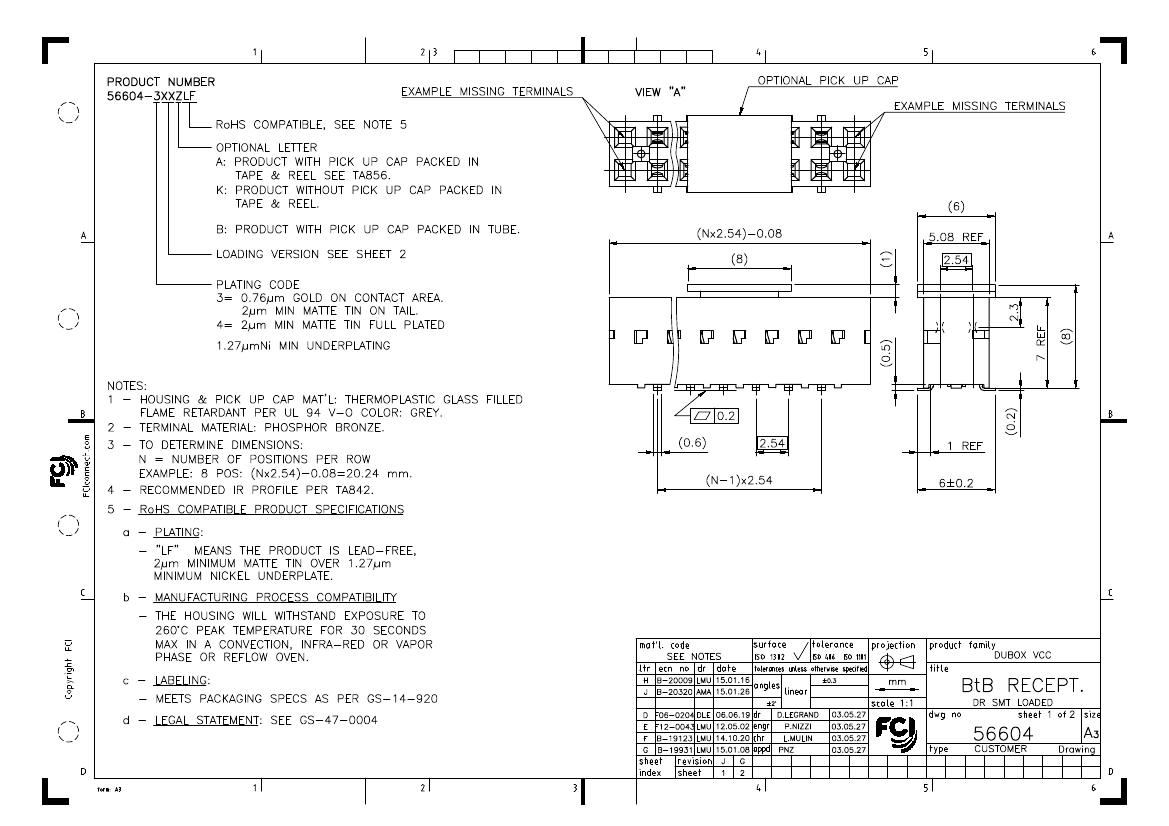

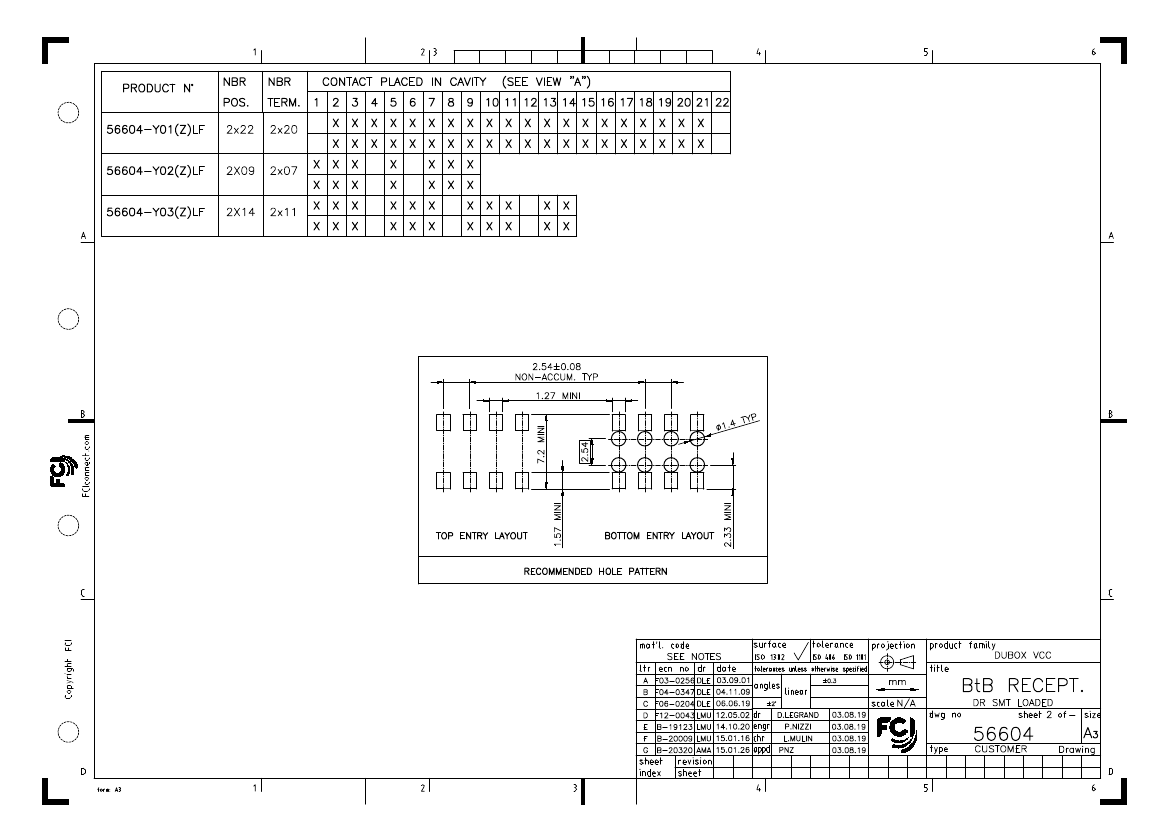

Preview

56604-301KLF: DescriptionBoard Connector, 44 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Gray Insulator, Receptacle; CategoryThe connector The connector; File Size129KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

56604-301KLF Overview

Board Connector, 44 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Gray Insulator, Receptacle

56604-301KLF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
Reach Compliance Code	compliant
body width	0.2 inch
subject depth	0.276 inch
body length	2.197 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulator color	GRAY
insulator material	THERMOPLASTIC
JESD-609 code	e3
Manufacturer's serial number	56604
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Termination type	SURFACE MOUNT
Total number of contacts	44

Preview

Download Datasheet

View All

PDS: Rev :J

STATUS:Released

Printed: Feb 27, 2015

56604-301KLF Related Products

	56604-301KLF	56604-303KLF	56604-302ALF	56604-401ALF	56604-302KLF	56604-401KLF	56604-303BLF
Description	Board Connector, 44 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Gray Insulator, Receptacle	DX VCC DR 100 DP SMT	CONN RCPT	Dubox® 2.54mm, Board to Board Connector, PCB Mounted Receptacle, Vertical, Surface Mount, Dual Entry,Double Row, Selective Loaded, 44 Position ,2.54mm (0.100in) Pitch	CONN RCPT	Board Connector, 44 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Gray Insulator, Receptacle	Board Connector, 28 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Gray Insulator, Receptacle
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
body width	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch
subject depth	0.276 inch	0.276 inch	0.276 inch	0.276 inch	0.276 inch	0.276 inch	0.276 inch
body length	2.197 inch	1.397 inch	0.697 inch	2.197 inch	0.697 inch	2.197 inch	1.397 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	MATTE TIN (79) OVER NICKEL (50)	AU ON NI	SN ON NI	AU ON NI
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Insulator color	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	POLYETHYLENE	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
Manufacturer's serial number	56604	56604	56604	56604	56604	56604	56604
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2
Plating thickness	30u inch	30u inch	30u inch	79u inch	30u inch	79u inch	30u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	44	28	14	40	14	44	28
Maker	Amphenol	Amphenol	Amphenol	-	Amphenol	Amphenol	Amphenol
ECCN code	-	EAR99	EAR99	EAR99	EAR99	-	-
