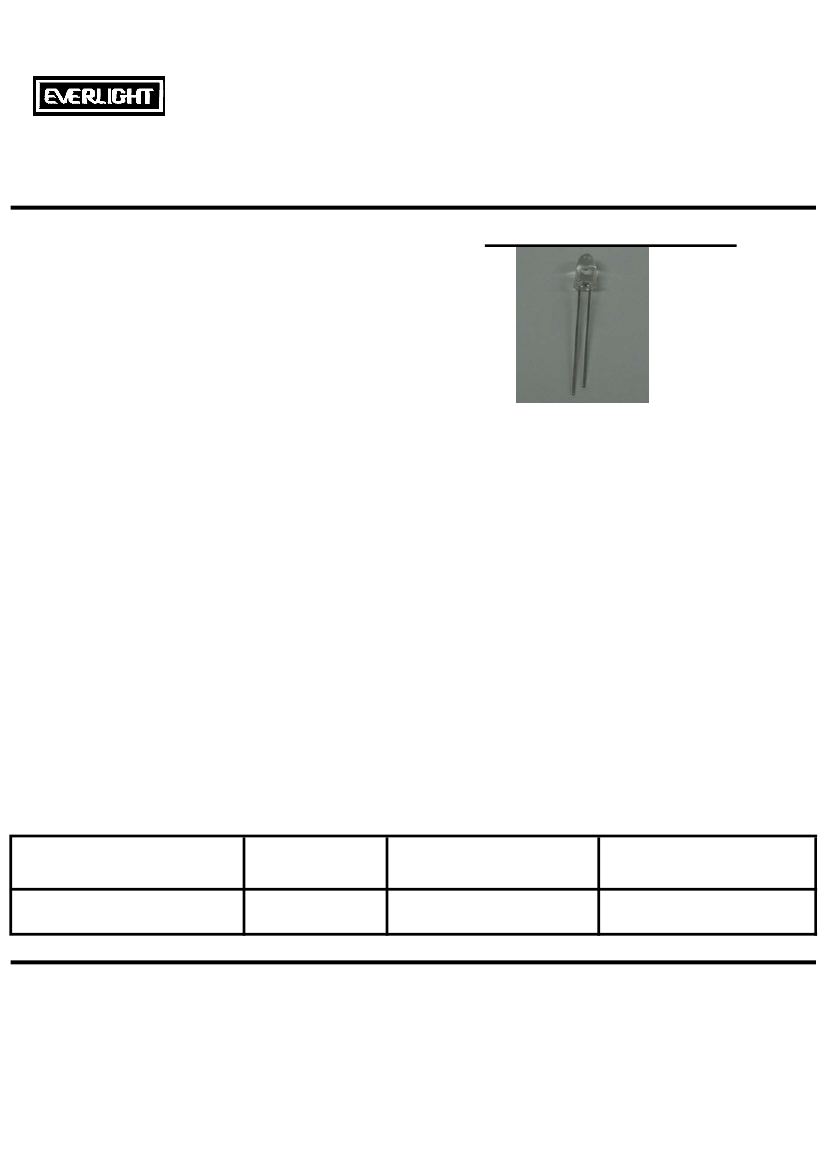

Technical Data Sheet
5.0mm Round Type LED Lamps
383-2SURC/S530-A6
█
Features :
●
●
●
Choice of various viewing angles
Available on tape and reel.
Reliable and robust
●
Pb free
█
Descriptions :
●
The series is specially designed for
applications requiring higher
brightness
●
The led lamps are available with
different colors, intensities,
█
Applications :
●
●
●
●
TV set
Monitor
Telephone
Computer
PART NO.
383-2SURC/S530-A6
Material
AlGaInP
Emitted Color
Hyper Red
Lens Color
Water Clear
EVERLIGHT ELECTRONICS CO.,LTD.
http : //www.everlight.com
Prepared date:
2004/6/25
Rev.:
3
Page: 1 of 6
Guangxiu Yuan
Device Number :
CDLE-038-078
Prepared by:
T99420,B990764
Technical Data Sheet
5.0mm Round Type LED Lamps
383-2SURC/S530-A6
Package Dimensions
Notes:
1.All dimensions are in millimetres
2. An epoxy meniscus may extend about 1.5mm(0.059'') down to the lead.
3. Tolerances unless Dimension
±0.25mm.
█ Absolute Maximum Ratings at Ta = 25℃
Parameter
Forward Current
Operating Temperature
Storage Temperature
Electrostatic Discharge
Soldering Temperature
Power Dissipation
Peak Forward Current
Reverse Voltage
Symbol
I
F
Topr
Tstg
ESD
Tsol
Pd
I
F
(Peak)
V
R
Rating
25
-40 to +85
-40 to +100
2000
260
±
5
60
160
5
Unit
mA
℃
℃
V
℃
mW
mA
V
Note: *1:I
FP
Conditions --Pulse Width ≦ 1msec and Duty ≦ 1/10.
*2:Soldering time ≦ 5 seconds.
EVERLIGHT ELECTRONICS CO.,LTD
http : //w //www.everlight.com
:
Prepared date:
2004/6/25
Rev.:
3
Prepared by:
Page: 2 of 6
Guangxiu Yuan
Device Number :
CDLE-038-078
Technical Data Sheet
5.0mm Round Type LED Lamps
383-2SURC/S530-A6
Electro-Optical Characteristics (Ta=25℃)
Parameter
Forward Voltage
Reverse Current
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation
Bandwidth
Symbol
V
F
I
R
Iv
2θ1/2
λp
λd
△λ
Condition
IF=
V
R
=
IF=
IF=
IF=
IF=
IF=
20
5
20
20
20
20
20
mA
V
mA
mA
mA
mA
mA
Min.
／
／
4000
／
／
／
／
Typ.
2.0
／
6300
6
632
624
20
Max.
2.4
10
／
／
／
／
／
Unit
V
μA
mcd
deg
nm
nm
nm
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-038-078
http : //www.everlight.com
Prepared date:
2004/6/25
Rev.:
3
Page: 3 of 6
Prepared by:
Guangxiu Yuan
.
Technical Data Sheet
5.0mm Round Type LED Lamps
383-2SURC/S530-A6
█

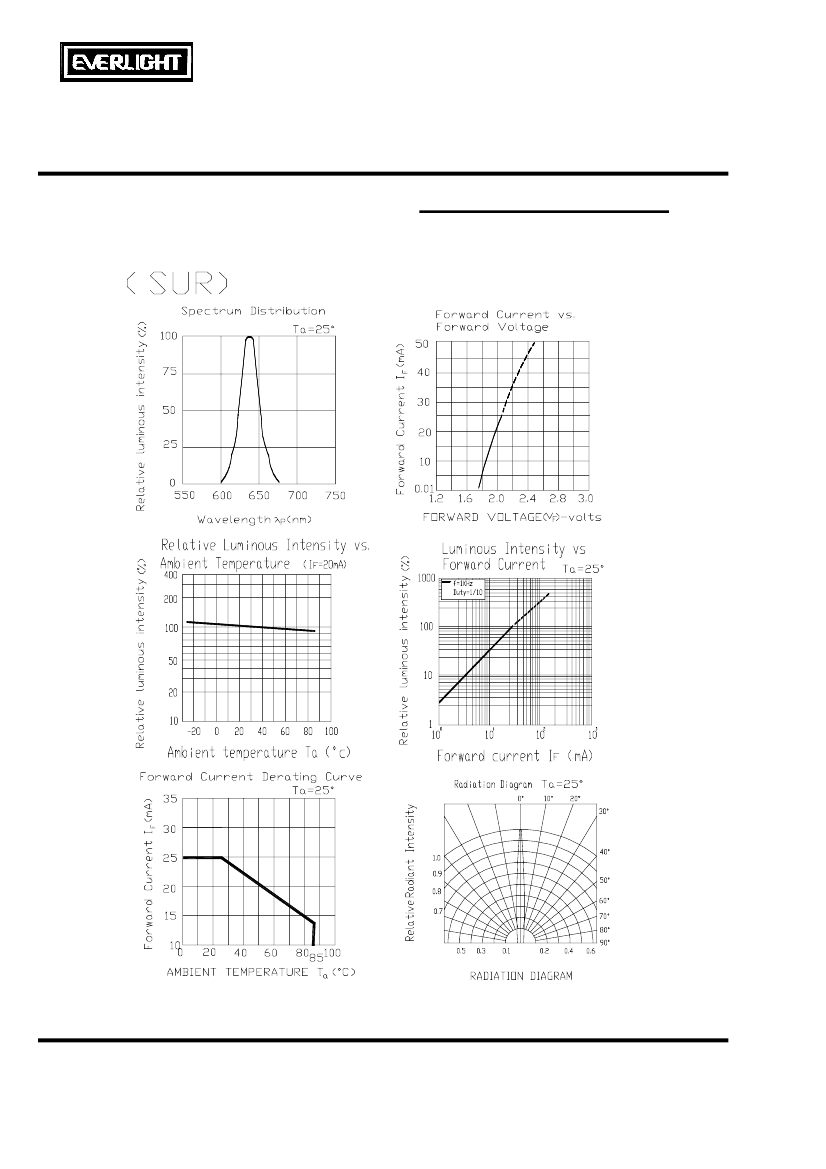

Typical Electro-Optical Characteristic Curves:
EVERLIGHT ELECTRONICS CO.,LTD http : //www.everlight.com
Device Number :
CDLE-038-078 Prepared date: 2004/6/25
Rev.: 3
Prepared by:
Page: 4 of 6
Guangxiu Yuan
Technical Data Sheet
5.0mm Round Type LED Lamps
383-2SURC/S530-A6
█
Reliability test items and conditions:
Test
Sample
Ac/Re
Hours/Cycle
size
SEC
76 PCS
0/1
NO
1
Item
Solder Heat
Test Conditions
TEMP : 260℃
±
5 ℃
H : +100℃ 15min
∫ 5 min
L : -40℃ 15min
H : +100℃ 5min
∫ 10 sec
L : -10℃ 5min
TEMP : 100℃
2
Temperature Cycle
300 CYCLES 76 PCS
0/1
3
Thermal Shock
300 CYCLES 76 PCS
0/1
4
High Temperature Storage
1000 HRS
76 PCS
0/1
5
Low Temperature Storage
TEMP : -40℃
TEMP : 25℃
I
F
= 20mA
85℃ / 85% RH
1000 HRS
76 PCS
0/1
6
DC Operating Life
High Temperature / High
Humidity
1000 HRS
1000 HRS
76 PCS
0/1
0/1
7
76 PCS
EVERLIGHT ELECTRONICS CO.,LTD.
http : //www.everlight.com
Prepared date:
2004/6/25
Rev.:
3
Page: 5 of 6
Device Number : CDLE-038-078
Prepared by:
Guangxiu Yuan
