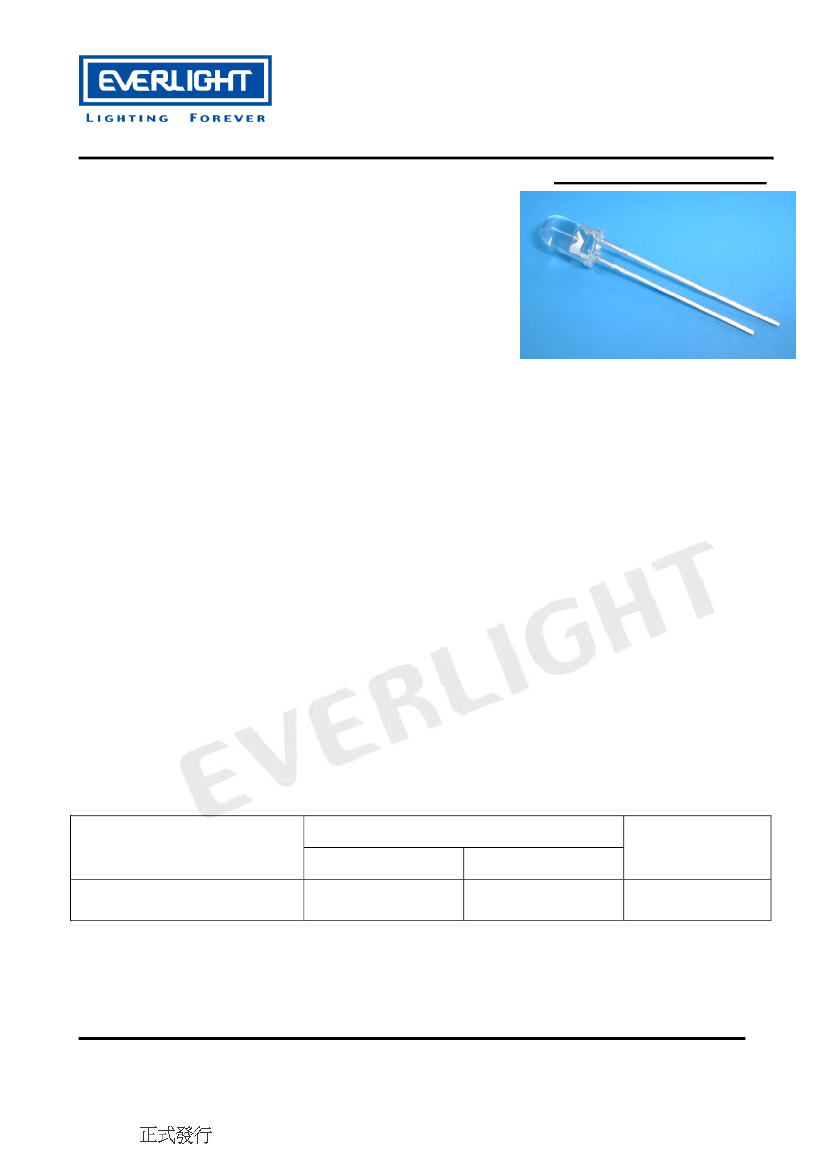

Technical Data Sheet
Features
․Popular
T-1 3/4 round package.
․
High luminous power.
․Typical
chromaticity coordinates x=0.30, y=0.29
according to CIE1931.
․Bulk,
available taped on reel.
․ESD-withstand
voltage: up to 4KV
․The
product itself will remain within RoHS compliant version.
334-15/T1C1-7VXC
Descriptions
˙The series is designed for application required high
luminous intensity.
˙The phosphor filled in the reflector converts the
blue emission of InGaN chip to ideal white.
Applications
․Message
panels
․Optical
Indicators
․Backlighting
․Marker
Lights
Device Selection Guide
PART NO.
334-15/T1C1-7VXC
Chip
Material
InGaN
Emitted Color
White
Lens Color
Water Clear
Everlight Electronics Co., Ltd.
Device Number:
DLE-0000336
http:\\www.everlight.com
Established date:07-22-2010
Rev:
3
Page: 1 of 12
Established by: Ruby Lin
Revision
:3
Release Date:2010-07-27 21:59:36.0
Expired Period: Forever
LifecyclePhase:
Technical Data Sheet

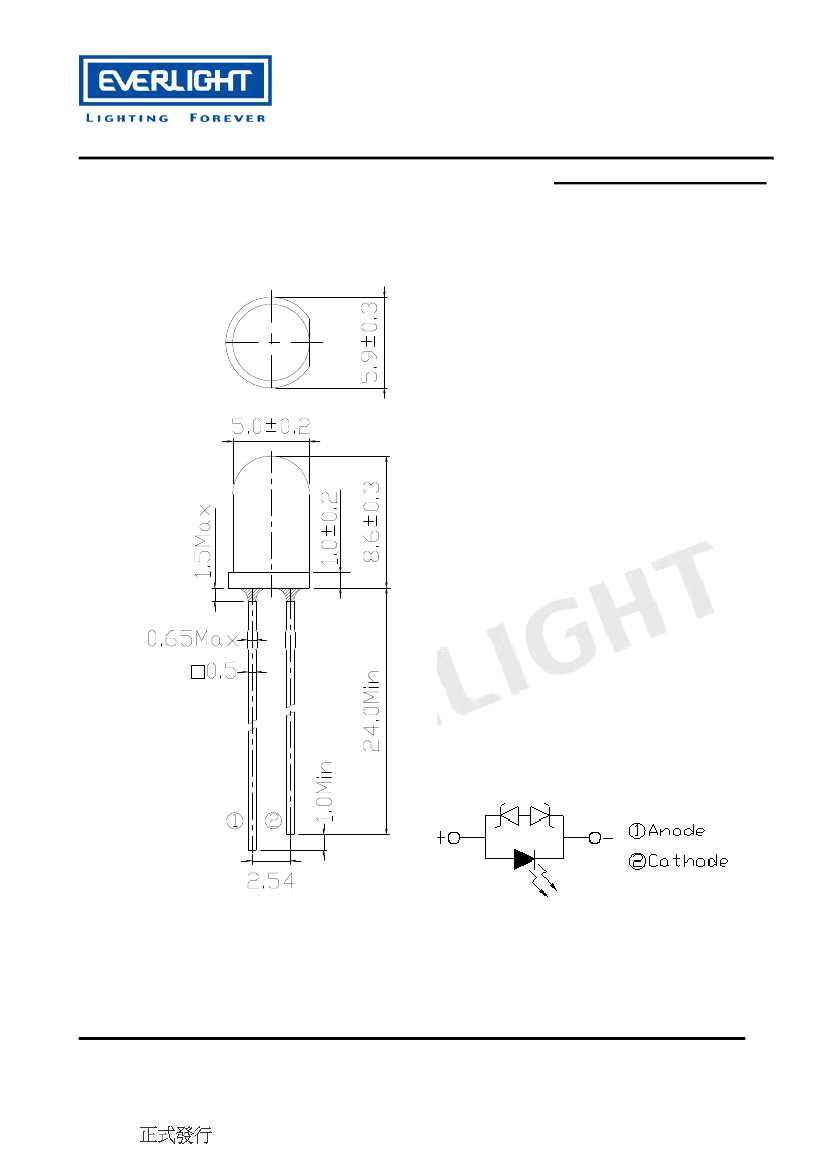

Package Dimensions
334-15/T1C1-7VXC
Notes:
1.All dimensions are in millimeters, and tolerance is 0.25mm except being specified.
2.Lead spacing is measured where the lead emerges from the package.
3.Protruded resin under flange is 1.5mm Max. LED.
Everlight Electronics Co., Ltd.
Device Number:
DLE-0000336
http:\\www.everlight.com
Established date:07-22-2010
Rev:
3
Page: 2 of 12
Established by: Ruby Lin
Revision
:3
Release Date:2010-07-27 21:59:36.0
Expired Period: Forever
LifecyclePhase:
Technical Data Sheet
Absolute Maximum Ratings (Ta=25
℃
)
Parameter
Continuous Forward Current
Peak Forward Current (Duty 1/10 @ 1KHZ)
Reverse Voltage
Operating Temperature
Storage Temperature
Soldering Temperature (T=5 sec)
Power Dissipation
Zener Reverse Current
Electrostatic Discharge
Symbol
I
F
I
FP
V
R
T
opr
T
stg
T
sol
P
d
Iz
ESD
334-15/T1C1-7VXC
Rating
30
100
5
-40 ~ +85
-40 ~ +100
260
110
100
4K
Unit
mA
mA
V
℃
℃
℃
mW
mA
V
Everlight Electronics Co., Ltd.
Device Number:
DLE-0000336
http:\\www.everlight.com
Established date:07-22-2010
Rev:
3
Page: 3 of 12
Established by: Ruby Lin
Revision
:3
Release Date:2010-07-27 21:59:36.0
Expired Period: Forever
LifecyclePhase:
Technical Data Sheet
334-15/T1C1-7VXC
Production Designation
334-15/T1C1-
□□□□
Voltage Group
Luminous Intensity Bins
Color Group
Electro-Optical Characteristics (Ta=25
℃
)
Parameter
Forward Voltage
Zener Reverse Voltage
Reverse Current
Symbol
V
F
Vz
I
R
I
V
2θ1/2
x
Chromaticity Coordinates
y
I
F
=20mA
----
0.29
----
----
Condition
I
F
=20mA
Iz=5mA
V
R
=5V
I
F
=20mA
I
F
=20mA
Min.
2.8
5.2
----
11250
----
----
Typ.
----
----
----
----
15
0.30
Max.
3.6
----
50
22500
----
----
Units
V
V
uA
mcd
deg
----
Luminous Intensity
Viewing Angle
Everlight Electronics Co., Ltd.
Device Number:
DLE-0000336
http:\\www.everlight.com
Established date:07-22-2010
Rev:
3
Page: 4 of 12
Established by: Ruby Lin
Revision
:3
Release Date:2010-07-27 21:59:36.0
Expired Period: Forever
LifecyclePhase:
Technical Data Sheet
Luminous Intensity Combination (
mcd at 20mA)
Rank
V
W
X
Min
11250
14250
18000
334-15/T1C1-7VXC
Max
14250
18000
22500
*Measurement Uncertainty of Luminous Intensity: ±10%
Forward Voltage Combination (
V at 20mA)
Rank
Forward Voltage
0
2.8~3.0
1
3.0~3.2
2
3.2~3.4
3
3.4~3.6
*Measurement Uncertainty of Forward Voltage：±0.1V
Color Combination ( at 20mA)
Group
7
Bins
B5+B6
