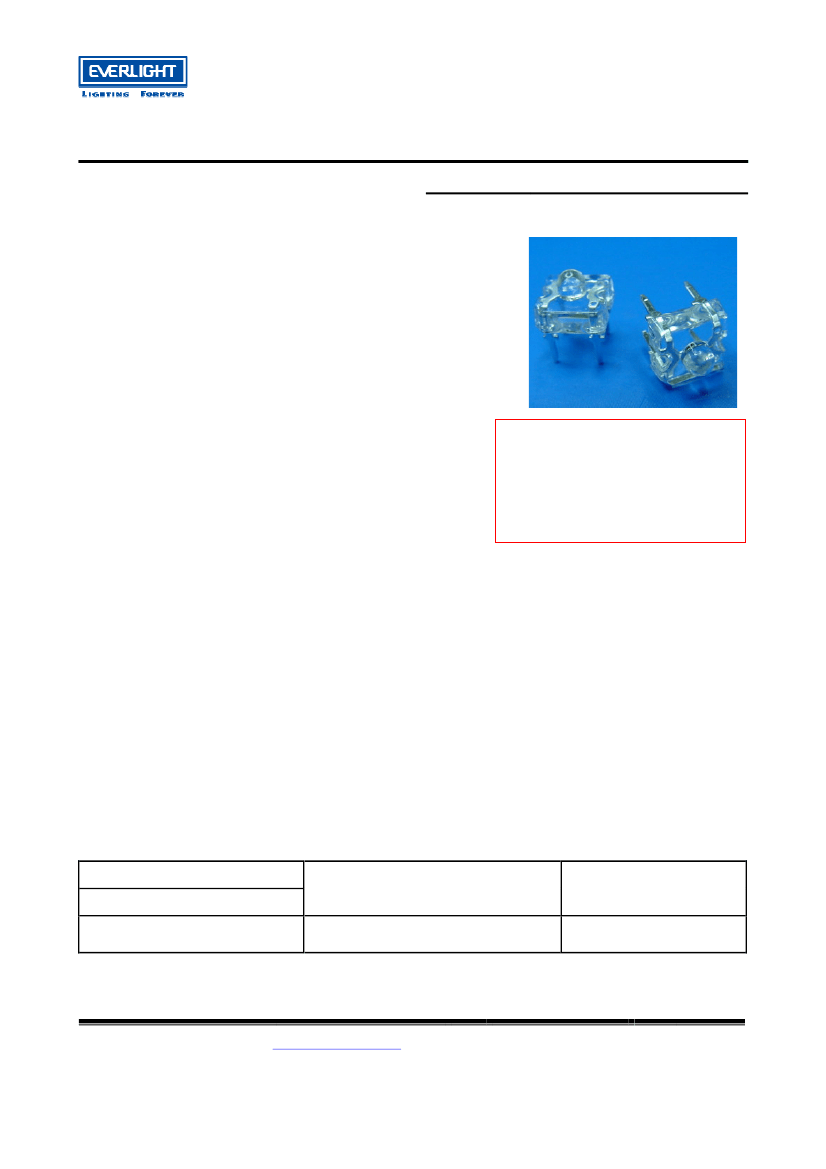

EVERLIGHT ELECTRONICS CO., LTD.
Technical Data Sheet
3ψ Piranha
ψ
38-01-A84- RAC-D4T1U1DH-AM
Feature
‧
‧
‧
‧
‧
‧
‧
‧
‧
‧
Lead-Free
RoHS compliant.
Low profile.
This is a preliminary specification
Uniform color
intended for design purposes and
High flux output
subject to change without prior
Colorless clear resin.
notice.
Brightness: 7150 to 14250 mlm at 70mA.
Qualification according to AEC-Q101.
Packaged in tubes for use with automatic insertion equipment.
Useable in severe lead free processes with automotive reflow profile.
Applications
‧
Automotive exterior lighting: Turn light, tail light, rear-view mirror light, side light,
license light switch, 3
rd
braking light…etc.
‧
Display for indoor and outdoor application.
‧
Substitution of traditional light.
‧
Electronic Signs and Signals.
‧
General applications.
Device Selection Guide
Chip
Material
AlGaInP
Emitted Color
Red
Resin Color
Water Clear
Everlight Electronics Co., Ltd.
Device No.:
DPE-0000135
http://www.everlight.com
Published date: 25-June-2009
Rev.:
1.0
Vicky Feng
Page:
1 of 12
Created by:
EVERLIGHT ELECTRONICS CO., LTD.
Technical Data Sheet
3ψ Piranha
ψ
38-01-A84- RAC-D4T1U1DH-AM
Absolute Maximum Ratings (Ta=25
℃
)
Parameter
Reverse Voltage
Forward Current
Peak Forward Current
(Duty 1/10 @1KHz)
Power Dissipation
Junction Temperature
Operating Temperature
Storage Temperature
Thermal Resistance
Symbol
V
R
I
F
I
FP
Pd
T
j
T
opr
Tstg
Rth
J-A
ESD
HBM
ESD
MM
T
sol
Rating
5
70
150
200
120
-40 ~ +100
-40 ~ +100
150
4000
200
Unit
V
mA
mA
mW
℃
℃
℃
K/W
V
V
ESD
(Classification acc. AEC Q101)
Soldering Temperature
Wave Soldering : 260
℃
for 5 sec.
Hand Soldering : 350
℃
for 3 sec.
Everlight Electronics Co., Ltd.
Device No.:
DPE-0000135
http://www.everlight.com
Published date: 25-June-2009
Rev.:
1.0
Vicky Feng
Page:
2 of 12
Created by:
EVERLIGHT ELECTRONICS CO., LTD.
Technical Data Sheet
3ψ Piranha
ψ
38-01-A84- RAC-D4T1U1DH-AM
Electro-Optical Characteristics (Ta=25
℃
)
Parameter
Total Flux
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation Bandwidth
Forward Voltage
Reverse Current
Symbol
Φ
V
2θ
1/2
λ
p
λ
d
∆λ
V
F
I
R
Min.
7150
---
---
620
---
1.9
---
Typ.
---
40
631
---
18
---
---
Max.
14250
---
---
632
---
2.9
10
Unit
mlm
deg
nm
nm
nm
V
µA
Condition
I
F
=70mA
I
F
=70mA
I
F
=70mA
I
F
=70mA
I
F
=70mA
I
F
=70mA
V
R
=5V
Note:
1. Tolerance of Total Flux: ±11%
2. Tolerance of Dominant Wavelength: ±1nm
3. Tolerance of Forward Voltage: ±0.1V
Everlight Electronics Co., Ltd.
Device No.:
DPE-0000135
http://www.everlight.com
Published date: 25-June-2009
Rev.:
1.0
Vicky Feng
Page:
3 of 12
Created by:
EVERLIGHT ELECTRONICS CO., LTD.
Technical Data Sheet
3ψ Piranha
ψ
38-01-A84- RAC-D4T1U1DH-AM
Bin Range of Total Flux
Bin Code
T1
T2
U1
Note:
Tolerance of Total Flux: ±11%
Min.
7150
9000
11250
Max.
9000
11250
14250
mlm
I
F
=70mA
Unit
Condition
Bin Range of Dominant Wavelength
Bin Code
2
3
4
Min.
620
624
628
Max.
624
628
632
nm
I
F
=70mA
Unit
Condition
Note:
Tolerance of Dominant Wavelength: ±1nm
Bin Range of Forward Voltage
Bin Code
1
2
3
4
5
Min.
1.9
2.1
2.3
2.5
2.7
Max.
2.1
2.3
2.5
2.7
2.9
V
I
F
=70mA
Unit
Condition
Note:
Tolerance of Forward Voltage: ±0.1V
Everlight Electronics Co., Ltd.
Device No.:
DPE-0000135
http://www.everlight.com
Published date: 25-June-2009
Rev.:
1.0
Vicky Feng
Page:
4 of 12
Created by:
EVERLIGHT ELECTRONICS CO., LTD.
Technical Data Sheet
3ψ Piranha
ψ
38-01-A84- RAC-D4T1U1DH-AM

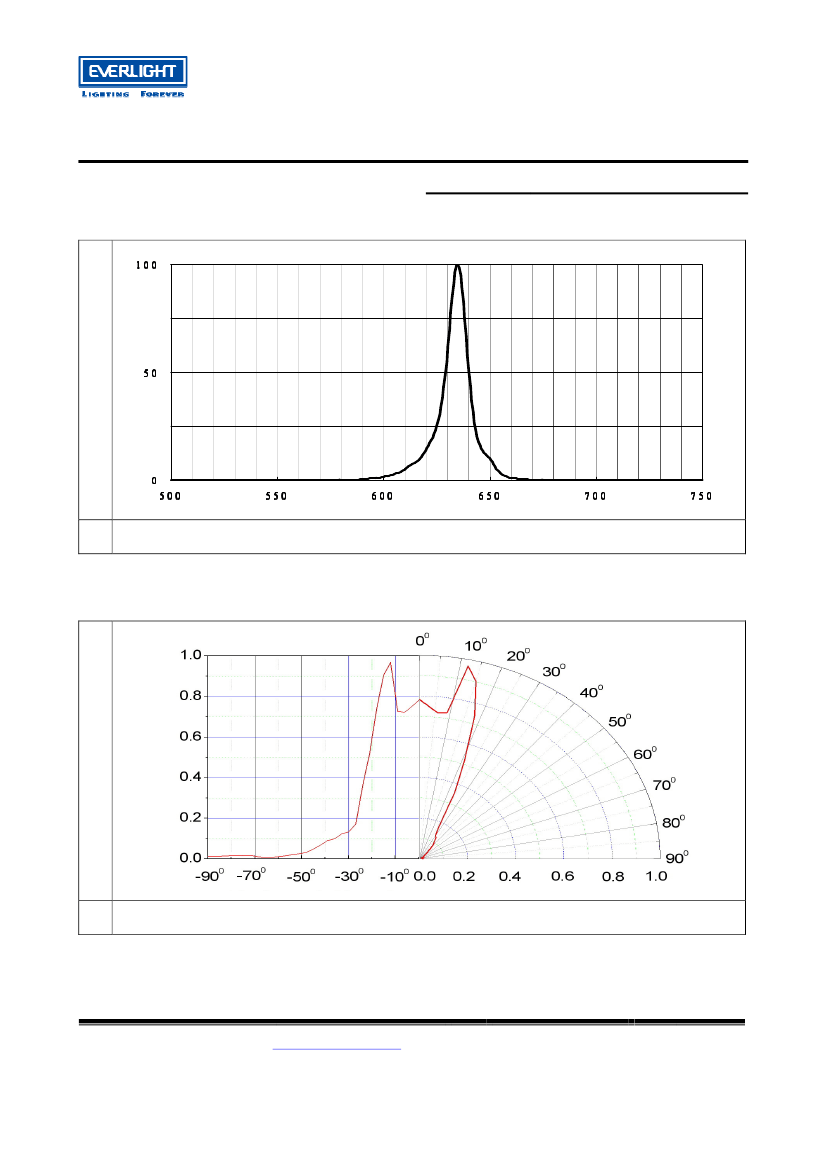

Typical Electro-Optical Characteristics Curves
Typical Curve of Spectral Distribution
001
001
001
Relative Intensity(％)
％
Wavelength
(nm)
Note: V(λ)=Standard eye response curve; I
F
=20mA
Diagram Characteristics of Radiation
Relative Intensity
View Angle
Everlight Electronics Co., Ltd.
Device No.:
DPE-0000135
http://www.everlight.com
Published date: 25-June-2009
Rev.:
1.0
Vicky Feng
Page:
5 of 12
Created by:
057
007
056
006
055
005
0
05
05
05
