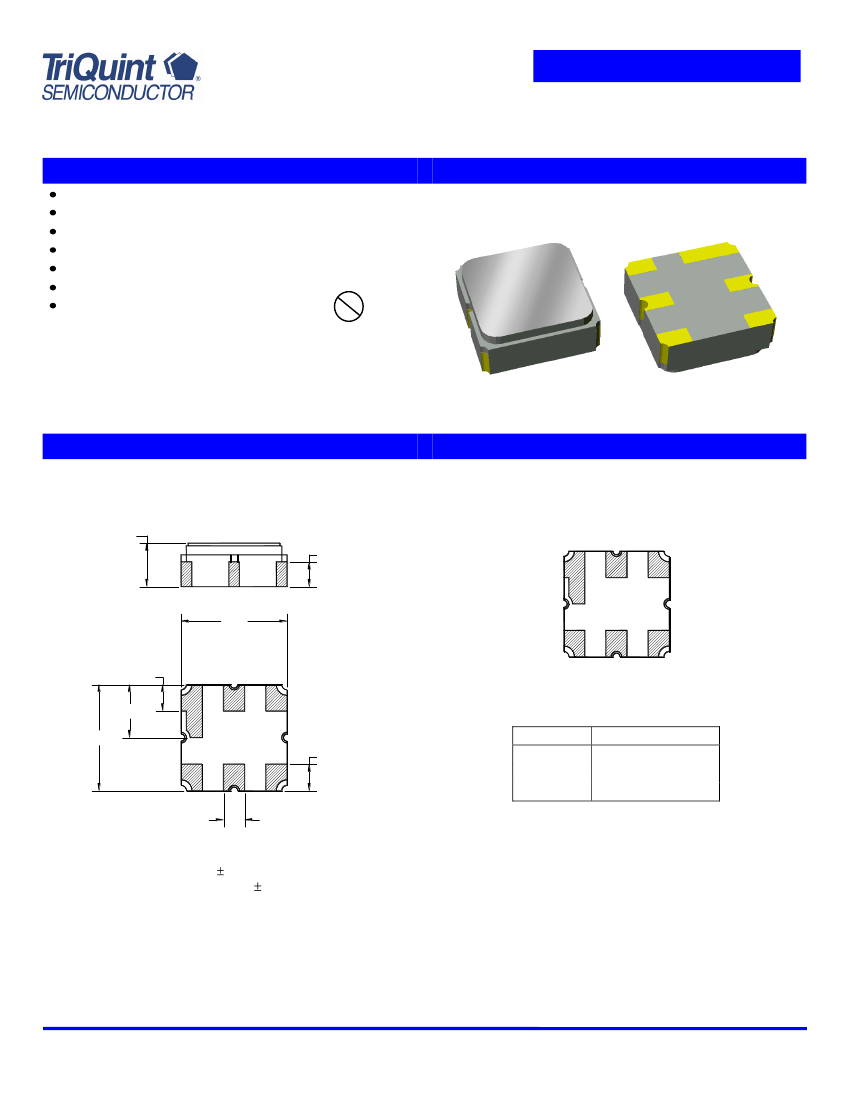

1. All specifications are based on TriQuint test circuit shown on page 4
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
4. Typical values are based on average measurements on pcb at room temperature, unless otherwise noted
5. Relative to Maximum Insertion loss in passband
6. This is the optimum impedance in order to achieve the performance shown
Subject to change or obsolescence without notice
Rev A
10/10
TriQuint Semiconductor
Page 2 of 5
Data Sheet
Part Number 856880
1880 MHz SAW Filter

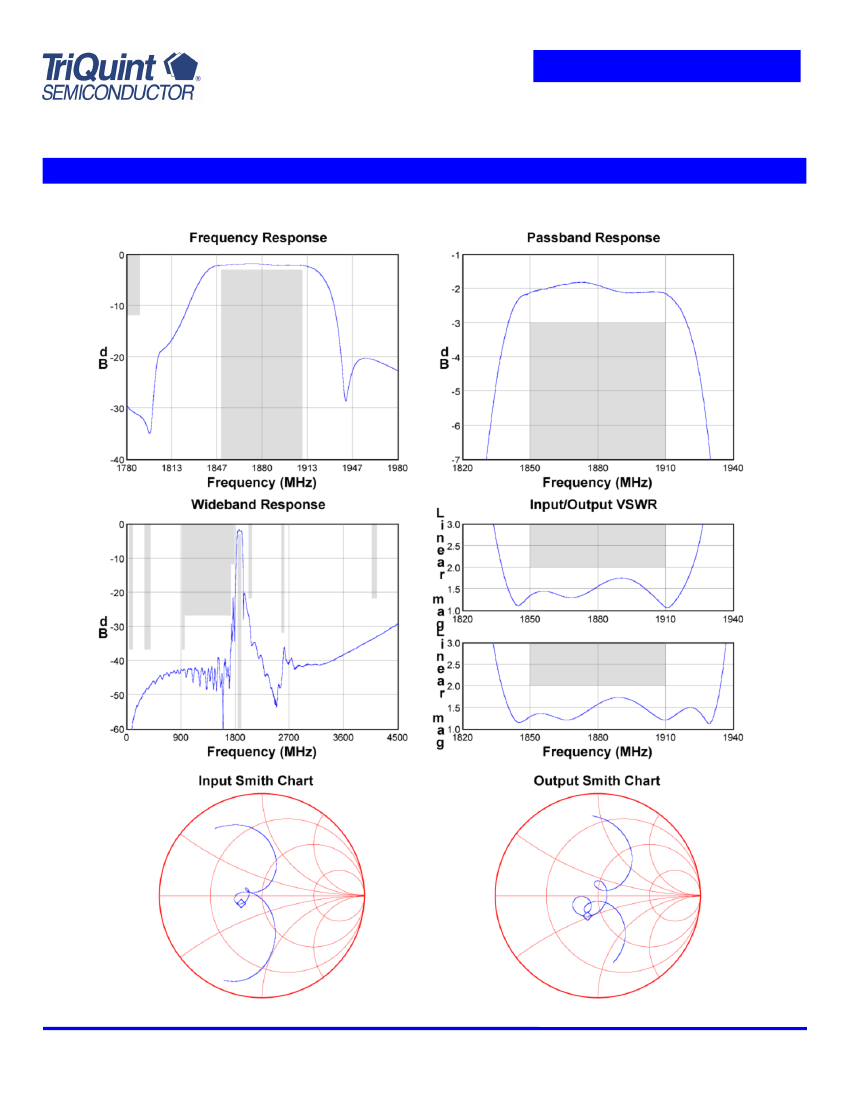

Typical Performance
(at +25
o
C)
Subject to change or obsolescence without notice
Rev A
10/10
TriQuint Semiconductor
Page 3 of 5
Data Sheet
Actual matching network values to be determined
2
5
Part Number 856880
1880 MHz SAW Filter

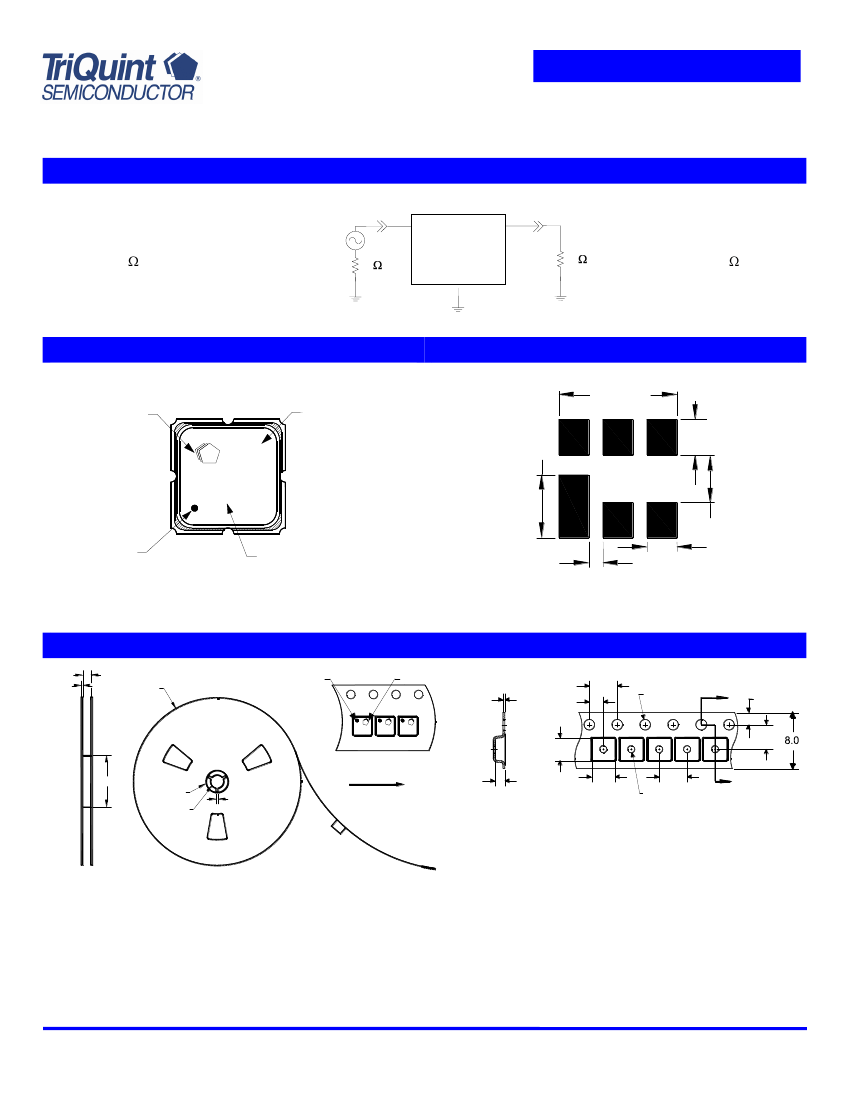

Matching Schematics
50
Single-ended
Input
50
1,3,4,6
50
50
Single-ended
Output
Marking
TriQuint
logo
Marking
code
PCB Footprint
3.20 SQ
.96
EH
JJJYM
1.70
1.27
ID dot
.81
Date code
.38
The date code consists of: JJJ = Julian day,
Y = last digit of year, M = manufacturing site code
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
12.8
2.7
Ø330
ID dot
TriQuint
logo
0.254
2.0
4.0
Ø1.5
A
1.75
3.5
3.2
Ø102
Ø20.2
Ø13.0
1.4
3.4
2.0
Direction of travel
Section A-A
4.0
Ø1.0
A
Dimensions shown are nominal in millimeters
Packaging quantity: 5000 units/reel
Subject to change or obsolescence without notice
Rev A
10/10
TriQuint Semiconductor
Page 4 of 5
Data Sheet
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Input Power
(1)
Part Number 856880
1880 MHz SAW Filter
Symbol
T
T
stg
P
in
Minimum
-30
-40
-
Maximum
+85
+85
+22
Unit
C
C
dBm
o
o
Note:
1.
Input Power is targeted for an applied CW modulated RF signal at 55
0
C for 125 hours
Important Notes
Warnings
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
RoHS Compliance
This product complies with EU directive 2002/95/EC (RoHS)
Pb
Solderability
Compatible with JEDEC J-STD-020C
Pb-free
process,
260°C
peak reflow temperature
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
RoHS Information
Soldering Profile
Other Technical Information
TriQuint’s liability is limited only to the Surface Acoustic Wave (SAW) component(s) described in this data sheet. TriQuint does not accept any liability
for applications, processes, circuits or assemblies, which are implemented using any TriQuint component described in this data sheet.
