51810-002LF: DescriptionPwrBlade®, Power Supply Connectors, 3ACP 24S 5P Right Angle Receptacle.; CategoryThe connector The connector; File Size314KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

51810-002LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	51810-002LF	-	-	View	Buy Now

51810-002LF Overview

PwrBlade®, Power Supply Connectors, 3ACP 24S 5P Right Angle Receptacle.

51810-002LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	2127486456
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	9.1
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
Board mount options	HOLE .086-.098
body width	0.47 inch
subject depth	0.82 inch
body length	3.4 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S24P8
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED POLYETHYLENE
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	YES
Installation option 1	GUIDE PIN
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
Rated current (signal)	1 A
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	32
UL Flammability Code	94V-0
Evacuation force-minimum value	.1668 N

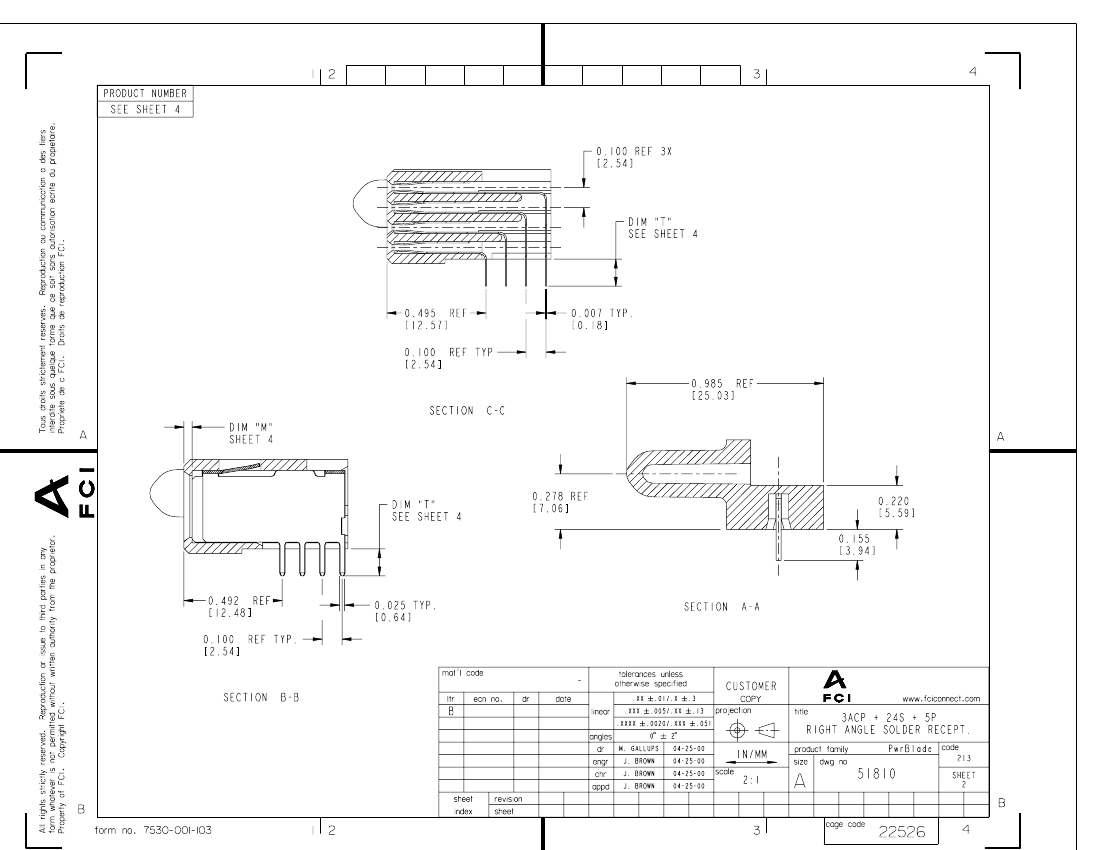

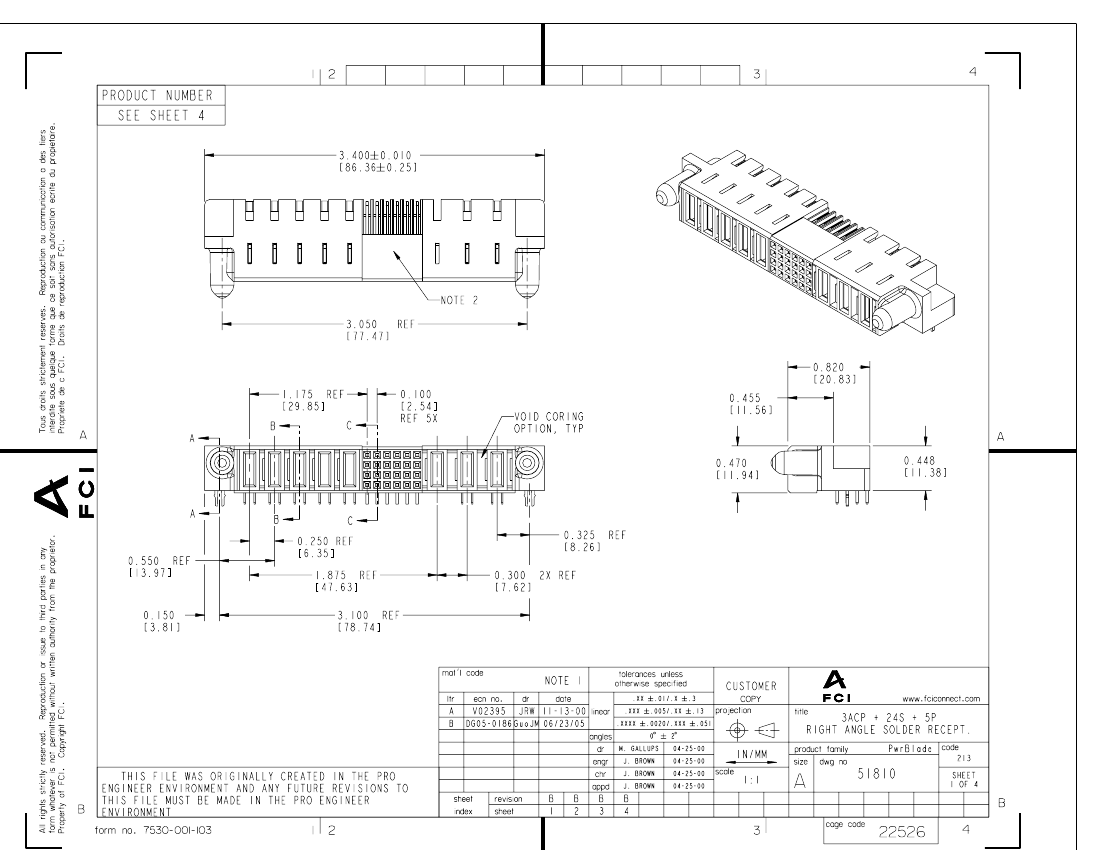

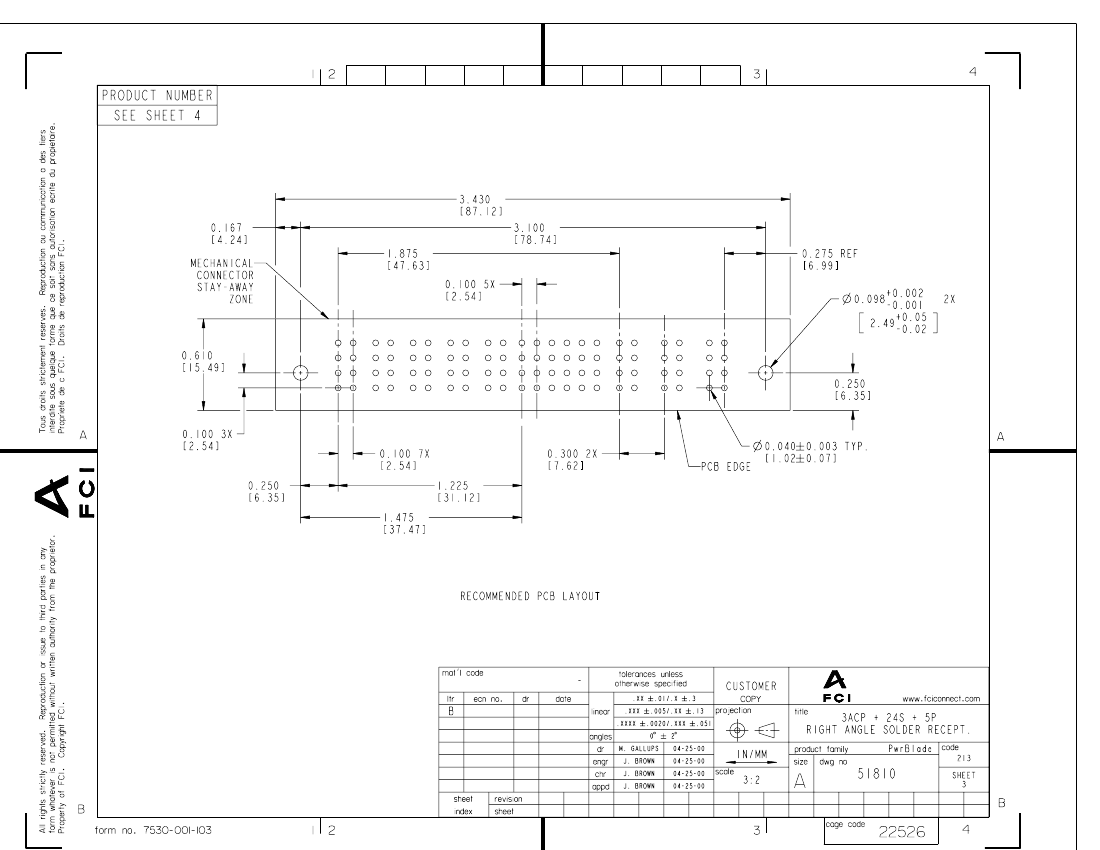

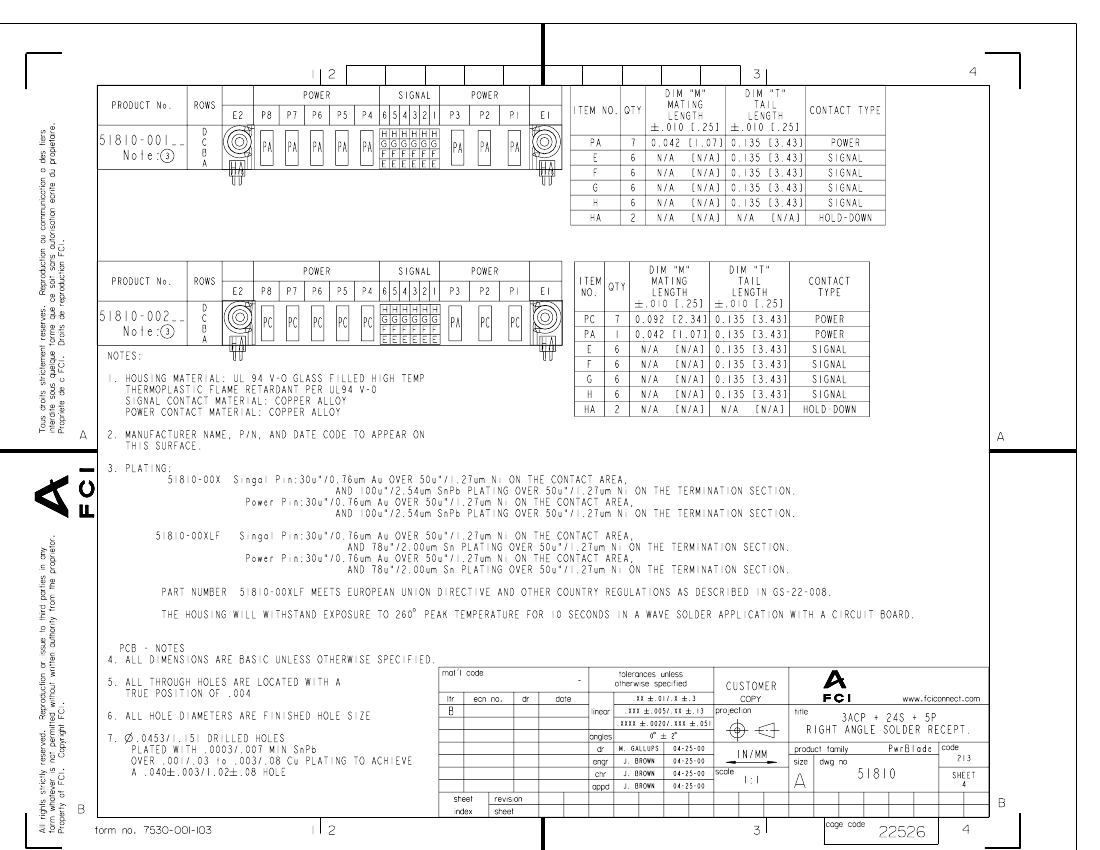

Preview

Download Datasheet

View All

PDM: Rev:B

STATUS:

Released

Printed: Dec 20, 2010

.

51810-002LF Related Products

	51810-002LF	51810-002	51810-001LF	51810-001
Description	PwrBlade®, Power Supply Connectors, 3ACP 24S 5P Right Angle Receptacle.	R/A REC POWERBLADE	PwrBlade®, Power Connectors, 3ACP 24S 5P Right Angle Receptacle, Solder To Board	Board Connector, 32 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Guide Pin, Receptacle
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
Board mount options	HOLE .086-.098	HOLE .086-.098	HOLE .086-.098	HOLE .086-.098
body width	0.47 inch	0.47 inch	0.47 inch	0.47 inch
subject depth	0.82 inch	0.82 inch	0.82 inch	0.82 inch
body length	3.4 inch	3.4 inch	3.4 inch	3.4 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S24P8	S24P8	S24P8	S24P8
Contact to complete cooperation	NOT SPECIFIED	AU ON NI	NOT SPECIFIED	AU ON NI
Contact completed and terminated	TIN OVER NICKEL	TIN/LEAD OVER NICKEL	TIN OVER NICKEL	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	COPPER ALLOY	NOT SPECIFIED	COPPER ALLOY
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	HYBRID	HYBRID	HYBRID	HYBRID
DIN compliance	NO	NO	NO	NO
Dielectric withstand voltage	2500VDC V	2500VDC V	2500VDC V	2500VDC V
Durability	200 Cycles	200 Cycles	200 Cycles	200 Cycles
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
maximum insertion force	.973 N	.973 N	.973 N	.973 N
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
insulator material	GLASS FILLED POLYETHYLENE	GLASS FILLED THERMOPLASTIC	GLASS FILLED POLYETHYLENE	GLASS FILLED THERMOPLASTIC
MIL compliance	NO	NO	NO	NO
Mixed contacts	YES	YES	YES	YES
Installation option 1	GUIDE PIN	GUIDE PIN	GUIDE PIN	GUIDE PIN
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
Number of rows loaded	4	4	4	4
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Plating thickness	30u inch	30u inch	30u inch	30u inch
Rated current (signal)	1 A	1 A	1 A	1 A
Terminal length	0.135 inch	0.135 inch	0.135 inch	0.135 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	32	32	32	32
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	.1668 N	.1668 N	.1668 N	.1668 N
