Part Number

Search

51866-017

Description
Board Connector, 36 Contact(s), 4 Row(s), Female, Right Angle, Press Fit Terminal, Locking, Receptacle
CategoryThe connector    The connector
File Size374KB,4 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

51866-017 Overview

Board Connector, 36 Contact(s), 4 Row(s), Female, Right Angle, Press Fit Terminal, Locking, Receptacle

51866-017 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerAmphenol
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresTERMINAL PITCH FOR POWER CONTACTS: 5.08 MM
Board mount optionsHOLE .138-.163
body width0.47 inch
subject depth0.925 inch
body length2.975 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact arrangementS28P8
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTIN/LEAD OVER NICKEL
Contact point genderFEMALE
Contact materialNOT SPECIFIED
Contact resistance20 mΩ
Contact styleHYBRID
DIN complianceNO
Dielectric withstand voltage2500VDC V
Durability200 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force.973 N
Insulation resistance500000000 Ω
insulator materialGLASS FILLED THERMOPLASTIC
MIL complianceNO
Manufacturer's serial number51866
Mixed contactsYES
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
Number of rows loaded4
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
Plating thickness30u inch
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.143 inch
Terminal pitch2.54 mm
Termination typePRESS FIT
Total number of contacts36
UL Flammability Code94V-0
Evacuation force-minimum value.1668 N

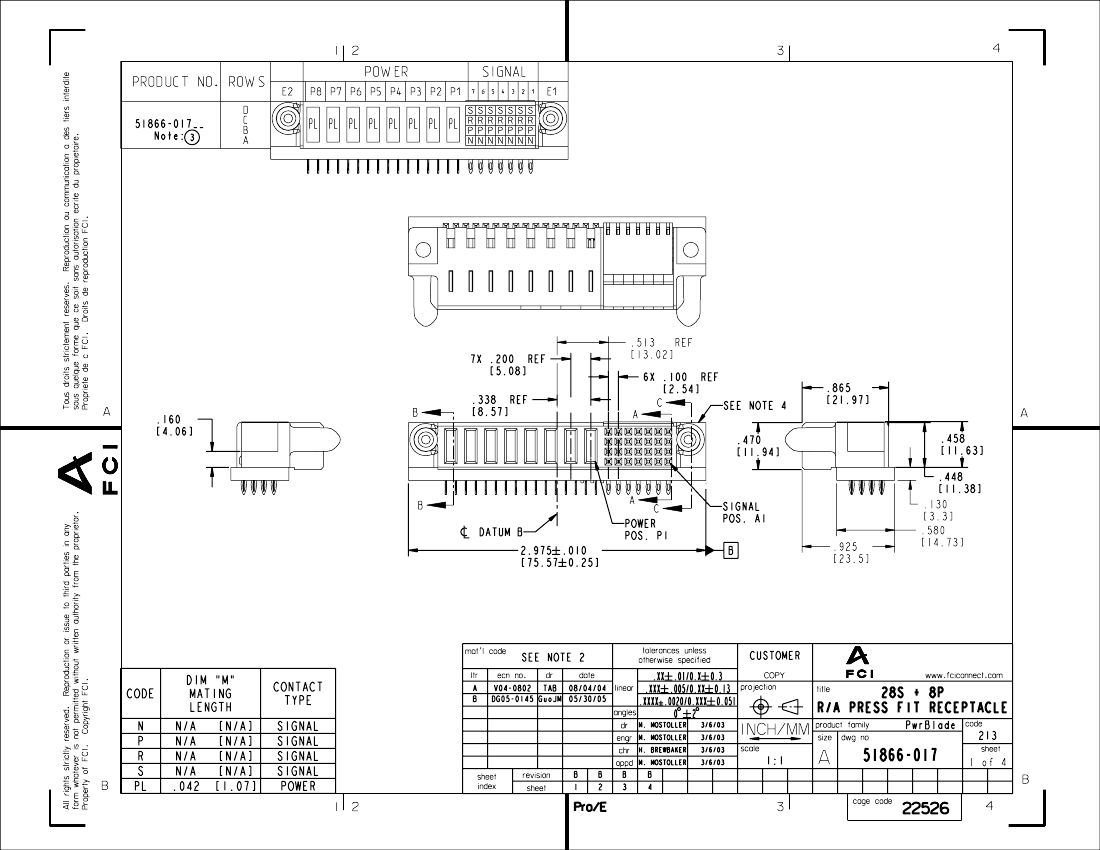

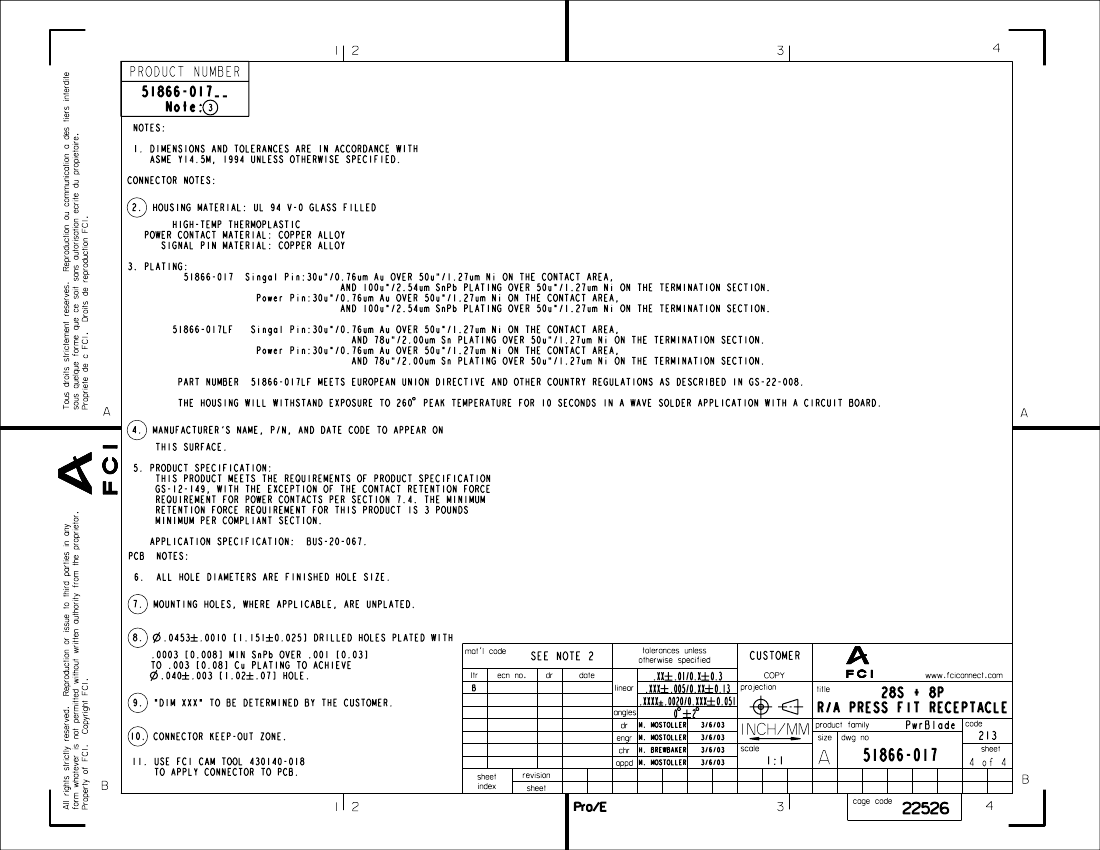

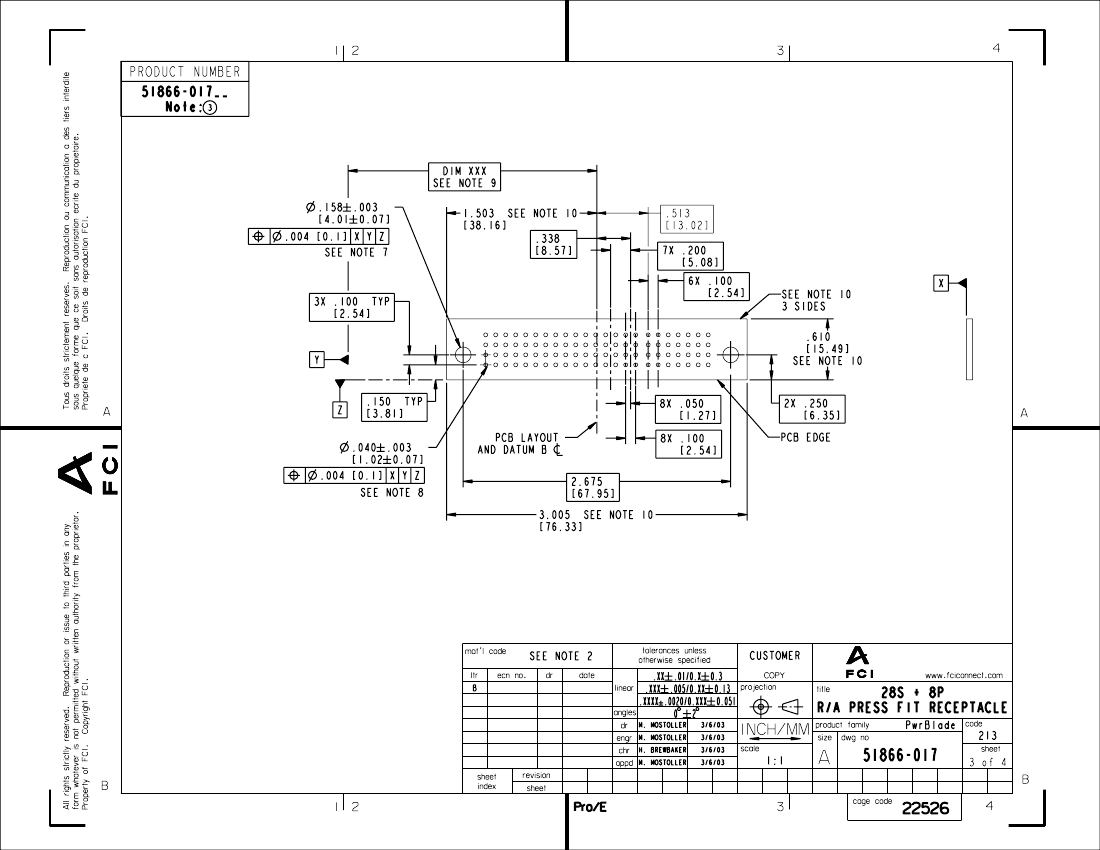

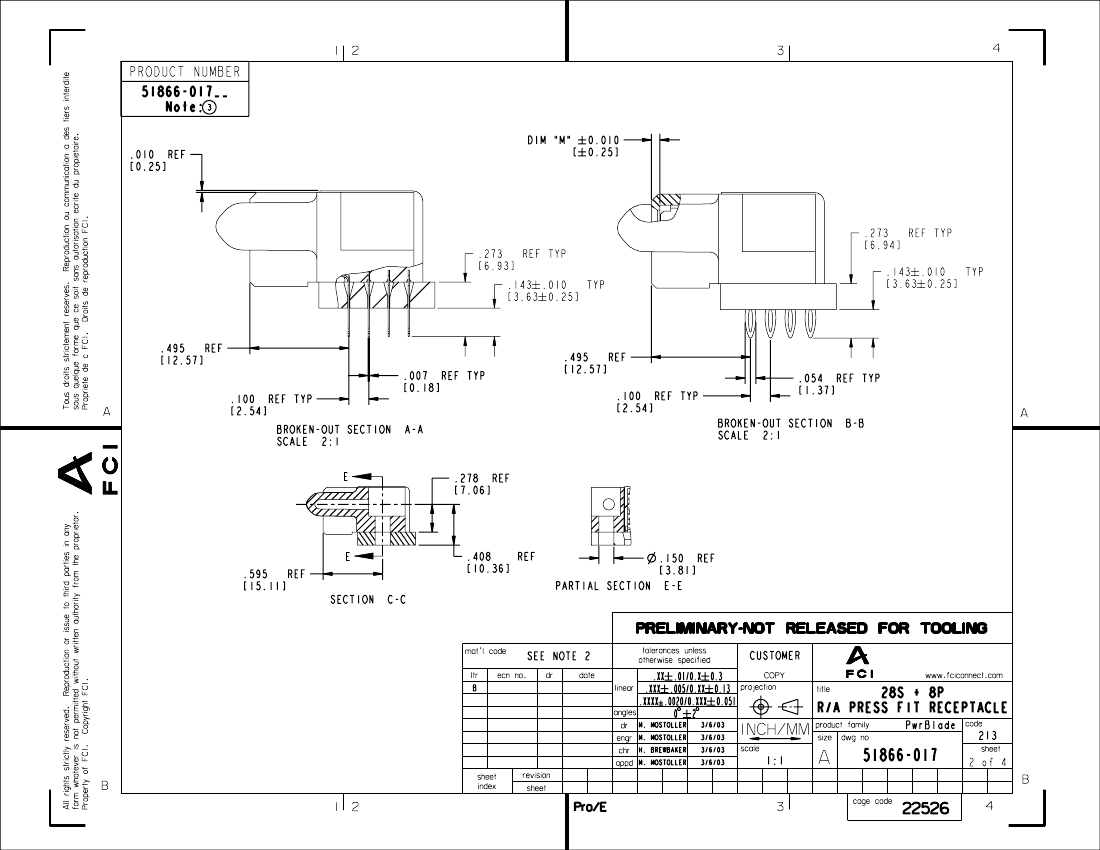

PDM: Rev:B
STATUS:
Released
Printed: Dec 20, 2010
.

51866-017 Related Products

51866-017 51866-017LF
Description Board Connector, 36 Contact(s), 4 Row(s), Female, Right Angle, Press Fit Terminal, Locking, Receptacle Board Connector, 36 Contact(s), 4 Row(s), Female, Right Angle, Press Fit Terminal, Locking, Receptacle, LEAD FREE
Is it Rohs certified? incompatible conform to
Maker Amphenol Amphenol
Reach Compliance Code compliant compliant
ECCN code EAR99 EAR99
Other features TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM
Board mount options HOLE .138-.163 HOLE .138-.163
body width 0.47 inch 0.47 inch
subject depth 0.925 inch 0.925 inch
body length 2.975 inch 2.975 inch
Body/casing type RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact arrangement S28P8 S28P8
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED
Contact completed and terminated TIN/LEAD OVER NICKEL TIN OVER NICKEL
Contact point gender FEMALE FEMALE
Contact material NOT SPECIFIED NOT SPECIFIED
Contact resistance 20 mΩ 20 mΩ
Contact style HYBRID HYBRID
DIN compliance NO NO
Dielectric withstand voltage 2500VDC V 2500VDC V
Durability 200 Cycles 200 Cycles
Filter function NO NO
IEC compliance NO NO
maximum insertion force .973 N .973 N
Insulation resistance 500000000 Ω 500000000 Ω
insulator material GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC
MIL compliance NO NO
Manufacturer's serial number 51866 51866
Mixed contacts YES YES
Installation option 1 LOCKING LOCKING
Installation method RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD
Number of connectors ONE ONE
Number of rows loaded 4 4
Maximum operating temperature 105 °C 105 °C
Minimum operating temperature -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE
Plating thickness 30u inch 30u inch
Guideline UL UL
reliability COMMERCIAL COMMERCIAL
Terminal length 0.143 inch 0.143 inch
Terminal pitch 2.54 mm 2.54 mm
Termination type PRESS FIT PRESS FIT
Total number of contacts 36 36
UL Flammability Code 94V-0 94V-0
Evacuation force-minimum value .1668 N .1668 N
