51824-005 datasheet, PDF - EEWORLD Datasheet

51824-005: DescriptionBoard Connector, 17 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size233KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

51824-005 Overview

Board Connector, 17 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	HOLE .138-.163
body width	0.574 inch
subject depth	0.93 inch
body length	1.95 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	51824
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.095 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	17
UL Flammability Code	94V-0

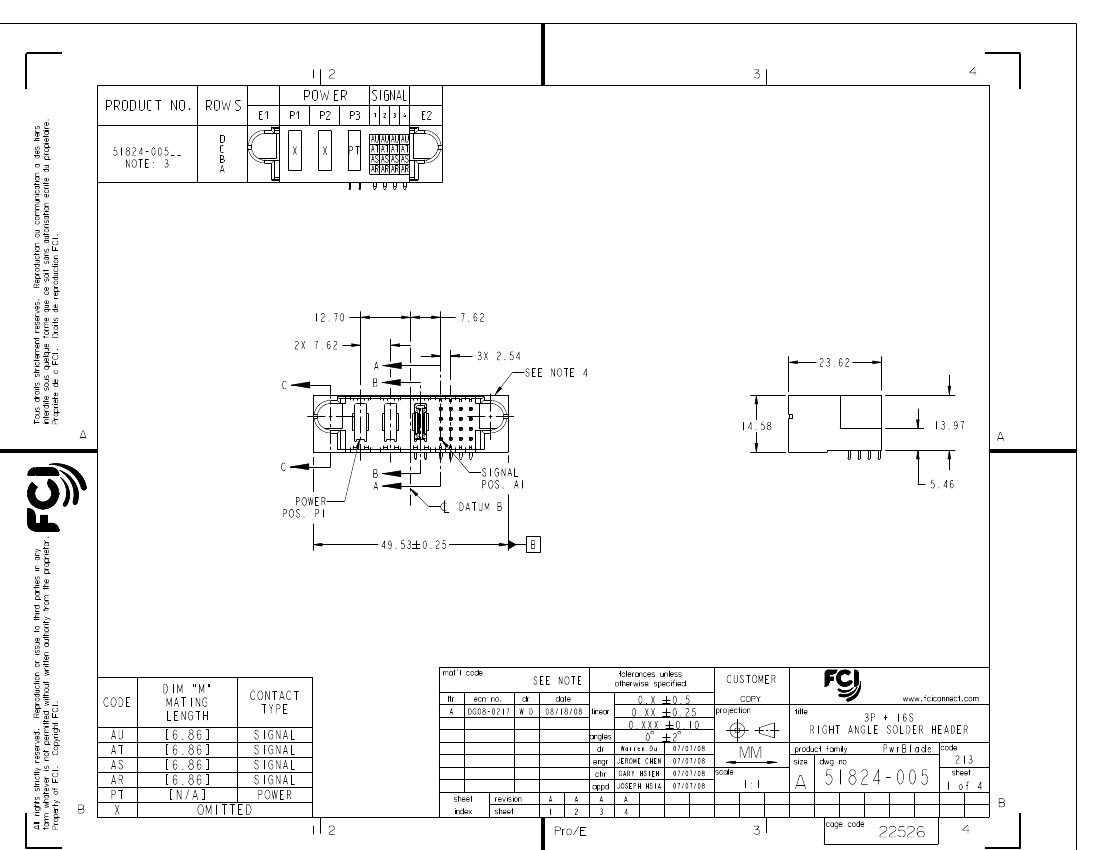

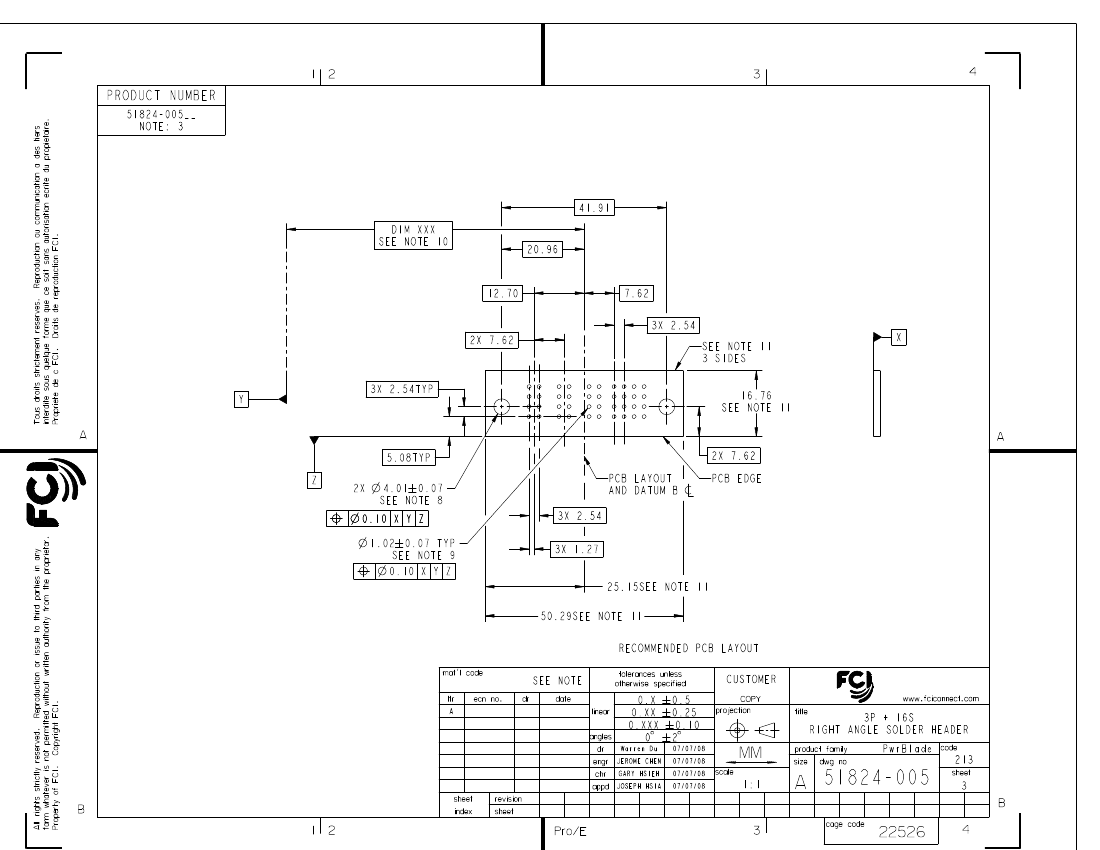

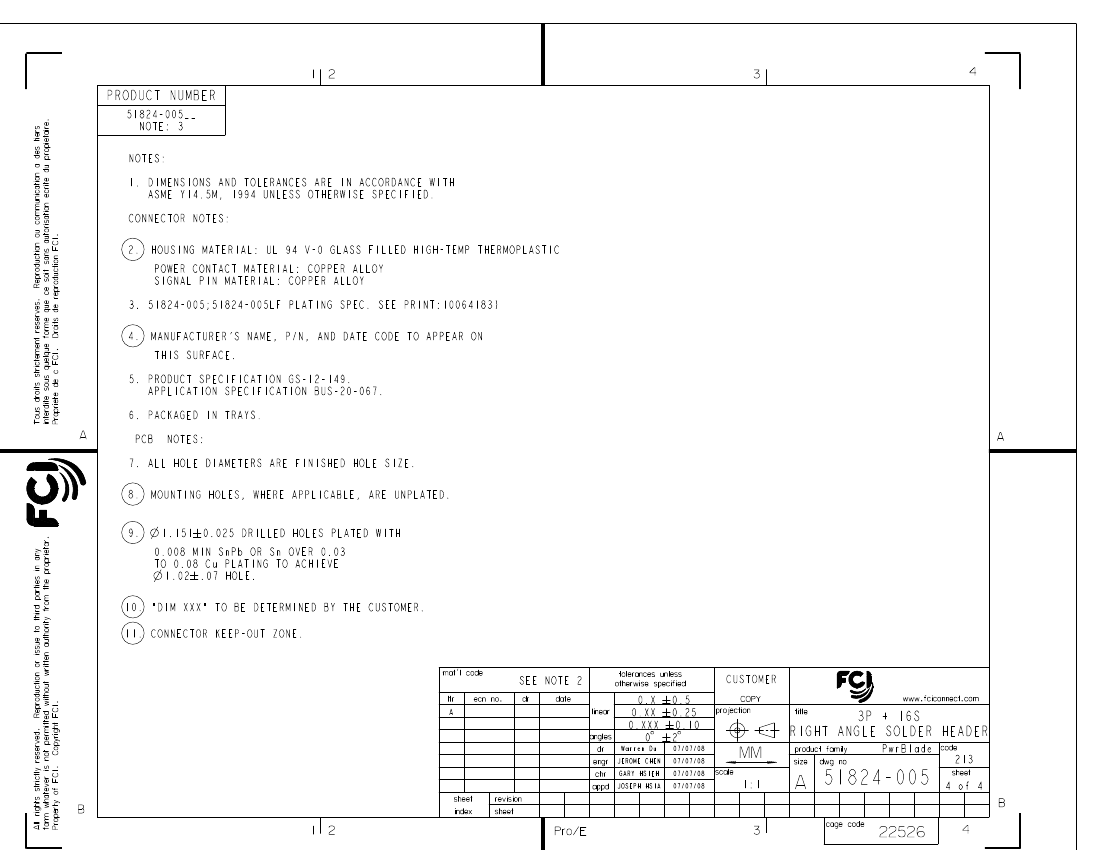

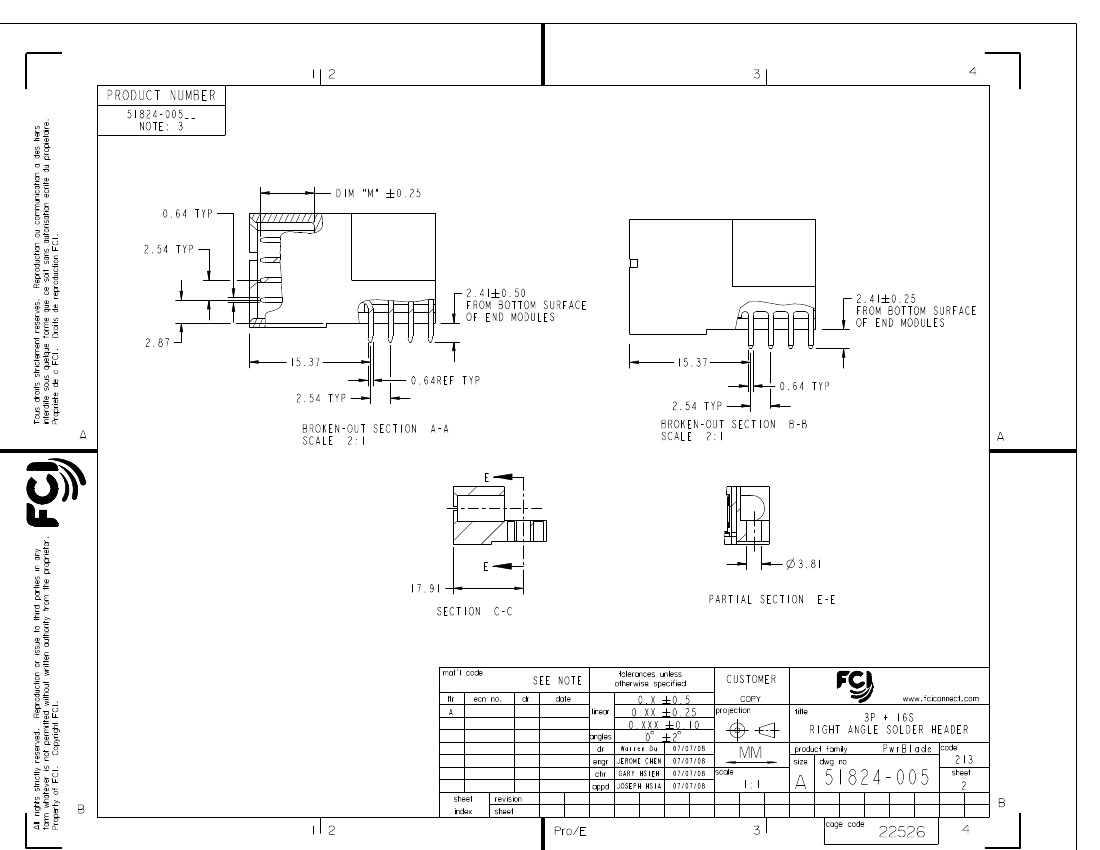

PDM: Rev:A

STATUS:

Released

Printed: Dec 20, 2010

.

	51824-005	51824-005LF
Description	Board Connector, 17 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle	R/A PF REC POWERBLADE
Maker	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Board mount options	HOLE .138-.163	HOLE .138-.163
body width	0.574 inch	0.574 inch
subject depth	0.93 inch	0.93 inch
body length	1.95 inch	1.95 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	TIN/LEAD OVER NICKEL	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE	MALE
Contact material	COPPER ALLOY	NOT SPECIFIED
Contact resistance	20 mΩ	20 mΩ
Contact style	HYBRID	HYBRID
DIN compliance	NO	NO
Durability	200 Cycles	200 Cycles
Filter function	NO	NO
IEC compliance	NO	NO
Insulation resistance	500000000 Ω	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
MIL compliance	NO	NO
Mixed contacts	YES	YES
Installation option 1	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
Number of rows loaded	4	4
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.095 inch	0.095 inch
Terminal pitch	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER
Total number of contacts	17	17
UL Flammability Code	94V-0	94V-0
