52271-2390: DescriptionCard Edge Connector, 23 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Fcc Retnn Dvc; CategoryThe connector The connector; File Size70KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

52271-2390 Overview

Card Edge Connector, 23 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Fcc Retnn Dvc

52271-2390 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ZIF, BOTTOM CONTACT STYLE
body width	0.118 inch
subject depth	0.213 inch
body length	1.154 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	100000000 Ω
insulator material	GLASS FILLED NYLON
MIL compliance	NO
Plug contact pitch	0.039 inch
Mixed contacts	NO
Installation option 1	FCC RETNN DVC
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	23
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N

Preview

Download Datasheet

View All

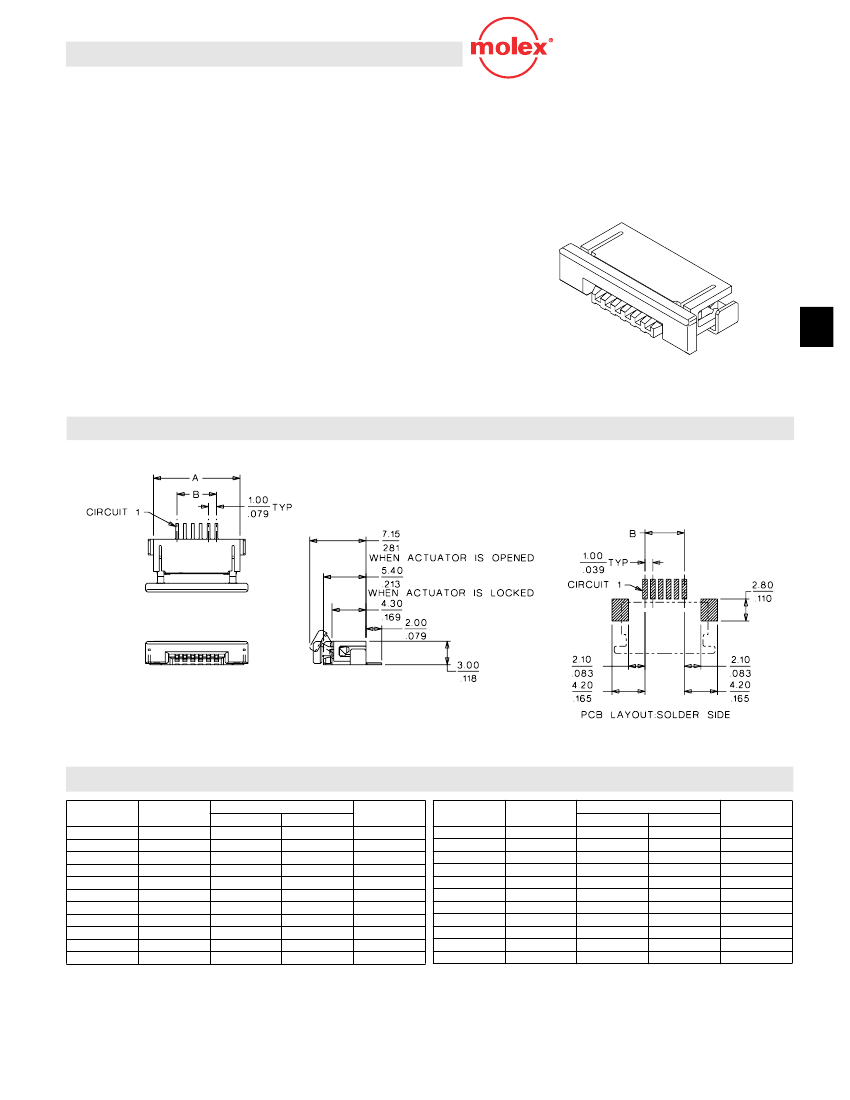

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

s

Sizes 7 to 30 circuits

s

For 0.30mm thick FFC/FPC

s

Metal solder tabs provide PCB hold-down and

strain relief for SMT tails

Reference Information

Packaging: Embossed tape

UL File No.: E29179

CSA File No.: LR19980

Designed In: Millimeters

Electrical

Voltage: 50V

Current: 0.5A

Contact Resistance: 20m

Ω

max.

Dielectric Withstanding Voltage: 500V AC/1 min.

Insulation Resistance: 100 M

Ω

min.

Physical

Housing: 4/6 nylon, UL 94V-0

Actuator: PPS, UL 94V-0

Contact: Phosphor Bronze

Plating: Tin

Solder Tabs: Copper Alloy, Tin plating

Temperature: -20 to +85˚C

1.00mm (.039") Pitch

FFC/FPC Connector

52271

Right Angle, SMT, ZIF

Bottom Contact Style

ORDERING INFORMATION AND DIMENSIONS

Circuits

7

8

9

10

11

12

13

14

15

16

17

Order No.

52271-0790

52271-0890

52271-0990

52271-1090

52271-1190

52271-1290

52271-1390

52271-1490

52271-1590

52271-1690

52271-1790

Dimension

A

B

12.00 (.472)

6.00 (.236)

13.00 (.511)

7.00 (.275)

14.00 (.551)

8.00 (.314)

15.00 (.590)

9.00 (.354)

16.00 (.629)

10.00 (.393)

17.00 (.669)

11.00 (.433)

18.00 (.708)

12.00 (.472)

19.00 (.748)

13.00 (.511)

20.00 (.787)

14.00 (.551)

21.00 (.826)

15.00 (.590)

22.00 (.866)

16.00 (.629)

Carrier

Tape Width

24.00

32.00

44.00

(.945)

(1.260)

(1.732)

Circuits

18

19

20

22

23

24

25

26

27

28

30

Order No.

52271-1890

52271-1990

52271-2090

52271-2290

52271-2390

52271-2490

52271-2590

52271-2690

52271-2790

52271-2890

52271-3090

Dimension

A

B

23.00 (.905)

17.00 (.669)

24.00 (.944)

18.00 (.708)

25.00 (.984)

19.00 (.748)

27.00 (1.062)

21.00 (.827)

28.00 (1.102)

22.00 (.866)

29.00 (1.141)

23.00 (.906)

30.00 (1.181)

24.00 (.945)

31.00 (1.220)

25.00 (.984)

32.00 (1.259)

26.00 (1.020)

33.00 (1.299)

27.00 (1.060)

35.00 (1.377)

29.00 (1.140)

Carrier

Tape Width

44.00

56.00

(1.732)

(2.205)

Note: For cable speciﬁcation dimensions, see cable pages at end of section

990 F-19

FFC/FPC Connectors

F

52271-2390 Related Products

	52271-2390	52271-1990	52271-2590	52271-2790	52271-2690	52271-1390	52271-1790
Description	Card Edge Connector, 23 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Fcc Retnn Dvc	Card Edge Connector, 19 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Fcc Retnn Dvc	Card Edge Connector, 25 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Fcc Retnn Dvc	Card Edge Connector, 27 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Fcc Retnn Dvc,	Card Edge Connector, 26 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Fcc Retnn Dvc,	Card Edge Connector, 13 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Fcc Retnn Dvc	Card Edge Connector, 17 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Fcc Retnn Dvc,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	compliant	compliant	unknown	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	ZIF, BOTTOM CONTACT STYLE	ZIF, BOTTOM CONTACT STYLE	ZIF, BOTTOM CONTACT STYLE	ZIF, BOTTOM CONTACT STYLE	ZIF, BOTTOM CONTACT STYLE	ZIF, BOTTOM CONTACT STYLE	ZIF, BOTTOM CONTACT STYLE
body width	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch
subject depth	0.213 inch	0.213 inch	0.213 inch	0.213 inch	0.213 inch	0.213 inch	0.213 inch
body length	1.154 inch	0.996 inch	1.232 inch	1.311 inch	1.272 inch	0.76 inch	0.917 inch
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	PHOSPHOR BRONZE	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
maximum insertion force	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
insulator material	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation option 1	FCC RETNN DVC	FCC RETNN DVC	FCC RETNN DVC	FCC RETNN DVC	FCC RETNN DVC	FCC RETNN DVC	FCC RETNN DVC
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	1	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	23	19	25	27	26	13	17
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N
Maker	Molex	Molex	Molex	Molex	Molex	-	Molex
Base Number Matches	-	1	1	1	1	1	-
