51923-008 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 51923-008

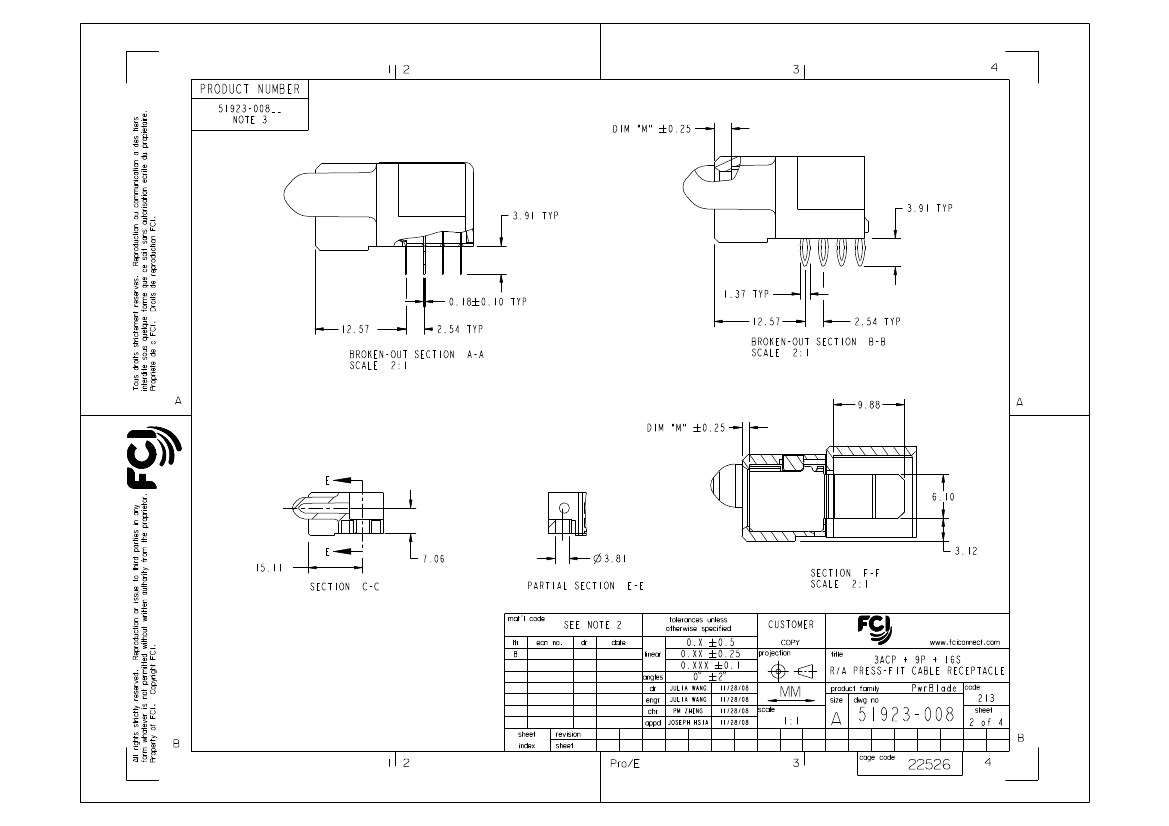

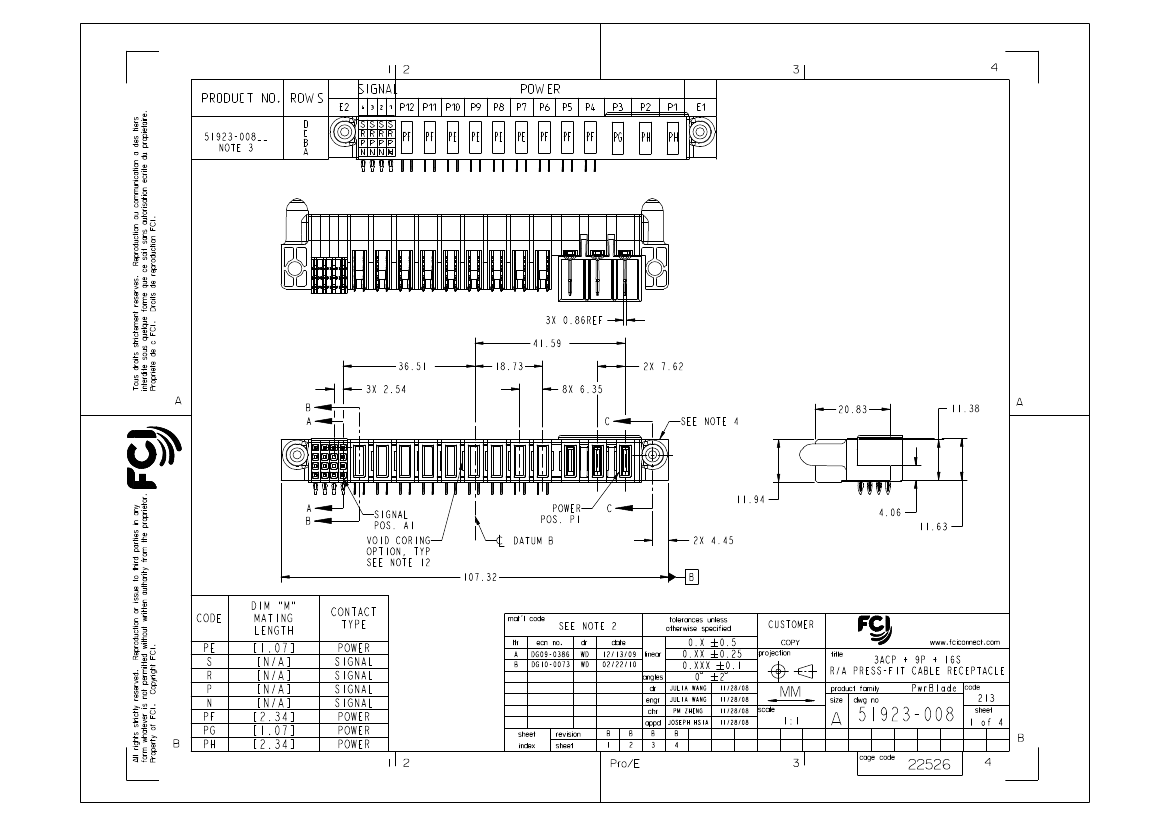

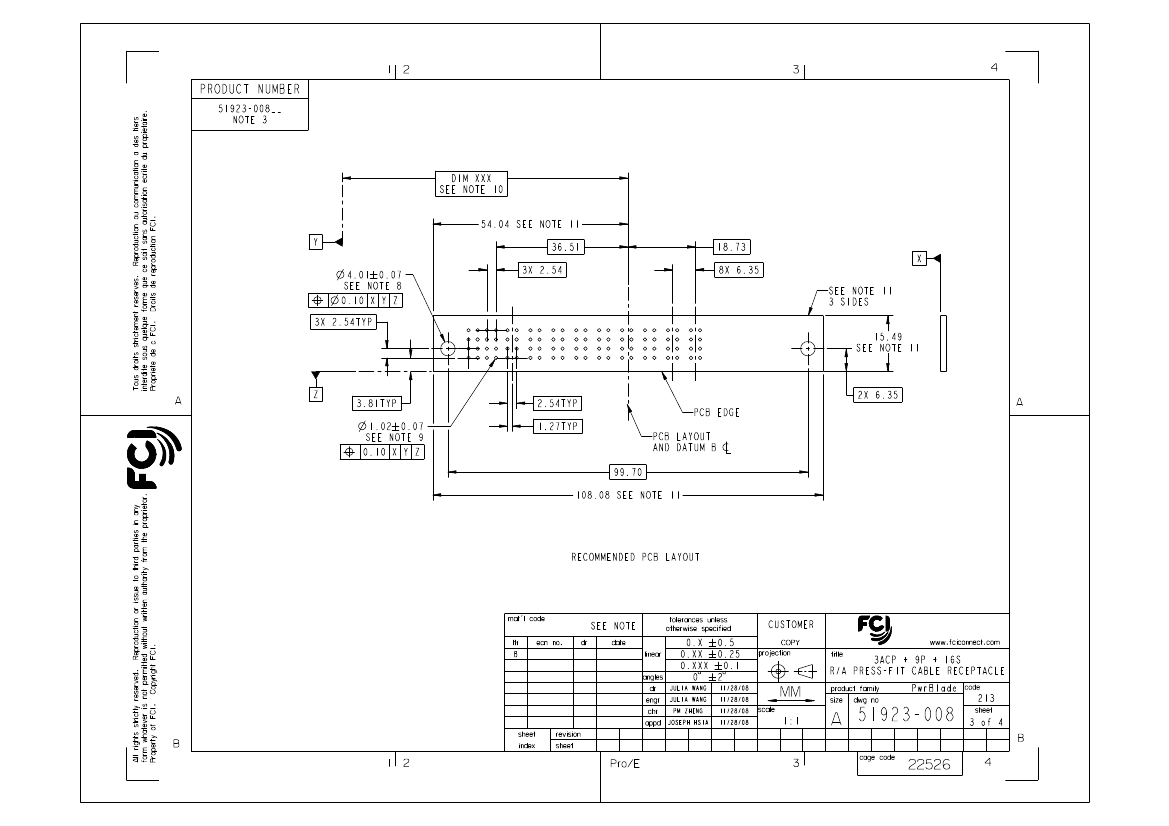

Preview

51923-008: DescriptionBoard Connector, 28 Contact(s), 4 Row(s), Female, Right Angle, Press Fit Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size282KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

51923-008 Overview

Board Connector, 28 Contact(s), 4 Row(s), Female, Right Angle, Press Fit Terminal, Locking, Receptacle

51923-008 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
Board mount options	HOLE .138-.163
body width	0.448 inch
subject depth	0.82 inch
body length	4.225 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S16P12
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	51923
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.154 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	28
UL Flammability Code	94V-0
Evacuation force-minimum value	.1668 N

Preview

Download Datasheet

View All

PDM: Rev:B

STATUS:

Released

Printed: Dec 20, 2010

.
