51925-004 datasheet, PDF - EEWORLD Datasheet

51925-004: DescriptionBoard Connector, 8 Contact(s), 1 Row(s), Female, Straight, Locking, Receptacle; CategoryThe connector The connector; File Size199KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

51925-004 Overview

Board Connector, 8 Contact(s), 1 Row(s), Female, Straight, Locking, Receptacle

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.47 inch
subject depth	0.5 inch
body length	3.05 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S0P8
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	51925
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of connectors	ONE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.388 inch
Terminal pitch	7.62 mm
Total number of contacts	8
UL Flammability Code	94V-0
Evacuation force-minimum value	.1668 N

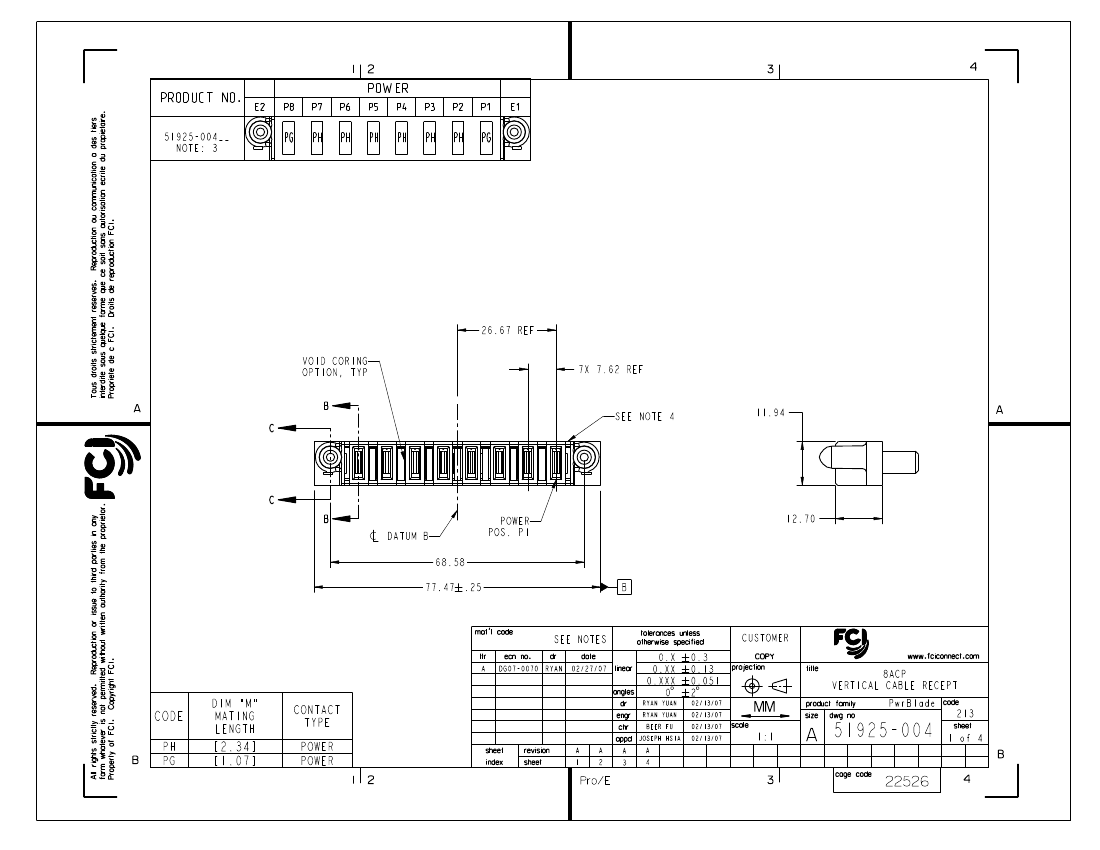

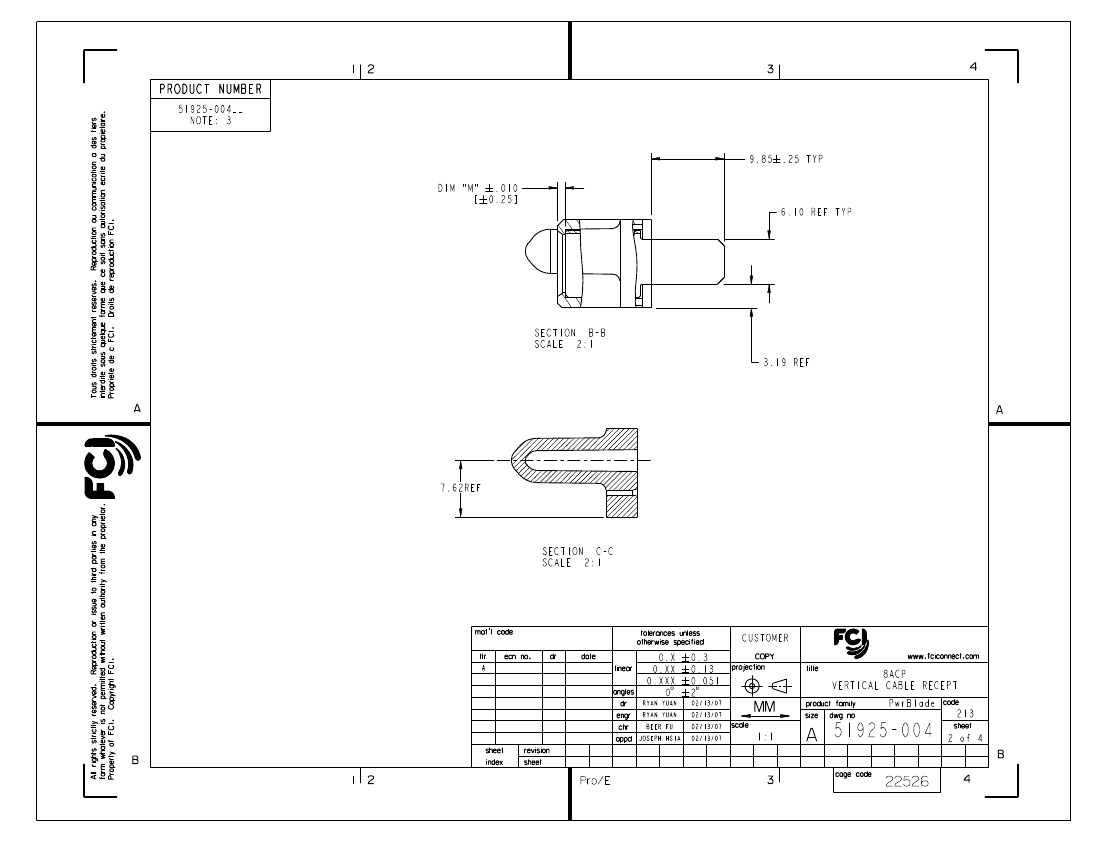

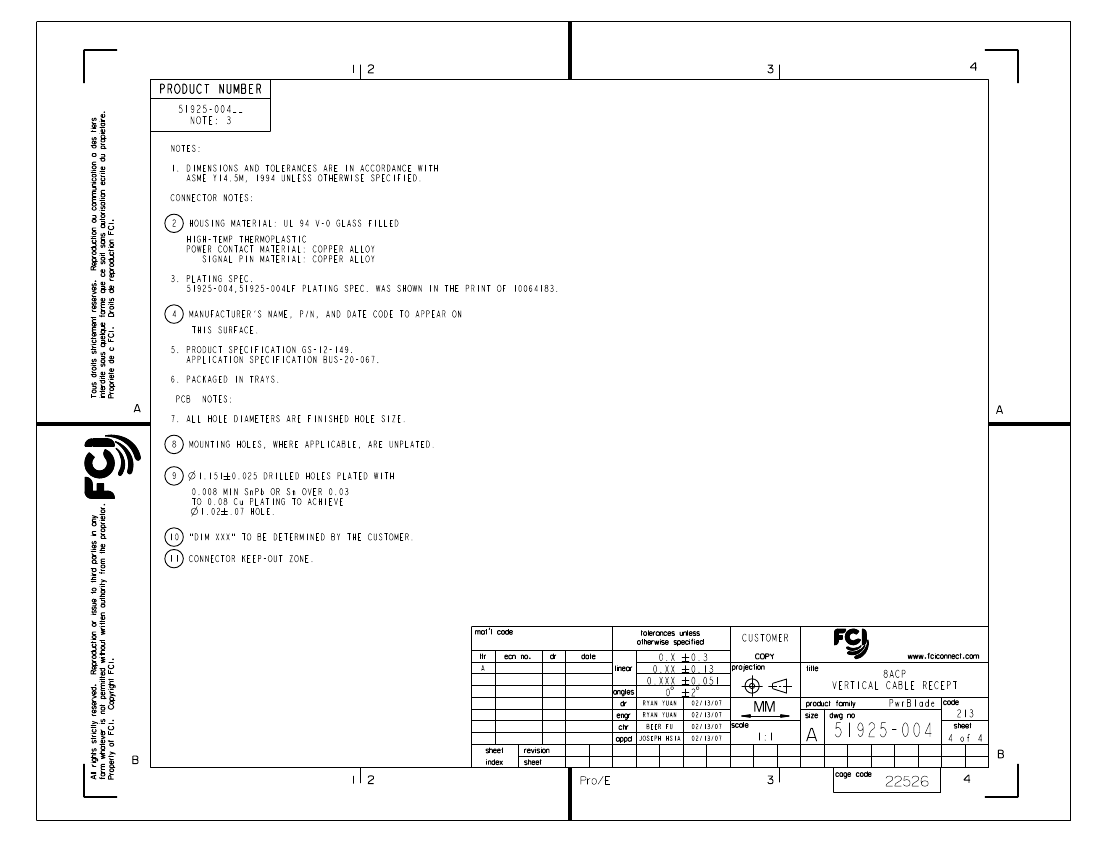

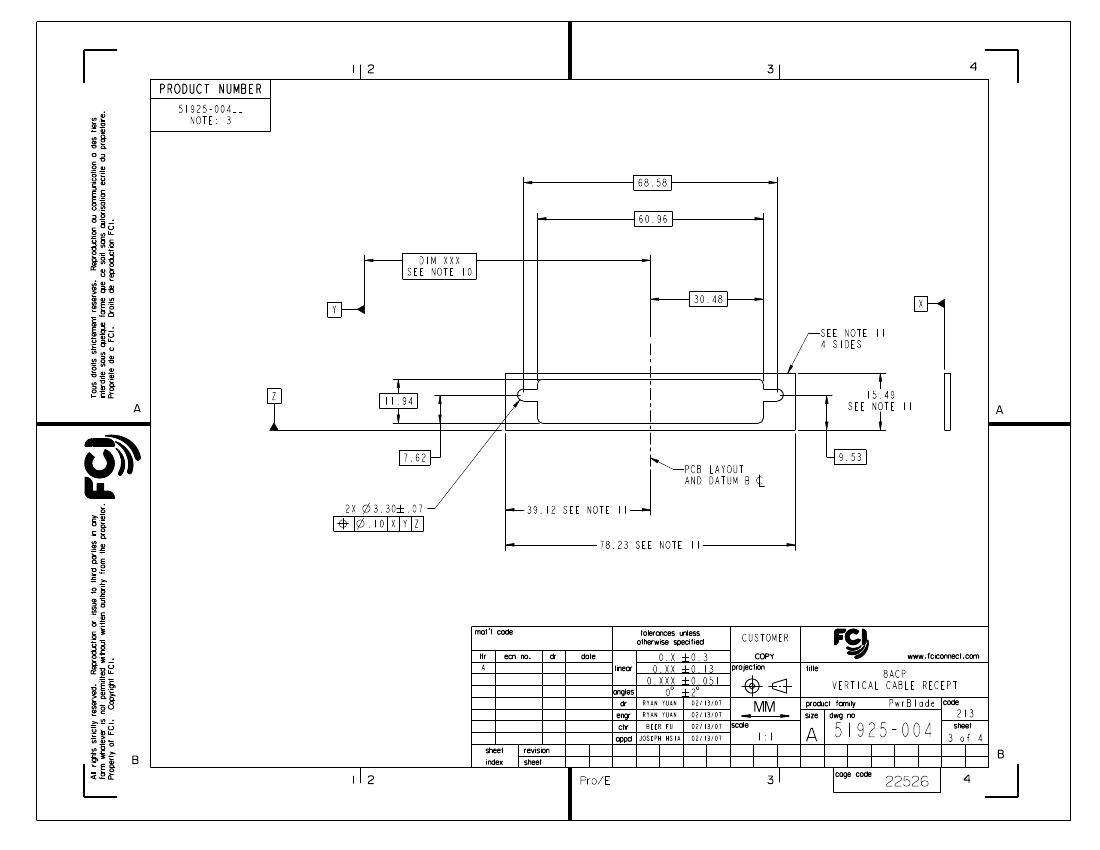

PDM: Rev:A

STATUS:

Released

Printed: Dec 20, 2010

	51925-004	51925-004LF
Description	Board Connector, 8 Contact(s), 1 Row(s), Female, Straight, Locking, Receptacle	PwrBlade®, Power Supply Connectors, 8ACP Vertical Cable Receptacle.
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
body width	0.47 inch	0.47 inch
subject depth	0.5 inch	0.5 inch
body length	3.05 inch	3.05 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S0P8	S0P8
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	TIN/LEAD OVER NICKEL	TIN OVER NICKEL
Contact point gender	FEMALE	FEMALE
Contact material	COPPER ALLOY	NOT SPECIFIED
Contact resistance	20 mΩ	20 mΩ
Contact style	HYBRID	HYBRID
DIN compliance	NO	NO
Dielectric withstand voltage	2500VDC V	2500VDC V
Durability	200 Cycles	200 Cycles
Filter function	NO	NO
IEC compliance	NO	NO
maximum insertion force	.973 N	.973 N
Insulation resistance	500000000 Ω	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED POLYETHYLENE
MIL compliance	NO	NO
Mixed contacts	NO	NO
Installation option 1	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE
Number of connectors	ONE	ONE
Number of rows loaded	1	1
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
Guideline	UL	UL
Terminal length	0.388 inch	0.388 inch
Total number of contacts	8	8
UL Flammability Code	94V-0	94V-0
Evacuation force-minimum value	.1668 N	.1668 N
