57130-142 datasheet, PDF - EEWORLD Datasheet

57130-142: DescriptionBoard Connector, 29 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size239KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

57130-142 Overview

Board Connector, 29 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	57130
Mixed contacts	YES
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	29
UL Flammability Code	94V-0

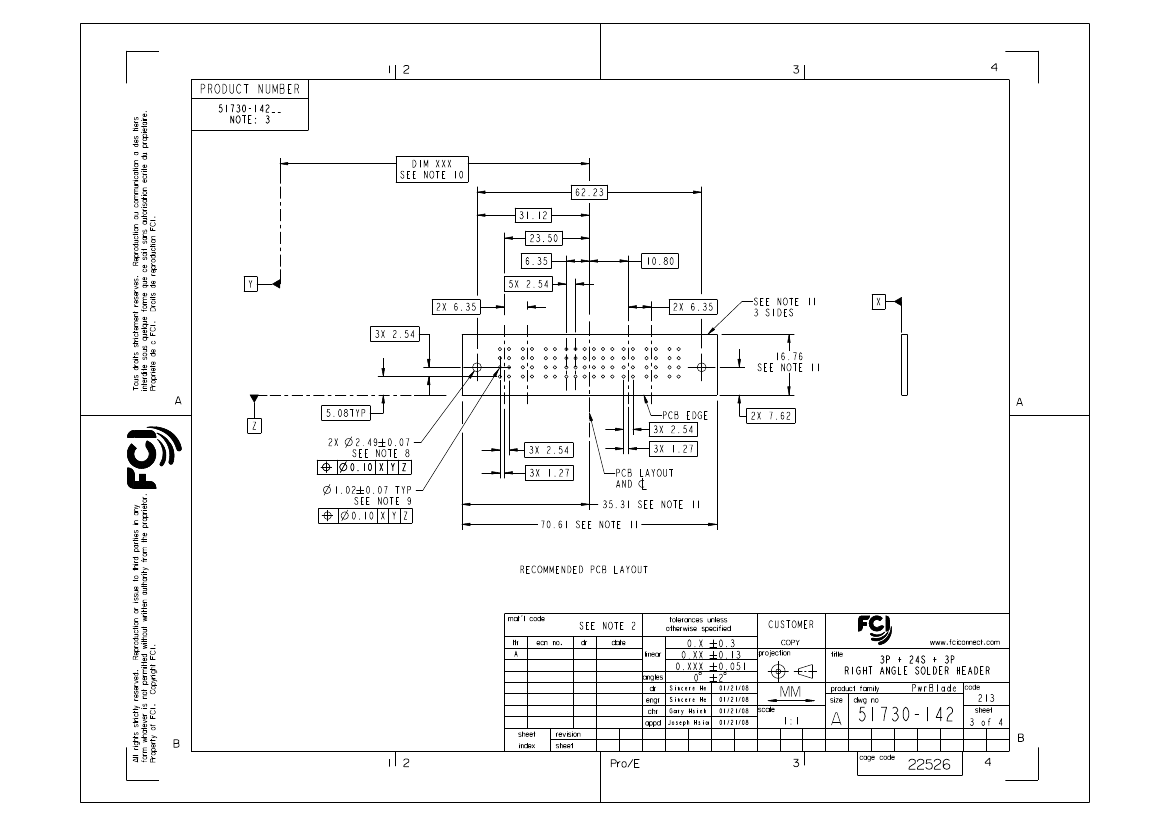

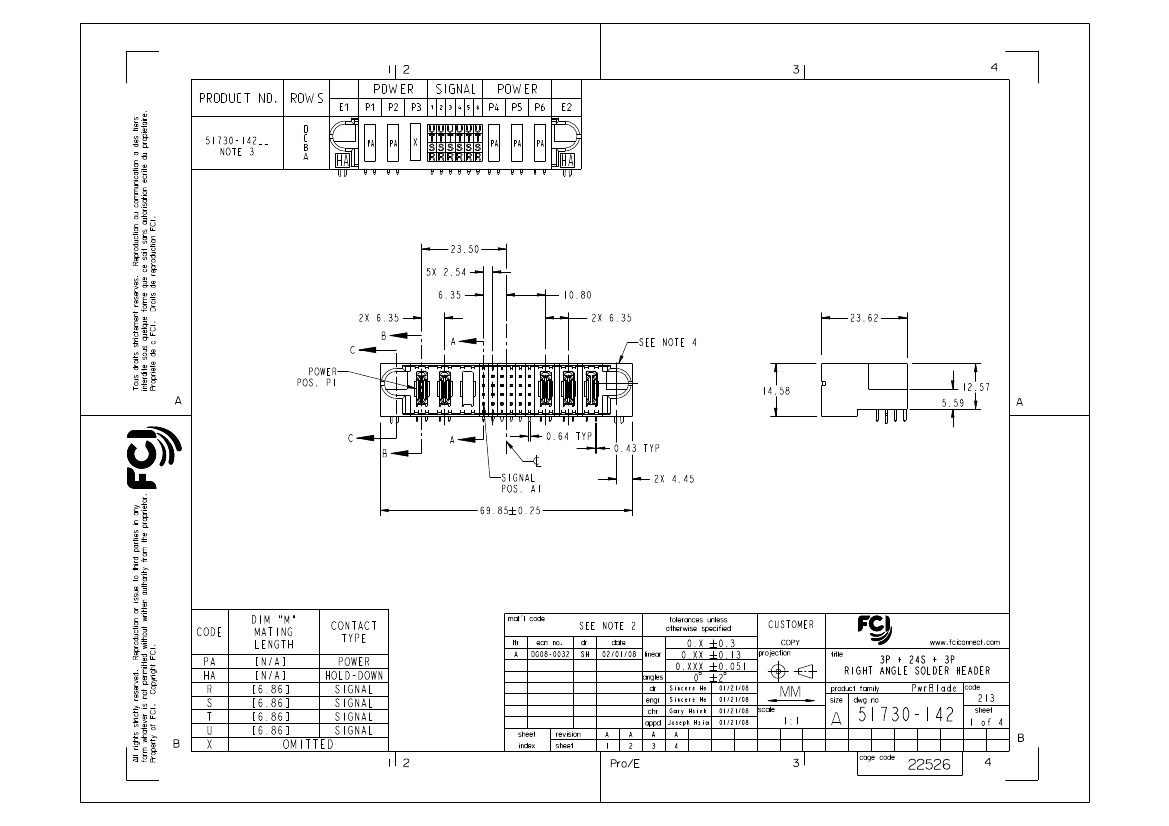

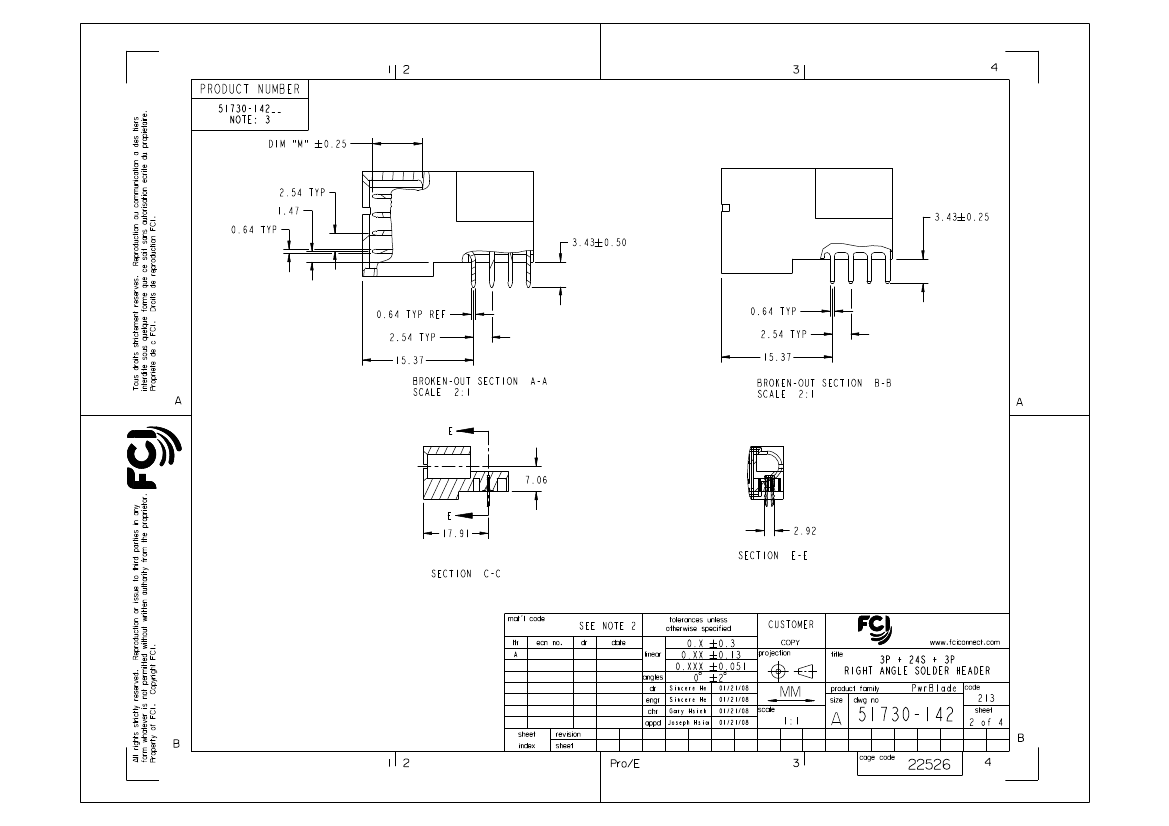

PDM: Rev:A

STATUS:

Released

Printed: Dec 20, 2010

.

	57130-142	51730-142LF	57130-142LF
Description	Board Connector, 29 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal	PWRBLADE R/A LF HDR	Board Connector, 29 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE
Maker	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE
Manufacturer's serial number	57130	51730	57130
Mixed contacts	YES	YES	YES
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	29	30	29
ECCN code	EAR99	EAR99	-
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM	-	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
Contact to complete cooperation	NOT SPECIFIED	-	NOT SPECIFIED
DIN compliance	NO	-	NO
Filter function	NO	-	NO
IEC compliance	NO	-	NO
MIL compliance	NO	-	NO
Number of rows loaded	4	-	4
Options	GENERAL PURPOSE	-	GENERAL PURPOSE
Terminal pitch	2.54 mm	-	2.54 mm
UL Flammability Code	94V-0	-	94V-0
