50FY-BMT-TB(LF)(SN) datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 50FY-BMT-TB(LF)(SN)

Preview

50FY-BMT-TB(LF)(SN): DescriptionCard Edge Connector, 50 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size134KB，2 Pages; ManufacturerJST; Environmental Compliance

Download Datasheet Parametric View All

50FY-BMT-TB(LF)(SN) Overview

Card Edge Connector, 50 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, ROHS COMPLIANT

50FY-BMT-TB(LF)(SN) Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	JST
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	TOP ENTRY
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN OVER COPPER
Contact completed and terminated	TIN OVER COPPER
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	50
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

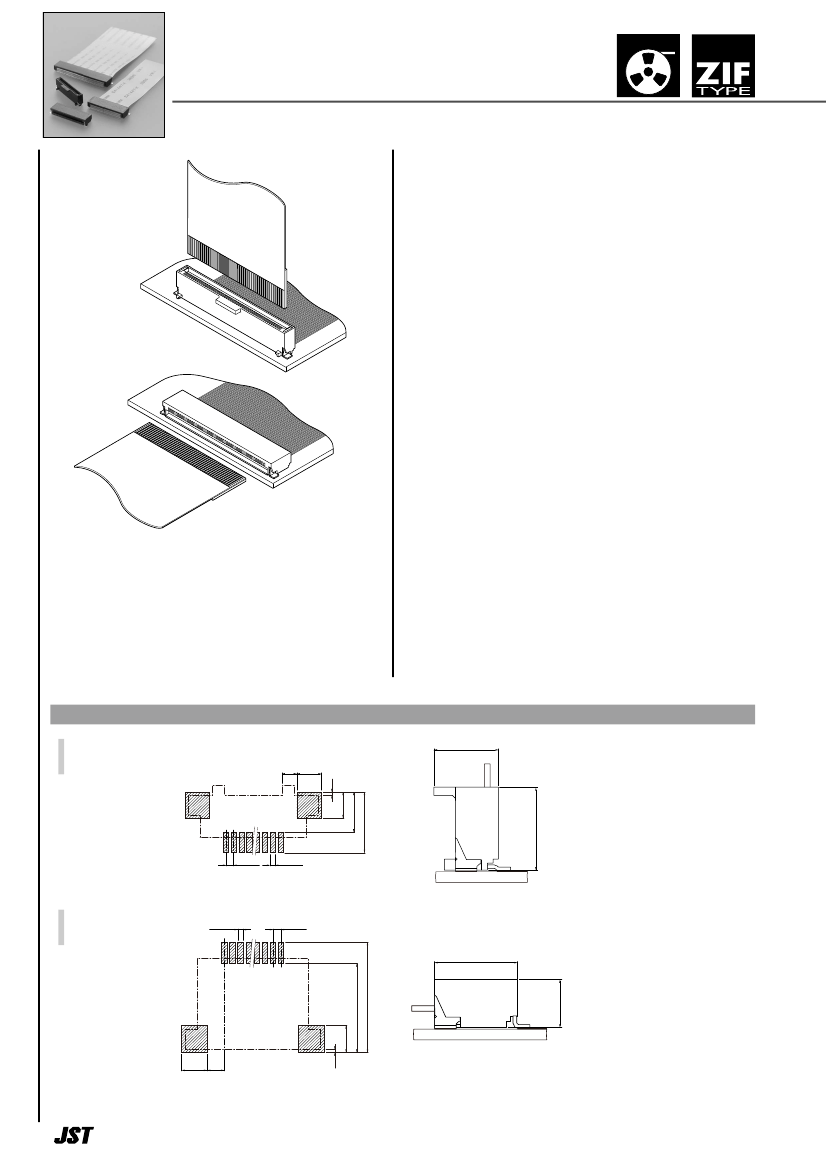

0.5mmピッチ

0.5mm pitch/Connectors for FFC

FY

CONNECTOR

Emboss Tape

NON-

Specifications –––––––––––––––––––

• Current rating: 0.3A AC, DC

• Voltage rating: 30V AC, DC

• Temperature range: -25˚C to +85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/50m

Ω

max.

After environmental testing/70m

Ω

max.

• Insulation resistance:

100M

Ω

min.

• Withstanding voltage: 200V AC/minute

• Applicable FFC: Conductor pitch/0.5mm

Conductor width/0.3mm

Mating part thickness/0.3±0.03mm

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

0.5mm pitch non-ZIF snap-in type FFC

connector.

• Heat resisting design suitable for surface

mounting

• One-sided contact construction

• Solder tabs

• Embossed tape for automatic mounting

Standards ––––––––––––––––––––––

1

Certified LR20812

4.05

0

Recognized E60389

PC board layout (viewed from component side) and Assembly layout

Top entry type

1.0

1.5

0.2

1.7

2.6

3.9

0.5

±0.03

0.3

±0.05

Side entry type

0.3

±0.05

0.5

±0.03

5.2

5.1

6.4

5.2

3.0

1.5

1.0

Note: 1. Tolerances are non-cumulative:

±

0.03mm for all centers.

2. The dimensions above should serve as a guideline. Contact JST for details.

1

0.2

1.7
