51FVXS-RSM1-GAN-TF: DescriptionCard Edge Connector, 51 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal; CategoryThe connector The connector; File Size82KB，2 Pages; ManufacturerJST

Download Datasheet Parametric View All

51FVXS-RSM1-GAN-TF Overview

Card Edge Connector, 51 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal

51FVXS-RSM1-GAN-TF Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	JST
Reach Compliance Code	unknown
Other features	LOW PROFILE, ZIF
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	0.2 mm
Termination type	SURFACE MOUNT
Total number of contacts	51
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

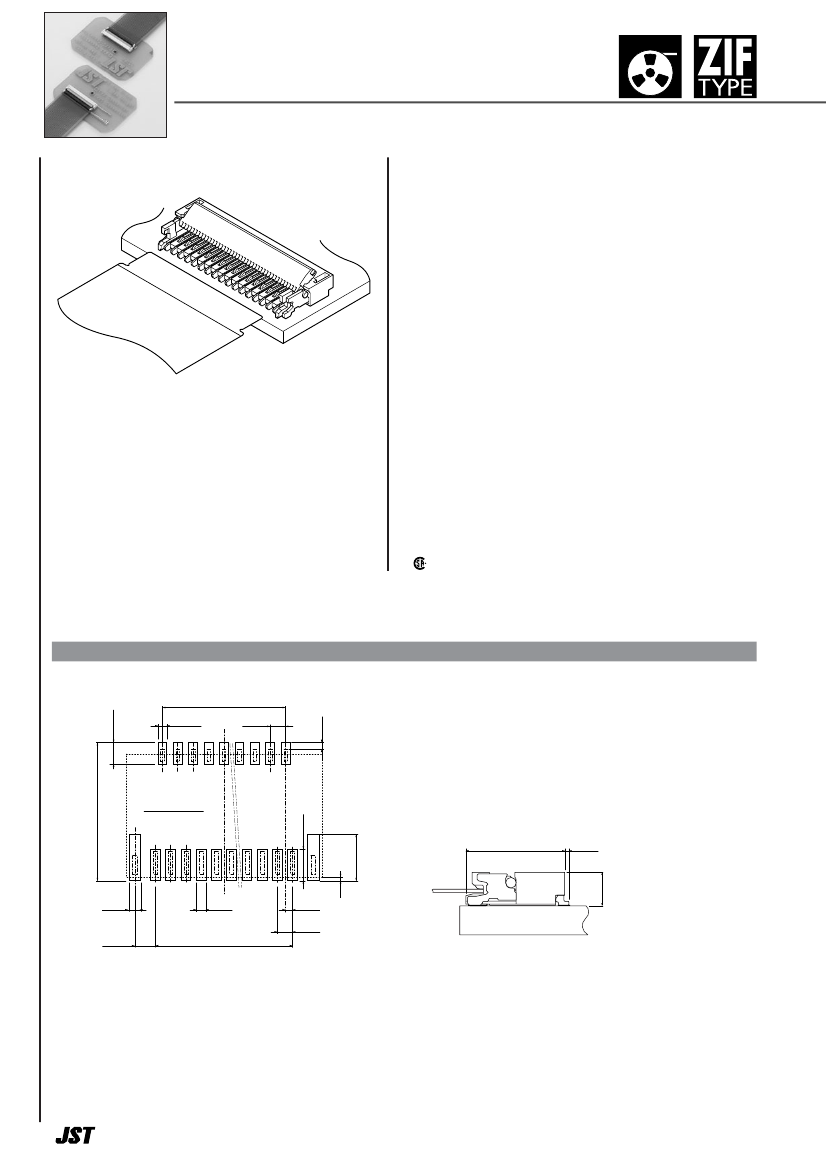

0.2mm pitch/Connectors for FPC

FVXS

CONNECTOR

Emboss Tape

Specifications

–––––––––––––––––––

• Current rating: 0.2A AC, DC

• Voltage rating: 50V AC, DC

• Temperature range: -25˚C to +85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/60mΩ max.

After environmental testing/60mΩ max.

(variation from initial value)

• Insulation resistance: 50MΩ min.

• Withstanding voltage: 200V AC/minute

• Applicable FPC: Conductor pitch/0.2mm

<0.4mm pitch staggered>

Conductor width/0.2mm

Mating part thickness/0.2±0.03mm

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

0.2mm pitch FVXS connector for FPC has

been developed for small portable

equipment for which low profile and

miniaturization are required.

Positioning of FPC is easily conducted by

inserting FPC into connector until its

shoulder touches to the transverse U-shape

groove.

This connector also has the structure that

tension due to handling of FPC is absorbed

by socket and reinforcing tab.

Standards

––––––––––––––––––––––

0

Recognized E 60389

Certified LR 20812

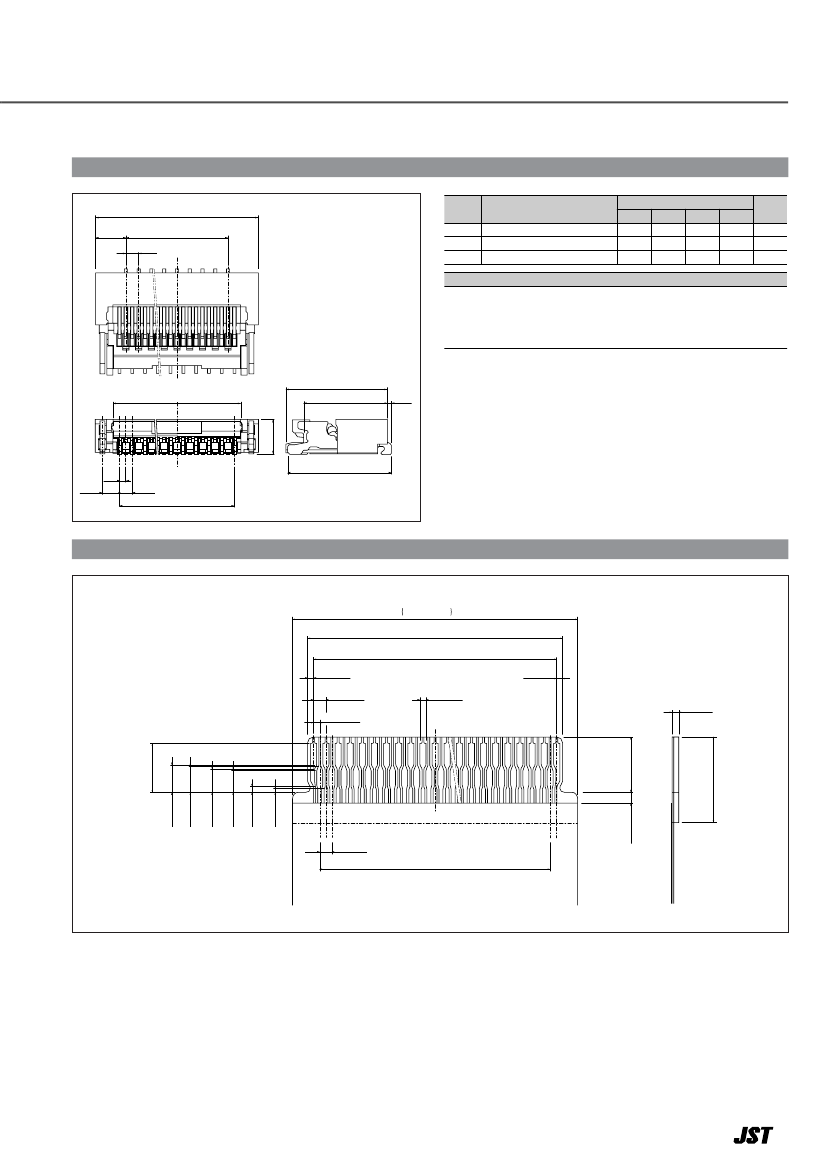

PC board layout and Assembly layout

0.2(N-3)

±

0.03

0.55

±

0.03

(0.17)

0.83

±

0.03

0.25

±

0.03

0.4

±

0.03

2 4 6

3.57

±

0.05

Line b

Line a

1 3 5

1.2

±

0.03

3.17

0.13

0.3

±

0.03

0.25

±

0.03

0.2

±

0.03

0.4

±

0.03

0.53

±

0.03

0.2(N-1)

±

0.03

Note: N --- Number of circuits

1

(0.1)

1
