710-861
direct Attachment Guardian double-t transition
For Series 72 Annular Convoluted tubing
Series 72
Guardian
C mAx
TyP

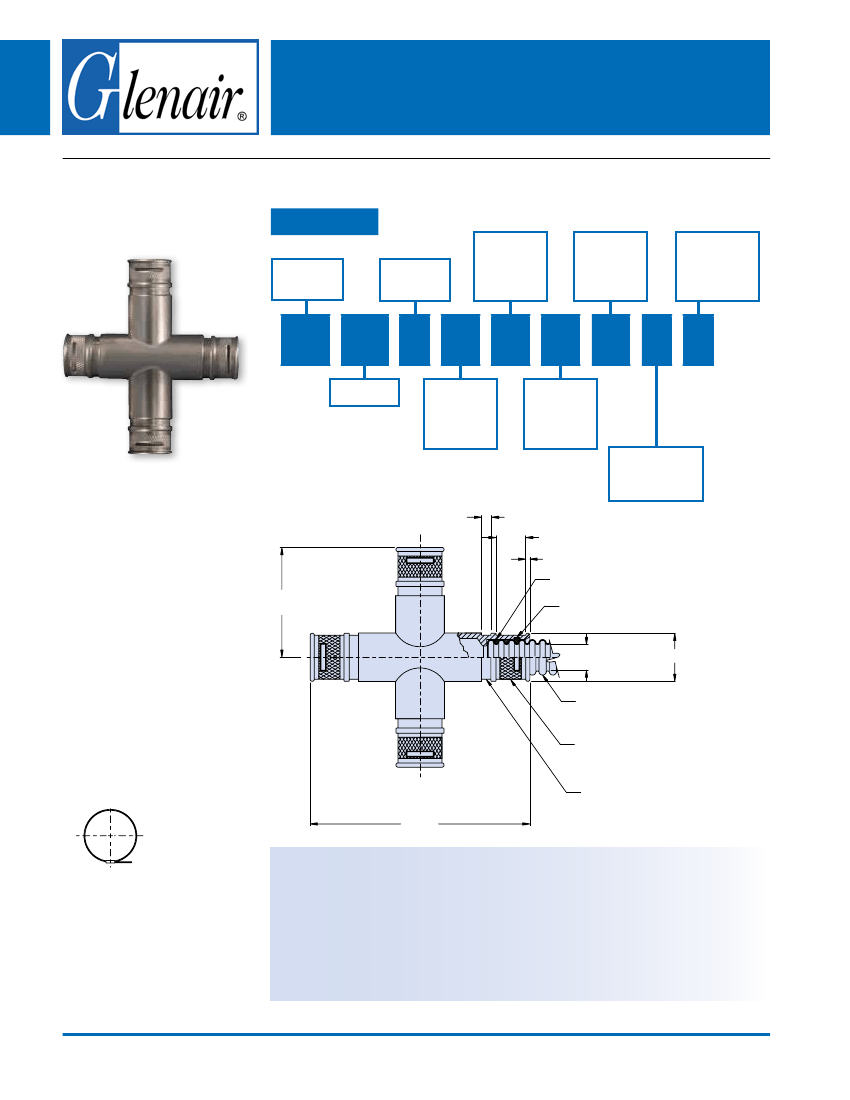

Direct-attachment Guardian double-T transition
How To Order
Product
Series
Finish
(Table II)
“B” End,
Conduit
Entry Size
(Table I)
“D” End,
Conduit
Entry Size
(Table I)
Shrink Boot
(Omit if not
required)
See Table I
710
-
861 M
Basic No.
09
“A” End,
Conduit
Entry Size
(Table I)
09
09
“C” End,
Conduit
Entry Size
(Table I)
09
B
T
B
= Band
K
= Precoiled
(Omit for none)
“B” End
.135 TyP
.380 TyP
.060 TyP
CONDUIT O-rING 2x TyP
CONDUIT rETAINING CLIP TyP
“C” End
CONDUIT
I.D. TyP
A mAx TyP
“A” End
TUBING SHOwN FOr rEFErENCE ONLy
ACCOmODATES 600-052-1 BAND
“B” End
BAND OPTION
(k OPTION SHOwN-
SEE NOTES)
B mAx
TyP
SHrINk SLEEvE Or BOOT GrOOvE
Material and Finish
Transition: See Table II
O-ring: Silicone/NA
Retaining clip: High-grade engineering thermoplastic/NA
Tools and Assembly notes
Conduit retaining clip and conduit O-rings to be supplied unassembled
Glenair assembly procedure AP74-010 is recommended for adapter to conduit termination
Glenair 600 Series backshell assembly tools are recommended for assembly and installation
©2011 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
32
For Series 72 Annular Convoluted tubing
table i
entry
Size
06
09
12
16
20
24
28
32
40
A
max
.53 (13.5)
.63 (16.0)
.73 (18.5)
.86 (21.8)
.98 (24.9)
1.15 (29.2)
1.27 (32.3)
1.40 (35.6)
1.62 (41.1)
Conduit i.D.
Min
.16
.24
.33
(4.1)
(6.1)
(8.4)
Max
.19
.28
.37
(4.8)
(7.1)
(9.4)
B
max
2.359 (59.9)
2.454 (62.3)
2.559 (65.0)
2.689 (68.3)
2.809 (71.3)
2.979 (75.7)
3.099 (78.7)
3.229 (82.0)
3.449 (87.6)
C
max
1.180 (30.0)
1.227 (31.2)
1.280 (32.5)
1.345 (34.2)
1.405 (35.7)
1.490 (37.8)
1.550 (39.4)
1.615 (41.0)
1.725 (43.8)
Shrink
Boot Ref
770-001S103
770-001S103
770-001S104
770-001S104
770-001S105
770-001S106
770-001S107
770-001S107
770-001S107
.45 (11.4)
.57 (14.5)
.69 (17.5)
.81
(2.6)
.50 (12.7)
.62 (15.7)
.75 (19.1)
.87 (22.1)
1.00 (25.4)
1.25 (31.8)
.93 (23.6)
1.18
(3.0)
table ii
Sym
M
MT
NF
ZN
ZNU
Z1
material
Finish Description
Electroless Nickel
Nickel-PTFE
Aluminum
Cad/Olive Drab over Electroless Nickel
Zinc Nickel/Olive Drab over Electroless Nickel
Zinc Nickel/Black over Electroless Nickel
Stainless Steel
Passivate
©2011 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
33
Series 72
Guardian
710-861
direct Attachment Guardian double-t transition
