Series 811 Mighty Mouse High Density (HD) Rubber Protective Cover Dimensions and Attachments 809-190 and 809-191
File Size289KB,2 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet View All

809-190 Overview

Series 811 Mighty Mouse High Density (HD) Rubber Protective Cover Dimensions and Attachments 809-190 and 809-191

Dimensions and Attachments
809-190 and 809-191

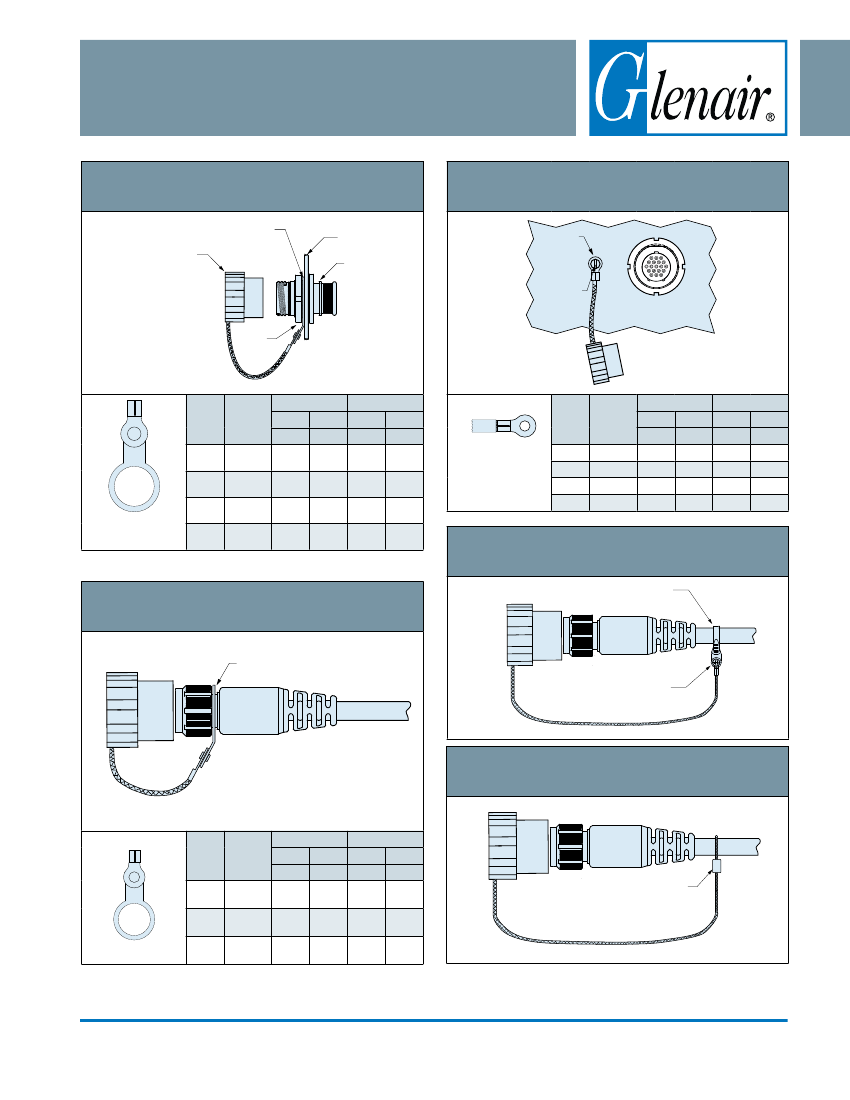

Attaching a 809-190 Receptacle Cover to a
Rear Panel Mounted Jam Nut Receptacle
ATTACHMENT RING
FITS UNDER JAM NUT
PROTECTIVE
COVER
809-190
PANEL
RECEPTACLE
CONNECTOR
STYLE 07
Attaching a Cover to a Panel with a Screw
LUG
TERMINAL
SCREW
CONNECTOR
JAM
NUT
PROTECTIVE
COVER
809-190
Dia. Shell
Code Size
± .010 ±0.25 ± .015 ± 0.38
08
09
11
Solid Ring
5
6
7, 8
9
.385
.445
.570
.635
9.78
11.30
14.48
16.13
.510
.565
.685
.760
12.95
14.35
17.40
19.30
Ring I.D.
In.
mm.
Ring o.D.
In.
mm.
Dia. Screw
Code Size
±.005 ±0.13 Max.
Lug Terminal
.126
3.20 .31
01
#4, M3
for Attaching
#6
.145
3.68 .31
02
Receptacle Covers
.188
4.78 .31
06
#8, M4
to a Panel with a
Screw
#10
.197
5.00 .31
07
Ring I.D.
In.
mm.
Ring o.D.
In.
mm.
Max.
7.9
7.9
7.9
7.9
13

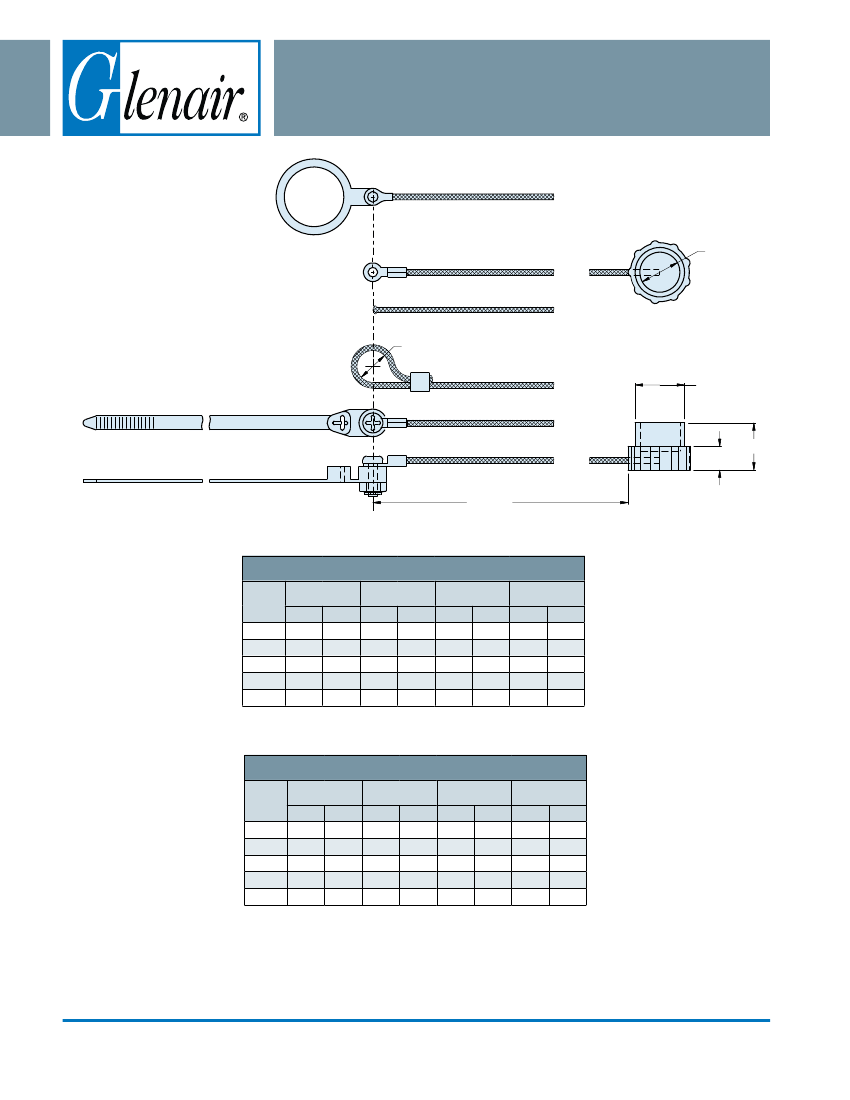

Attaching a Cover to a Cable Assembly
with Type WS Cable Tie
BLACK NYLON CABLE TIE
WITH SST LOCKING TAB
Attaching a Cover to a Cable Assembly
with a Solid Ring
INSTALL RING BEFORE
MOLDING OR BACKSHELL
INSTALLATION
SST SCREW WITH
SELF-LOCKING NUT
Attaching a Cover to a Cable Assembly
with Type SCS Slip Knot
Ring I.D.
In.
mm.
.385
.445
.570
Dia. Shell
Code Size
± .010 ±0.25 ± .015 ± 0.38
08
09
Large Ring
5,6
7
8, 9
9.78
11.30
14.48
.510
.565
.685
12.95
14.35
17.40
Ring o.D.
In.
mm.
FRICTION/CRIMP SLEEVE
11
Dimensions in Inches (millimeters) are subject to change without notice.
© 2011 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
www.glenair.com
23
E-Mail: sales@glenair.com
Mighty Mouse
High Density
Series 811 Mighty Mouse High Density (HD)
Rubber Protective Cover
