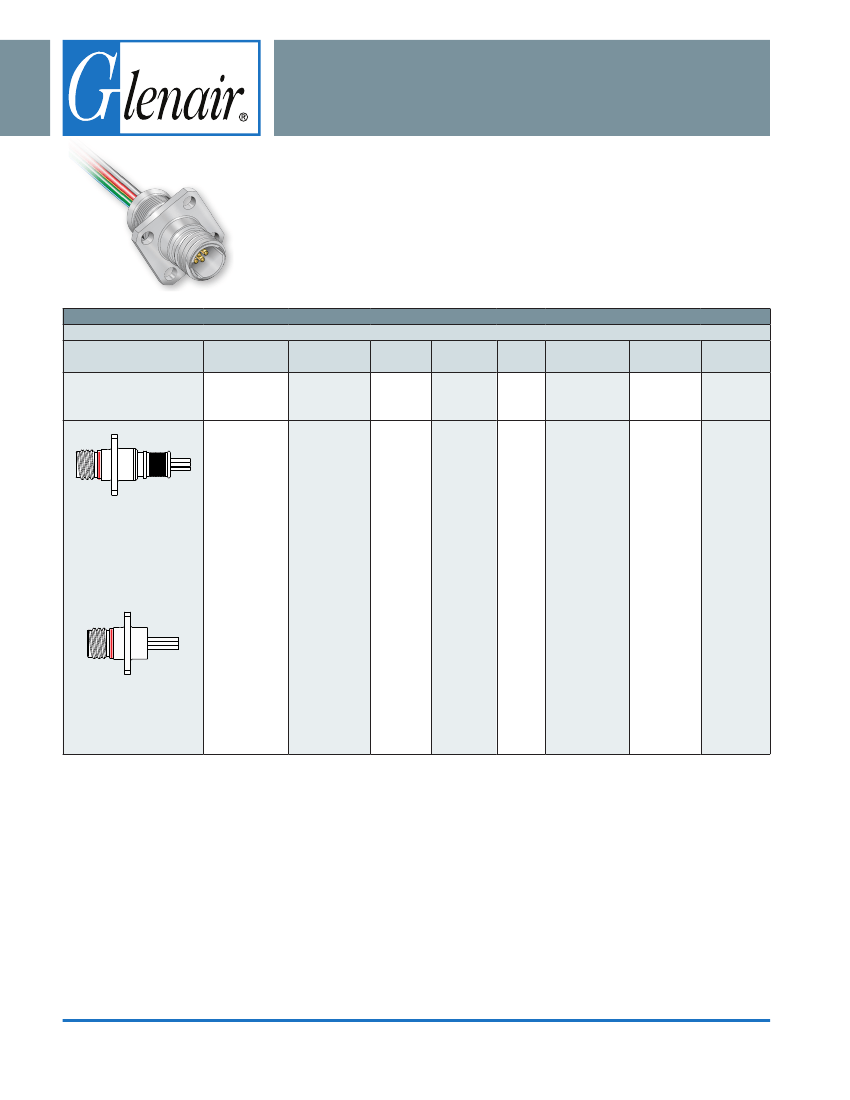

Series 811 Mighty Mouse High Density (HD)
Pre-Wired Square Flange Receptacle Connectors
811-003-02 and 811-004-02
Mighty Mouse
High Density
Square Flange Pigtail Receptacles
Series 811 Mighty Mouse High Density panel mount receptacles feature damage-
resistant double-start ACME mating threads. These receptacles are factory-terminated
to insulated wire and backpotted with epoxy. The TwistPin contact system meets
requirements of MIL-DTL-83513 and provides outstanding resistance to high levels of
shock and vibration. Choose Type K general purpose Teflon® wire or Type J lightweight
space-grade Tefzel® wire. 3A current rating, 600 VAC dielectric withstanding voltage.
HOW TO ORDER SERIES 811 SQUARE FLANGE PIGTAIL RECEPTACLES
Sample Part Number
811-003-02
Series
MT
Shell
Material
and Finish
Electroless
Nickel
5-7
P
A
6
Wire
Size
#26
#28
(Color
code
1 or 7
only)
K
Wire Type
PTFE
insulation,
silver-coated,
200°C,
(M22759/11)
7
Wire
Color
White
-18
Wire
Length
(Inches)
Shell Size - Contact
Key
Insert Arr.
Type
Position
7 Contacts
12 Contacts
22 Contacts
30 Contacts
42 Contacts
ME
MT
ZR
5-7
6-12
7-22
Pin
Contacts
Socket
Contacts
P
S
Normal
Alternate
Key
Positions
A
6
8
K
1
5
Panel Mount Square
Flange Receptacle
Connector with
Termination Platform for
Shield Attachment or
Overmolding
811-003-02
Nickel-PTFE
Black Zinc-
Nickel
8-30
9-42
B
C
D
E
F
Low Profile Panel
Mount Square Flange
Receptacle Connector
*Size 28 AWG and Size 30
AWG J type wire not available in
striped color code 5
811-004-02
Tefzel®
insulation,
high strength
0
lightweight
#30
silver-coated,
(Wire
200°C,
Type J, (M22759/33)
color
code
1 or 7
only)
J
Color code
per MIL-
STD-681 Specify any
(striped)* length from
2 inches to
144 inches
7
10 Solid
colors,
repeating
12
18
36
72
Dimensions in Inches (millimeters) are subject to change without notice.
© 2011 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
