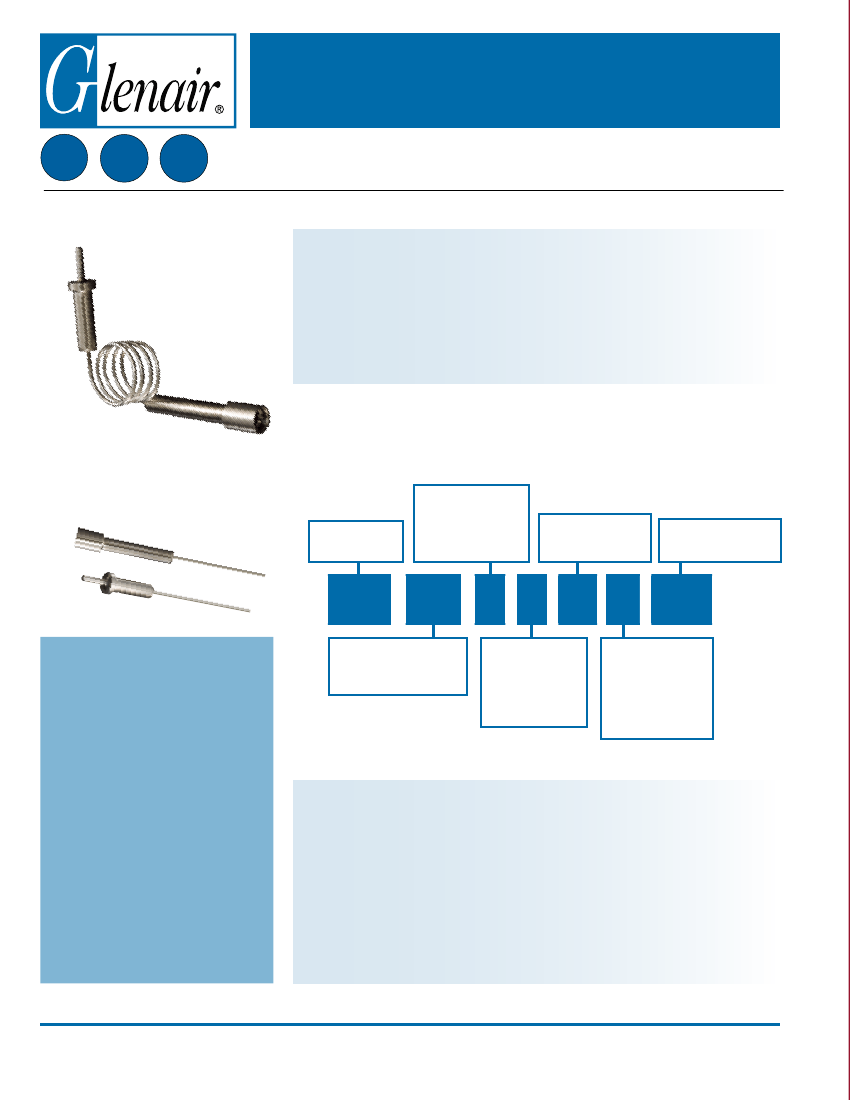

for MIL-DTL-38999 Series II, Glenair Series 79 and Series 80
D38999
Series II
831-002
GT Gas Tube Assemblies
Series
79
Series
80
High-Pressure Assemblies for Pure Gas Pneumatic/Cryogenic Applications
Series 831 GT assemblies provide passage of nitrogen and other pure, pressurized gases
through standard MIL-DTL-38999 Series II as well as Glenair Series 79 and 80 environmental
connectors. These snap-in, rear-release assemblies feature precision stainless steel gas
contacts brazed to semi-rigid stainless steel tubing. The assemblies are fabricated using a flux-
free brazing process, ultrasonically cleaned and packaged in a sealed, dust-free environment.
Available with #12 AWG gas contacts, these assemblies are supplied with two different tubing
sizes, and may be ordered in single ended or pin-to-pin, pin-to-socket and socket-to-socket
configurations. Consult factory for available off-the-shelf lengths or use the part number to
specify a made-to-order length.
#12 assembly for MIL-DTL-38999 Series II, Series 79 and Series 80 environmental connectors. Use part number
development to specify gender, assembly length and tubing type.
831-002 #12 Assembly
for MIL-DTL-38999 Series II, Series 79
and Series 80 Mighty Mouse
A End Contact
Gender
GT Assembly
Series
P = Pin
S = Socket
Contact Size
12 = #12 AWG
Assembly
Length in Inches
831
-
002
-
P
S
12
A
XXX
Why Order
from Glenair?
•
Free Application Engineering
The industry's largest and most
experienced engineering team is
standing by to assist with non-standard
designs and customizations.
MIL-DTL-38999
Series II, Series 79
and Series 80
B End Contact
Gender
N = No Contact
P = Pin
S = Socket
Tubing Size
A = 0.55mm ID,
0.85mm OD
B = 0.8mm ID,
1.6mm OD
Example Part Number: 831-002-PS12A024
•
Delivery
Glenair offers the fastest delivery in the
business—guaranteed.
Material and Finish
•
Quality Control
Every gas tube assembly is 100%
inspected and tested.
•
Local Support
Glenair offers comprehensive worldwide
support on your schedule and at your
convenience.
Contact Body: Passivated Stainless Steel
Internal O-Ring (Socket): High-Pressure Rated Elastomer
Internal Washer (Socket): Temperature and Chemically Resistant Polymer
Particle Filter (Socket): Stainless Steel
Brazing Material: Silver Alloy
Tubing: Stainless Steel
* Please consult the Glenair factory for made-to-order GT contacts, hermetics, mixed
contact AWG assemblies, point-to-point tubing assemblies with unique route and bend
requirements as well as integrated cable harnesses that combine our GT tubing and gas
contacts with standard electrical and/or fiber optic media.
© 2011 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
