5165-005-03-01 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5165-005-03-01

5165-005-03-01: DescriptionTelecom and Datacom Connector, 26 Contact(s), Female, Receptacle; CategoryThe connector The connector; File Size196KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

5165-005-03-01 Overview

Telecom and Datacom Connector, 26 Contact(s), Female, Receptacle

5165-005-03-01 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	COMPATIBLE CONTACT: 8520-292
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	5165
Mixed contacts	NO
Installation type	PANEL
Shell material	THERMOPLASTIC
Total number of contacts	26
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

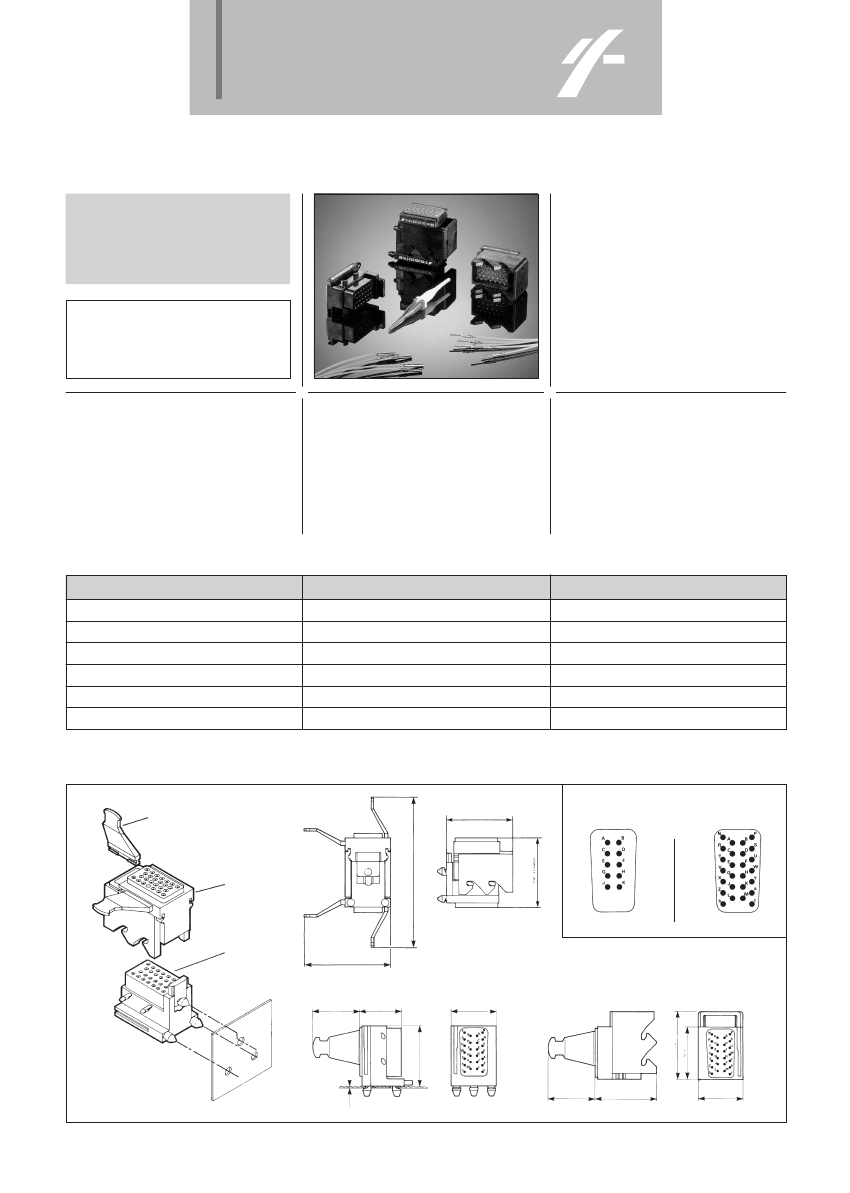

souriau

5165 Series

Applications

Data and signal transmission

applications

Description

• Rectangular connector

• Axial push coupling

and transverse push uncoupling

• Quick snap on structure mounting

Standards

ABS 0364.

Mil C 39029 (contacts)

Characteristics

Mechanical

•

Shell : thermoplastic (UL 94 VO)

Seal : silicone

Contact : copper alloy

Plating : gold over nickel

Shock : 100 g - 6 ms

Vibration : 15 g - 10 Hz to 2000 Hz

Mechanical endurance : 100 operations

Electrical

• Dielectric withstanding voltage :

2300 Vrms - 50 Hz

• Working voltage : 115 Vrms - 50 Hz

• Insulation resistance : 5000 MΩ

• Max current rating per contact : 5 A

Climatic

• Temperature range : - 55°C + 125°C

Part numbers

without contacts

Airbus Industries part numbers

ABS 0364 A10SC

ABS 0364 A26SC

ABS 0364 B10PC

ABS 0364 B26PC

ABS 0364 C

ABS 0364 D

Note : Cable clamp and cap to be ordered separatly.

Souriau part numbers

5165-005-03-02

5165-005-03-01

5165-005-02-02

5165-005-02-01

5165-005-04-01

5165-005-16-01

designation

10 female contacts receptacle

26 female contacts receptacle

10 male contacts plug

26 male contacts plug

cable clamp

protective cap

Dimensions

contact layouts

cable clamp

/ 1.772

viewed rear face of plug

plug

/ 3.740

/ 1.693

10 contacts

receptacle

26 contacts

/ 2.165

receptacle

/ 1.024

24,2

/ 0.953

/ 1.024

plug

0,8

/ 0.031

35,5

/ 1.398

/ 1.024

/ 1.378

/ 1.575

/ 1.220

/ 1.024

193

5165-005-03-01 Related Products

	5165-005-03-01	5165-005-02-01	5165-005-02-02	5165-005-03-02
Description	Telecom and Datacom Connector, 26 Contact(s), Female, Receptacle	Telecom and Datacom Connector, 26 Contact(s), Male, Plug	Telecom and Datacom Connector, 10 Contact(s), Male, Plug	Telecom and Datacom Connector, 10 Contact(s), Female, Receptacle
Maker	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	COMPATIBLE CONTACT: 8520-292	COMPATIBLE CONTACT: 8522-2349A	COMPATIBLE CONTACT: 8522-2349A	COMPATIBLE CONTACT: 8520-292
Body/casing type	RECEPTACLE	PLUG	PLUG	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact point gender	FEMALE	MALE	MALE	FEMALE
DIN compliance	NO	NO	NO	NO
empty shell	YES	YES	YES	YES
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	5165	5165	5165	5165
Mixed contacts	NO	NO	NO	NO
Installation type	PANEL	CABLE	CABLE	PANEL
Shell material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Total number of contacts	26	26	10	10
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
