53405-0210: DescriptionBoard Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size101KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

53405-0210 Overview

Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Receptacle,

53405-0210 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SPOX
body width	0.402 inch
subject depth	0.424 inch
body length	0.282 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER COPPER
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	LIF N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED PBTP
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.156 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	7 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.142 inch
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	2
UL Flammability Code	94V-0
Evacuation force-minimum value	LIF N

Preview

Download Datasheet

View All

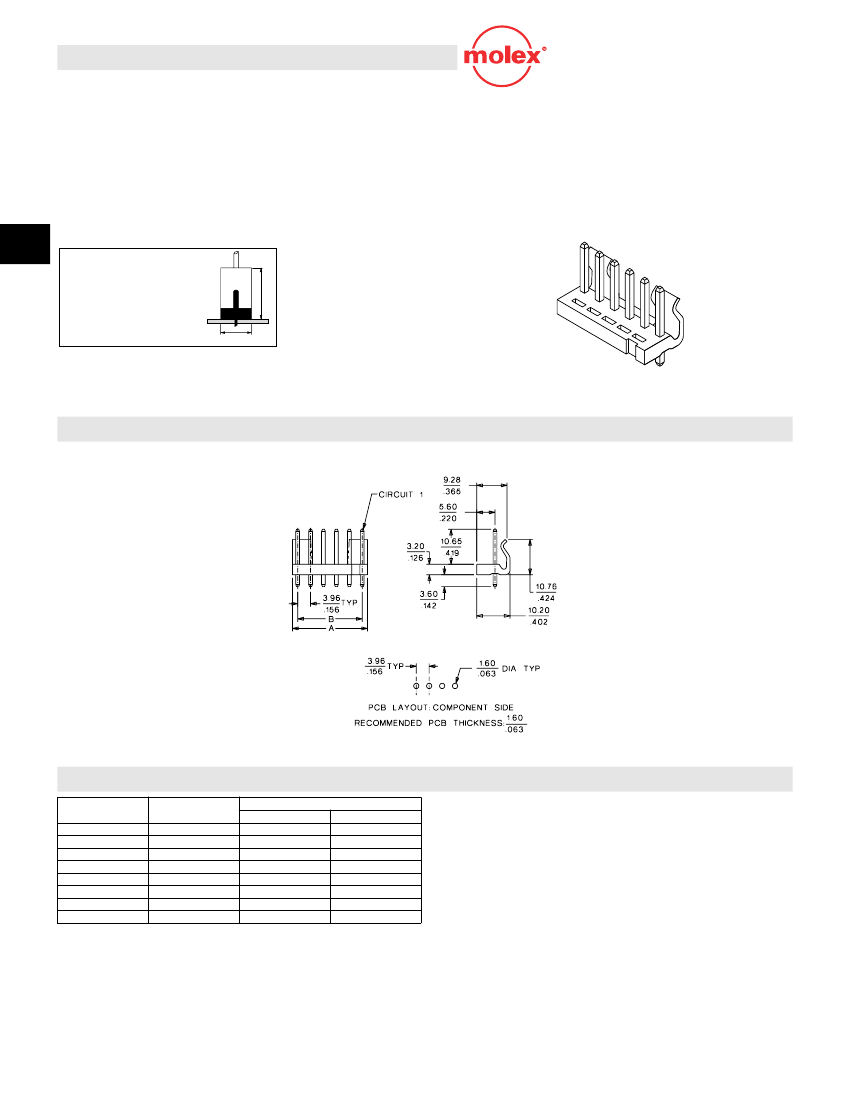

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

s

Sizes 2 to 9 circuits

s

Open back wall provides locking and lower insertion force

Reference Information

Packaging: Bag

UL File No.: E29179

Mates With: 5195-N and 5239-N

Designed In: Millimeters

Electrical

Voltage: 250V

Current: 7.0A

Contact Resistance: 10m

Ω

max.

Dielectric Withstanding Voltage: 1500V AC/1 min.

Insulation Resistance: 1000 M

Ω

min.

Physical

Housing: Glass-ﬁlled PBTP, UL 94V-0

Contact: Brass

Plating: Tin

Operating Temperature: -40 to +105

˚

C

3.96mm (.156") Pitch

SPOX

™

Header

53405

Vertical

Friction Lock

D

3.00 to 7.92mm (.118 to .312") Pitch

Mating Dimensions

1.53405/5195-N/5194 or 5225

H=19.20mm (.756") W=11.80mm

(.465")

2.53405/5239-N/2478 or 5167 or

2578 or 5168

W

H

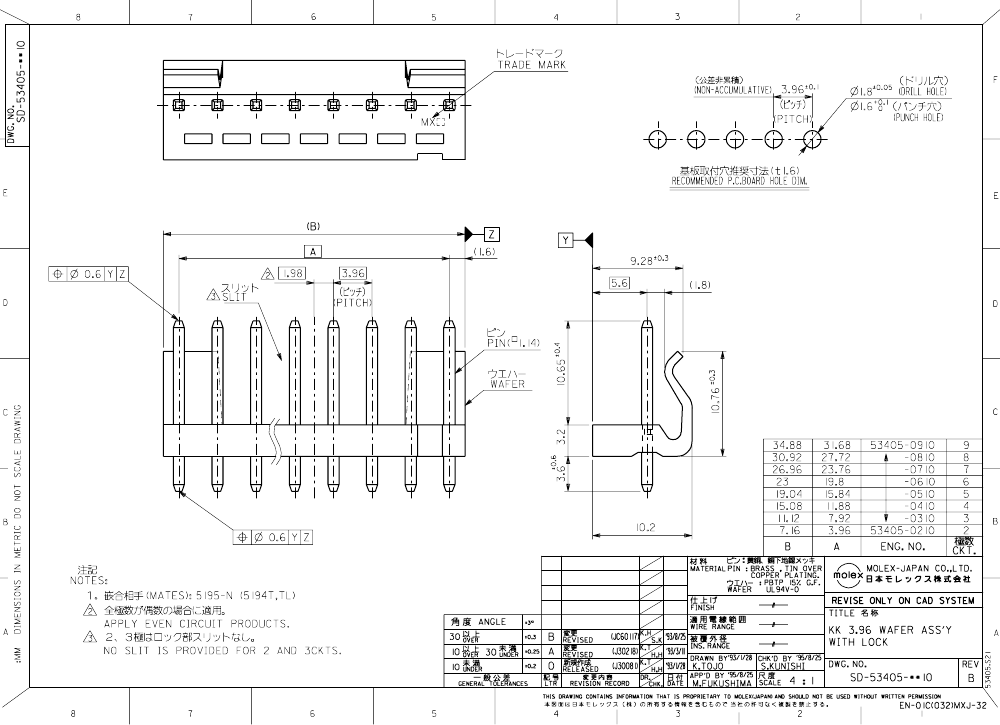

ORDERING INFORMATION AND DIMENSIONS

Circuits

2

3

4

5

6

7

8

9

Order No.

53405-0210

53405-0310

53405-0410

53405-0510

53405-0610

53405-0710

53405-0810

53405-0910

7.16

11.12

15.08

19.04

23.00

26.96

30.92

34.88

Dimension

A

(.282)

(.438)

(.594)

(.750)

(.906)

(1.061)

(1.217)

(1.373)

3.96

7.92

11.88

15.84

19.80

23.76

27.72

31.68

B

(.156)

(.312)

(.468)

(.624)

(.780)

(.935)

(1.091)

(1.247)

D-42

MX01
