543-8-SS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 543-8-SS

543-8-SS: DescriptionTelecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack; CategoryThe connector The connector; File Size43KB，1 Pages; ManufacturerRegal Electronics; Websitehttp://regalusa.net

Download Datasheet Parametric Compare View All

543-8-SS Overview

Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack

543-8-SS Parametric

Parameter Name	Attribute value
Maker	Regal Electronics
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW PROFILE, SHIELDED
Board mount options	SPLIT BOARD LOCK
body width	0.52 inch
subject depth	0.714 inch
body length	0.61 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	30 mΩ
Contact style	TELCOM, MODULAR
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
Plating thickness	6u inch
Guideline	CSA, UL
reliability	COMMERCIAL
Shell material	PBT
Terminal length	0.157 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

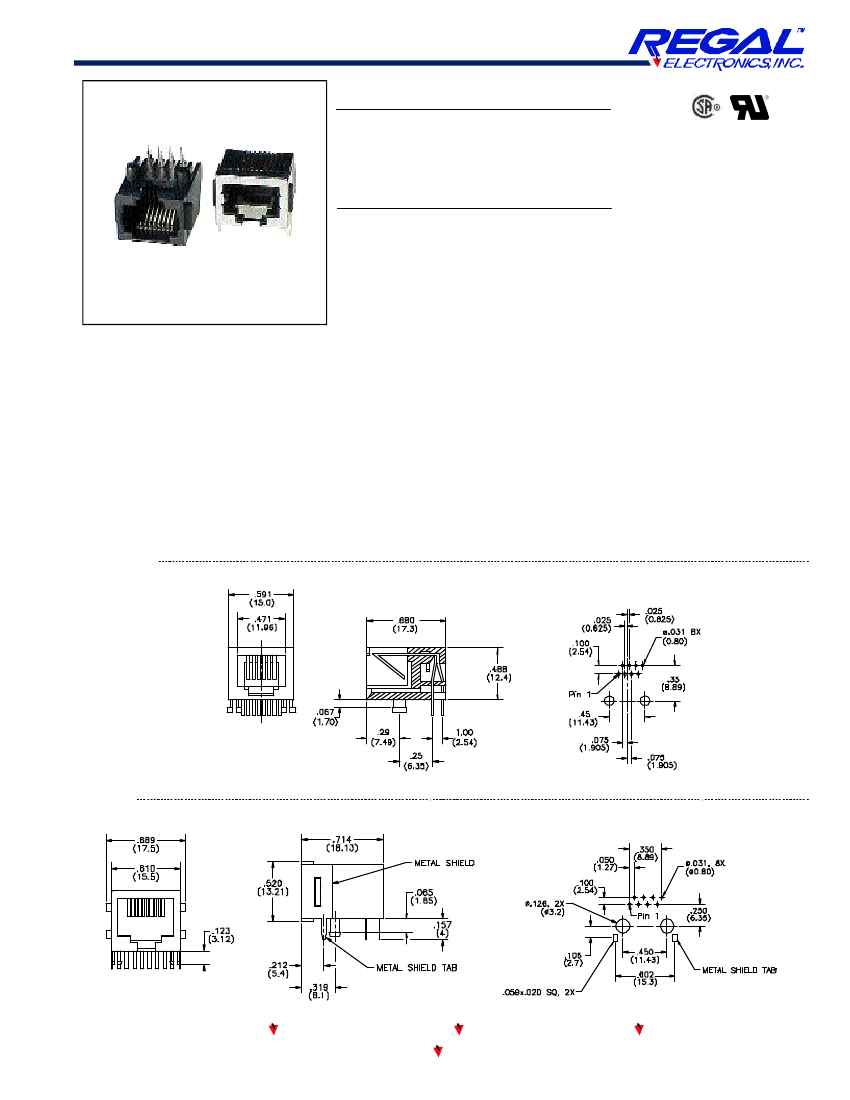

Modular Jacks - .488” Height

543-[*]-[**]

*Number of contacts; Options are:

= 6P4C (6 positions, 4 contacts)

= 6P6C (6 positions, 6 contacts)

= 8P8C (8 positions, 8 contacts)

= 10P10C (10 positions, 10 contacts)

**Type; Options are:

Blank

= unshielded

= Unshielded without panel stops

= shielded

FEATURES:

• Low profile design

• Available in 4, 6, 8, 10 contact styles

• Shielded and unshielded

ELECTRICAL:

• Insulation resistance : 500 megohms minimum

• Dielectric withstanding voltage: 1000 VAC

• Contact resistance: 30 milliohms maximum

MATERIAL:

• Insulator: UL94V-0 / PBT glass filled

• Contacts: Phosphor bronze

• Plating: 6µ” gold contact area over nickel underplate

• Color: Black

• Operating temperature: -55°C to 105°C

Unshielded

PC Board

Top View

Shielded

PC Board

Top View

021008

1141 N.Fair Oaks Avenue Sunnyvale, CA 94089

Phone 800/882-8086 Fax 800/345-2831

Visit www.regalusa.com

E-mail hal@regalusa.com

543-8-SS Related Products

	543-8-SS	543-4-SS	543-10-SS
Description	Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 10 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack
Maker	Regal Electronics	Regal Electronics	Regal Electronics
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Other features	LOW PROFILE, SHIELDED	LOW PROFILE, SHIELDED	LOW PROFILE, SHIELDED
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.52 inch	0.52 inch	0.52 inch
subject depth	0.714 inch	0.714 inch	0.714 inch
body length	0.61 inch	0.61 inch	0.61 inch
Body/casing type	JACK	JACK	JACK
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	30 mΩ	30 mΩ	30 mΩ
Contact style	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR
DIN compliance	NO	NO	NO
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V
empty shell	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω
Insulator color	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO	NO	NO
Mixed contacts	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of ports	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED
Plating thickness	6u inch	6u inch	6u inch
Guideline	CSA, UL	CSA, UL	CSA, UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell material	PBT	PBT	PBT
Terminal length	0.157 inch	0.157 inch	0.157 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	8	4	10
UL Flammability Code	94V-0	94V-0	94V-0
