9155 Standard Battery
GENERAL DESCRIPTION
The standard battery connector is specifically designed for mobile equipment.
The connectors are available in 3, 4 and 5 contact positions all on a 2.50mm
pitch. The insulator height provides a 3mm spacing, with various contact
nose heights from 1.20mm to 2.60mm, to provide spacing options to the
end user.
All contacts are stamped and are rated to 3A, with Gold plating. Parts are
supplied in tape and reel for automatic pick and place. Optional retaining
brackets are available to provide greater strength when connected to the PCB.
Whatever your requirements, the 9155 series Battery Connector can also be
customized to suit your applications.
APPLICATIONS
•
•
•
•
•
Mobile Phones
PDA
Medical
PMR
Industrial
KEY FEATURES AND BENEFITS
•
•
•
•
Suitable for 5000 mechanical cycles.
Variety of contact heights offered to suit different mechanical designs.
Connectors can be end to end stackable.
RoHS Compliant available.

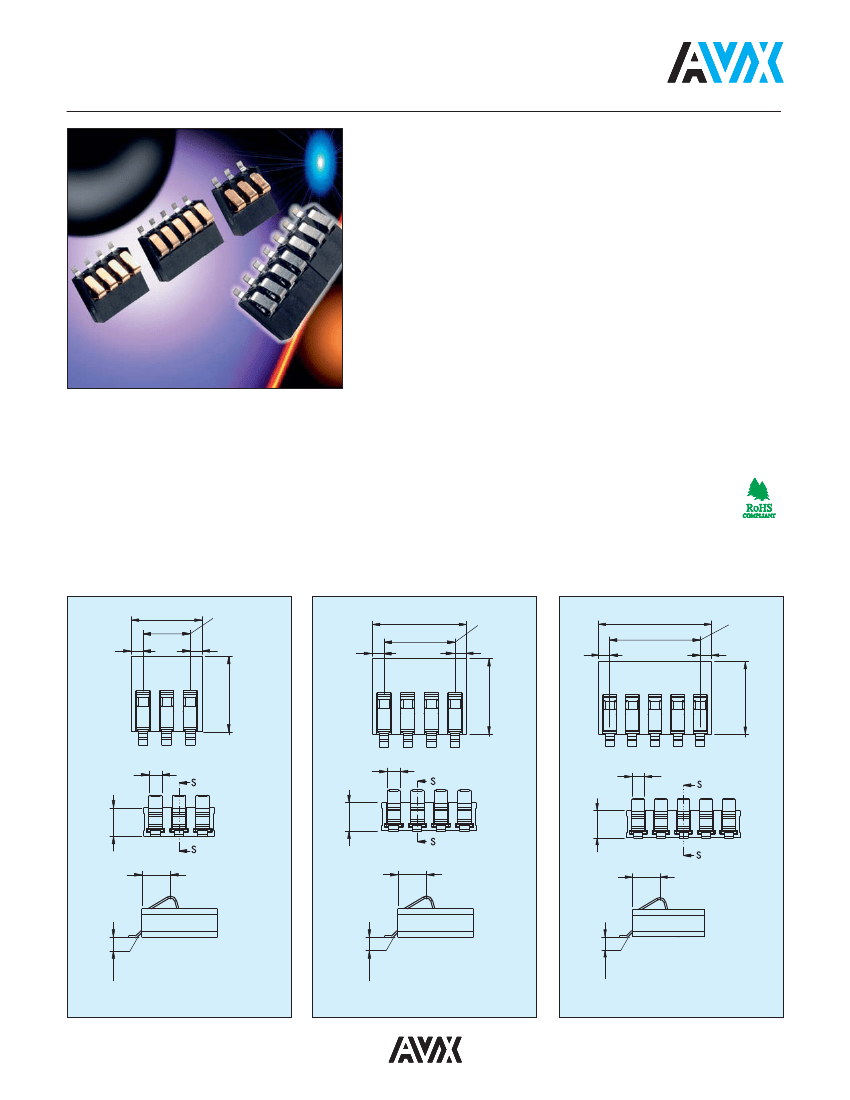

3 Way
Battery Connector
7.50 (0.295)
2 PITCHES
@ 2.5 = 5.00
(0.098 = 0.197)
1.25 (0.049)
4 Way
Battery Connector
10.00 (0.394)
3 PITCHES
@ 2.5 = 7.50
(0.098 = 0.295)
1.25 (0.049)
1.25
(0.049)
5 Way
Battery Connector
12.50 (0.492)
4 PITCHES
@ 2.5 = 10.00
(0.098 = 0.394)
1.25 (0.049)
1.25
(0.049)
1.25
(0.049)
8.00
(0.315)
1.40 (0.055) REF
3.00 ± 0.08
(0.118 ± 0.003)
1.40 (0.055) REF
8.00
(0.315)
1.40 (0.055) REF
3.00 ± 0.08
(0.118 ± 0.003)
8.00
(0.315)
3.00 ± 0.08
(0.118 ± 0.003)
3.05
(0.120)
TYP
3.05
(0.120)
TYP
3.05
(0.120)
TYP
CONTACT TAILS TO BE
WITHIN A 0.1 (0.004)
COPLANARITY RANGE
WHEN INSULATOR IS
SITTING ON DATUM FACE.
CONTACT TAILS TO BE
WITHIN A 0.1 (0.004)
COPLANARITY RANGE
WHEN INSULATOR IS
SITTING ON DATUM FACE.
CONTACT TAILS TO BE
WITHIN A 0.1 (0.004)
COPLANARITY RANGE
WHEN INSULATOR IS
SITTING ON DATUM FACE.
0.00 +0.10 -0
(0.00 +0.004 -0)
0.00 +0.10 -0
(0.00 +0.004 -0)
0.00 +0.10 -0
(0.00 +0.004 -0)
2
9155 Standard Battery

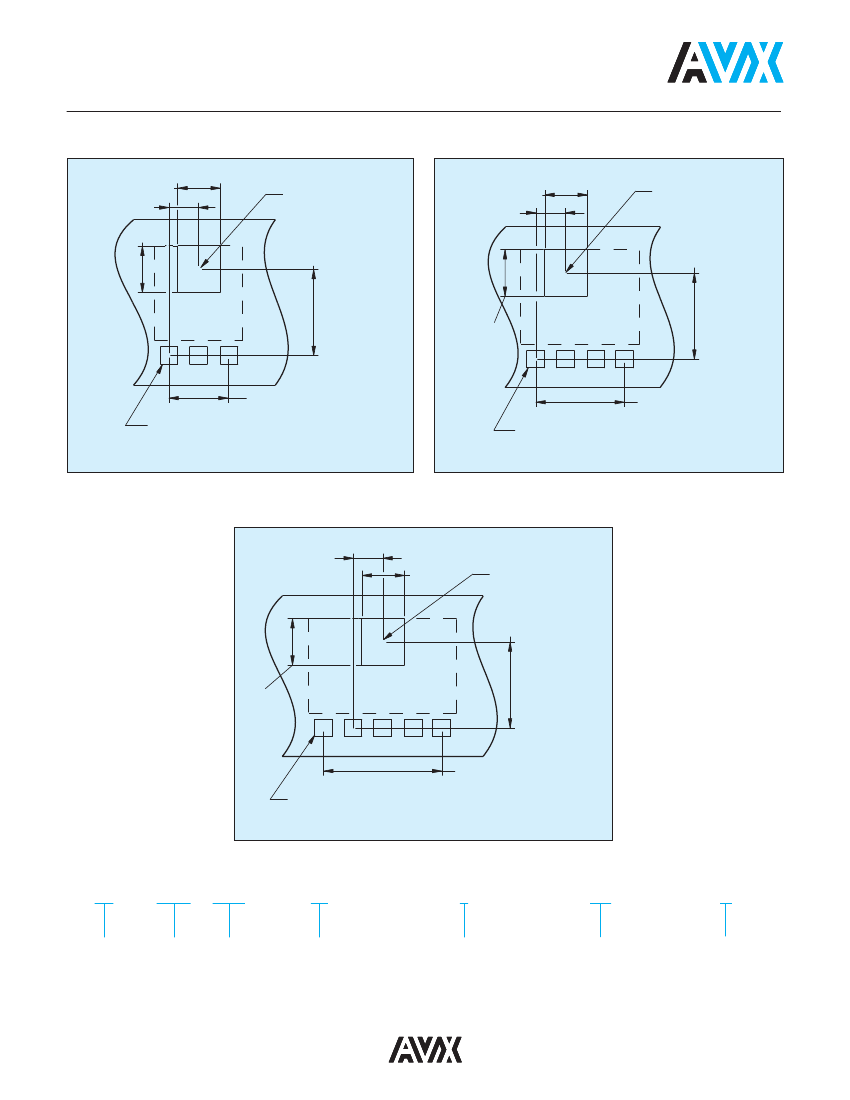

3 Way PCB Board Layout
3.60 (0.142)
2.50 (0.098)
3.95
(0.156)
7.30
(0.287)
7.30
(0.287)
BRACKET PAD AREA
(ELECTRICALLY ISOLATED)
4 Way PCB Board Layout
3.60 (0.142)
2.50 (0.098)
BRACKET PAD AREA
(ELECTRICALLY ISOLATED)
3.95
(0.156)
PAD 1.50 X 1.50
(0.059 X 0.059)
(3 POSITIONS)
2 PITCHES
@ 2.5 = 5.00
(0.098 = 0.197)
PAD 1.50 X 1.50
(0.059 X 0.059)
(4 POSITIONS)
3 PITCHES
@ 2.50 = 7.50
(0.098 = 0.295)
5 Way PCB Board Layout
2.50 (0.098)
3.60
(0.142)
BRACKET PAD AREA
(ELECTRICALLY ISOLATED)
7.30
(0.287)
3.95
(0.156)
PAD 1.50 X 1.50
(0.059 X 0.059)
(5 POSITIONS)
4 PITCHES
@ 2.5 = 10.00
(0.098 = 0.394)
HOW TO ORDER
00
9155
003
00
1
00
6
Prefix
00 = Standard
58 = Special
Series
No of
Ways
3 = 003
4 = 004
5 = 005
Standard Battery
Connector
00 = Standard Force
Contact Height
1 = 1.20 (0.047) / 1.50 (0.059)
2 = 1.80 (0.071) / 2.10 (0.083)
3 = 2.30 (0.091) / 2.60 (0.102)
Bracket
00 = No Bracket
01 = With Bracket
Plating Option
6 = 0.4μm Selective Gold,
Pure Tin Tail
8 = 0.8μm Selective Gold,
Pure Tin Tail
3
