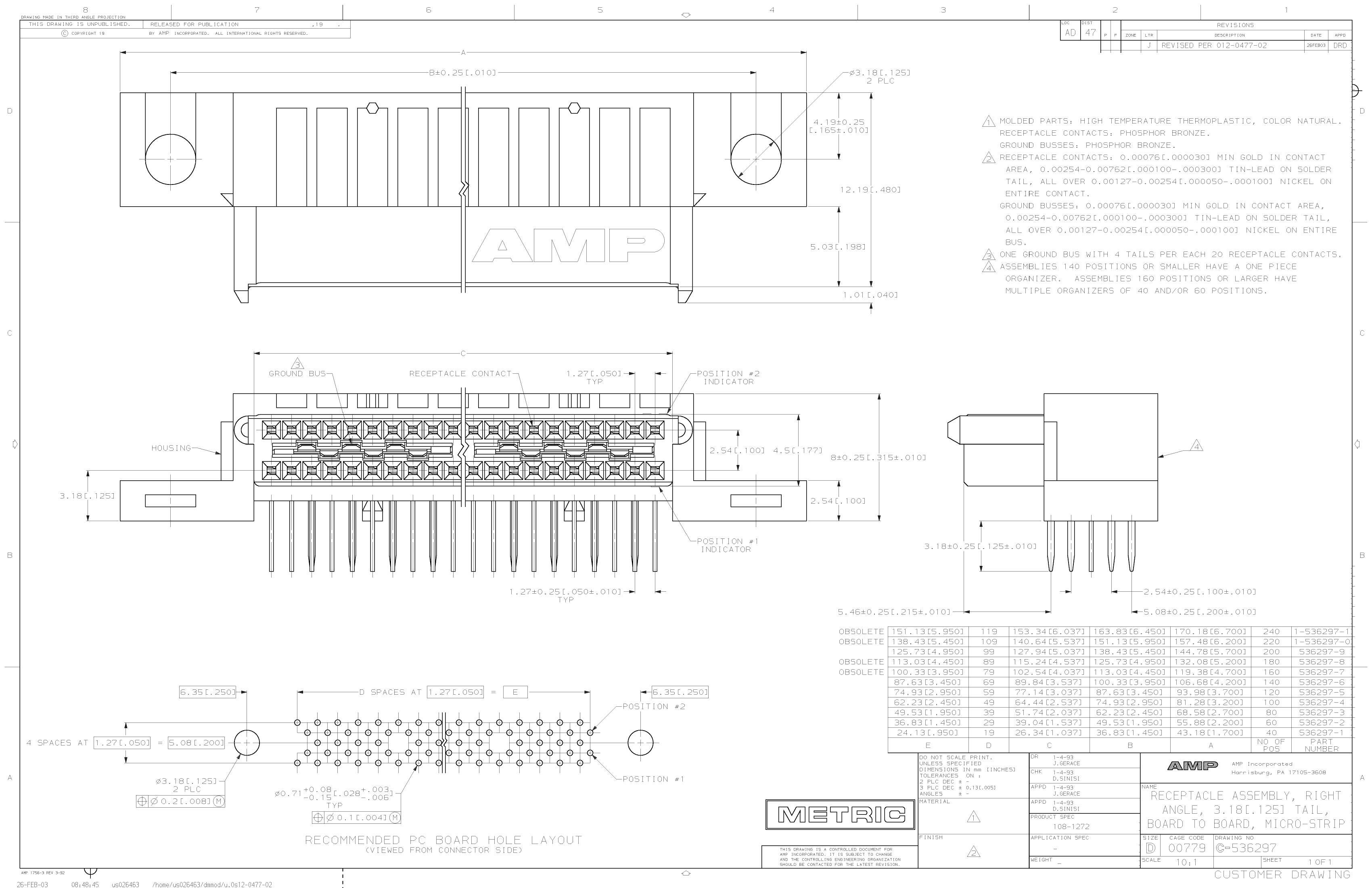

HEADER CONNECTOR,PCB MNT,PLUG,160 CONTACTS,SKT,0.05 PITCH,PC TAIL TERMINAL,GUIDE PIN,NATURAL
| Parameter Name | Attribute value |
| Maker | TE Connectivity |
| Reach Compliance Code | unknown |
| Other features | HIGH-TEMPERATURE |
| Board mount options | HOLE .125 DIA.TYP |
| body width | 0.315 inch |
| subject depth | 0.52 inch |
| body length | 4.7 inch |
| Body/casing type | PLUG |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact completed and terminated | TIN OVER NICKEL |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact style | SQ PIN-SKT |
| Insulator color | NATURAL |
| insulator material | THERMOPLASTIC |
| Manufacturer's serial number | 536297 |
| Plug contact pitch | 0.05 inch |
| Match contact row spacing | 0.1 inch |
| Installation option 1 | GUIDE PIN |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 5 |
| Number of rows loaded | 3 |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 1.27 mm |
| Plating thickness | 30u inch |
| polarization key | POLAR PIN POSITION |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.125 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 160 |
| 536297-7 | 1-536297-0 | 1-536297-1 | 536297-8 | |
|---|---|---|---|---|
| Description | HEADER CONNECTOR,PCB MNT,PLUG,160 CONTACTS,SKT,0.05 PITCH,PC TAIL TERMINAL,GUIDE PIN,NATURAL | CONNECTOR, 220 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE | CONNECTOR, 240 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE | HEADER CONNECTOR,PCB MNT,PLUG,180 CONTACTS,SKT,0.05 PITCH,PC TAIL TERMINAL,GUIDE PIN,NATURAL |
| Reach Compliance Code | unknown | unknow | unknown | unknown |
| Other features | HIGH-TEMPERATURE | STAGGERED CONFIGURATION | STAGGERED CONFIGURATION | HIGH-TEMPERATURE |
| Body/casing type | PLUG | RECEPTACLE | RECEPTACLE | PLUG |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE |
| Manufacturer's serial number | 536297 | 536297 | 536297 | 536297 |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | BOARD |
| Number of rows loaded | 3 | 2 | 2 | 3 |
| Terminal pitch | 2.54 mm | 1.27 mm | 1.27 mm | 2.54 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 160 | 220 | 240 | 180 |
